ID # 13553891

Fisher SKID-STEER Loader

  • Fisher SKID STEER Loader
  • Video Button Hqdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

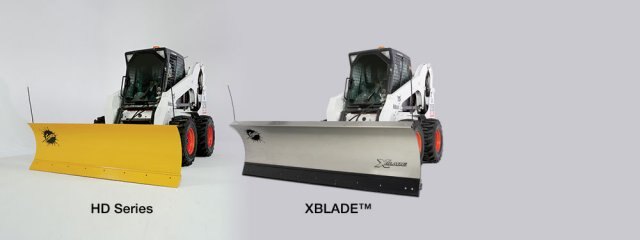

XBLADE™ for Skid-Steers
3808

Available in corrosion-resistant stainless steel, the FISHER® XBLADE™ is built for tough commercial or municipal applications. In both 8’ and 9’ widths, the XBLADE features exclusive x-bracing ribs across the entire back of the blade providing superior structural rigidity. Mounted on your skid-steer loader, the XBLADE provides all the features you need for reliable, high-performance plowing.
HD Series for Skid-Steers
3807

The rugged FISHER® HD Series snow plows are built to withstand the rigors of all commercial plowing applications. Available in 7½’, 8’, 8½’ and 9’ widths, HD Series snow plows are reinforced with 8 vertical ribs for structural integrity.
Universal Skid-Steer Mounting Plate
3802

The universal skid-steer loader mounting plate makes hook-up fast and easy.
Trip Edge Protection

Like all FISHER® commercial-grade snowplows, the XBLADE™ and HD Series for Skid-Steers feature trip edge protection to get over bumps and obstacles, helping to protect the equipment and the operator.  Since only the edge trips, snow stays in front of the blade, so you can keep on going without dumping the entire load of snow.
STORM GUARD™ Baked-On Powder Coat for HD Series

The industry’s best protection against wear and rust. The automated climate-controlled powder booth ensures uniform coverage to all surfaces. An epoxy primer enhances powder coat adhesion and improves corrosion resistance. Plus, our trademark FISHER® yellow finish was reformulated to maintain that new snow plow look even longer.
  Specifications
Model Blade Width Blade Height Blade Gauge Trip Springs Ribs Angling Rams Plowing Width
(Full Angle)		 Approx. Weight Wear Shoes Cutting Edge
XBLADE™ XBLADE™ 8' 2.44m 31" 78.74cm 12 2.78mm 4 4 10 10 1½" x 12" 3.81 x 30.48cm 7' 1" 2.16m 790 lb. 358kg Optional Optional 1/2" x 6" optional 1.27 x 15.24cm optional
XBLADE™ XBLADE™ 9' 2.74m 31" 78.74cm 12 2.78mm 4 4 10 10 1½" x 12" 3.81 x 30.48cm 7' 11" 2.41m 835 lb. 378kg Optional Optional 1/2" x 6" optional 1.27 x 15.24cm optional
HD Series HD Series 7½' 2.29m 29" 73.66cm 12 2.78mm 3 3 8 8 1½" x 12" 3.81 x 30.48cm 6' 7" 2.01m 630 lb. 285kg Standard Standard 1/2" x 6" optional 1.27 x 15.24cm optional
HD Series HD Series 8' 2.44m 29" 73.66cm 11 3.18mm 4 4 8 8 1½" x 12" 3.81 x 30.48cm 7' 1" 2.16m 717 lb. 325kg Standard Standard 1/2" x 6" optional 1.27 x 15.24cm optional
HD Series HD Series 8½' 2.59m 29" 73.66cm 11 3.18mm 4 4 8 8 1½" x 12" 3.81 x 30.48cm 7' 6" 2.29m 731 lb. 331kg Standard Standard 1/2" x 6" optional 1.27 x 15.24cm optional
HD Series HD Series 9' 2.74m 29" 73.66cm 11 3.18mm 4 4 8 8 1½" x 12" 3.81 x 30.48cm 7' 11" 2.41m 745 lb. 337kg Standard Standard 1/2" x 6" optional 1.27 x 15.24cm optional





Specifications
Model
SKID-STEER Loader
Category Name
Equipment
Year
2017
Sale Type
New
Manufacturer
Fisher
