ID # 13553886

Fisher XBLADE™

  • Fisher XBLADE™
  • Video Button Hqdefault
  • Video Button Hqdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

Trip-Edge Design

Only the edge of the blade trips when an obstacle is encountered. It’s much less jarring than a full-trip blade, and because the plow blade stays upright, plowed snow remains in front of the blade.

The FISHER® trip edge uses compression-type springs. They never need adjusting and don’t stretch like extension springs.

Rugged Moldboard http://www.fisherplows.com/bin/3069.jpg

The blade is a full 31” high for plowing through the deepest snows.

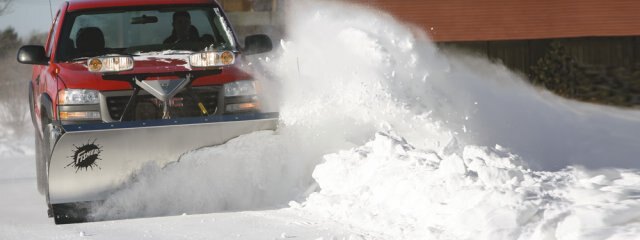

Available in 8’ and 9’ blade sizes, the XBLADE™ moldboard is built of premium corrosion-resistant stainless steel, for a plow that’s as rugged as it is striking, for the ultimate in durability and performance that hardworking professionals demand.

Xtreme X-BRACING

3066

Exclusive X-BRACING features two vertical and eight diagonal ribs – unsurpassed in the industry – for providing superior torsional strength and rigidity to eliminate moldboard stress.

Attack Angle & Curl

694

The XBLADE™ features an extreme 75-degree attack angle – more aggressive than any other straight blade – for exceptional ice breaking and scraping.

The blade curls to a full 10” overhang for optimum snow rolling and foiling action to keep snow off the windshield.

Double Angle Base Angle

696

The extreme double angle base angle design provides superior strength and rigidity to eliminate stress on the blade.

1” base angle pins provide added strength for a longer life, and the high-carbon steel wear pads provide the longest cutting edge wear of any on the market.

Minute Mount® 2 Snowplow Mounting System

A simple and trouble-free attachment system available.

Its 100% mechanical design means there are no electrical components or hydraulic components to fail.

The attachment arms and lower gear are flared both vertically and horizontally to make the drive-in connection easy.

Reliable Hydraulics

We build our own hydraulics for unmatched speed and durability. Fast hydraulics allow you to change the blade position quickly and easily for efficient plowing. All critical hydraulic components are fully enclosed for protection from the elements.

Chain Lift System

With the chain lift system, you get instantaneous “float” when lowering the blade. Unrestricted, the blade can freely follow the contours of the plowing surface for a cleaner scrape.

With the chain lift you can stack higher because you’re not limited by the hydraulic ram stroke.

In the rare event of a hydraulic failure, you can push the plow up into a snow bank and “short chain” the plow by attaching it to the specially designed bracket and safely transport the plow back to the shop

In-Cab Plow Controls

Choose between the convenient hand-held Fish-Stik® control or the compact joystick control for efficient, intuitive plow blade control.

Fish-Stik Control

The convenient hand-held control with backlit directional buttons provides precise response. Features power “on” and “float” LED and automatic shut-off.

Compact Joystick Control

The compact joystick control features a plug-in connector for easy removal and on/off indicator light.
FLEET FLEX Electrical System

One Truck. One Control. Any Plow.

4479

With the FISHER® FLEET FLEX Electrical System, you have true fleet interchangeability. Unlike other manufacturers who require a different control for different plows, the FISHER FLEET FLEX system lets you operate all plows using ONE CONTROL.

Features include:

Universal Fish-Stik® Hand-held or Joystick Controls

Programmable "soft-stop" and "one-touch" float

Built-In SECURITY GUARD™ Anti-Theft System

Easy operation and increased reliability

Simple wiring and easier installation

INTENSIFIRE™ Halogen Headlamps

The state-of-the-art reflector optics provide a smooth wide beam pattern that illuminates the entire plowing surface, with minimal glare above the lamp, especially during snowfall.

1,500 hour, H I 3, long-life headlamp bulb minimizes bulb replacement over the life of the lamp.

Three-screw bulb access cover attachment and twist-in headlamp bulb makes replacement quick and easy.

Lens is adhesive bonded to the reflector and the reflector is adhesive bonded to the housing, sealing out water that could potentially freeze and damage the assembly.

Robust, two-stud mounting keeps the lamp in its original mounting position – even when subjected to the harshest shock and vibration forces.

SECURITY GUARD™ Anti-Theft System

The exclusive FISHER® SECURITY GUARD™ Anti-Theft System is a safe and secure way to electronically “lock” your snow plow while it is detached from the truck, providing a deterrent from theft or non-permitted use.

Unlike physical locks that can be cut or removed, the SECURITY GUARD Anti-Theft System electronically synchronizes your control and plow module. When activated, it disables the electronic control system and renders the snow plow inoperable to unauthorized users.
  Specifications
Blade Width Blade Height Blade Gauge Trip Springs Ribs Angling Rams Plowing Width
(Full Angle)		 Approx. Weight Wear Shoes Cutting Edge
8' 2.44m 31" 78.74cm 12 2.78mm 4 4 10 10 1½" x 12" 3.81 x 30.48cm 7' 1" 2.16m 790 lb 358kg Optional Optional 1/2" x 6" 1.27 x 15.24cm
9' 2.74m 31" 78.74cm 12 2.78mm 4 4 10 10 1½" x 12" 3.81 x 30.48cm 7' 11" 2.41m 835 lb 378kg Optional Optional 1/2" x 6" 1.27 x 15.24cm





Specifications
Model
XBLADE™
Category Name
Equipment
Year
2017
Sale Type
New
Manufacturer
Fisher
