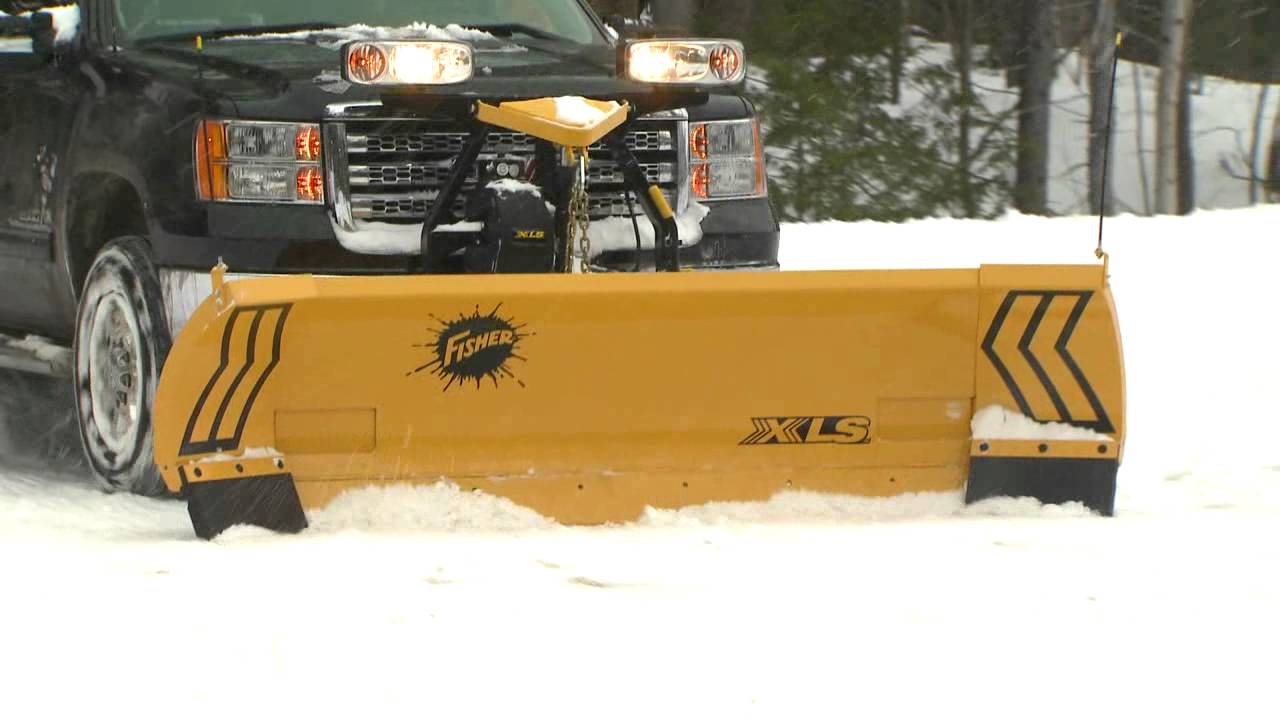

Blade Configurations

Position your plow for maximum plowing efficiency at the touch of a button.
The 8’ retracted position is perfect for transport and for narrow access areas, such as drive-through lanes or tight windrowing areas.

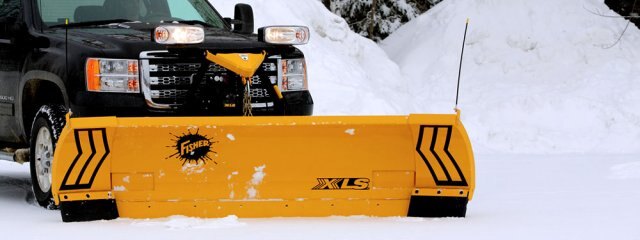

The 10’ expanded-width position lets you take wider passes in larger, wide-open spaces.
For unmatched windrowing productivity, angle the leading wing forward with the trailing wing extended, and you can use the full blade without spillover. Unparalleled windrowing efficiency, with no spillover on passes, reduces cleanup time.
For the ultimate in snow-carrying capacity, angle both wings forward for an 8’ 10” scoop. The XLS™ can fully angle in the scoop position to effectively carry snow around corners, and maneuver in congested parking lots, something V-plows cannot do.

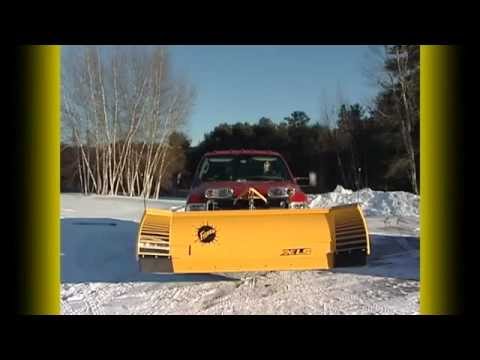

Scoop Mode

The width and carrying area of the XLS™ plow in scoop mode delivers significantly greater snow carrying capacity. Plus, the XLS can fully angle in the scoop position to maximize plow handling and capacity – ideal for carrying large quantities of snow and plowing around corners, in congested parking lots, and along street curbs and sidewalks.

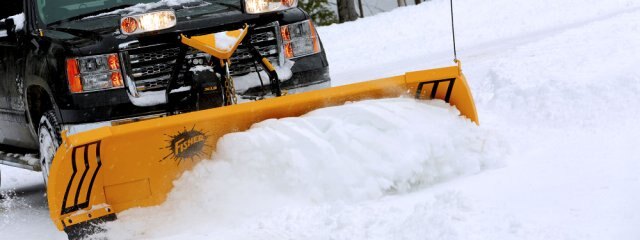

Windrowing

The independently controlled wings on the XLS™ take windrowing to a whole new level. In a straight-blade position, plows must use less of a blade width with each pass to keep snow from flowing off the leading edge. With the XLS, you can expand and angle the leading wing forward, so snow is directed into the moldboard to eliminate spill-off. You can use the entire blade width to make the most of every pass. The expanded trailing wing also extends the clearing area of the plow beyond truck tires. This eliminates snow loss under your vehicle and effectively reduces windrow passes and cleanup.

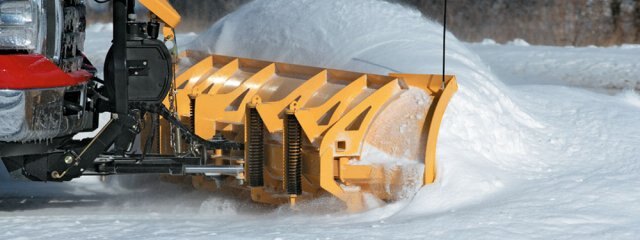

Structural Support

The heavy-duty blade construction features eight vertical ribs plus one rib on each wing for extra strength.
Hydraulic wing extensions slide laterally across the structurally reinforced slide box. The tough construction of this channel provides excellent torsional blade strength and prevents distortion under heavy loads.
Durable polyurethane wing-cutting edges reduce wear and protect the blade – allowing it to “trip” in any position.
With the FISHER® Trip-Edge design, four trip springs protect you, your plow and your vehicle.

Minute Mount® 2 Snowplow Mounting System



A simple and trouble-free attachment system available.
Its 100% mechanical design means there are no electrical components or hydraulic components to fail.
The attachment arms and lower gear are flared both vertically and horizontally to make the drive-in connection easy.

Chain Lift System

With the chain lift system, you get instantaneous “float” when lowering the blade. Unrestricted, the blade can freely follow the contours of the plowing surface for a cleaner scrape.
With the chain lift you can stack higher because you’re not limited by the hydraulic ram stroke.
In the rare event of a hydraulic failure, you can push the plow up into a snow bank and “short chain” the plow by attaching it to the specially designed bracket and safely transport the plow back to the shop.


Universal In-Cab Plow Controls

Choose between the convenient hand-held Fish-Stik® control or the compact joystick control for efficient, intuitive plow blade control.
Fish-Stik Control
The convenient hand-held control with backlit directional buttons provides precise response. Features power “on” and “float” LED and automatic shut-off.
Compact Joystick Control
The compact joystick control features a plug-in connector for easy removal and on/off indicator light.
