ID # 17801001

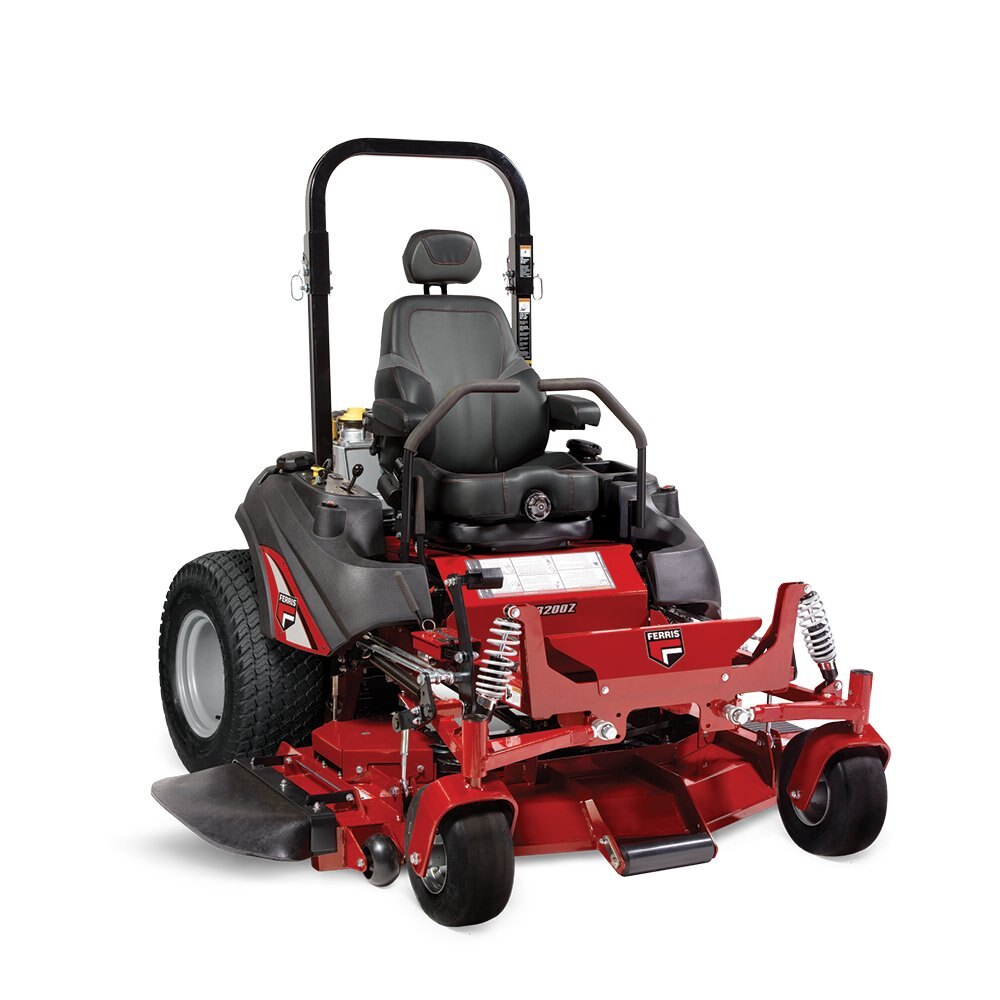

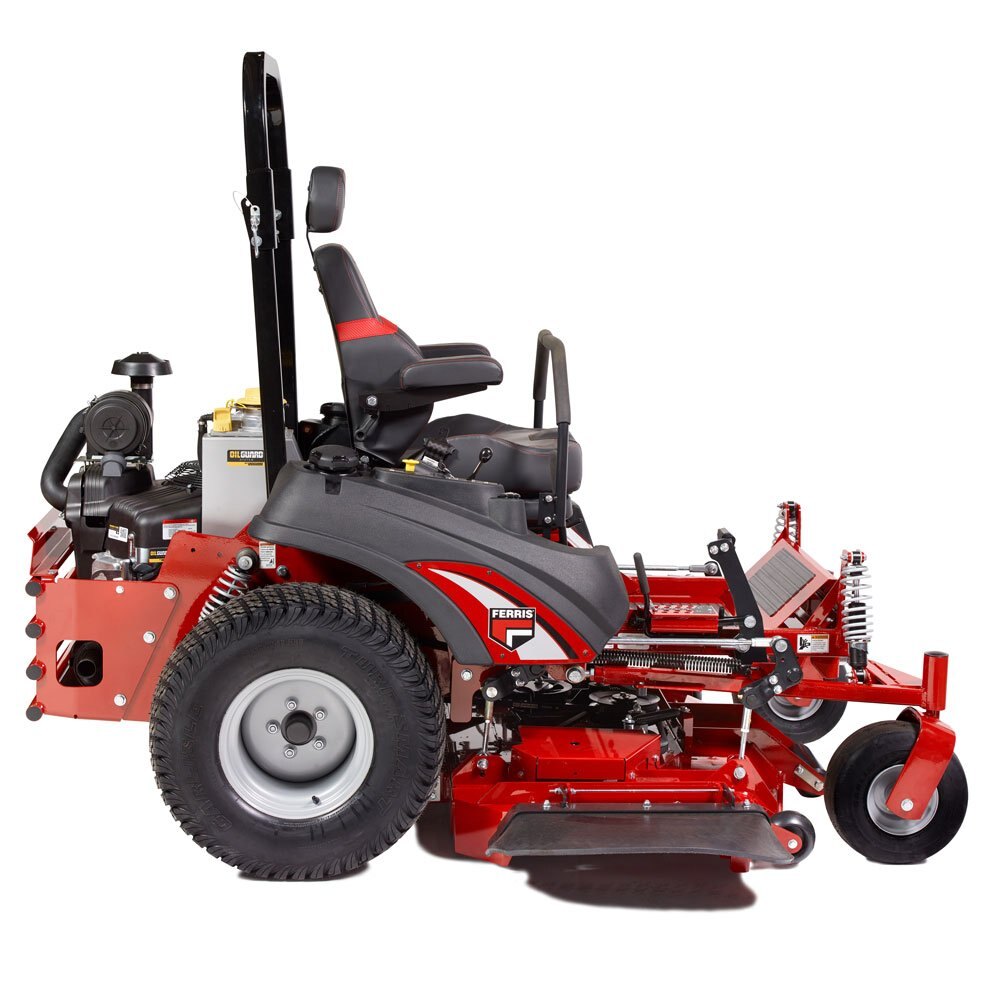

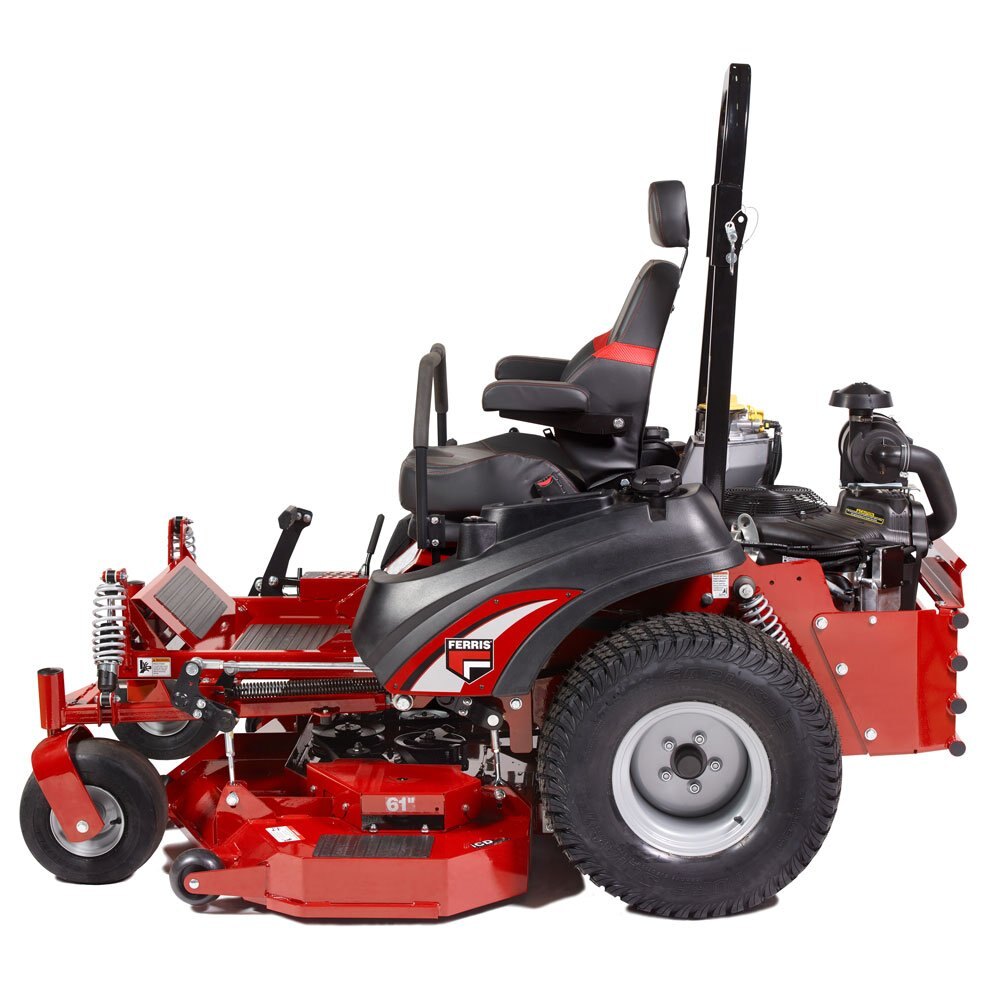

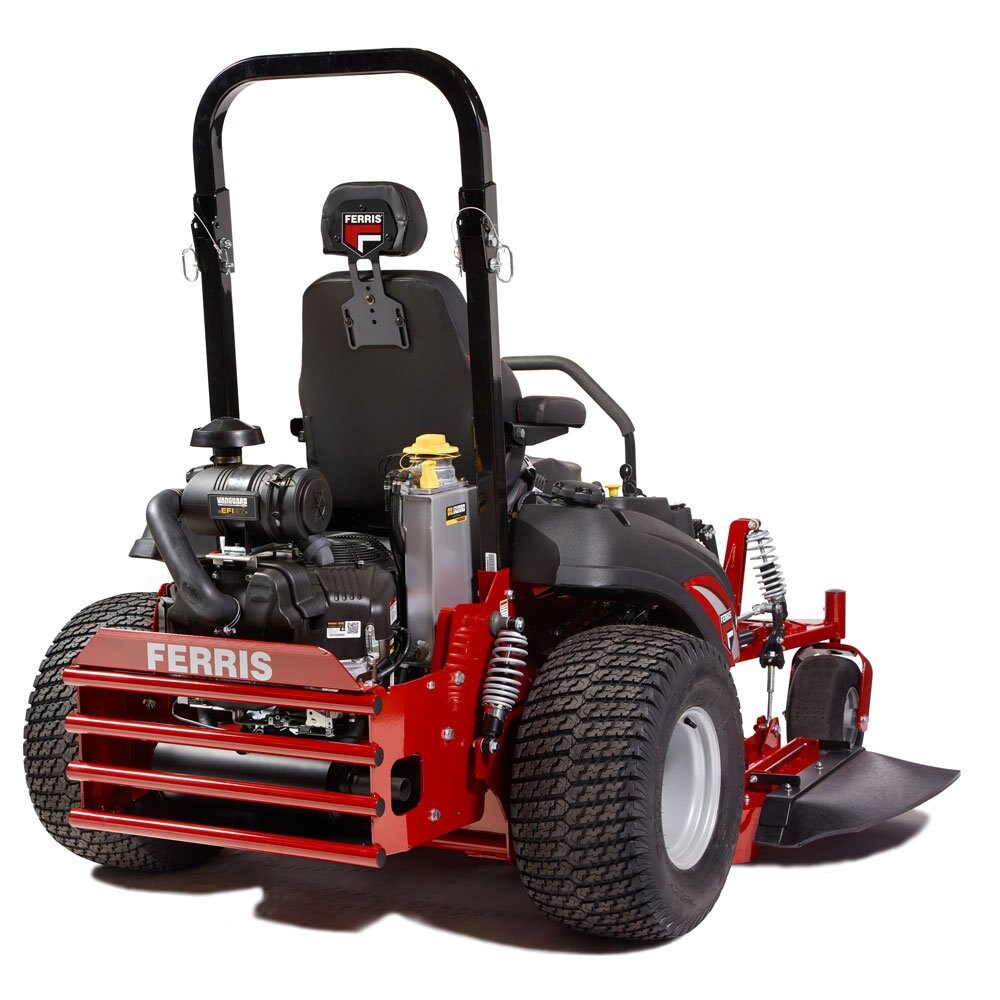

Ferris - IS® 3200 Zero Turn Mower

  • Ferris IS® 3200 Zero Turn Mower
  • Ferris IS® 3200 Zero Turn Mower
  • Ferris IS® 3200 Zero Turn Mower
  • Ferris IS® 3200 Zero Turn Mower
  • Ferris IS® 3200 Zero Turn Mower
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

Top-of-the-line commercial components and our highest top speed

The IS® 3200 is the latest in mowing technology. We took our top-of-the-line design and made it even more reliable and durable. This drive system features independent, commercial Hydro-Gear® ZT-5400 Powertrain® Transaxles for improved dependability and increased performance, large 26" drive tires allow for greater traction, smoother ride and improved curb climbing performance.



Specifications
Model
IS® 3200 Zero Turn Mower
Category Name
Lawn / Garden
Year
2021
Sale Type
New
Manufacturer
Ferris Mowers
Ground Speed
12 MPH
Cutting Width
72''
Power Rating*
37 HP
Limited Warranty
4-Years
features

Ferris IS® 3200 Zero Turn Mower 500 Hour Oil Change (Select Models)

Vanguard™ Engines with Oil Guard System reduce maintenance time and costs by up to 60%.**

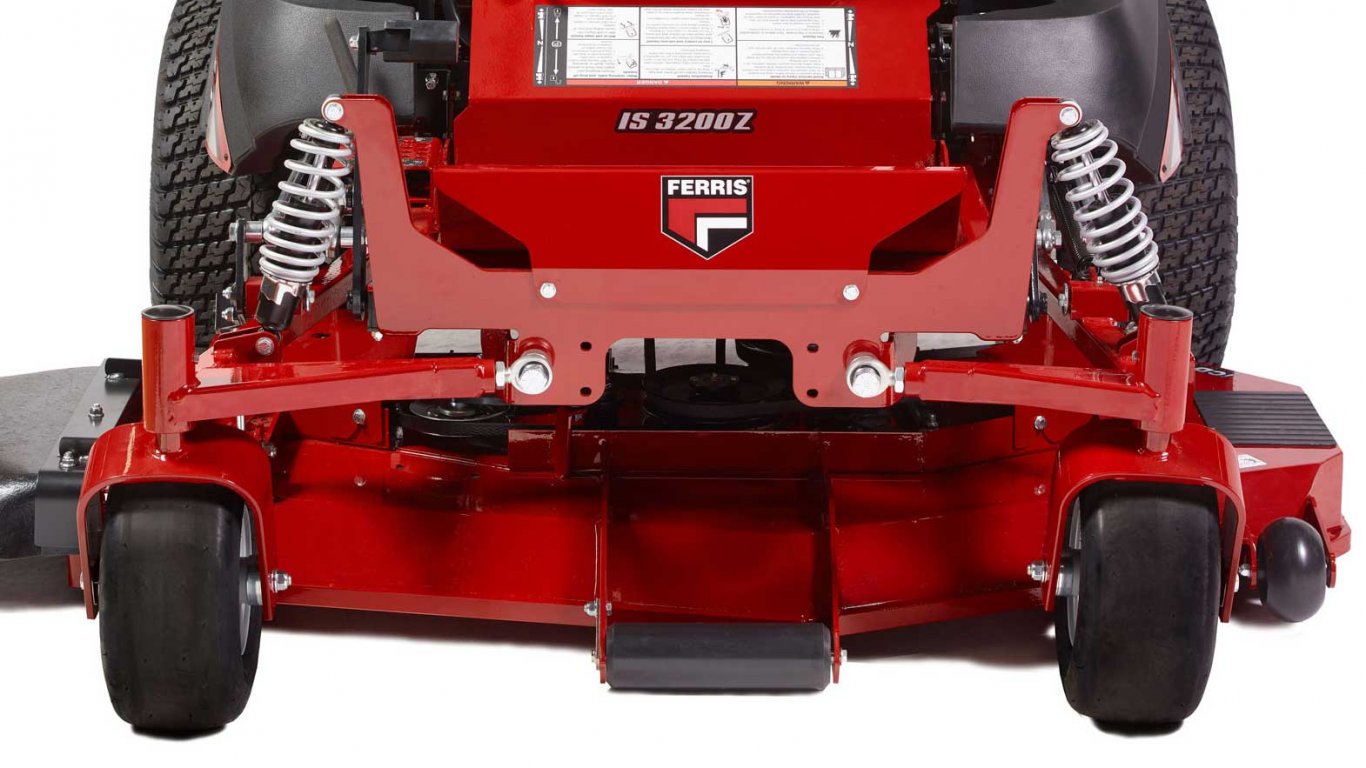

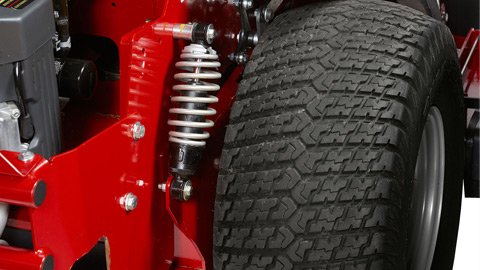

Ferris IS® 3200 Zero Turn Mower Patented Suspension

Consists of rear coil-over-shocks (shown) and pivoting front axle with coil-over-shocks.

Ferris IS® 3200 Zero Turn Mower Ride-On Mower Warranties†

Coil-Over-Shocks and all suspension-related components are covered for 5 years (60 months), for unlimited hours. We are committed to providing performance, productivity and durability.

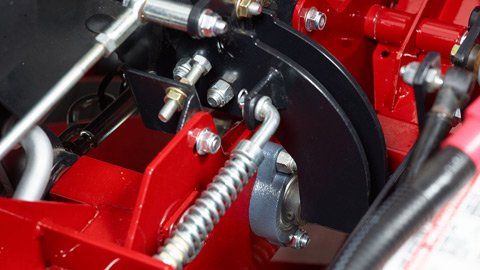

Ferris IS® 3200 Zero Turn Mower Smooth Controls

Smooth, precision controls last longer as a result of pillow block bearings on control mounts.

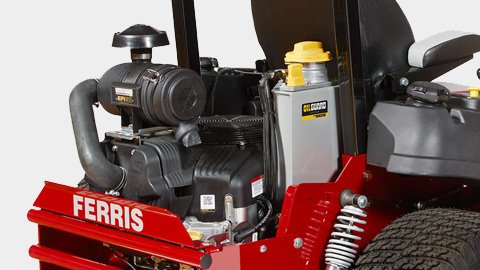

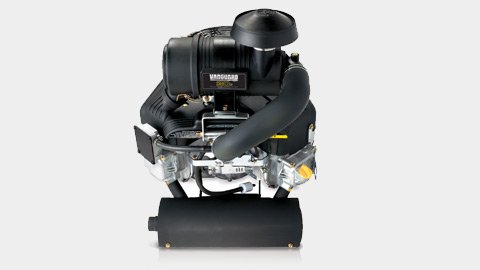

Ferris IS® 3200 Zero Turn Mower Powerful Engine

For the most challenging applications, this Big Block engine has been expertly engineered to deliver the dependability to get more done in less time. Models are available with 32 or 37 Gross HP*.

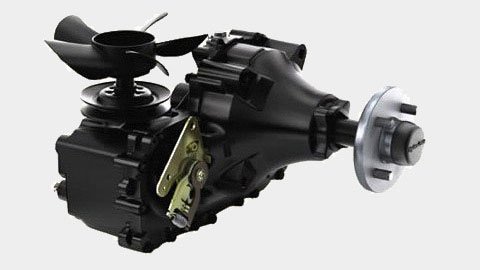

Ferris IS® 3200 Zero Turn Mower Hydro-Gear ZT-4400™ Transaxles

Dual-commercial transaxles with 8.3" cooling fans to repel debris.

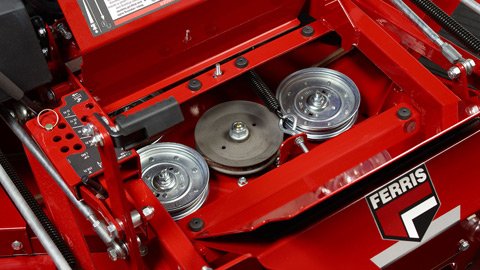

Ferris IS® 3200 Zero Turn Mower Easy Access

Quick removal of the floor pan provides convenient access to the top of the deck for easy cleaning and service.

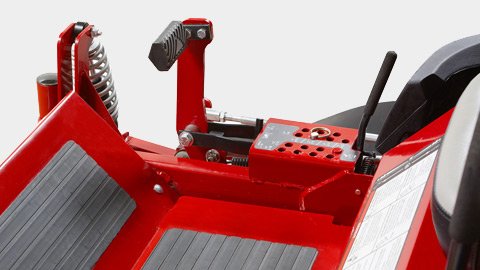

Ferris IS® 3200 Zero Turn Mower Adjust Cut Height

Foot-operated deck lift, with adjustable pedal, can change cut height in 1/4" increments from 1.5"- 5".

Ferris IS® 3200 Zero Turn Mower Drive Tires

Large 26" drive tires allow for greater traction, smoother ride and improved curb climbing performance.

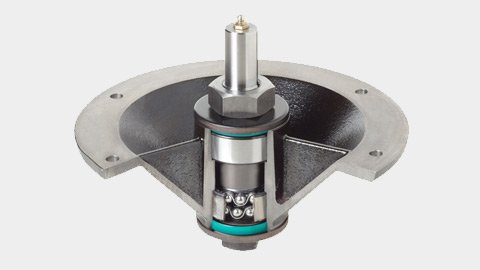

Ferris IS® 3200 Zero Turn Mower Hercules™ II Cast-Iron

Hercules™ II Cast-Iron; 10" dia. cast-iron with industrial double row angular contact ball bearing with 1 3/16" dia. shaft. Contact ball bearings with 1 3/16" dia. shaft.

Ferris IS® 3200 Zero Turn Mower Acres Per Hour

Mows up to 7.2 acres per hour, based on 80% efficiency.

Ferris IS® 3200 Zero Turn Mower Miles Per Hour

Up to 12 MPH ground speed, reverse 6 MPH.
specs
Model Number 5901570 5901574 5901575 5901576 5901577
Engine Brand Kawasaki® FX1000V Vanguard™ BIG BLOCK™ with Oil Guard Vanguard™ BIG BLOCK™ with Oil Guard Vanguard™ BIG BLOCK™ EFI with Oil Guard Vanguard™ BIG BLOCK™ EFI with Oil Guard
US MSRP ^ $13,999.00 $13,349.00 $12,599.00 $14,699.00
Engine Power Rating * 35 32 32 37 37
Displacement (cc) 999 896 896 993 993
PTO Electric Electric Electric Electric Electric
Cylinders 2 2 2 2 2
Starter Electric Electric Electric Electric Electric
Fuel Tank Capacity (gal) 11 11 11 11 11
Hour Meter/Instrumentation Fuel level gauge in each tank, hour meter Fuel level gauge in each tank, hour meter Fuel level gauge in each tank, hour meter
Cutting Width (in) 72 72 61 72 61
Cutting Height (in) 1.5 - 5 1.5 - 5 1.5 - 5 1.5 - 5 1.5 - 5
Spindles Hercules™ II Cast-Iron Hercules™ II Cast-Iron Hercules™ II Spindles Hercules™ II Cast-Iron Hercules™ II Cast-Iron
Deck Construction iCD™ Cutting System iCD™ Cutting System iCD™ Cutting System iCD™ Cutting System iCD™ Cutting System
Suspension Adjustable rear coil-over-shocks and front independent adjustable coil-over-shocks Adjustable rear coil-over-shocks and front independent adjustable coil-over-shocks Adjustable rear coil-over-shocks and front independent adjustable coil-over-shocks Adjustable rear coil-over-shocks and front independent adjustable coil-over-shocks Adjustable rear coil-over-shocks and front independent adjustable coil-over-shocks
Transmission Dual commercial Hydro-Gear® ZT-5400 Powertrain® transaxles with 9" cooling fans Dual commercial Hydro-Gear® ZT-5400 Powertrain® transaxles with 9" cooling fans Dual commercial Hydro-Gear® ZT-5400 Powertrain® transaxles with 9" cooling fans Dual Commercial Hydro-Gear® ZT-5400 Powertrain® transaxles with 9" cooling fans Dual Commercial Hydro-Gear® ZT-5400 Powertrain® transaxles with 9" cooling fans
Drive Axles (in) 1.375 1.375 1.375 1.375 1.375
Caster Tires (in) 13 x 6.5-6 13 x 6.5-6 13 x 6.5-6 13 X 6.5 - 6 13 X 6.5 - 6
Drive Tires (in) 26 x 12-12 26 x 12-12 26 x 12-12 26 X 12-12 26 X 12-12
Ground Speed-Fwd (mph) 0-12 0-12 0-12 0-12 0-12
Ground Speed-Rev (mph)

0-5

 0-5 0-5 0-5 0-5
Overall Length (in) 84.5 84.5 84.5 84.5 84.5
Overall Width (in) Deflector Down/Deflector Up 85.75 / 76.5 85.75 / 76.5 76.75 / 66.5 85.75 / 76.5 76.75/66.5
Dry Weight (lbs) 1511 1511 1443 1511 1443
Seat Package Premium high-back Premium high-back Premium high-back Suspension Seat Suspension Seat
Certified Roll-over Protection System Standard, 165° foldable Standard, 165° foldable Standard, 165° foldable Standard, 165° foldable Standard, 165° foldable
Controls / Safety Group Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit, adjustable twin steering controls Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit, adjustable twin steering controls Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit, adjustable twin steering controls Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit, adjustable twin steering controls Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit, adjustable twin steering controls
Parking Brake / Safety Circuit Internal transaxles Internal transaxles Internal transaxles Internal transaxles Internal transaxles
Warranty (Engine) † 3-Year limited manufacturer's warranty 3-Year limited manufacturer's warranty 3-Year limited manufacturer's warranty
Warranty (Balance of Machine) † 4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 4 years (48 months) unlimited hours. Belts, tires, brake pads, battery, blades: 90 days. 4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 4 years (48 months) unlimited hours. Coverage on other components varies, please see operator's manual for complete details. 4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 4 years (48 months) unlimited hours. Coverage on other components varies, please see operator's manual for complete details. 4-Year Limited Warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 5 years (60 months) unlimited hours. Belts, tires, brake pads, battery, blades: 90 days. 4-Year Limited Warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 5 years (60 months) unlimited hours. Belts, tires, brake pads, battery, blades: 90 days.

attachments

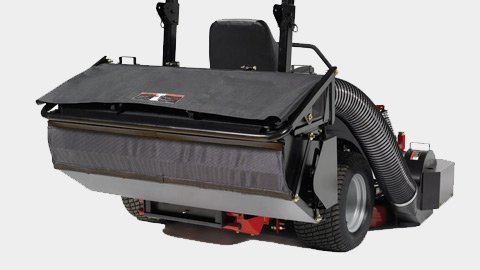

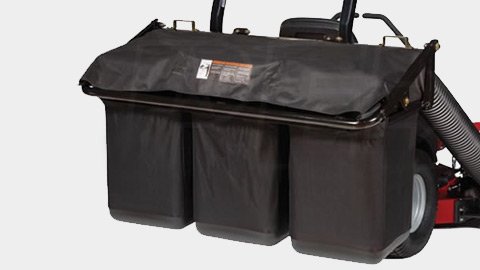

Ferris IS® 3200 Zero Turn Mower Turbo-Pro™ Max or Fast-Vac® Triple Bag Soft Top Collection System

Triple Bag Soft Top is simple to install. Each heavyduty mesh bag has a rugged polyethylene underside with integrated handle to assist with removal. Capacity: 12.5 cubic feet.

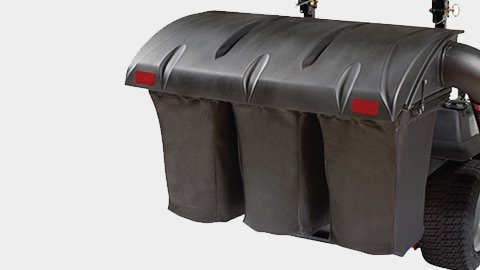

Ferris IS® 3200 Zero Turn Mower Turbo-Pro™ Max or Fast-Vac® Triple Bag Hard Top Collection System

Triple Bag Hard Top features and innovative molded hard top design that allows for increased capacity. Simple to install. Each heavy-duty mesh bag has an integrated handle to assist with.

Ferris IS® 3200 Zero Turn Mower Turbo-Pro™ Max or Fast-Vac® Electric DFS Collection System

The Electric DFS increases productivity by giving the operator the ability to release clippings from their seat with the use of a toggle switch. Capacity: 12.5 cubic feet. Fits 61" models only.

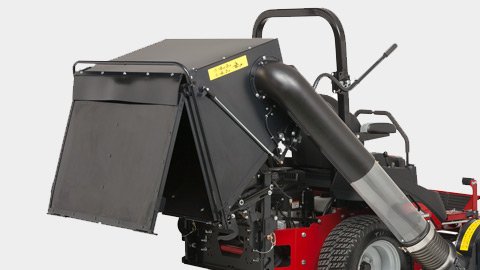

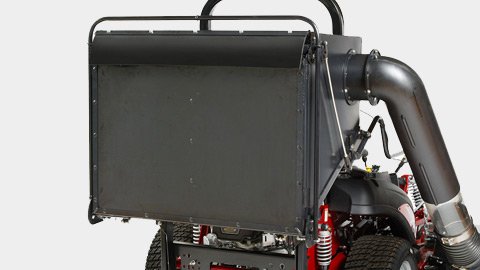

Ferris IS® 3200 Zero Turn Mower Turbo-Pro™ Max or Fast-Vac® EZ Dump™ Collection System

The EZ Dump™ increases productivity by giving the operator the ability to release grass clippings from the riding mower seat with the use of a toggle switch. The hopper is specially lined to ensure that all materials are dumped each time for increased productivity. The low profile of this system is better for visibility when compared to competitive commercial lawn mower attachments. Capacity: 12 cubic feet.

Ferris IS® 3200 Zero Turn Mower Turbo-Pro™ Max or Fast-Vac® EZ Dump XL™ Collection System

The EZ Dump XL™ Collection System is ideal for larger jobs. Simply squeeze the handle and pull up to release the hopper right from your seat. The hopper is specially lined to ensure that all material is dumped each time for increased productivity. Capacity: 14 cubic feet.

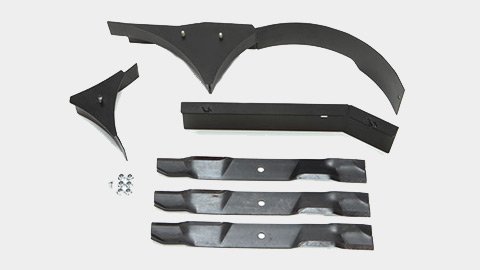

Ferris IS® 3200 Zero Turn Mower Mulch Kit

Select kits include dedicated mulching blades, baffles, hardware and instruction sheet.

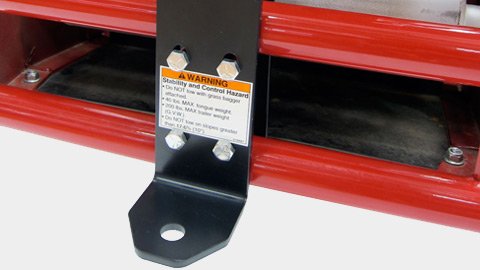

Ferris IS® 3200 Zero Turn Mower Trailer Hitch Kit

Will accept a 1/2” shank ball and comes complete with hardware.

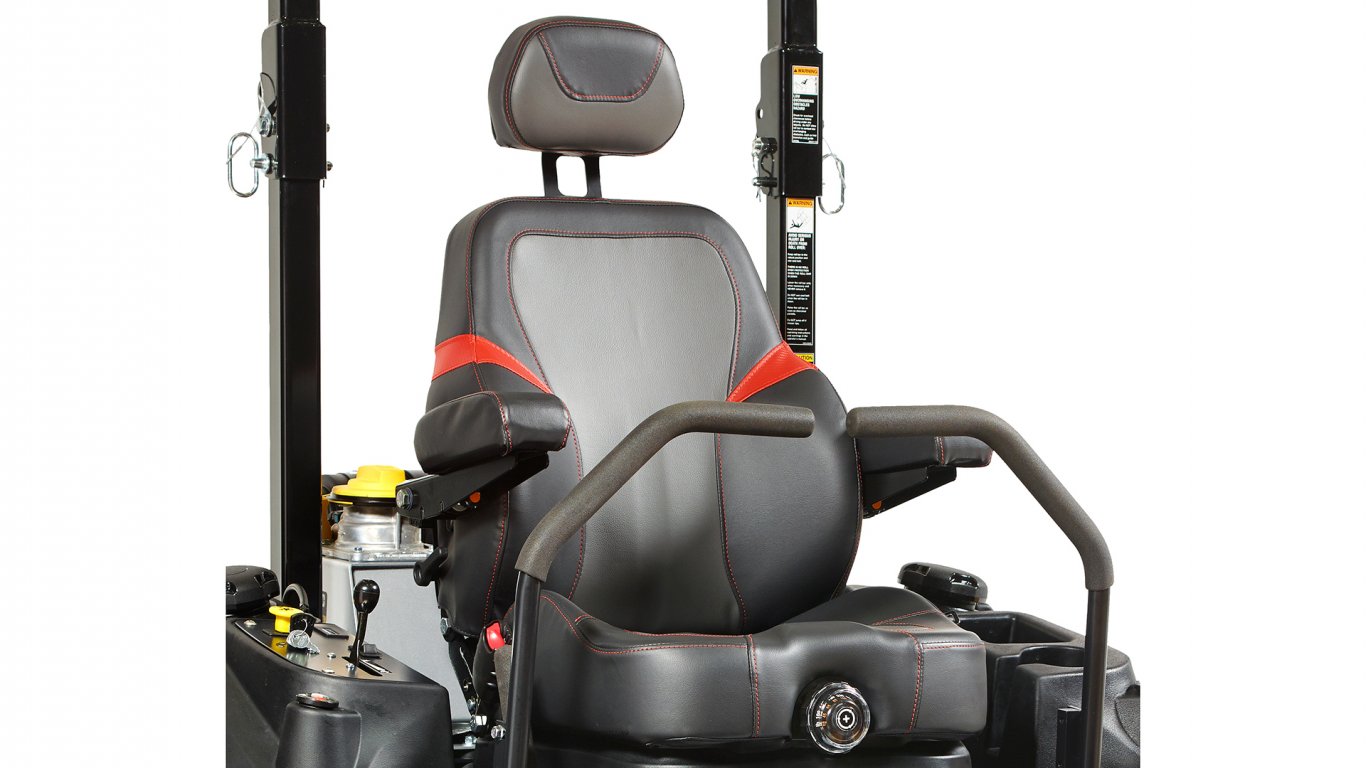

Ferris IS® 3200 Zero Turn Mower Suspension Seat

Suspension seat for optimal comfort. Select models.

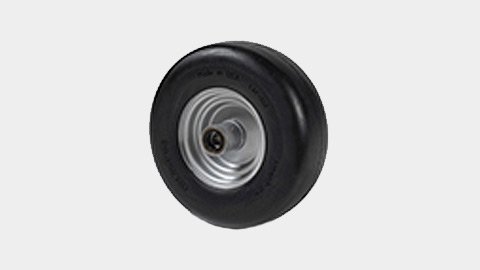

Ferris IS® 3200 Zero Turn Mower Flat-Free Caster Tires

Run all day with no flats, eliminates down time. Standard on select models.

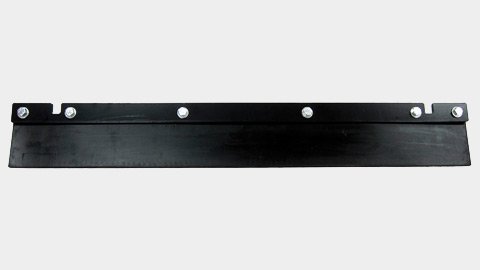

Ferris IS® 3200 Zero Turn Mower Lawn Striping Kit

Rubber flap system lays down clippings to create eye catching grass patterns across the landscape.

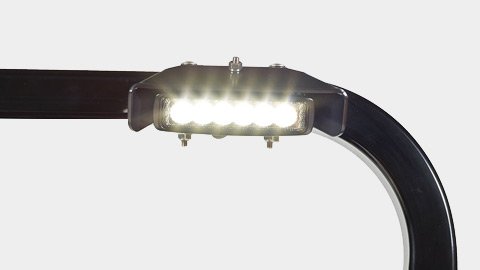

Ferris IS® 3200 Zero Turn Mower LED Light Kit

Energy efficient heavy-duty ROPS mounted LED light kit with simple instructions.
