Ferris

ID # 13495695

Ferris® FW25

Call for Price
Overview

F W25 WALK BEHIND MOWERS

With a choice of 36" and 48" cutting widths, FW25 dual hydrostatic commercial walk behind mowers will readily fit most small sheds and trailers and deliver superior control for a wide area lawn mower, navigating over thick grass, surface imperfections and hills while staying in its cutting lane.

Ferris offers you the choice of two FS-series V-twin engines from Kawasaki, both of which deliver all-day reliability and power for your hardworking lawn team. Choose the 15 gross horsepower* model paired with a manual starter, or step up to the 18.5 gross horsepower* with electric start.

FW25 Walk Behind Mower Features:

• Comfort of our all-new, CC™ Centralized Control handles with more natural, ergonomic positioning for comfort & hand protection.
• Electric starter (18.5 gross hp* models only) with cruise control bar for desired ground speed.
• Heavy-duty construction with two layers of steel running the entire width for added strength as well as lap-welded corners for dent resistance.
• Big 20" tires for curbs and rough terrains, reducing deck bounce for consistent cut.
• Commercial-grade transmission – the same muscle driving our heavier, commercial zero turn mower line
• Adjusting cutting height from 1.5 to 4.5 inches.
• Limited two-year, unlimited-hour warranty†.
 Features
  • %7B4CE14AA3 007B 4E19 BC01 DAD2B0AB6ADB%7D Image

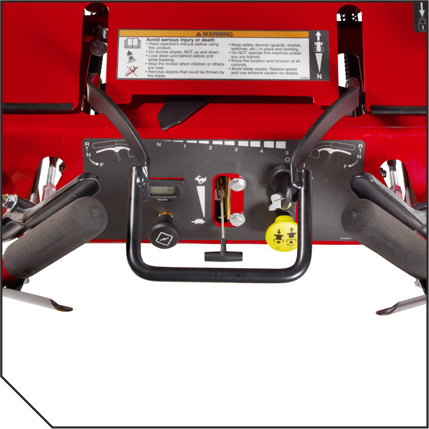

    Cruise Control to Set Speed
    Adjust the mower's speed without removing your hands from the control handles with the improved, ready-access cruise control bar. Simply press forward to increase speed and pull back a slow down. A convenient speed indicator is placed within easy view on the control panel.
  • %7B0AD9E75E 0B3B 4501 BE6F 26B29D230EC6%7D Image
    Easier-To-Use Controls
    New CC™ Centralized Control lawn mower handle design places the operator's hands in the ideal position to access all in-demand controls. Ergonomic operator presence, steering and reverse levers on both handles operate with a light touch to reduce operator fatigue. Easily adjust control tensions to fine tune for different operating conditions.
  • %7B5B501955 EE20 4C93 9DFC 8BD8D32B3DA1%7D Image
    Keeps the Engine Running
    Need to walk away from the mower to move an obstacle or debris? The new PTO switch allows the operator to stop the mower blades quickly and easily. While mowing, simply step on the centralized foot activated neutral pedals or pull back on the cruise control bar to place in neutral. Then, remove your hands from the controls. The blades will stop while the engine continues to run. Restarting the blades is just as easy. Place your left or right hand on the controls, pull up the PTO switch and set your speed with the cruise control bar.
  • %7B47B3D2E5 7BAB 4AE9 AD3F 6DDDA37720A6%7D Image
    Easy-Access Neutral Position
    New dual access neutral pedals take the guesswork out of finding neutral, simplifying operation and saving time. The operator can use either foot to put the mower in neutral. The neutral position is clearly identified on the speed indicator on the dash.
  • %7B046A8A7F 95FA 4F00 9723 9F8F1D7A72DD%7D Image
    Well Built, Well Protected
    Thick, 1/4" steel guards protect the front deck mower's transmission when going over curbs or rolling on and off a trailer - the type of rough handling that occurs daily under commercial use and can render lesser mowers inoperable. The design also reduces build up of debris to improve air flow and allow for access to the filter for maintenance.
  • %7BCF5FBE61 D26F 4B7F 8A5D 48FD7024E34B%7D Image
    Improved Deck Mounting
    We listened closely to our pro users when considering the enhancements on our redesigned mower deck. The new mounting system provides easier deck leveling, improved flexibility over terrain, easy-access grease points and more durable wear points for reduced maintenance. Ferris makes choosing mowers a no brainer.
  • %7B2BE32D6F 8C7D 4946 A67C EAF503895E16%7D Image
    Longer Belt Life
    The parts that wear out the soonest don't have to go so soon. The Ferris-engineered deck drive belt system and larger pulleys provide gentler belt tension, which - combined with our unique debris shield - extends belt life and reduces wear on bearings.
  • %7B806715F2 3928 41E9 92D4 182DE1632EE0%7D Image
    Easy Reach Parking Brake
    We located the parking brake handle conveniently in front of the control panel, providing instant access with minimal operator effort to reach and engage.
  • %7B880B15CE C4ED 4E6A 913D 575598AA5980%7D Image
    Solid Construction
    All Ferris walk-behind mowers are ruggedly built nose to tail to withstand daily commercial-duty operation and transport. Robust 1/4" steel engine deck construction stands the test of time.
  •
    %7BC2E4DE15 A006 4F0A 91BD 5CF5FBDC45FE%7D Image
    Easy to Secure
    Dedicated tie-down points located in the front and the rear makes trailering this commercial lawn mower between jobs secure and easy.



Specifications

MODELS FW25KAV1536 FW25KAV1948 FW25KAV1548 FW25KAV1952 FW25KAV1552 FW25CCKAV1936 FW25CCKAV1548 FW25CCKAV1948 FW25CCKAV1952 FW25CCKAV1552
ENGINE
Engine Make Kawasaki FS541V Kawasaki FS600V Kawasaki FS541V Kawasaki FS600V Kawasaki® FS541V Kawasaki FS600V Kawasaki FS541V Kawasaki FS600V Kawasaki FS600V Kawasaki FS600V
Gross Horsepower 15 gross hp*/603cc 18.5 gross hp*/603cc 15 gross hp*/603cc 18.5 gross hp*/603cc 15 gross hp*/603cc 18.5 gross hp*/603cc 15 gross hp*/603cc 18.5 gross hp*/603cc 18.5 gross hp*/603cc 15 gross hp*/603cc
PTO Electric Electric Electric Electric Electric Electric Electric Electric Electric Electric
Cylinders 2 2 2 2 2 2 2 2 2 2
Starting Manual Electric Electric Electric Electric Manual Manual Manual Electric Electric
Fuel Tank Capacity (Total) 5 gallons 5 gallons 5 gallons 5 gallons 5 gallons 5 gallons 5 gallons 5 gallons 5 gallons 5 gallons
MOWER
Cutting Width (in.) 36" 48" 48" 52" 52" 36" 36" 48" 52" 52"
Cutting Height (in.) 1.5" - 4.5" 1.5" - 4.5" 1.5" - 4.5" 1.5" - 4.5" 1.5" - 4.5" 1.5" - 4.5" 1.5" - 4.5" 1.5" - 4.5" 1.5" - 4.5" 1.5" - 4.5"
Spindles Aluminum Aluminum Aluminum Aluminum Aluminum Aluminum Aluminum Aluminum Aluminum Aluminum
Deck Construction 10-gauge, fabricated, double top deck, double reinforced side skirts, overlap welded corners 10-gauge, fabricated, double top deck, double reinforced side skirts, overlap welded corners 10-gauge, fabricated, double top deck, double reinforced side skirts, overlap welded corners 10-gauge, fabricated, double top deck, double reinforced side skirts, overlap welded corners 10-gauge, fabricated, double top deck, double reinforced side skirts, overlap welded corners 10-gauge, fabricated, double top deck, double reinforced side skirts, overlap welded corners 10-gauge, fabricated, double top deck, double reinforced side skirts, overlap welded corners 10-gauge, fabricated, double top deck, double reinforced side skirts, overlap welded corners 10-gauge, fabricated, double top deck, double reinforced side skirts, overlap welded corners 10-gauge, fabricated, double top deck, double reinforced side skirts, overlap welded corners
DRIVE TRAIN
Transmission Dual, commercial Hydro-Gear® ZT-3100® transaxles with 7" mounted cooling fans Dual, commercial Hydro-Gear® ZT-3100® transaxles with 7" mounted cooling fans Dual, commercial Hydro-Gear® ZT-3100® transaxles with 7" mounted cooling fans Dual, commercial Hydro-Gear® ZT-3100® transaxles with 7" mounted cooling fans Dual, commercial Hydro-Gear® ZT-3100® transaxles with 7" mounted cooling fans Dual, commercial Hydro-Gear® ZT-3100® transaxles with 7" mounted cooling fans Dual, commercial Hydro-Gear® ZT-3100® transaxles with 7" mounted cooling fans Dual, commercial Hydro-Gear® ZT-3100® transaxles with 7" mounted cooling fans Dual, commercial Hydro-Gear® ZT-3100® transaxles with 7" mounted cooling fans Dual, commercial Hydro-Gear® ZT-3100® transaxles with 7" mounted cooling fans
Drive Axles 1" 1" 1" 1" 1" 1" 1" 1" 1" 1"
Drive Tires 20 x 7-10 20 x 7-10 20 x 7-10 20 x 7-10 20 x 7-10 20 x 7-10 20 x 7-10 20 x 7-10 20 x 7-10 20 x 7-10
Caster Tires (in.) 9 x 3.5-4 Flat-Free 9 x 3.5-4 Flat-Free 9 x 3.5-4 Flat-Free 9 x 3.5-4 Flat-Free 9 x 3.5-4 Flat-Free 9 x 3.5-4 Flat-Free 9 x 3.5
Specifications
Model
FW25
Category Name
Lawn / Garden
Year
2016
Sale Type
New
Manufacturer
Ferris Mowers
Color
Red
