ID # 13495548

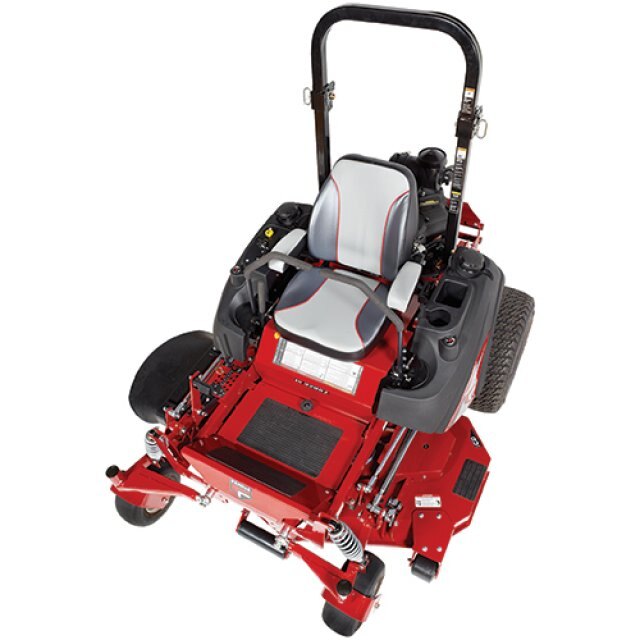

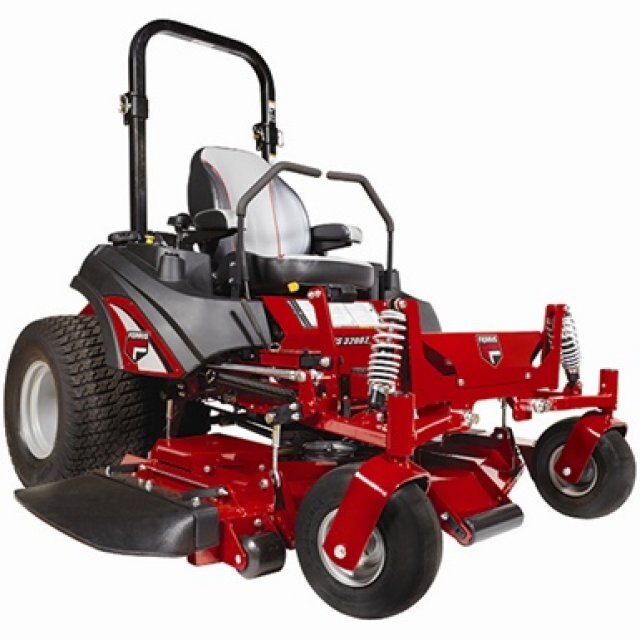

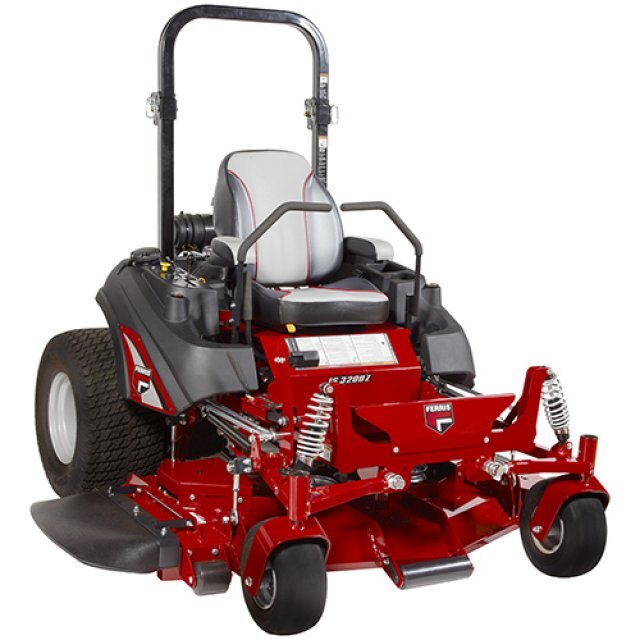

Ferris® IS® 3200Z Series

  • Ferris® IS® 3200Z Series
  • Ferris® IS® 3200Z Series
  • Ferris® IS® 3200Z Series
  • Ferris® IS® 3200Z Series
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview


I S® 3200Z ZERO TURN MOWERS

Lawn professionals will discover that IS 3200Z moves faster longer without scalping the turf. Choose between the 37-gross-horsepower* Vanguard™ V-Twin EFI BIG BLOCK™ or the biggest lawn mower motor – the 35-gross-horsepower* Kawasaki® FX1000V.

Ferris IS® 3200Z also includes dual, independent commercial Hydro-Gear® ZT-5400 Powertrain® transaxles. It's our most heavy duty transmission ever, with better cooling, airflow and zero potential leak points under high pressure.

The IS® 3200Z ZTR Features:

• Updated iCD™ Cutting System with professional lawn striper delivers smoother cutting performance with free-floating deck employing solid steel rods & enhanced discharge through the generous deck opening.
• Choose between 61" and 72" wide decks.
• Patented adjustable front and rear suspension results in the best & refined zero turn ride and more consistent cut at higher speed. Responding to the most unforgiving terrain with control and steering accuracy, it lessens stress on both man and machine.
• Protected by our 2+2 year limited warranty†.
 Features
  • %7B7F3A1895 9CA4 4767 A9E0 004D6868596D%7D Image
    Patented Suspension
    Patented suspension system consists of adjustable rearcoil-over-shocks (shown) and front independent adjustable coil-over-shocks.
  • %7B78741714 5C80 4936 A8F8 6561229FB31C%7D Image
    Ride-On Mower Warranties†
    Coil-over-shocks and all suspension-related components are covered for 4 years (48 months) unlimited hours. We are committed to providing performance, productivity and durability.
  • %7B5DF7F891 0C65 4C86 851F D708C85E0F73%7D Image
    Smooth Controls
    Smooth, precision controls last longer as a result of pillow block bearings on control mounts.
  • %7B3594AA64 3B3F 48D1 AD6B 9F19DF6A70A1%7D Image
    Powerful Engine
    For the most challenging applications, this BIG BLOCK™ engine has been expertly engineered to deliver the dependability to get more done in less time.
  • %7B7AEAA2C7 89B6 4191 BF4F 84CD117ECFA2%7D Image
    Drive System
    Dual, commercial Hydro-Gear® ZT-5400 Powertrain® transaxles deliver unmatched power and durability.
  • %7B726AC355 47E2 4E73 8425 D1B83ED38125%7D Image
    Adjust Cut Height
    Foot-operated deck lift, with adjustable pedal, can change cut height in 1/4" increments from 1.5"- 5".
  • %7B55852EC1 E799 4923 ABAD 7AD7D266194A%7D Image
    Drive Tires
    Large 26" drive tires allow for greater traction, smoother ride and improved curb climbing performance.
  • %7B13320515 AEDA 495A 815B D37FB16DD245%7D Image
    Hercules™ II Spindles
    Hercules™ II spindles; 10" dia.cast-iron with industrial double row angular contact ball bearing swith 1 3/16" dia. shaft.
  • %7B27C25366 F970 4948 AFB9 AFC70BA6C7ED%7D Image
    Acres Per Hour
    Mows up to 7.2 acres per hour, based on 80% efficiency.
  • %7B9D1C8C1B 7323 46DA 9D56 1DBD0DE9F887%7D Image
    Miles Per Hour
    Up to 12 MPH ground speed, reverse 6 MPH.


%7BE3D42DEB 054F 412F AFBB 01E3E246D6F7%7D Image
Easy Access
Quick removal of the floor pan provides convenient access to the top of the deck for easy cleaning and service.
Specifications

MODELS IS3200ZBVE3761 IS3200ZKAV3561 IS3200ZBV3261 IS3200ZBVE3772 IS3200ZKAV3572 IS3200ZBV3272
ENGINE
Engine Brand Vanguard™ BIG BLOCK™ EFI Kawasaki® FX1000V Vanguard™ BIG BLOCK™ Vanguard™ BIG BLOCK™ EFI Kawasaki® FX1000V Vanguard™ BIG BLOCK™
Rating / Displacement 37 gross hp* / 993cc 35 gross hp** / 999cc 32 gross hp* / 896cc 37 gross hp* / 993cc 35 gross hp* / 999cc 32 gross hp* / 896cc
PTO Electric Electric Electric Electric Electric Electric
Cylinders 2 2 2 2 2 2
Starter Electric Electric Electric Electric Electric Electric
Fuel Tank Capacity 11 gallons 11 gallons 11 gallons 11 gallons 11 gallons 11 gallons
MOWER
Cutting Width (in.) 61" 61" 61" 72" 72" 72"
Cutting Height (in.) 1.5"- 5" 1.5"- 5" 1.5"- 5" 1.5"- 5" 1.5"- 5" 1.5"- 5"
Spindles Hercules™ II Cast-Iron Hercules™ II Cast-Iron Hercules™ II Spindles Hercules™ II Cast-Iron Hercules™ II Cast-Iron Hercules™ II Cast-Iron
Deck Construction iCD™ Cutting System with professional lawn striper iCD™ Cutting System with professional lawn striper iCD™ Cutting System with professional lawn striper iCD™ Cutting System with professional lawn striper iCD™ Cutting System with professional lawn striper iCD™ Cutting System with professional lawn striper
SUSPENSION
Suspension Adjustable rear coil-over-shocks and front independent adjustable coil-over-shocks Adjustable rear coil-over-shocks and front independent adjustable coil-over-shocks Adjustable rear coil-over-shocks and front independent adjustable coil-over-shocks Adjustable rear coil-over-shocks and front independent adjustable coil-over-shocks Adjustable rear coil-over-shocks and front independent adjustable coil-over-shocks Adjustable rear coil-over-shocks and front independent adjustable coil-over-shocks
DRIVE TRAIN
Transmission Dual commercial Hydro-Gear® ZT-5400 Powertrain® Transaxles with 9" cooling fans Dual commercial Hydro-Gear® ZT-5400 Powertrain® Transaxles with 9" cooling fans Dual commercial Hydro-Gear® ZT-5400 Powertrain® transaxles with 9" cooling fans Dual commercial Hydro-Gear® ZT-5400 Powertrain® transaxles with 9" cooling fans Dual commercial Hydro-Gear® ZT-5400 Powertrain® transaxles with 9" cooling fans Dual commercial Hydro-Gear® ZT-5400 Powertrain® Transaxles with 9" cooling fans
Drive Axles 1.375" 1.375" 1.375" 1.375" 1.375" 1.375"
Caster Tires (in.) 13 x 6.5-6 13 x 6.5-6 13 x 6.5-6 13 x 6.5-6 13 x 6.5-6 13 x 6.5-6
Drive Tires (in.) 26 x 12-12 26 x 12-12 26 x 12-12 26 x 12-12 26 x 12-12 26 x 12-12
Specifications
Model
IS® 3200Z Series
Category Name
Lawn / Garden
Year
2016
Sale Type
New
Manufacturer
Ferris Mowers
Color
Red
