LOW IN WEIGHT, HIGH IN PERFORMANCE

The new low-drag RAMOS series of mower combinations combine the benefits of a weight-optimised design with the latest FELLA drive technology, high cutting power and economic efficiency. The new drive concept's efficient power transfer enables fuel-efficient mowing at a reduced speed of 850 rpm and even the use of tractors with lower horsepower.

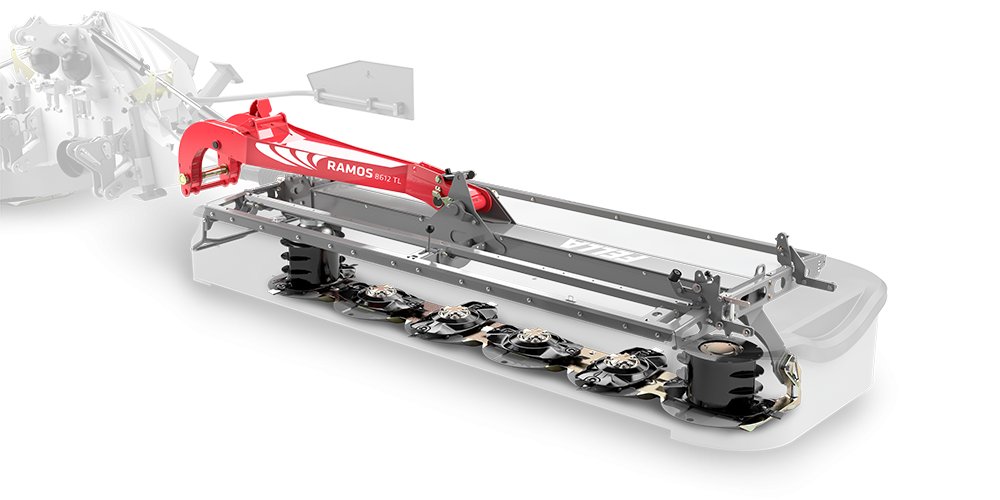

BALANCED DESIGN

The weight distribution of large mowers is integral to reliable handling that preserves materials. The compact design sees the centre of gravity positioned close to the tractor, and places the low-lying pivot point of the specially shaped lifting arm closer to the ground. As such, this machines in this series ensure a low load on the mower and tractor, as well as good driving stability in all situations. The cutter bars themselves are also hung in the centre of gravity, which saves fuel and minimises impact on the ground.

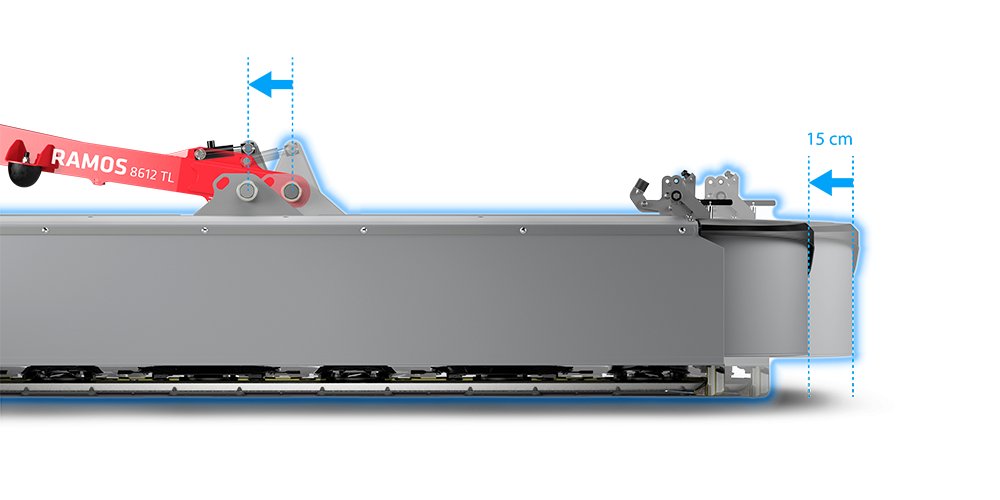

THE PERFECT WIDTH

Because the cutter bars can be adjusted to two positions, large working widths can be achieved. It also allows for adaptation to front-mounted mowers and optimum overcut – without having to shorten the drive shaft.

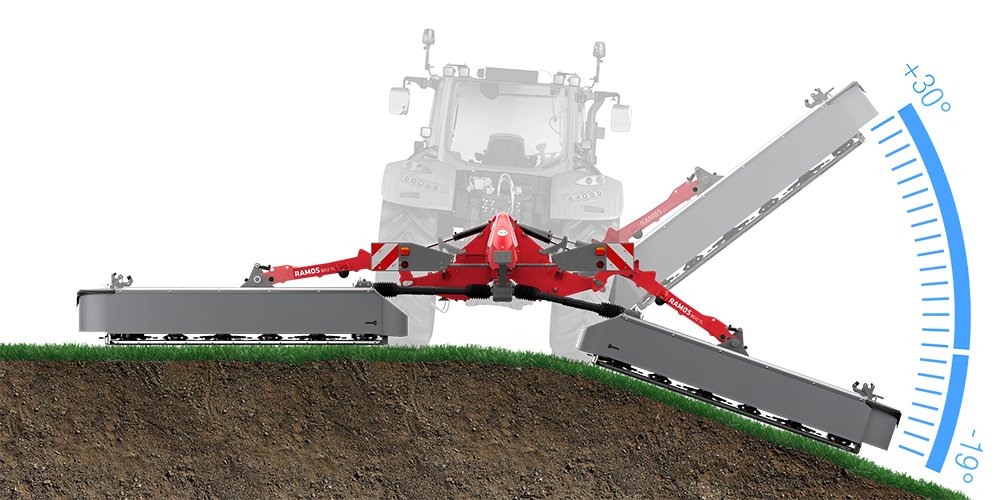

GROUND ADAPTATION AND GROUND CLEARANCE

TLX mowers to achieve a wide working angle of between +30° and -19°. This optimally compensates for unevenness and height differences in the ground.

An integrated compensating cylinder also prevents rocking at the headland and allows for a large ground clearance.

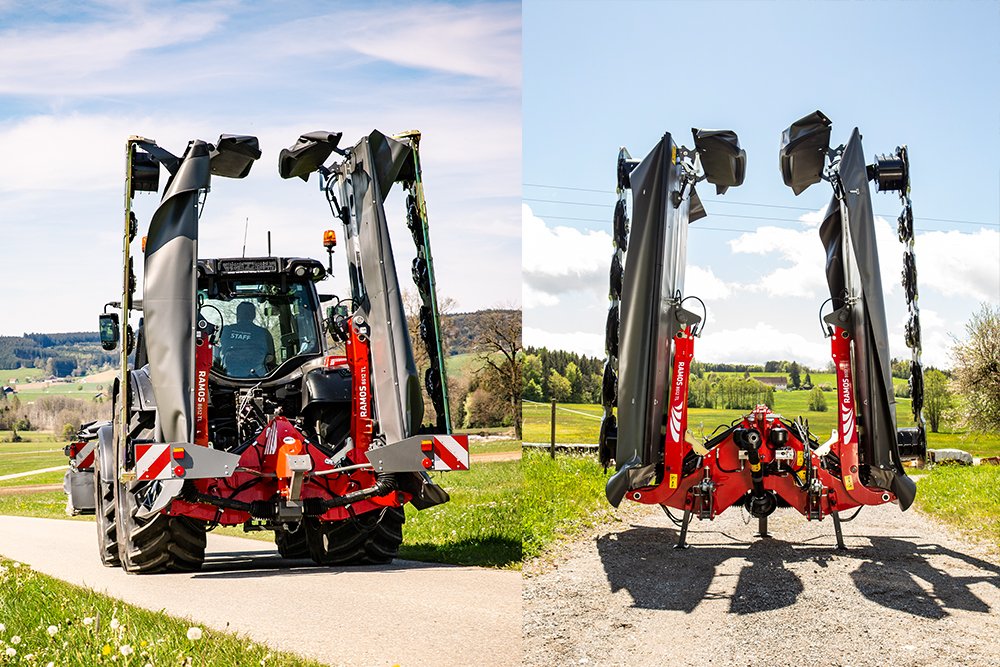

COMPACT TRANSPORT

The mower unit support arm has a low-lying pivot point, ensuring that the mower has a low centre of gravity and a compact, low transport position.

Three stable parking supports ensure a solid footing when in the space-saving transport position. The pressure-relief button on the mower's control device reduces the pressure to zero. When you attach the mower, the system automatically restores the preset pressure.

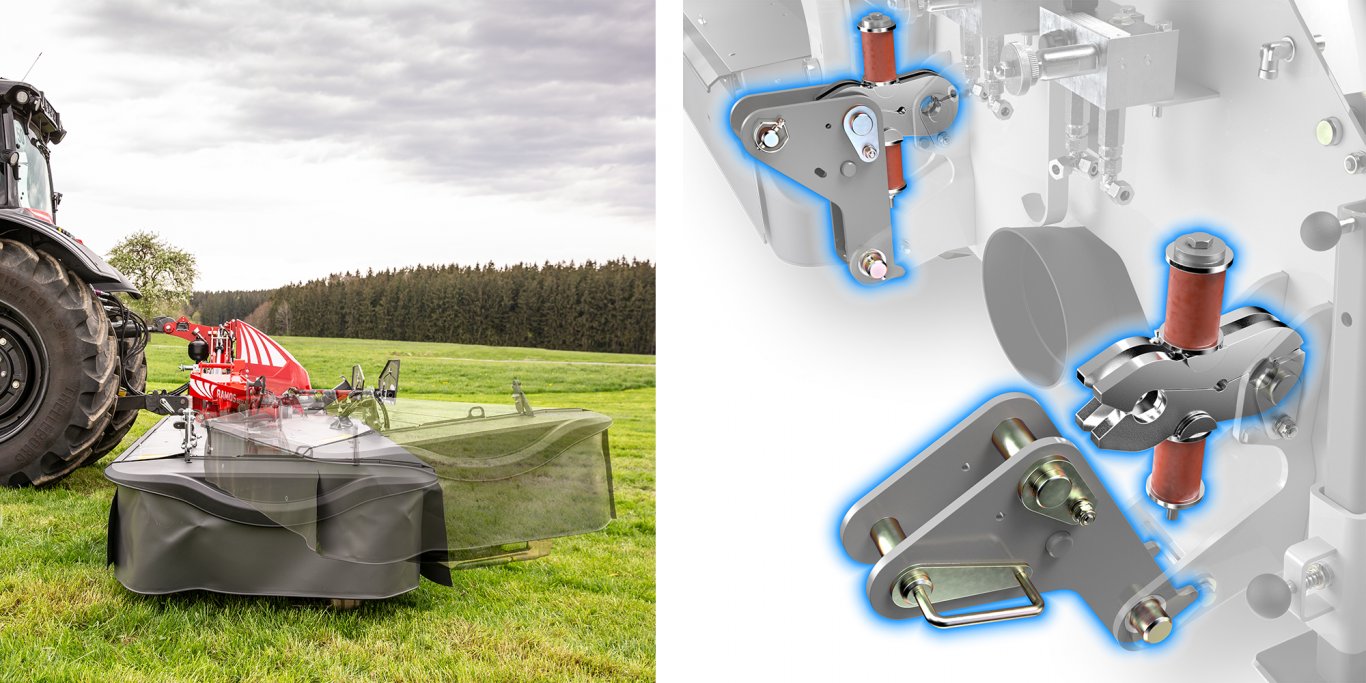

EASYSWING – FOLDS AWAY SECURELY

The mechanical EasySwing impact guard provides optimum safety on any field and reliably protects your machine from damage caused by hitting obstructions. If the mower encounters an obstacle, it will fold back and away and then automatically return to its original position under its own weight.
