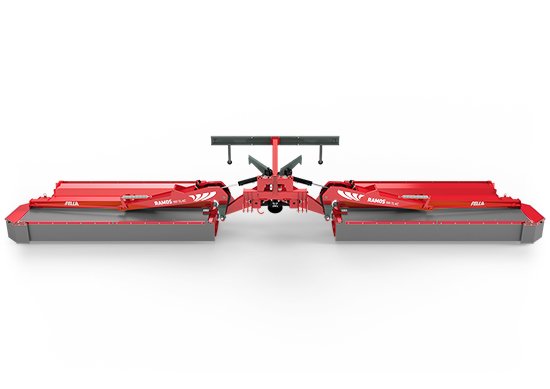

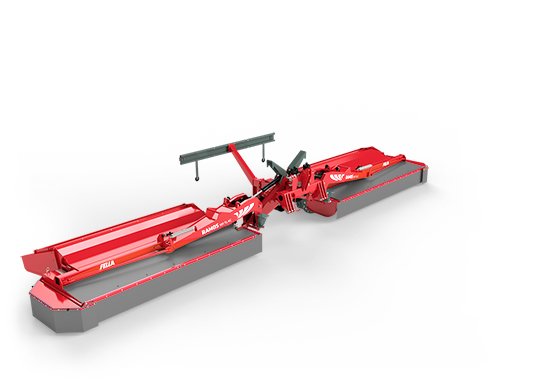

Fella RAMOS 991 TL-KC

Call for Price
Overview

Mower combination

  • High-performance mower combinations for large area use
  • The professional butterfly mowers, with their large working widths, are perfect for use on large farms and for contractors

RAMOS 991 TL-KC

Working width approx.: 9.30 m

  1. With the hydropneumatic cutter bar suspension system – TurboLift System (TL) – the contact pressure can be adjusted infinitely variably and adapted to different usage conditions.
  2. "SafetySwing" impact guard which enables each mower unit to dodge an obstacle independently of the other mower units, and thus protects the sward.
  • Easy conditioner mower combinations for use over large areas
  • Perfectly equipped with the TurboLift (TL) cutter bar suspension system and the SafetySwing impact guard
Specifications
Model
RAMOS
Category Name
Agriculture
Year
2023
Sale Type
New
Manufacturer
FELLA
Machine
RAMOS 991 TL-KC
PTO Rpm
1000 rpm
Mower Discs
2x 7
Weight Approx
2830 kg
Blades Per Disc
2
Swath Width Approx
2x 1850-3250 mm
Power Demand Approx
200 hp
Working Width Approx
9300 mm
Mounting Category CAT
II+III CAT
Transport Height Approx
3900 mm
Necessary Hydraulic Outlets
2x SAV, 1x DAV
special features

LOW-DRAG THANKS TO INTELLIGENT HITCH ATTACHMENT Fella RAMOS 991 TL KC

The mower units mounted at the centre of gravity relieve the lifting arms, ensure excellent ground adaptation and save fuel as a result of uniform contact pressure.

PROTECTS THE SWARD Fella RAMOS 991 TL KC

Centring springs ensure both mower units are positioned and lifted parallel to the ground. This protects the sward and ensures low raw ash content in the basic forage.

LARGE WORKING WIDTHS WITH GOOD DRIVING STABILITY Fella RAMOS 991 TL KC

The weight of the large working widths is ideally distributed even on hilly terrain. The lifting arms with low-lying pivot points ensure a low centre of gravity in any situation.

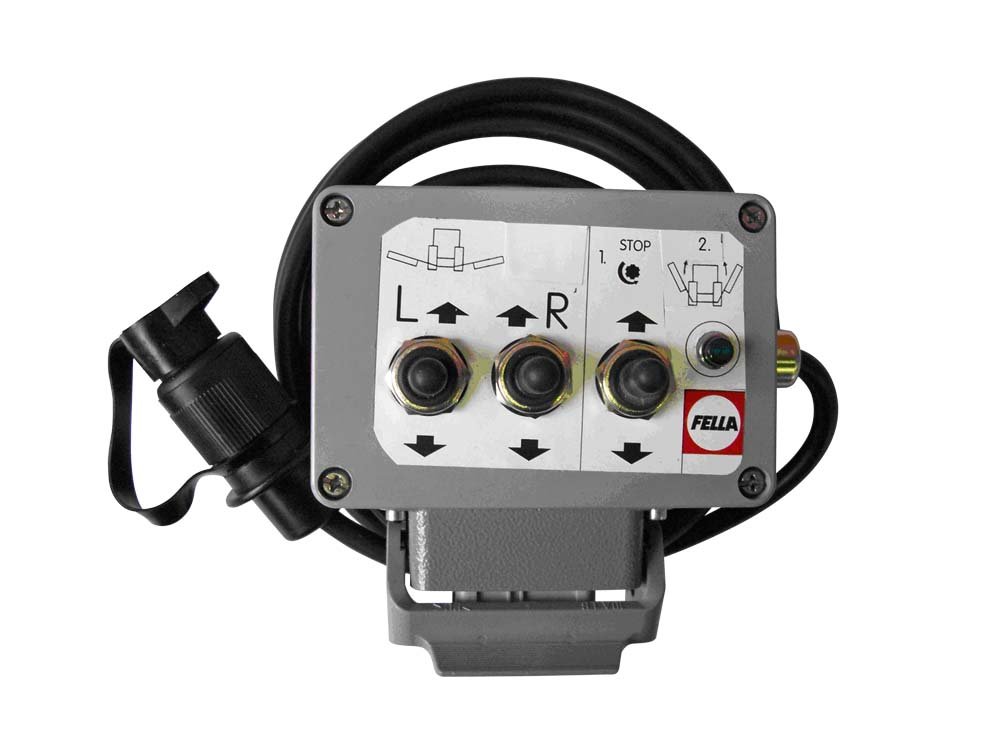

EASY OPERATION VIA ELECTROHYDRAULIC CONVENIENCE CONTROL SYSTEM Fella RAMOS 991 TL KC

Mower combination functions such as single lift and transport position can be operated conveniently from the tractor seat.

technologies

Compact angular gear

FELLA mowers with compact angular gear are designed to provide maximum performance while remaining cost-efficient in all regions and in all harvesting conditions. The design of the mower units features an impressive mix of stability and flexibility. They are particularly low-drag thanks to their special drive system, and they feature high ground coverage and a low power demand.

KC tine-rotor conditioners

The mower-conditioner combination shortens the natural fermentation process of the mowed forage by hours. This gives you a decisive time advantage, particularly in unpredictable weather conditions – a quicker and safer way to produce your high-quality forage. The waxy layer of the forage is rubbed off and a loose, airy swath is deposited.

driveGUARD

The patented FELLA driveGUARD provides premium overload protection. It reliably protects the mower and mower gearbox against damage in the event of foreign objects in the crop flow

SafetySwing

The SafetySwing impact guard protects every mower unit when an obstacle is encountered. This protects the mower combination against damage, thereby eliminating the need for time-consuming repairs in the workshop.

ComfortChange quick blade change

Uncomplicated quick blade change that takes only a few hand movements.

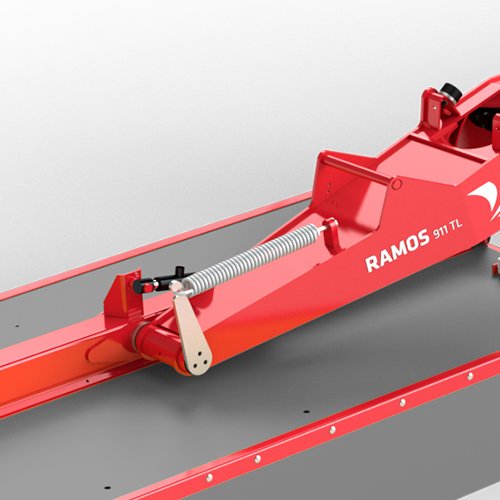

TurboLift system

The TurboLift cutter bar suspension system from FELLA guarantees continual optimum contact pressure during the entire mowing process. This protects the sward and prevents contamination of the high-quality forage. The innovative control device enables quick, easy and continuous adjustment of the contact pressure for a wide variety of operating conditions.
