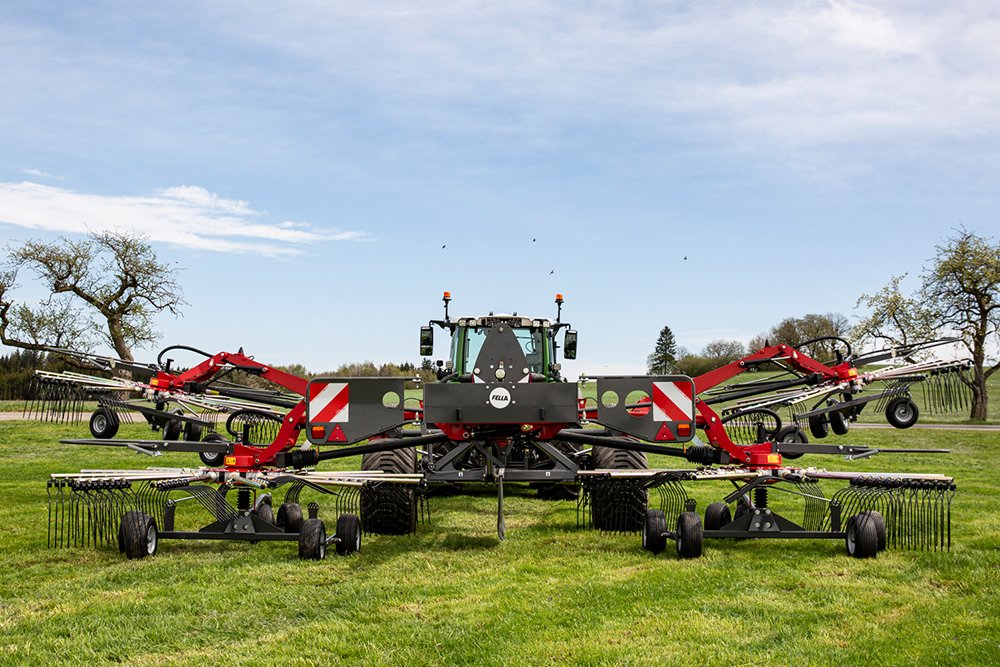

Four-rotor – central windrow deposition
|
|
Working width approx.: 10.60 m – 12.50 m
|
|

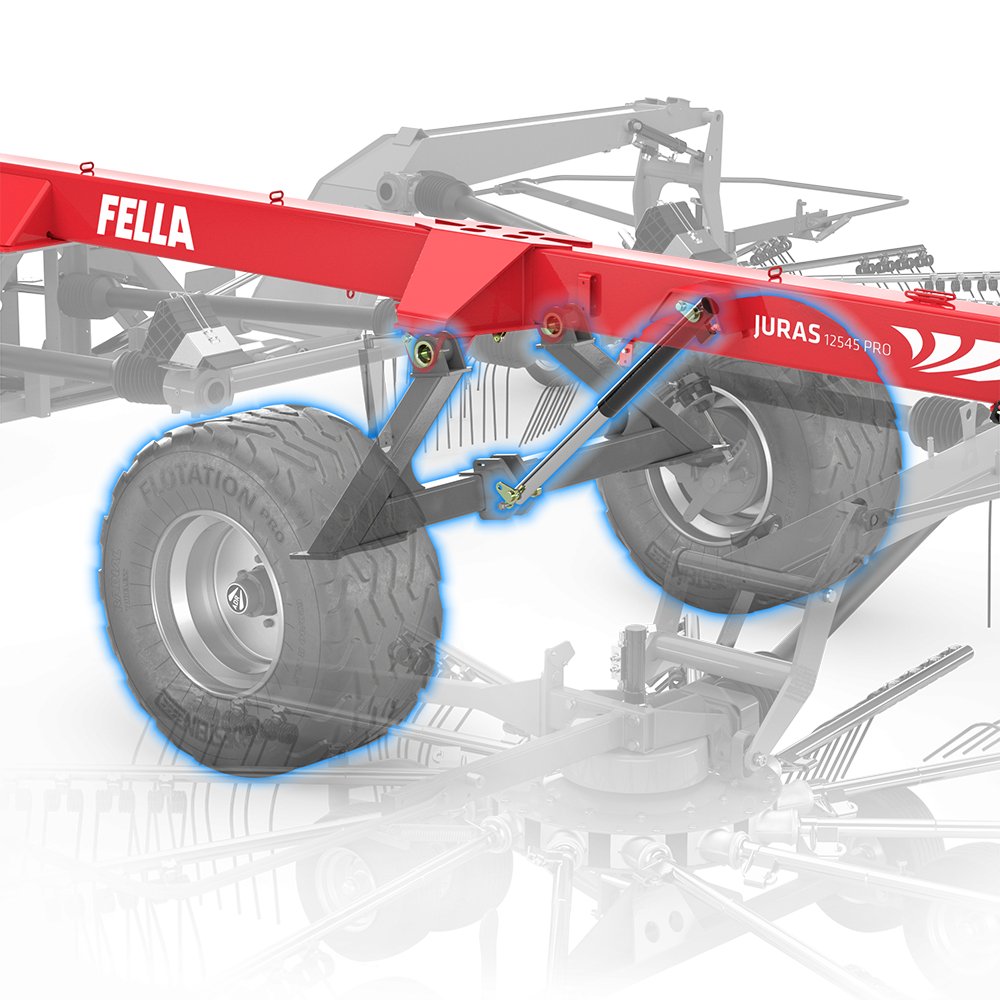

JURAS 12545/-PRO: HYDRAULIC HEIGHT-ADJUSTABLE BROAD GAUGE CHASSIS
The broad gauge chassis ensures a low centre of gravity and stability in any driving situation. Consequently, the height-adjustable axle guarantees a transport height under four metres, even with the tines attached. |
|

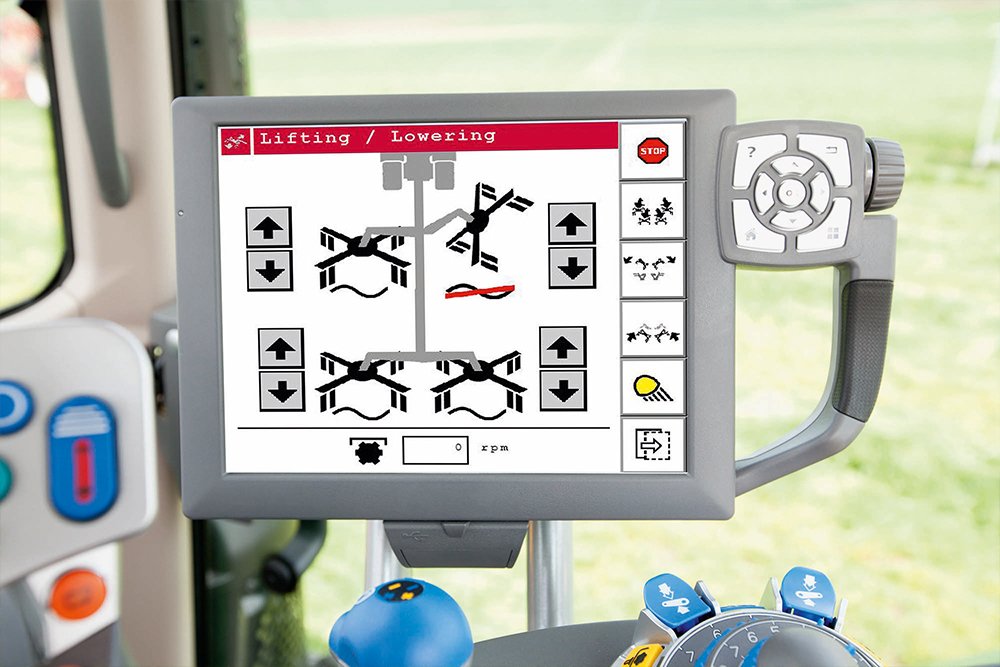

JURAS 12545 PRO: OPERATION OF ALL FUNCTIONS USING ISOBUS CONTROL SYSTEM
All functions, such as single lift, raking height adjustment and automatic folding into the transport position, can be operated from the tractor using the ISOBUS control system and can be programmed according to the user's needs using the control lever or a separate operating joystick. |
|

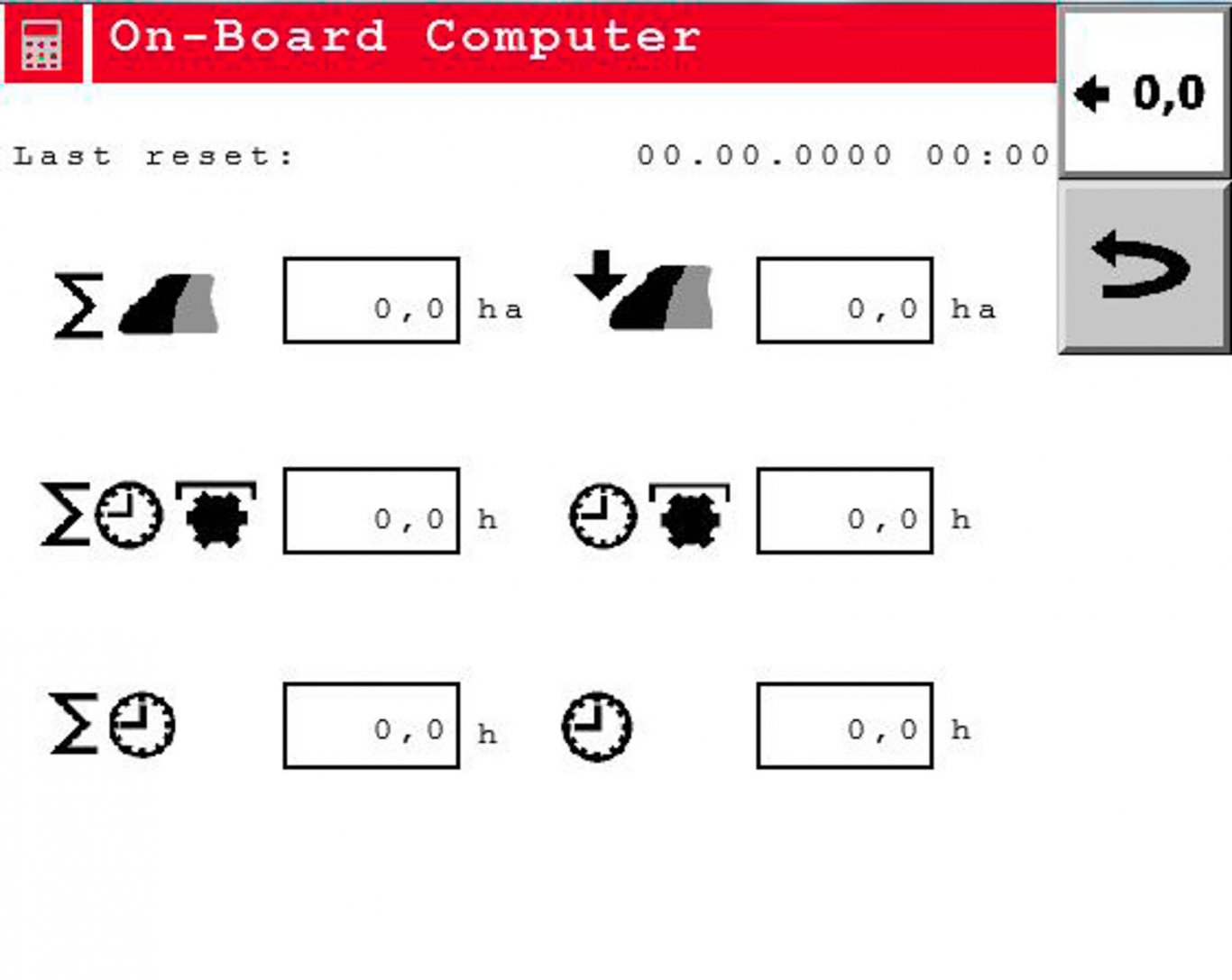

JURAS 12545 PRO: MEASURE PERFORMANCE WITH THE INTEGRATED HECTARE COUNTER
Using the integrated hectare and hour counters, it is possible to measure the amount of work which has been done. Ideal for paid contract work or use on more than one farm. |
|
JURAS 4000: PERFORMANCE AND LOW DRAG
The model was developed specifically to achieve what it was designed for – high cutting power, low weight and simple operation. No more, no less. Thanks to its simple yet very stable structure, the JURAS 4000 is very easy to operate and maintain. Even new drivers can use the JURAS 4000 safely and efficiently, which increases its flexibility especially when used on more than one farm. |
|

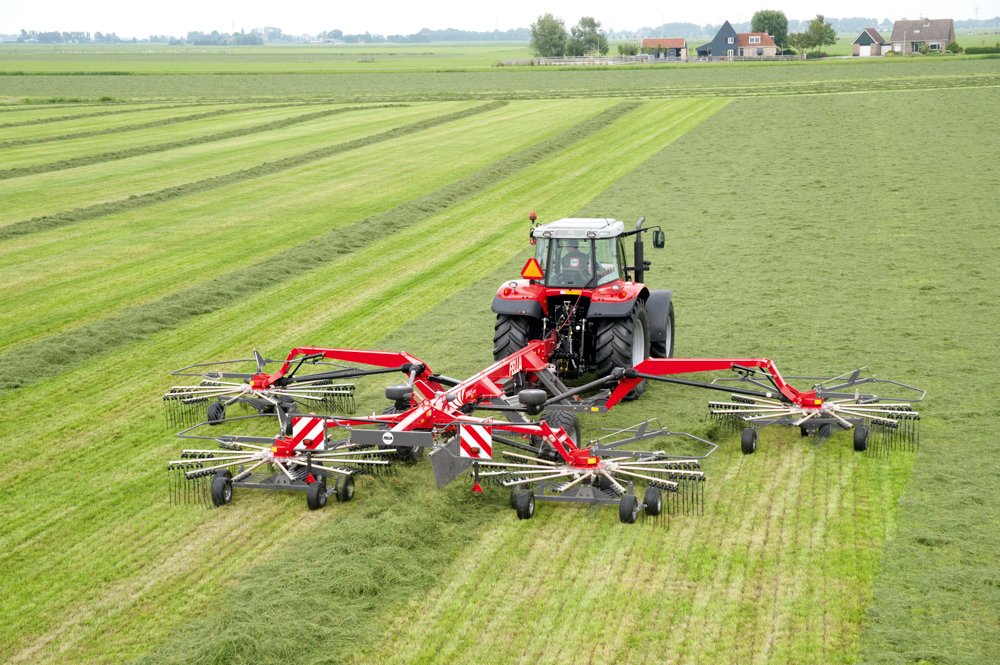

SEQUENTIAL CONTROL AS STANDARD: EASY TO OPERATE ON THE HEADLAND
The JURAS four-rotor rakes are equipped with automatic, hydraulic and individually adaptable sequential control. This system controls the delayed raising and lowering of the rear pair of rotors and, as a result, enables you to deposit perfectly formed swaths at the end of the field. |
|

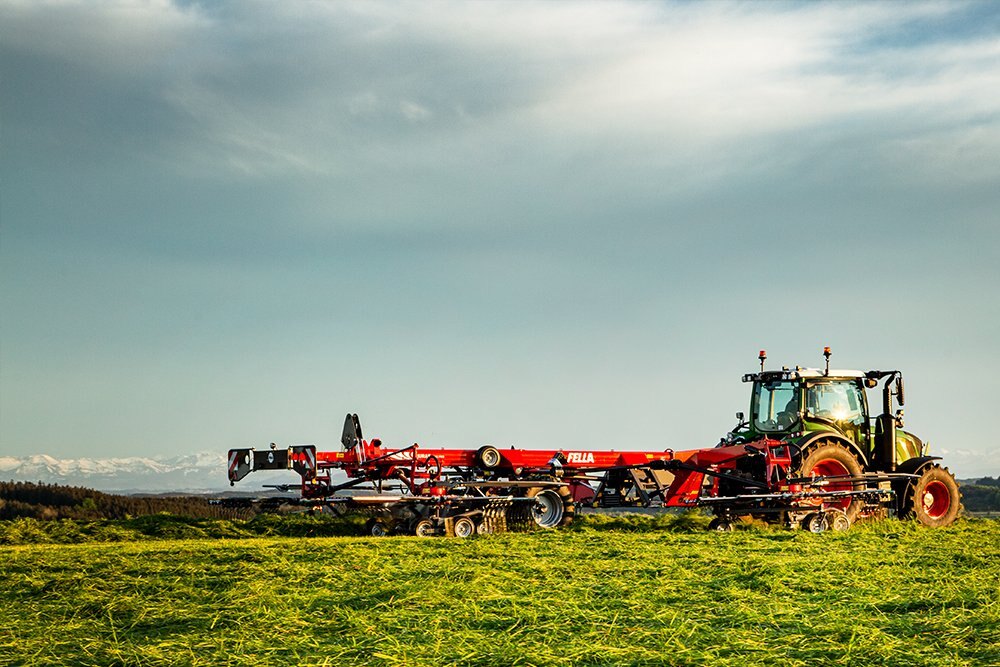

HYDRAULIC WORKING WIDTH ADJUSTMENT
This ensures optimum ergonomics and, as far as possible, makes the driver's work easier after a long working day |
| Machine | JURAS 4000 | JURAS 12545 | JURAS 12545 PRO |
|---|---|---|---|
| Mounting category CAT. | II CAT. | II CAT. | II CAT. |
| Working width approx. | 12500 mm | 10600-12500 mm | 10600-12500 mm |
| Tyres of rotor chassis | 4x 16/6.50-8 | 4 x 16/6.50-8 | 4 x 16/6.50-8 / 6 x 16/6.50-8 |
| Tyres of transport chassis | 500/50-17 | 500/50-17 | 500/50-17 |
| Double tines per arm | 4 | 4 | 4 |
| Weight approx. | 4200 kg | 4600 kg | 4750 kg |
| Rotor diameter | 3200 mm | 3200 mm | 3200 mm |
| Power demand approx. | 80 hp | 80 hp | 80 hp |
| Necessary hydraulic outlets | 2x DAV | 2x DAV, 1x SAV | 1 x Load Sensing |
| Swath width approx. | 1200-2200 mm | 1200-2200 mm | 1200-2200 mm |
| Transport width approx. | 2980 mm | 2980 mm | 2980 mm |
| Transport height approx. | 3650 mm | 3940 - 3990 mm | 3940 - 3990 mm |
| Transport length approx. | 8490 mm | 8820 mm | 8820 mm |
| PTO rpm | 540 rpm | 540 rpm | 540 rpm |
| Tine arms per rotor | 4x 12 | 4x 12 | 4x 12 |
