Single rotor – trailed
|
|
Working width approx.: 4.50 m
|
|

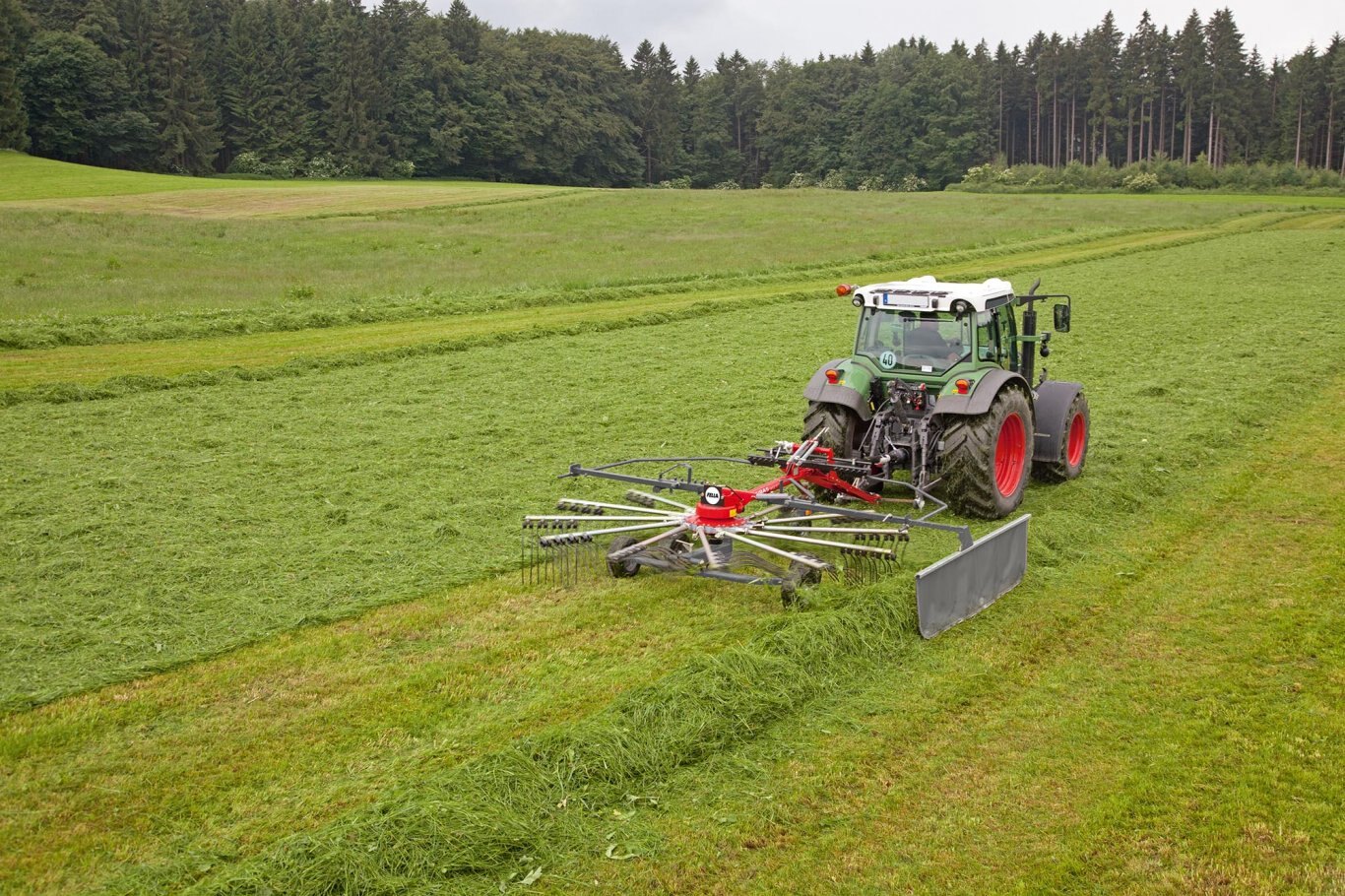

HIGH WORK PERFORMANCE EVEN WITH SMALL TRACTORS With the trailed JURAS 456 T, FELLA offers a single-rotor rake that has all the benefits of a three-point machine, but can even be used with small tractors. The trailed construction means that the tractor does not carry the weight. The simple hitch to tractor linkage drawbars or adjustable drawbars is typical for these machines. |
|
PARALLEL ROTOR LIFTING FOR LARGE GROUND CLEARANCE
Thanks to the parallel rotor lifting, driving over swaths at the headland becomes child's play. |
|
BROAD GAUGE CHASSIS FOR OPTIMUM GROUND ADAPTATION The broad gauge chassis guarantees optimum ground adaptation of the single-rotor rake and very good efficiency on slopes. |
|
THE RAKE IS ALWAYS IN VIEW THANKS TO THE SWATH POSITIONING ON THE RIGHT
The FELLA single-rotor rakes place the swath to the right, which ensures better ergonomics and a better overall view because all the tractor operating elements are also on the right-hand side. |
| Machine | JURAS 456 T |
|---|---|
| Working width approx. | 4500 mm |
| Tyres of rotor chassis | 4x 16/6.50-8 |
| Double tines per arm | 4 |
| Weight approx. | 600 kg |
| Rotor diameter | 3400 mm |
| Power demand approx. | 41 hp |
| Mounting Category | Drawbar |
| Swath width approx. | 750-1600 mm |
| Transport width approx. | 2100 mm |
| Transport length approx. | 4100 mm |
| PTO rpm | 540 rpm |
| Tine arms per rotor | 12 |
