ID # 17936309

Fella Juras 351 DS

  • Fella Juras 351 DS
  • Video Button Maxresdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

Single rotor – rigid headstock

  • Specially developed single-rotor rakes for use in alpine terrain
  • Work safely even on hillsides, thanks to the short headstock and high-quality lightweight design
  • Universally usable as a rear-mounted or front-mounted machine

Working width approx.: 3.60 m

  1. Work safely even on hillsides, thanks to the short headstock and high-quality lightweight design.
  2. Universally usable as a rear-mounted or front-mounted machine with optimum visibility of the working machine without first driving over the forage.
Specifications
Model
Juras 351 DS
Category Name
Agriculture
Year
2021
Sale Type
New
Manufacturer
FELLA
special features

UNIVERSALLY DEPLOYABLE THANKS TO FRONT AND REAR ATTACHMENT Fella Juras 351 DS

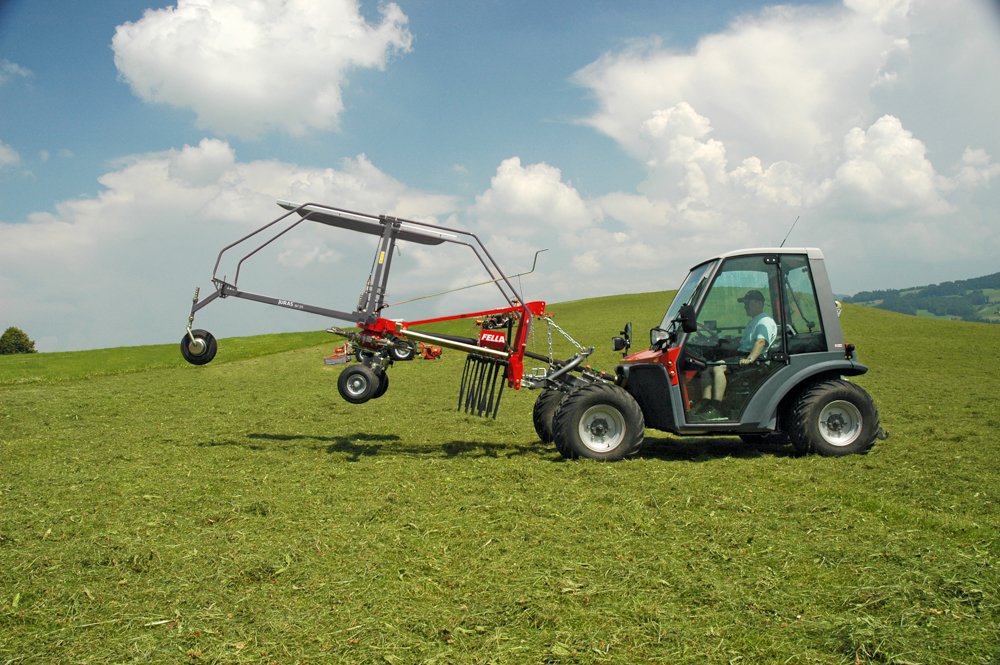

The JURAS 301 DS and JURAS 351 DS single-rotor rakes are suitable for front- and rear-mounting, which means they can be used as all-rounders on alpine terrain.

STABILITY ON SLOPES Fella Juras 351 DS

Due to its low weight and short and compact attachment, these FELLA rakes can be used with a tractor power of as low as approx. 20 hp. Ideal for mountainous regions which demand powerful machines, while at the same time carefully handling the sensitive underground structure.

THE RAKE IS ALWAYS IN VIEW THANKS TO THE SWATH POSITIONING ON THE RIGHT Fella Juras 351 DS

The FELLA single-rotor rakes place the swath to the right, which ensures better ergonomics and a better overall view because all the tractor operating elements are also on the right-hand side.

CONVENIENT TRANSPORT THANKS TO HORIZONTAL STORAGE OF THE TINE ARMS Fella Juras 351 DS

All the tine arms can be effortlessly removed and are stored horizontally. This significantly reduces the transport width and the risk of accidents.
technical specifications
Machine JURAS 351 DS
Mounting category CAT. I+II CAT.
Working width approx. 3600 mm
Tyres of rotor chassis 2x 15/6.00-6
Double tines per arm 3
Weight approx. 370 kg
Rotor diameter 2700 mm
Power demand approx. 34 hp
Swath width approx. 600-1500 mm
Transport width approx. 1700 mm
Transport length approx. 2130 mm
PTO rpm 540 rpm
Tine arms per rotor 10
