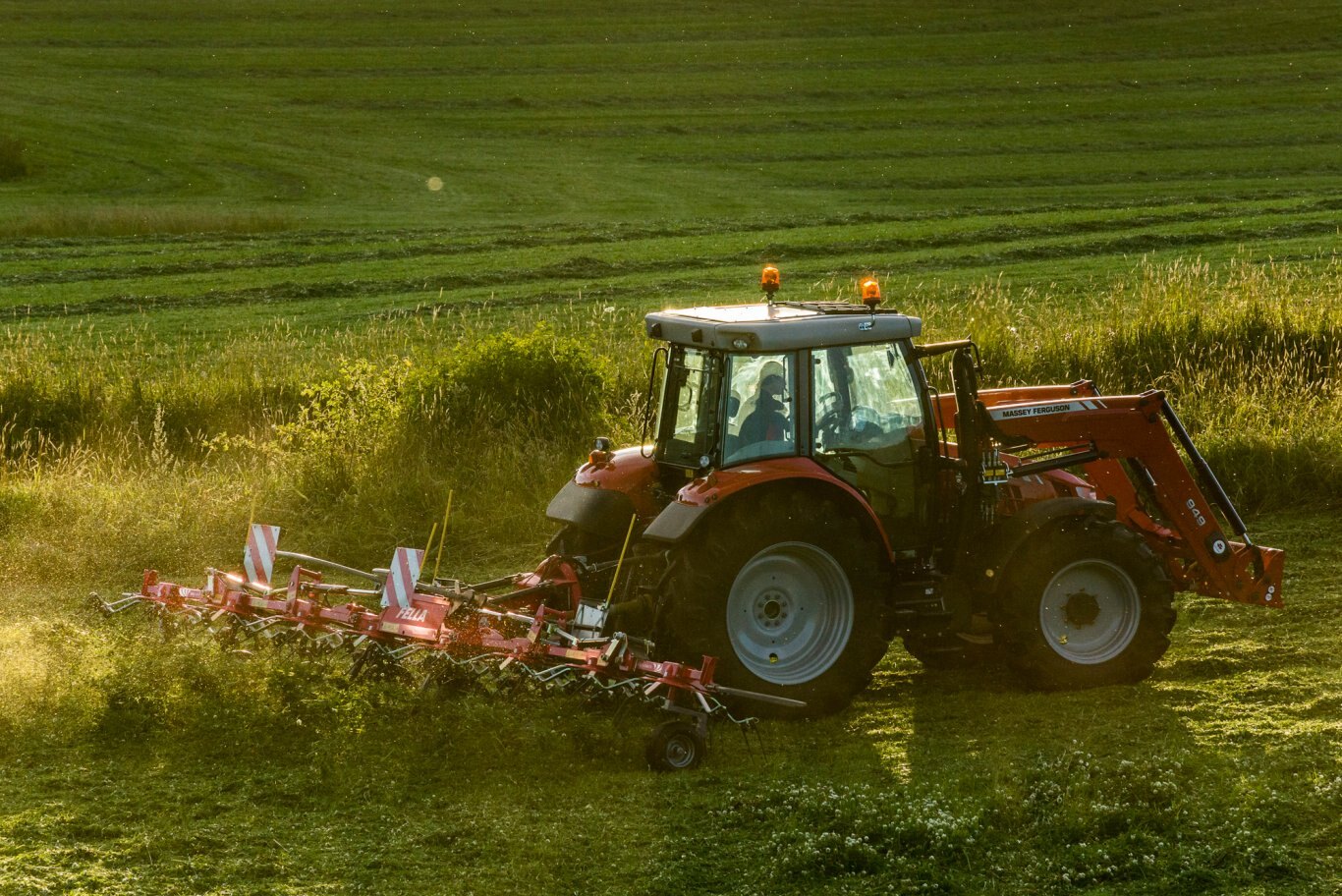

Three-point attachment – with follow-up device
|
|
Working width approx.: 4.50 m – 8.60 m
|
|
HIGH LEVEL OF DRIVING SAFETY THANKS TO THE SHORT TRACTOR ATTACHMENT Thanks to the extremely short tractor attachment, it is also possible to use smaller tractors for this series. The tractor's load is low, as is the front axle's load relief, and this results in an extremely high level of safety when driving on the road and when working on hillsides |
|
SYNCHRONISED LIFTING OF ROTORS FOR INCREASED SAFETY
The rotors are easily folded in and out hydraulically in a synchronised operation directly from the tractor seat. Safe operation is also possible when working on hillsides thanks to the synchronised lifting facility. |
|
NO ROCKING THANKS TO THE INTEGRATED SWING BRAKE
The three-point tedders are equipped with an integrated, adjustable swing brake. It reliably prevents rocking (SANOS 8608 also with damping braces) |
|
AN EDGE SPREADING DEVICE AS STANDARD PREVENTS LOSSES OF FORAGE AT THE EDGE OF THE FIELD
The central edge spreading device on both sides helps to prevent losses of forage even in the most difficult harvesting conditions or when working in hillside lines. It can be easily adjusted from the tractor seat (FELLA patent). |
|
SPREADING ANGLE ADJUSTMENT SYSTEM AS STANDARD
Thanks to the option to adjust the spreading angle adjustment to three positions (15° - 18 ° - 21°), it can be used without any problems in changing operating conditions. |
| Machine | SANOS 4504 DN | SANOS 5204 DN | SANOS 6606 DN | SANOS 7706 DN | SANOS 8608 DN |
|---|---|---|---|---|---|
| Parking height approx. | 2400 mm | 2600 mm | 3300 mm | 3650 mm | 3300 mm |
| Mounting category CAT. | I+II CAT. | I+II CAT. | I+II CAT. | I+II CAT. | I+II CAT. |
| Rotors | 4 | 4 | 6 | 6 | 8 |
| Working width approx. | 4500 mm | 5200 mm | 6600 mm | 7700 mm | 8600 mm |
| Tyres of rotor chassis | 16/6.50-8 | 16/6.50-8 | 16/6.50-8 | 16/6.50-8 | 6x 16/6.50-8 2x 18.5/8.50-8 |
| Weight approx. | 574 kg | 606 kg | 822 kg | 946 kg | 1172 kg |
| Power demand approx. | 30 hp | 30 hp | 41 hp | 82 hp | 95 hp |
| Necessary hydraulic outlets | 1x SAV | 1x SAV | 1x SAV | 1x SAV | 1x SAV, 1x DAV with floating position |
| Transport width approx. | 2650 mm | 3000 mm | 2900 mm | 3000 mm | 2900 mm |
| PTO rpm | 540 rpm | 540 rpm | 540 rpm | 540 rpm | 540 rpm |
| Tine arms per rotor | 6 | 6 | 6 | 6 | 6 |
