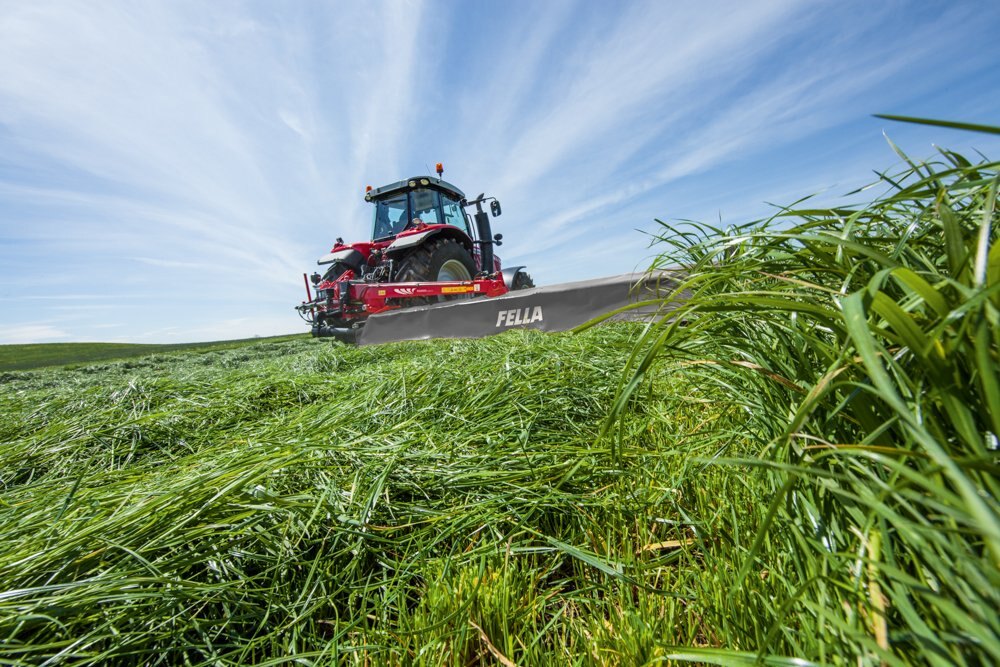

Rear-mounted middle attachment
|
Working width approx.: 4.00 m – 4.50 m
|
|
LOW-DRAG THANKS TO INTELLIGENT HITCH ATTACHMENT The mower units mounted at the centre of gravity relieve the lifting arms, ensure excellent ground adaptation and save fuel as a result of uniform contact pressure. |
|
OPTIMUM GUIDANCE OF THE CUTTER BAR THANKS TO THE FELLA SLIDE TRACK
The patented FELLA slide track provides optimum stability and guidance of the cutter bar both longitudinally and transversely. This relieves the load on the mower's lifting arm and allows for even better ground adaptation. |
|
THE MOWER IS PROTECTED BY AN IMPACT GUARD SYSTEM
The mower is optimally protected thanks to the precisely adjustable release force on the brackets. A double-acting hydraulic cylinder returns the mower to the working position when the working position is activated from the tractor cab. |
|
TOOLS AND SPARE BLADES ALWAYS AT HAND
The spacious tool box is fitted on the headstock of the mower for easy access. This means that spare blades and/or tools are always within reach. |
|
UPWARD-FOLDING FULL-CLOTH GUARD
The TL mowers are fitted with a protective sheet that folds on both sides for easy access during cleaning and maintenance work. |
| Machine | RAMOS 4080 TL | RAMOS 4590 TL |
|---|---|---|
| Mounting category CAT. | II+III CAT. | II+III CAT. |
| Working width approx. | 4000 mm | 4500 mm |
| Weight approx. | 980 kg | 1100 kg |
| Blades per disc | 2 | 2 |
| Power demand approx. | 99 hp | 84 kW |
| Mower discs | 8 | 9 |
| Necessary hydraulic outlets | 1x SAV, 1x DAV | 1x SAV, 1x DAV |
| Swath width approx. | 3300 mm | 3800 mm |
| Transport width approx. | 2300 mm | 2300 mm |
| Transport length approx. | 5600 mm | 6100 mm |
| PTO rpm | 1000 rpm | 1000 rpm |
