ID # 15539625

FELLA JURAS 671

  • FELLA JURAS 671
  • FELLA JURAS 671
  • Video Button Maxresdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

Rakes

JURAS

671 - 8055 PRO




Satz 6 gr2016 2000px

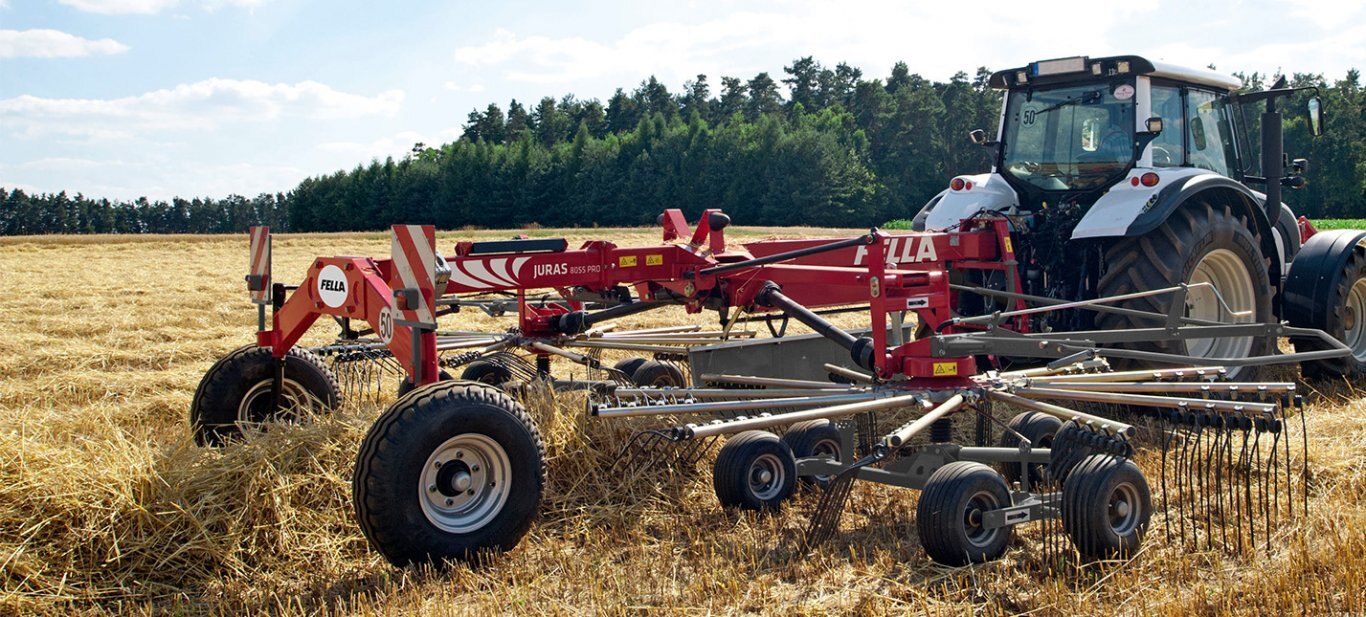

JURAS 671 – ENTRY-LEVEL WITH PROFESSIONAL EQUIPMENT
The JURAS 671 entry-level model in the two-rotor central rake range has a working width of 5.80 m to 6.60 m. This machine combines the technology which has proven itself so many times before in the single-rotor rake with elements of the professional equipment fitted to its "big brothers".













JURAS 801/JURAS 880 – THE ALL-ROUNDERS.
Automatic working width preselection, neat raking work, precise swaths (even with large amounts of forage) and quick, safe travel from field to field are all offered by the JURAS 801 and JURAS 880 two-rotor central rakes. With variable working widths from 6.80 m to 8.00 m and swaths of 1.20 m to 2.00 m, they can master any working situation.

Satz 6 gr2016 2000px


















Satz 6 gr2016 2000px JURAS 8055 PRO – THE SPECIALIST FOR STRAW AND EXTREME CONDITIONS
Because the rotor rakes are under enormous stress during straw recovery and other difficult working conditions, they require an improved level of technology and equipment. The JURAS 8055 PRO includes all the benefits of the tried and tested JURAS 880, plus the low-maintenance TS5 rake head and a particularly stable rotor chassis that has been developed especially for extreme requirements.
Satz 6 gr2016 2000px ADDITIONAL TECHNICAL FEATURES OF THE JURAS 8055 PRO
  • Maintenance-free support-arm mounting (TS 5 rake head)
  • Rigid twin leading wheel with 18/8.50-8 tyres for smooth rotor operation and low wear
  • Widened tandem axle and very wide tandem axle wheel clearance for smooth operation and better ground sensing
Satz 6 gr2016 2000px

CAN BE ADAPTED TO FORAGE VOLUME THANKS TO WORKING WIDTH/SWATH WIDTH ADJUSTMENT
The working width and swath width can be pre-selected without the need to use a tool or can be adjusted hydraulically whilst working. This enables ideal adaptation to the forage volume and harvesting process capacity. In addition, the rake is always at the lowest transport height, regardless of the pre-selected working width (FELLA patent)













Satz 6 gr2016 2000px

















Satz 6 gr2016 2000px
Satz 6 gr2016 2000px HEADLAND POSITION WITH AUTOMATIC HEIGHT RESTRICTION
In the headland position at the end of the field, the rotors are first lifted parallel to the ground. This large ground clearance ensures that the forage remains in the swath and is not damaged. Because of the integrated automatic height limitation, it is not necessary to switch off the rotors in the headland position and damage as a result of operator error is prevented.
Satz 6 gr2016 2000px
TRANSPORT CHASSIS DESIGNED FOR 40 KM/H
The driver can reach speeds of up to 40 km/h with the transport chassis (depending on permissions in the country). Wasting time when transferring from one field to another is now a thing of the past.



















Specifications
Model
JURAS 671
Category Name
Agriculture
Year
2020
Sale Type
New
Manufacturer
FELLA
PTO Rpm
540 rpm
Rotor Diameter
2740 mm
Weight Approx.
1350 kg
Swath Width Approx.
1200-1800 mm
Tine Arms Per Rotor
10/10
Double Tines Per Arm
4
Power Demand Approx.
26 hp
Working Width Approx.
5800-6600 mm
Mounting Category CAT.
I+II CAT.
Tyres Of Rotor Chassis
3x 16/6.50-8
Transport Length Approx.
4660 mm
Transport Width Approx. (mounted Tine Arms)
3700 mm
Transport Height Approx. (dismounted Tine Arms)
3180 mm
