FELLA SANOS 5204 DN

  • FELLA SANOS 5204 DN
  • FELLA SANOS 5204 DN
  • Video Button Hqdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

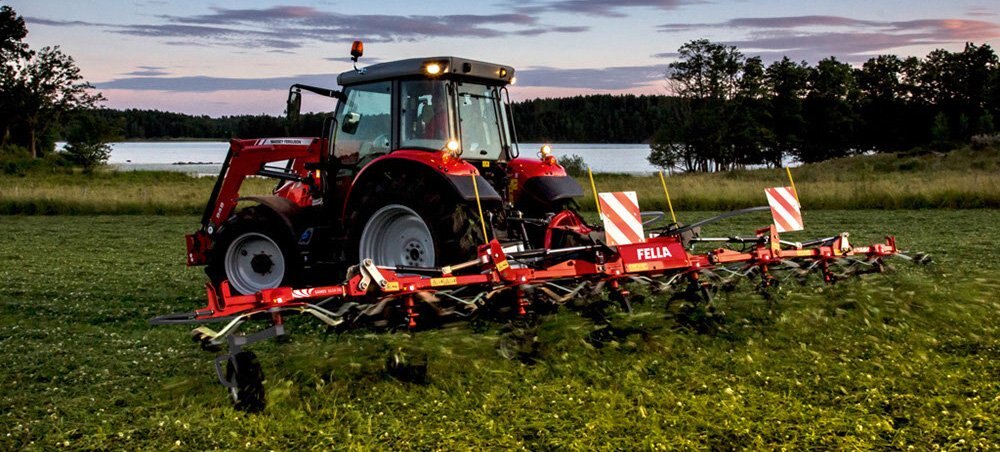

Tedders

SANOS

4504 DN - 8608 DN

  • All-rounders in the tedder range
    Versatile
  • Very high quality of work

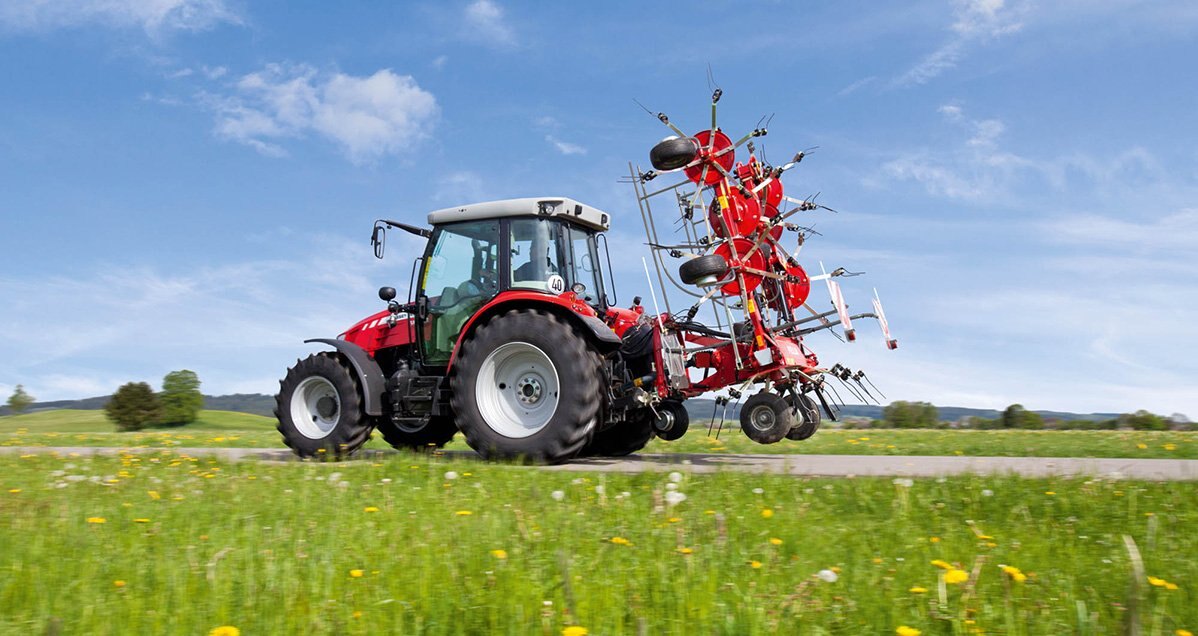

HIGH LEVEL OF DRIVING SAFETY THANKS TO THE SHORT TRACTOR ATTACHMENT
Thanks to the extremely short tractor attachment, it is also possible to use smaller tractors for this series. The tractor's load is low, as is the front axle's load relief, and this results in an extremely high level of safety when driving on the road and when working on hillsides
Satz 6 gr2016 2000px SYNCHRONISED LIFTING OF ROTORS FOR INCREASED SAFETY
The rotors are easily folded in and out hydraulically in a synchronised operation directly from the tractor seat. Safe operation is also possible when working on hillsides thanks to the synchronised lifting facility.
Satz 6 gr2016 2000px NO ROCKING THANKS TO THE INTEGRATED SWING BRAKE
The three-point tedders are equipped with an integrated, adjustable swing brake. It reliably prevents rocking (SANOS 8608 also with damping braces)
Satz 6 gr2016 2000px AN EDGE SPREADING DEVICE AS STANDARD PREVENTS LOSSES OF FORAGE AT THE EDGE OF THE FIELD
The central edge spreading device on both sides helps to prevent losses of forage even in the most difficult harvesting conditions or when working in hillside lines. It can be easily adjusted from the tractor seat (FELLA patent).
Satz 6 gr2016 2000px SPREADING ANGLE ADJUSTMENT SYSTEM AS STANDARD
Thanks to the option to adjust the spreading angle adjustment to three positions (15° - 18 ° - 21°), it can be used without any problems in changing operating conditions.






Specifications
Model
SANOS 5204 DN
Category Name
Agriculture
Year
2020
Sale Type
New
Manufacturer
FELLA
Rotors
4
PTO Rpm
540 rpm
Weight Approx.
606 kg
Tine Arms Per Rotor
6
Power Demand Approx.
30 hp
Working Width Approx.
5200 mm
Mounting Category CAT.
I+II CAT.
Parking Height Approx.
2600 mm
Tyres Of Rotor Chassis
16/6.50-8
Transport Width Approx.
3000 mm
