Overview

Tedders

SANOS

11010 DN

  • Working width of 10.70 m
  • Latest swing brake generation
  • KENNFIXX® connector
  •
THREE-POINT ATTACHMENT WITH FOLLOW-UP DEVICE
With its new large-scale tedder, FELLA is now also bringing maximum power to the field in the three-point segment. With working widths of almost 11 metres, patented technologies such as the traction/compression system and the low-lying towing point play to their strengths and guarantee a high throughput at optimum forage quality. The newly designed swing brake adjusted to the size and the short attachment ensure even greater safety and convenience on any terrain.
TH 401 DS arb print gr2016 interp 2000px Special features of the series
SAFE YET COMFORTABLE
The rotors are easily folded in and out hydraulically in a synchronised operation directly from the tractor seat. Thanks to the synchronised lifting facility, safe operation is also possible when working on hillsides.
When the machine is folded to the transport position, the automatic safety disconnection is activated, with the rotors merely freewheeling. This reliably protects the machines from the consequences of an incorrect operation procedure and guarantees safe travel out on the road.
TH 401 DS arb print gr2016 interp 2000px
MAXIMUM GROUND CLEARANCE
The standard hydraulic headland lifting offers maximum ground clearance for driving over ditches and turning on the headland.
TH 401 DS arb print gr2016 interp 2000px
LATEST GENERATION
The three-point headstock contains the integrated and updated swing brake of the latest generation – it is large and offers maximum efficiency.
TH 401 DS arb print gr2016 interp 2000px
DRIVING AND TRANSPORT STABILITY
Due to the short, compact attachment, the centre of gravity lies close to the tractor. This is particularly important for machines this size to ensure excellent track stability on slopes and on the road.
TH 401 DS arb print gr2016 interp 2000px

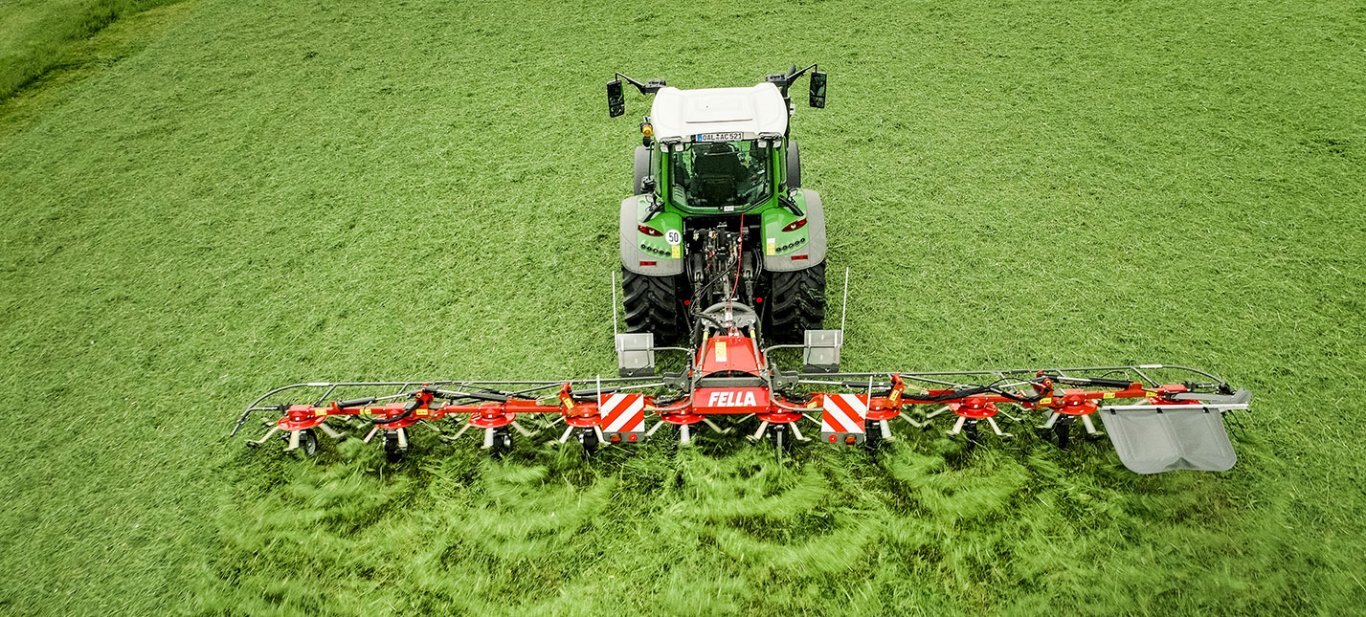

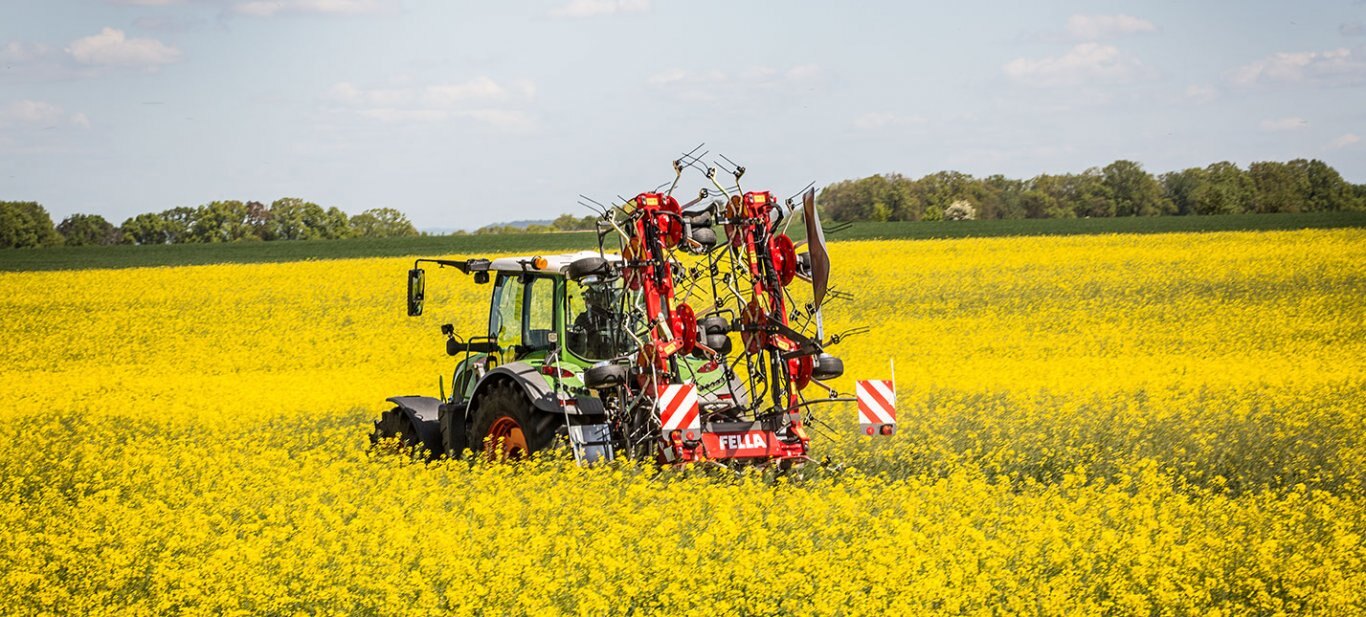

COMPACT ON THE ROAD, WIDE-REACHING ON THE FIELD
Despite its large working width and 10 rotors, the sophisticated folding mechanism makes for compact transport dimensions.
TH 401 DS arb print gr2016 interp 2000px
OPTIMUM BOUNDARY CONDITIONS
The optional hydraulic crop curtain prevents loss of forage at the edge of the field. The equipment can be conveniently controlled from the tractor seat.





Specifications
Model
SANOS 11010 DN
Category Name
Agriculture
Year
2020
Sale Type
New
Manufacturer
FELLA
Rotors
10
PTO Rpm
540 rpm
Weight Approx.
1535 kg
Tine Arms Per Rotor
6
Power Demand Approx.
88 kW/120 PS
Working Width Approx.
10700 mm
Mounting Category CAT.
I+II CAT.
Parking Height Approx.
3750 mm
Tyres Of Rotor Chassis
8x 16/6.50-8 2x 18.5/8.50-8
Transport Width Approx.
3000 mm
