FELLA SANOS 601 DN

  • FELLA SANOS 601 DN
  • FELLA SANOS 601 DN
  • FELLA SANOS 601 DN
  • Video Button Maxresdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

Tedders

SANOS

401 DS - 601 DN

  • The quick way to dry forage

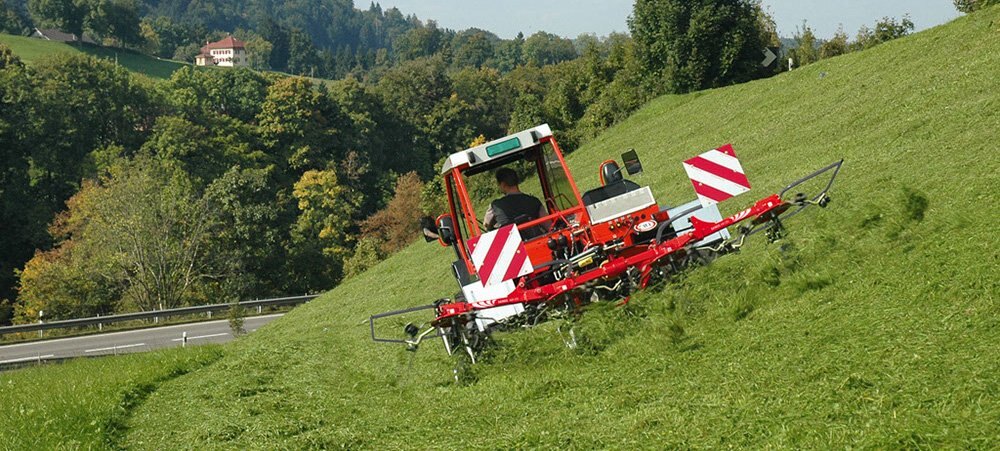

  • Optimised for Alpine terrain thanks to lightweight design
  • Perfect in combination with a RAMOS front-mounted mower
TH 401 DS arb print gr2016 interp 2000px Special features of the series
DS VERSION WITH RIGID HEADSTOCK/DN VERSIONS WITH FOLLOW-UP DEVICE
The SANOS 401 DS version with a working width of 4.00 metres has a rigid, compact headstock that has been specially developed to be attached to alpine tractors. The three versions – SANOS 401 DN, 431 DN and 601 DN – that have working widths of 4.00 m to 5.70 m are equipped with a flexible follow-up device.

TH 401 DS arb print gr2016 interp 2000px
INCREASED STABILITY ON HILLSIDES THANKS TO THE ROTOR'S SYNCHRONISED LIFTING FACILITY
The synchronised lifting facility prevents unfavourable weight distribution during the folding process and ensures that the machine is stable, even on sloping terrain.
TH 401 DS arb print gr2016 interp 2000px DRIVING AND TRANSPORT STABILITY THANKS TO THE SHORT TRACTOR ATTACHMENT
Thanks to the short, compact attachment, the centre of gravity is close to the tractor and therefore leads to excellent track stability on hillsides and on the road.
TH 401 DS arb print gr2016 interp 2000px CAN BE USED IN AN EXTREMELY WIDE RANGE OF HARVESTING CONDITIONS THANKS TO THE SPREADING ANGLE ADJUSTMENT SYSTEM
The spreading angle adjustment system allows for a rotor pitch in three different positions, which means that it can be used in an extremely wide range of harvesting conditions.
NO LOSSES OF FORAGE THANKS TO THE EDGE SPREADING DEVICE
The edge spreading device, which comes as standard, ensures that losses of forage can be prevented at the edge of the field and in the most difficult harvesting conditions or when working in hillside lines (DN versions)
AUTOMATIC LOCK FOR INCREASED SAFETY ON HILLSIDES
The automatic lock prevents the machine from swinging in the direction of travel when it is raised, and ensures that it is stable on hillsides (DN model).



Specifications
Model
SANOS 601 DN
Category Name
Agriculture
Year
2020
Sale Type
New
Manufacturer
FELLA
Rotors
6
PTO Rpm
540 rpm
Weight Approx.
498 kg
Tine Arms Per Rotor
5
Power Demand Approx.
34 hp
Working Width Approx.
5700 mm
Mounting Category CAT.
I+II CAT.
Parking Height Approx.
3000 mm
Tyres Of Rotor Chassis
15/6.00-6
Transport Width Approx.
2550 mm
