Fella Ramos 310 FZ-RC

  • Fella Ramos 310 FZ RC
  • Fella Ramos 310 FZ RC
  • Fella Ramos 310 FZ RC
  • Video Button Maxresdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

Disc-mowers
RAMOS

  • Extremely low-drag thanks to towing point positioned well towards the front
  • Optimum ground adaptation thanks to large pivot travel
  • Perfect quality of cut thanks to the cutter bar with compact angular gear
 Special Features
Optimum ground adaptationhttps://fella.eu/images/products/02_trommelmaehwerke_radon/Querpendelbewegung_Pendelbock_COMP_v001_1000px.jpg

Perfect adaptation in the event of a depression in the ground

Perfect adaptation in the event of an elevation in the ground Ground adaptation elevation COMP v001 72dpi 1000px

Adaptation to flat ground Ground adaptation flat COMP v001 72dpi 1000px
Extremely low-drag thanks to the headstock with trailing linkage https://fella.eu/images/products/10_scheibenmaehwerke_ramos/SM_9314_TL-KCB_arb_print_9_gr2016_1000px.jpg

The towing point positioned well towards the front of the headstock with trailing linkage allows the cutter bar to glide easily over any surface. This not only protects the sward but also saves fuel.
Three-dimensional sensing of the ground contours Headstock with trailing linkage transverse pivot movement COMP v001 72dpi 1000px

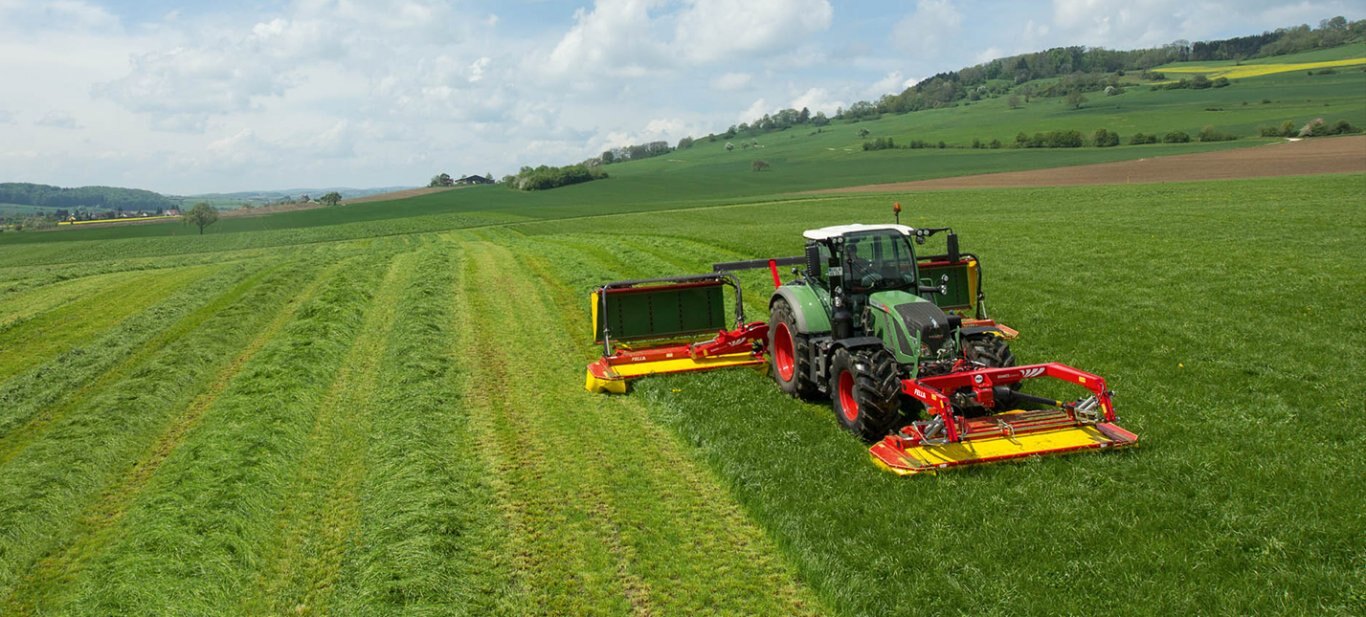

The RAMOS 310 FZ front-mounted mower offers the largest possible pivot travel – up to 20° inclination – and ensures outstanding ground adaptation, even under the most difficult harvesting conditions.

Perfect swath positioning for the loader wagon RAMOS disc mower with transverse pivot movement

The FP-SL swather variant with cam-controlled feed tines ensures swaths are deposited in defined, compact lines (< 1.10 m depending on type of forage and crop). The feed tines deposit a precisely shaped and lightly packed swath which is suitable for all pick-up widths.
No stalk is left standing thanks to the hydraulic lateral movement

The mower unit can be moved hydraulically to the left and right by up to 20 cm. This means no blade of grass is left standing – even on sloping terrain.





Specifications
Model
Ramos 310 FZ-RC
Category Name
Agriculture
Year
2020
Sale Type
New
Manufacturer
FELLA
PTO Rpm
1000 rpm
Conditioner
RC
Mower Discs
6
Weight Approx
1202 kg
Blades Per Disc
2
Swath Width Approx
1550-1900 mm
Power Demand Approx
87 hp
Working Width Approx
3000 mm
Mounting Category CAT
II CAT
Transport Width Approx
3000 mm
Transport Length Approx
1810 mm
Of Which With Conveyor Wings
2
