Fella Radon

ID # 15536526

Fella Ramos 3160 FQ

Videos
Call for Price
Overview

Disc-mowers
RAMOS

  • Working widths of 3.10 m and 3.60 m
  • Three-dimensional kinematics for transverse and longitudinal ground adaptation
  • Automatic mower unit inclination of -6° to +15°
  • 450 mm ground clearance on the headland
 Special Features

https://fella.eu/images/products/14_scheibenmaehwerke_ramos/Gleitf%C3%BChrung_S.31_IC3.jpg
REMAINS CLOSE TO THE GROUND
Thanks to the merging transverse and longitudinal movements of the three-dimensional kinematics, the mower precisely follows the ground contour. Perfect ground adaptation even at high driving speeds no longer poses a problem.

MOWING WITHOUT LOSSES IN ALL POSITIONS
https://fella.eu/images/products/14_scheibenmaehwerke_ramos/Gleitf%C3%BChrung_S.31_IC3.jpg

Thanks to the hydraulic lateral movement (option), the FQ mower can be moved to the left or right as required by the situation from the comfort of the tractor seat. In bends, this stops you driving over growing crops. When drifting on a slope, counter-steering of the mower unit prevents the creation of strips.

STRONG SUPPORT
https://fella.eu/images/products/14_scheibenmaehwerke_ramos/SM_3570_TL-KCAnfahrsicherung.jpgThe parking support ensures that the FQ mower is easy to hitch to the tractor.

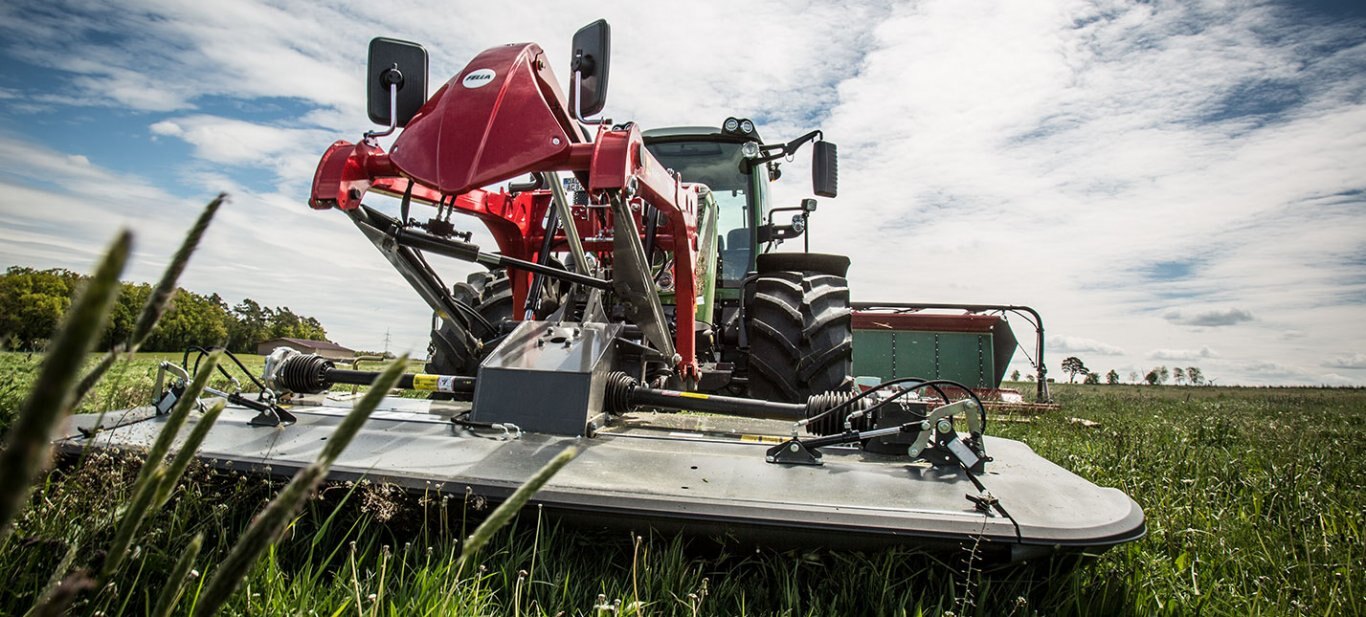

DIRECT ATTACHMENT
https://fella.eu/images/products/10_scheibenmaehwerke_ramos/SM_9314_TL-KCB_arb_print_9_gr2016_1000px.jpgThe strain on both tractor and machine is relieved by the direct attachment of the mower to the front lifting gear, resulting in the centre of gravity being close to the tractor.
HANDY AND CLEAN

Ramos3160 TLX KC Details Justierung 003

Three-dimensional kinematics for transverse and congitudinal ground adaptation.



https://fella.eu/images/products/14_scheibenmaehwerke_ramos/Gleitf%C3%BChrung_S.31_IC3.jpg
Specifications
Model
Ramos 3160 FQ
Category Name
Agriculture
Year
2020
Sale Type
New
Manufacturer
FELLA
PTO Rpm
1000 rpm
Mower Discs
6
Weight Approx
950 kg
Blades Per Disc
2
Swath Width Approx
1800 mm
Power Demand Approx
85 hp
Working Width Approx
3100 mm
Mounting Category CAT
Direct mounting CAT II
Transport Width Approx
2990 mm
Transport Length Approx
2050 mm
