Overview

Disc-mowers
RAMOS

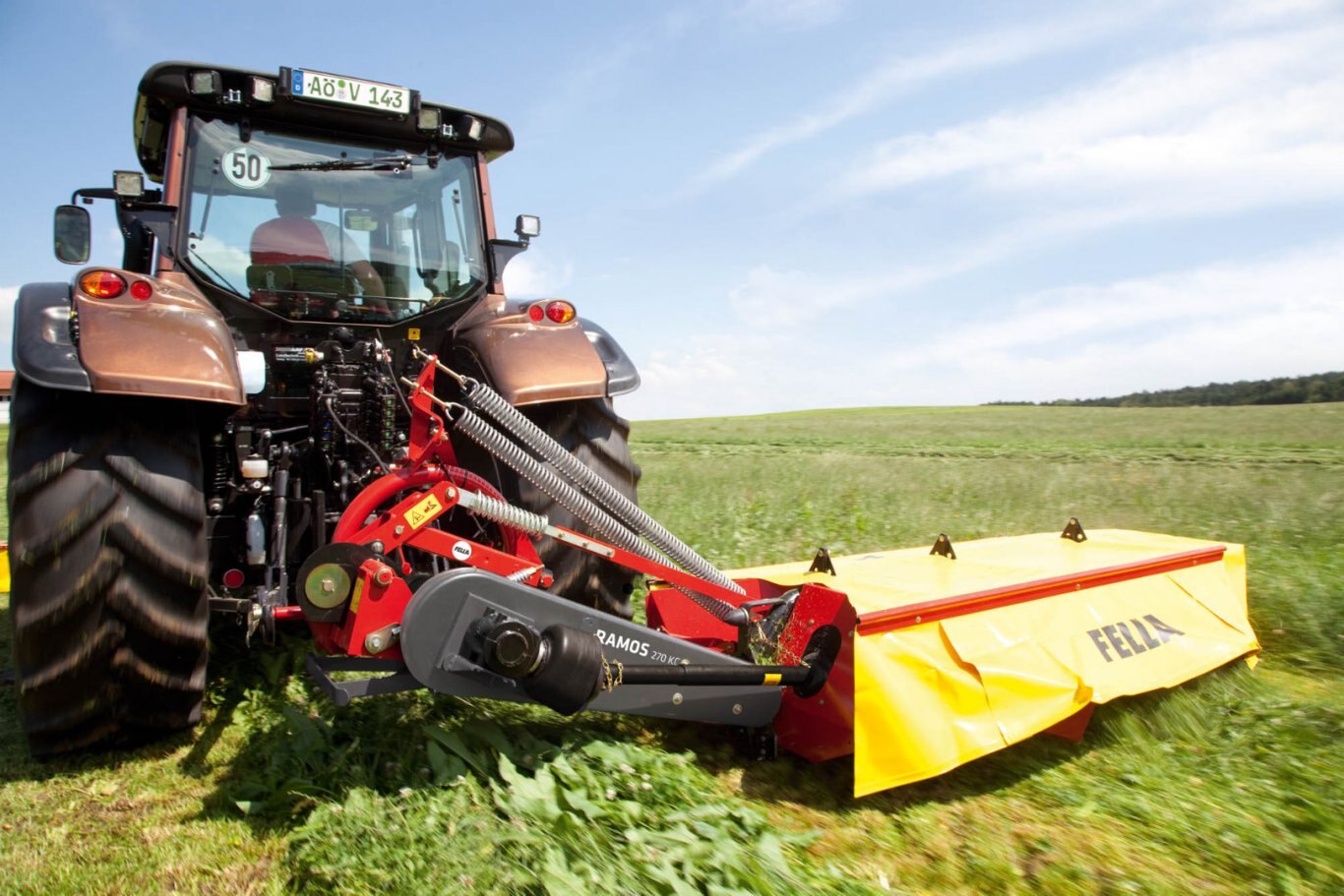

  • Rear-mounted mower for the medium power class, flexible with conditioner
  • Easy handling and foldable protective sheets for good accessibility
  • Perfect quality of cut thanks to the cutter bar with compact angular gear
 Special Features
Effortless adjustment of the cutter bar to the terrainhttps://fella.eu/images/products/02_trommelmaehwerke_radon/Querpendelbewegung_Pendelbock_COMP_v001_1000px.jpg

Thanks to the 30° pivot angle of the mower unit, it is also possible to work neatly on ditches and slopes. The oil maintenance of the cutter bar is designed in such a way that reliable lubrication of all components is guaranteed at all times.

The mower is protected by a spring-loaded impact guard system

The spring-loaded impact guard system provides optimum protection for the mower if an obstruction is encountered when driving. Reversing automatically re-engages the mower unit in the working position.
High lifting height on headlandshttps://fella.eu/images/products/10_scheibenmaehwerke_ramos/SM_9314_TL-KCB_arb_print_9_gr2016_1000px.jpg

The controlled kinematic lifting mechanism prevents the cutter bar from digging into the sward. When lifting using a single-acting control unit, the cutter bar is lifted parallel to the ground. The position of the three-point hydraulics system remains unchanged.

Easy attachment and removal of the conditioner

The RAMOS 210, 270 and 320 disc mowers with side attachment are also available with a tine rotor conditioner (KC) and the RAMOS 210 and 270 disc mowers are also available with a roller conditioner (RC). The FELLA modular system facilitates easy attachment and removal of the conditioner.

Headstock with trailing linkage transverse pivot movement COMP v001 72dpi 1000px Insight into the roller conditioner (RC)





Specifications
Model
Ramos 270
Category Name
Agriculture
Year
2018
Sale Type
New
Manufacturer
FELLA
Mower Discs
5
Mounting Category CAT
II CAT
Working Width Approx
2550 mm
Weight Approx
630 kg
Power Demand Approx
54 hp
Swath Width Approx
1600 mm
Transport Width Approx
2130 mm
PTO Rpm
540 rpm
Blades Per Disc
2
Transport Height
2950 mm
