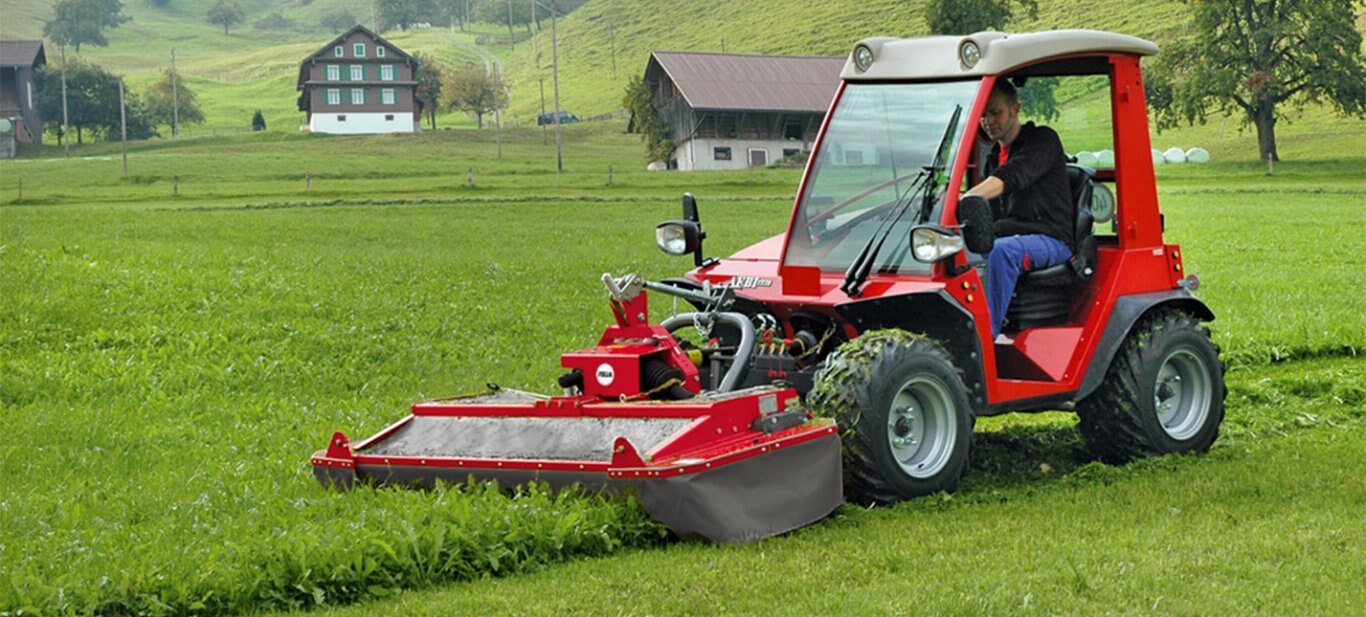

Fella Ramos 210 FK-S

  • Fella Ramos 210 FK S
  • Fella Ramos 210 FK S
  • Video Button Maxresdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

Disc-mowers
RAMOS

  • Work safely on alpine terrain thanks to the short, compact headstock and high-quality lightweight design
  • Centre of gravity very close to the tractor for optimum efficiency on slopes

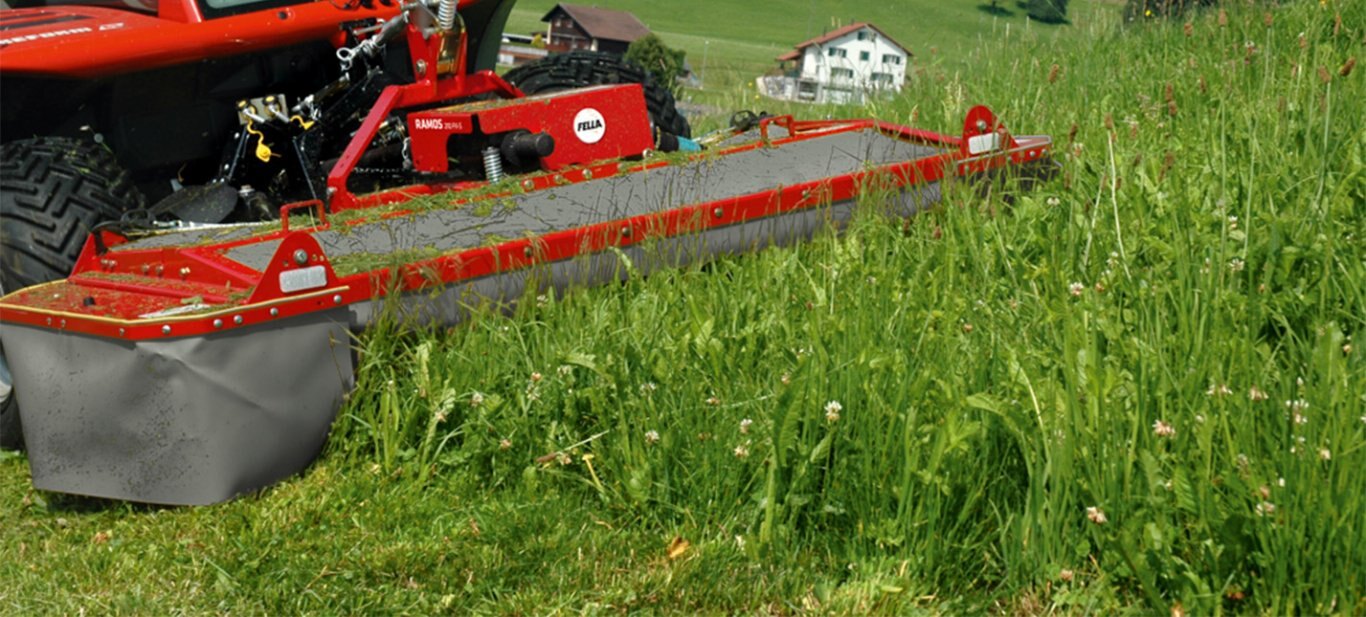

  • Perfect quality of cut thanks to the cutter bar with compact angular gear
 Special Features
Rigid headstock for short, compact tractor attachmenthttps://fella.eu/images/products/02_trommelmaehwerke_radon/Querpendelbewegung_Pendelbock_COMP_v001_1000px.jpg

The short, compact attachment ensures that the centre of gravity is close to the tractor and guarantees optimum efficiency on slopes in alpine terrain.

Symmetrical, central running thanks to four mower discshttps://fella.eu/images/products/02_trommelmaehwerke_radon/KM_230_FP_Futterfluss_COMP_v003_1000px.jpg

The four mower discs on these types of mower ensure symmetrical, central running, which allows excellent and uniform swath positioning. This has an excellent impact on the conveying effect in downhill operation.

Spring-loaded impact guard systemhttps://fella.eu/images/products/04_trommelmaehwerke_radon/KM%20225%20KC_det_print_gr2016_1000px.jpg

The spring-loaded impact guard system ensures optimum protection of the mower if an obstruction is encountered when driving.
Lateral movement of the FK-S variant

The lateral movement of the FK-S variant (hydraulic optional) makes mowing on slopes and/or with twin tyres possible without problems.

Uneven ground compensation thanks to pivot travel RAMOS disc mower with transverse pivot movement

The pivot travel of +9° compensates for uneven ground on alpine terrain without difficulty.





Specifications
Model
Ramos 210 FK-S
Category Name
Agriculture
Year
2020
Sale Type
New
Manufacturer
FELLA
PTO Rpm
540/1000 rpm
Mower Discs
4
Weight Approx
373 kg
Blades Per Disc
2
Swath Width Approx
1100 mm
Power Demand Approx
26 hp
Working Width Approx
2050 mm
Mounting Category CAT
I CAT.
Transport Width Approx
2080 mm
Transport Length Approx
1180 mm
