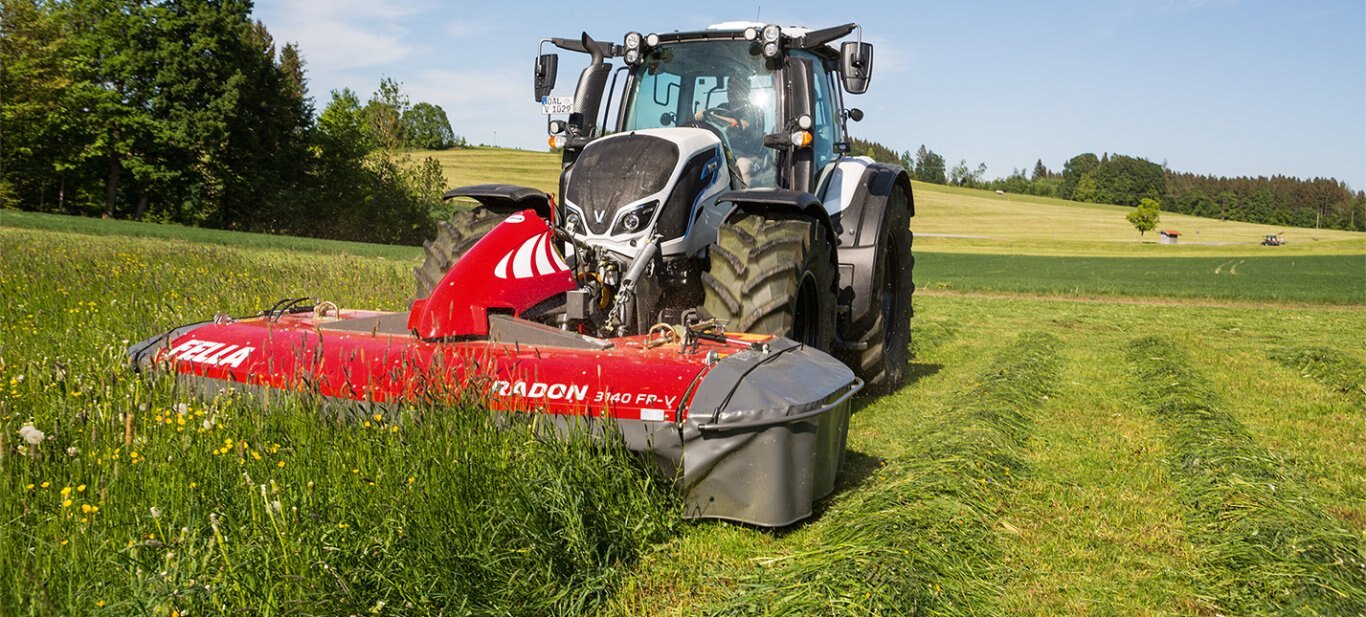

Fella Radon 3140 FP-V

  • Fella Radon 3140 FP V
  • Fella Radon 3140 FP V
  • Video Button Maxresdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

Drum-mowers
RADON

  • Optimum ground adaptation by mounting the mower unit at the centre of gravity
  • Smooth running thanks to Gleason spiral toothing
  • Built for the toughest of applications with a power train supported at numerous points
 Special Features
Optimum ground adaptation https://fella.eu/images/products/02_trommelmaehwerke_radon/Querpendelbewegung_Pendelbock_COMP_v001_1000px.jpg

The swinging axle mounted at the centre of gravity ensures optimum ground adaptation (+/- 6.5%). A uniform mowing drum contact pressure can be set using the spring relief on the tractor.

Neat swath positioninghttps://fella.eu/images/products/02_trommelmaehwerke_radon/KM_230_FP_Futterfluss_COMP_v003_1000px.jpg

In the FP-V models, the swath discs of the standard swath guiding assembly can be adjusted into four positions centrally from the top. The swath width can therefore be set to different sizes.



https://fella.eu/images/products/02_trommelmaehwerke_radon/KM_230_FP_Futterfluss_COMP_v003_1000px.jpg

Maintenance-friendly design KM 3140 FP V Offener Zugang Print Gr2016 1000px

The FP-V models are equipped with a wide-opening protective cover and an oil dipstick for easy inspection of the oil level.





https://fella.eu/images/products/02_trommelmaehwerke_radon/KM_230_FP_Futterfluss_COMP_v003_1000px.jpg
Specifications
Model
Radon 3140 FP-V
Category Name
Agriculture
Year
2020
Sale Type
New
Manufacturer
FELLA
PTO Rpm
1000 rpm
Mower Drums
4
Weight Approx
874 kg
Blades Per Drum
3
Swath Width Approx
1200-1600 mm
Power Demand Approx
75 hp
Working Width Approx
3060 mm
Mounting Category CAT
II CAT.
Transport Width Approx
3000 mm
Transport Length Approx
1650 mm
