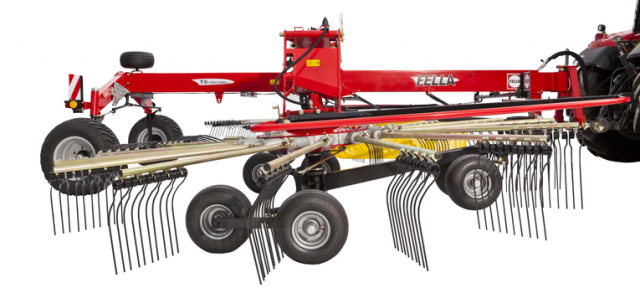

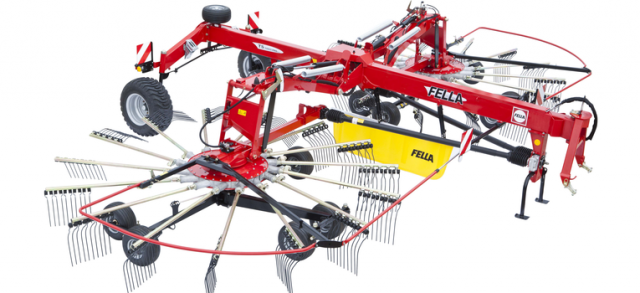

LARGEST FELLA CENTRAL RAKES WITH TWO ROTORS

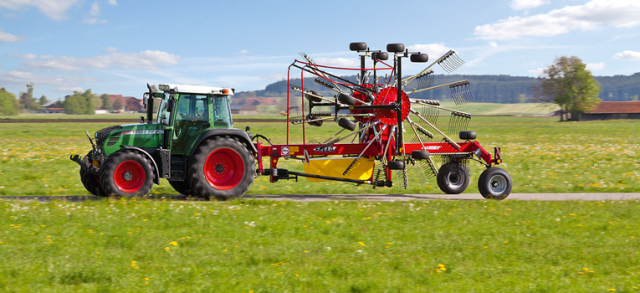

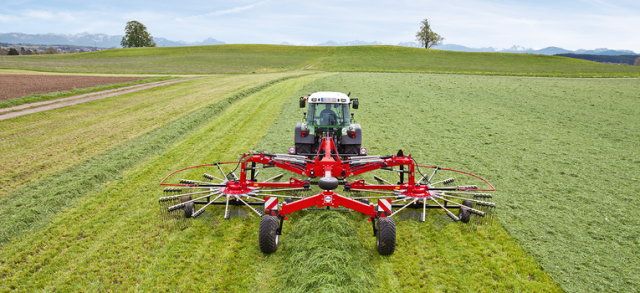

Bigger, faster, stronger. The TS 10065 and TS 10065 PRO are the largest central rakes with two rotors in the FELLA range. Their enormous area output is essential for ensuring the high level of efficiency of the harvesting machinery following on behind. In order to handle large quantities of forage in the best way possible, the working width can e changed hydraulically from 8.80 m to 10.00 m, allowing a perfect swath to be produced. The permissible transport speed of up to 50 km/h* ensures quick journeys to the place of work, so you can quite easily manage any working day, no matter how long. Because of the low-maintenance design of the machines, time and effort spent on servicing is reduced to a minimum.

PERFECT GROUND ADAPTATION

In addition to the fully cardanic rotor suspension, the TS 10065 and TS 10065 PRO set themselves apart with their wide six-wheel contact-sensing chassis with steerable front wheels. This ensures Optimum ground following at all times. The longitudinal and transverse inclination can be variably set on all rotors. As a result, no contamination occurs to your high-quality forage.

SIMPLY INGENIOUS

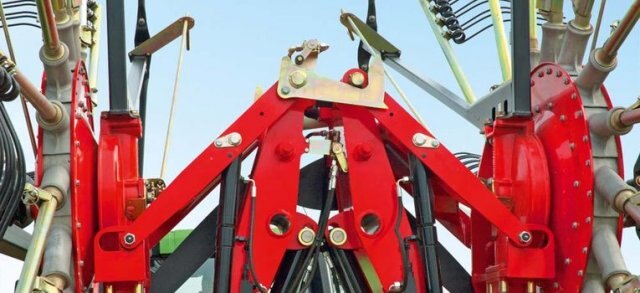

The switchover from transport position to working position is triggered simply and very conveniently. The locking system opens without a cable pull.

PRO model

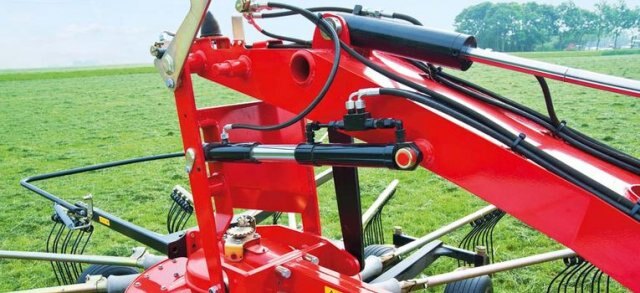

The TS 10065 PRO model is equipped with an electrohydraulic convenience operation system as standard. The working height of the rotors can be set individually using the hydraulics. In addition, the electrohydraulic individual rotor raising system comes as standard. Relatively large tyres are also provided as standard. This ensures that operation is extremely convenient and comfortable for long working days.

At a glance:

• Perfect ground adaptation thanks to fully cardanic rotor suspension and jet effect
• Headland lift with height restriction
• SteerGUARD – the ingenious steering system from FELLA
• 18 rotor tyres
• Maintenance-free rotor arm mounting
• Transport speeds of up to 50 km/h*
• Variable, hydraulically adjustable working width of 8.80 m to 10.00 m
• Tandem axle as Standard
