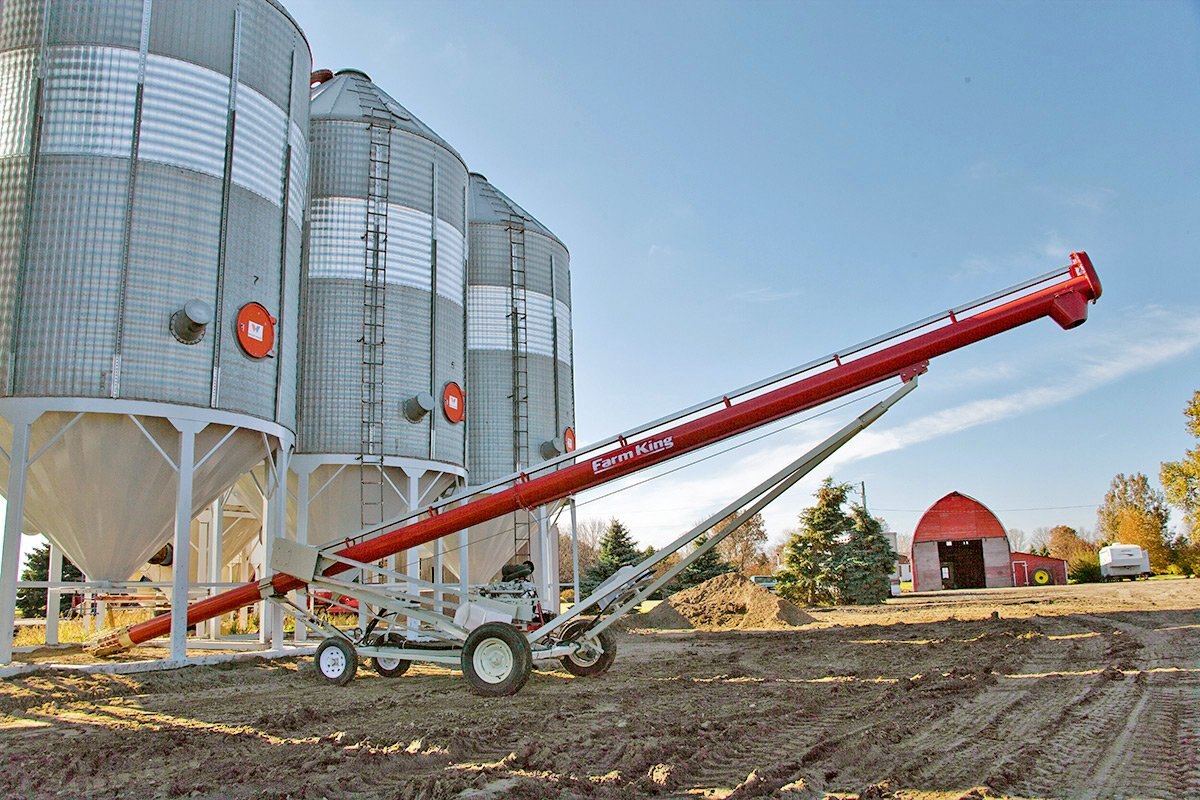

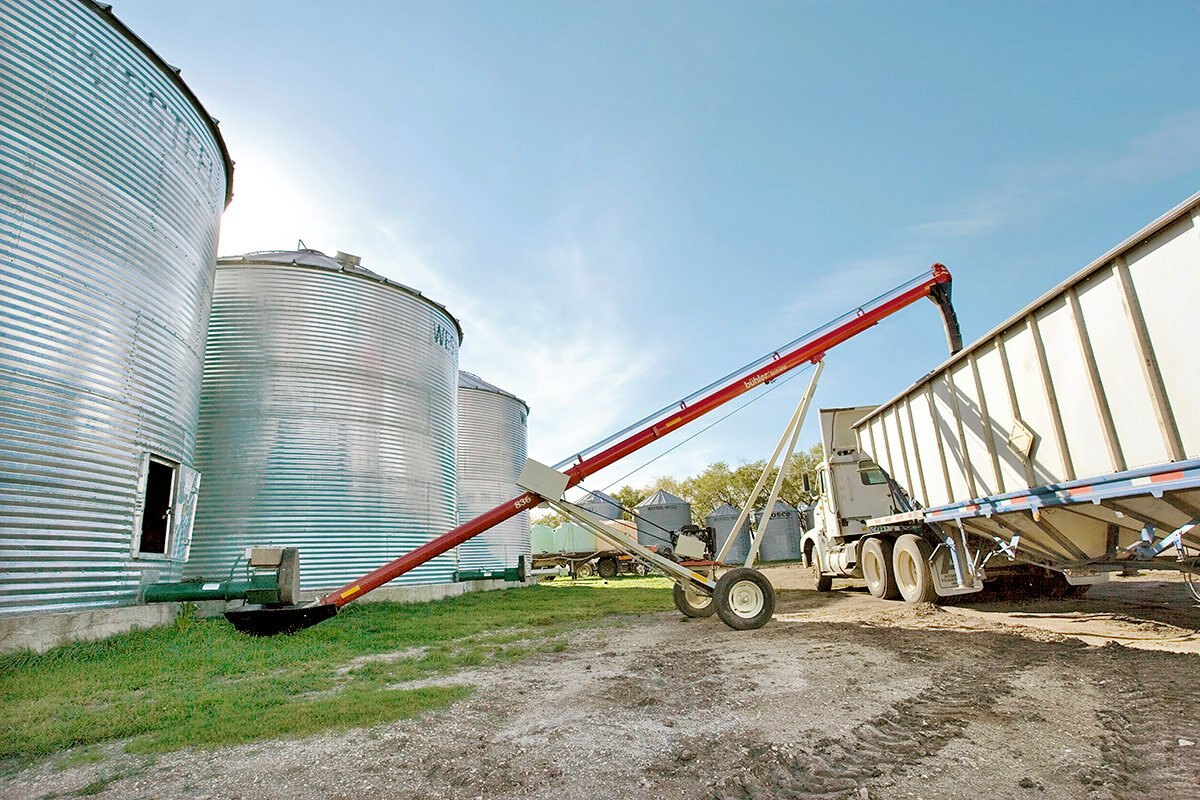

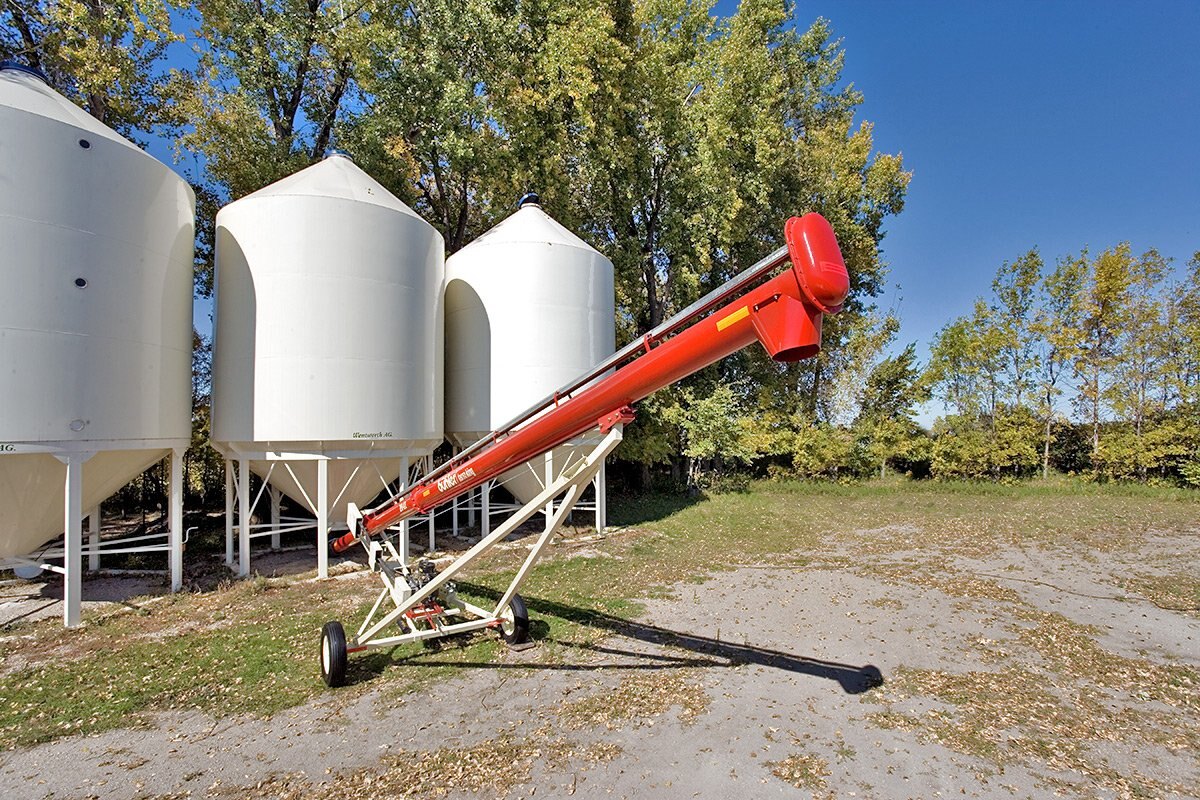

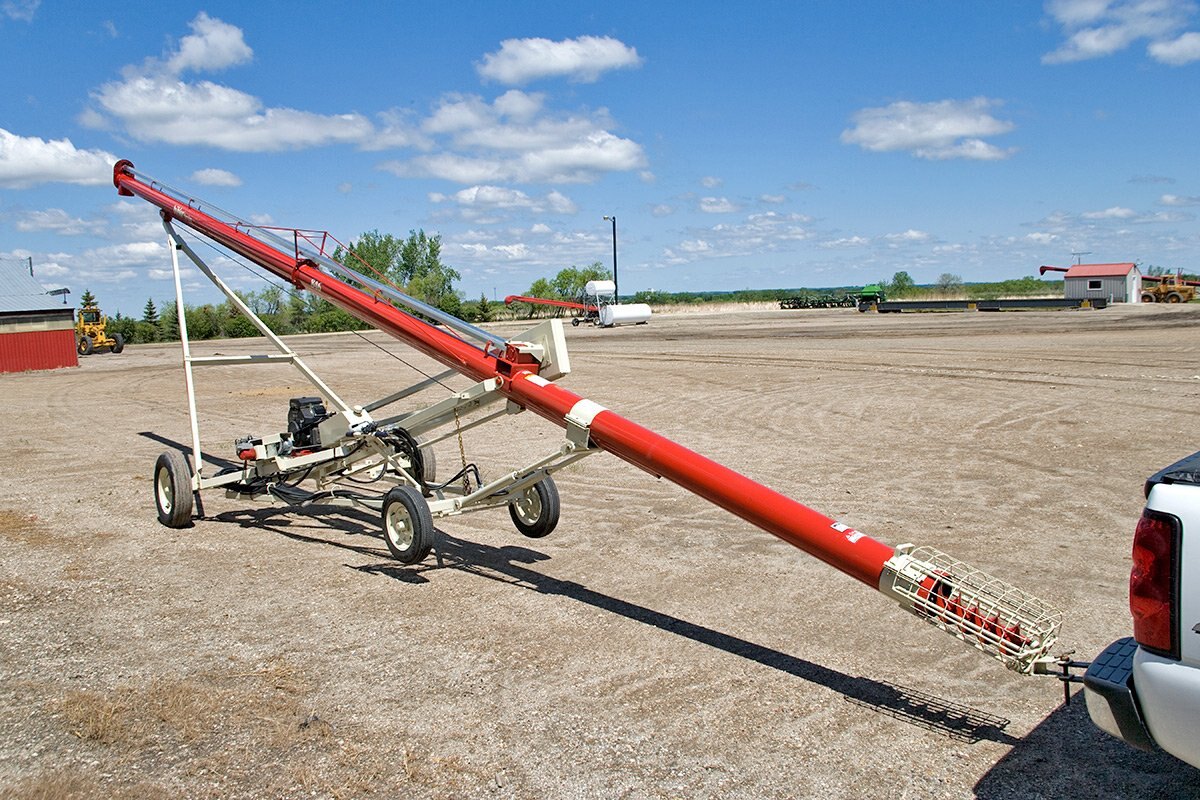

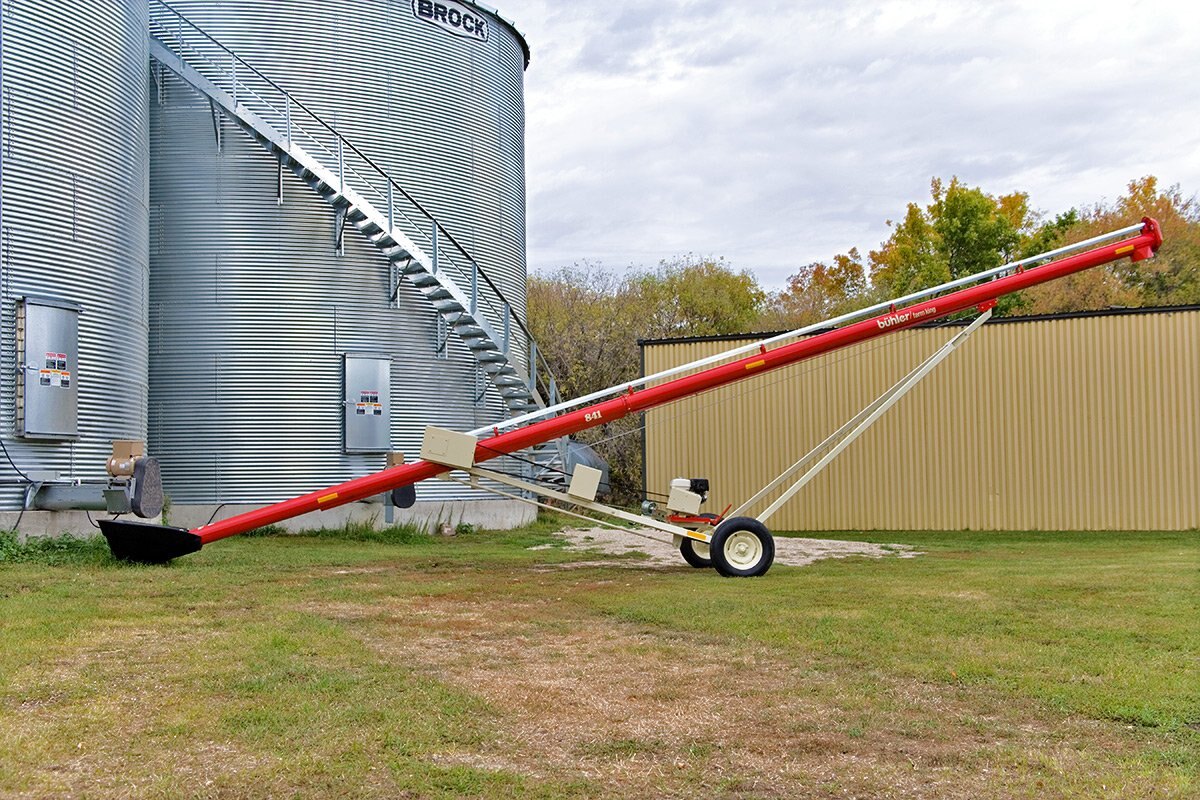

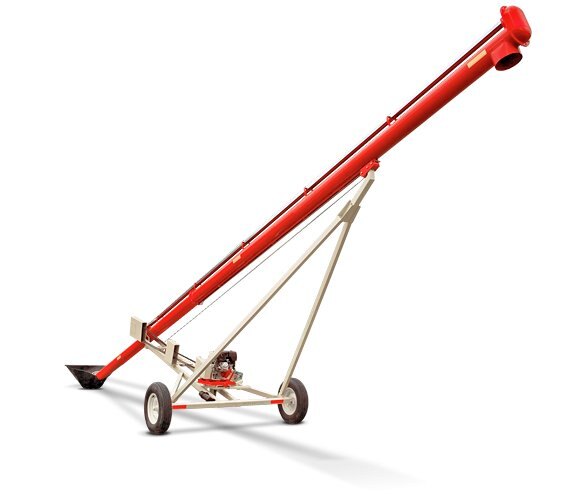

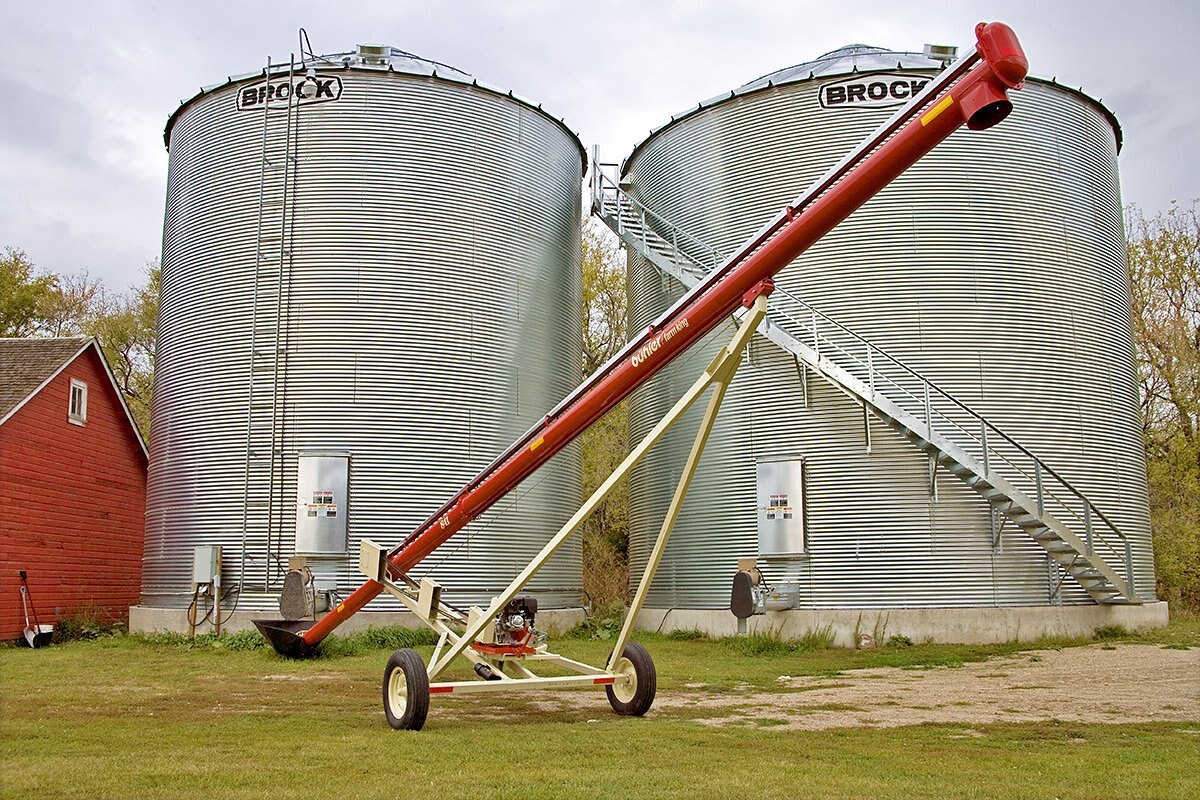

Farm king -CONVENTIONAL AUGER / TRUCK LOADER

  • Farm king CONVENTIONAL AUGER / TRUCK LOADER
  • Farm king CONVENTIONAL AUGER / TRUCK LOADER
  • Farm king CONVENTIONAL AUGER / TRUCK LOADER
  • Farm king CONVENTIONAL AUGER / TRUCK LOADER
  • Farm king CONVENTIONAL AUGER / TRUCK LOADER
  • Farm king CONVENTIONAL AUGER / TRUCK LOADER
  • Farm king CONVENTIONAL AUGER / TRUCK LOADER
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
THE GEARBOX, FEATURING LEFT- OR RIGHT-SIDE DRIVE, IS POSITIONED TO ALLOW THE AUGER TO REACH DEEPER INTO THE BIN. THE DUCTILE CASTING HOUSES QUALITY OIL SEALS, BALL BEARINGS AND CASEHARDENED, FORGED GEARS, MEANING THE AUGER RUNS SMOOTHLY AND REQUIRES LESS POWER.

8", 10" and 13" models are available with an optional reverse shift gearbox. Double flighting intake has a brass bushing on all conventional auger intake guards. The narrow safety guard and removable clevis hitch improve access to bins with small auger ports. A storage bracket holds the clevis hitch when not in use.



Specifications
Model
CONVENTIONAL AUGER / TRUCK LOADER
Category Name
Agriculture
Year
2023
Sale Type
New
Manufacturer
Farm King
features

UNDERCARRIAGE Farm king CONVENTIONAL AUGER / TRUCK LOADER

The wide stance of the undercarriage improves stability and is constructed with square tubes to enhance strength and durability. In addition to being well balanced, the undercarriage features automotive-type hubs and bearings that improve ease of handling. Reliable safety clutch winches are included.

INTAKE Farm king CONVENTIONAL AUGER / TRUCK LOADER

The double flighting intake increases grain flow. A narrow safety guard and removable clevis hitch improve access to bins with small auger ports.

TOP DRIVE Farm king CONVENTIONAL AUGER / TRUCK LOADER

The top drive is housed in a sealed oil bath and features a chain-tightener. The components in the sealed oil bath are resistant to heat, dust, debris and moisture, reducing maintenance and enhancing the longevity of the chain and sprockets.

DRIVE OPTIONS

Several drive options are available, including direct PTO, belt-drive PTO, gas engine drive, and electric motor drive matched to a belt or direct drive.

ROLLER CHAIN

The top drive uses #60 roller chain on most 8" models, while #80 roller chain is used on the 10" and 13" models.

ENGINE MOUNT

Belt-drive engine models are equipped with a self-leveling motor mount and a self-tensioning belt system. Belt guards are included.
Reliable safety clutch winches are included



literature
Name Link
Models 7" & 8" x 36', 41', 46'; 8" x 51', 56'; 10" x 36', 41', 51'    Operator and Parts 2010 Download
8" & 10" x 61'    Operator and Parts 2010 Download
Models 8" & 10" x 31'    Operator and Parts 2010 Download
13" x 36'    Operator and Parts 2010 Download
OConventional Auger Mover    perator and Parts 2012 Download
C13 Conventional Scissor Lift Auger    Operator and Parts 2020 Download
Auger Mover Operator and Parts 2020 Download
Collapsible Hopper Operator and Parts 2020 Download
Light Kit Operator and Parts 2020 Download
View Specivication Download
