Farm King

ID # 14264266

Farm king CONVENTIONAL AUGER MOVER

Videos
Call for Price
Overview

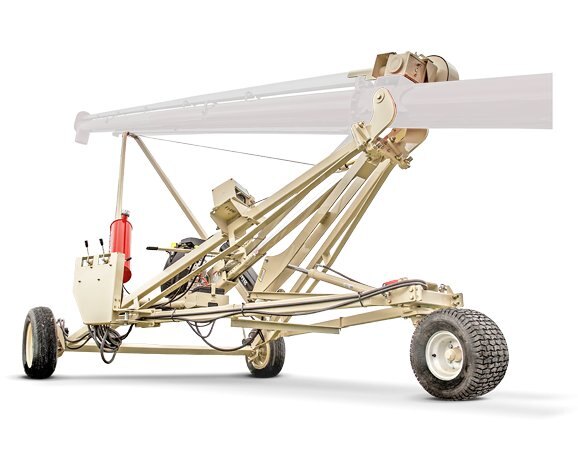

CONVENTIONAL AUGER MOVER
Farm King has a redesigned mover system that compliments the 8” & 10” diameter x 41’, 51’ & 61’ length CX2 augers. Newly engineered Motor Drive Mechanism has a bigger sprocket and ring gear on the wheel assembly.  The fuel tank with gauge has been relocated for easier access for filling.  The control console has better ergonomic hand bars as well the added features of working light & electric clutch toggle switches.  Clear visual instruction decal is provided for the operator on the surface of the console.

The console is placed at the ideal height for operator safety and control.  The pivot wheel is able to lock into place which provides the operator with easier steering once the auger is lined up to the bin. The transport safety chain has been modified for ease of hookup.

Farmers that are looking for ease and simplicity when moving their conventional augers around the yard site and from bin to bin, this mover is ideal for you.
  Features

 - Power steering

 - Central control location

 - Mover mounts to undercarriage only

 - Rear wheel lifts for eay transport

Features Gh Augers 16 MOVER CONTROLS
The auger mover controls are located near the engine controls, allowing for one location control. The belt guarding doubles as the engine leveling device, which keeps the belts at the same tension in any auger position.

Features Gh Augers 17 CASTER WHEEL
The unique caster wheel design and independently powered drive wheels allow an extremely short turn radius. The intake end scissor lift allows a wide range of vertical motion and tucks up under the auger tube for easy transport.

Features Gh Augers 18 ENGINGE MOUNT
The engine mount plate has no moving parts for ease of set up. The engine drive sheave is now standard equipment. The drive belts are engaged via a newly designed lever accessible from the auger and engine control location.

Specifications

Pivot wheel tire size ~ 19" diameter
Hydraulic cylinder size 2" diameter
Hydraulic tank volume
6 gal

Weight
1,723 lb





Specifications
Model
CONVENTIONAL AUGER MOVER
Category Name
Agriculture
Year
2020
Sale Type
New
Manufacturer
Farm King
