ID # 13642704

Farm king Unloading Auger

  • Farm king Unloading Auger
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

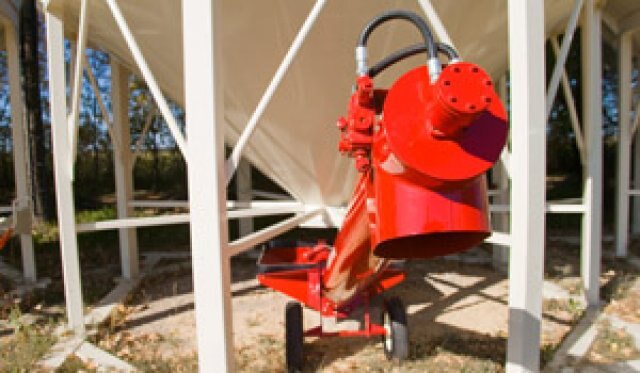

Farm King unloading augers transfer grains and oilseeds much faster than conventional utility augers and reach where normal portable augers can’t. The hopper of the unloading auger fits under hopper bottom bins and hopper trailers for fast and easy unloading.
  Features
Available with 8" or 10" diameter tubing, the discharge height is adjustable and the hopper is almost four feet square. The weight is evenly distributed at the pivot wheels for optimum stability and balance; one person can easily move the unloading auger into position.

Farm King unloading augers can be powered by hydraulics or by an electric motor. Hydraulic models feature a variable speed control and electric-drive models have an adjustable motor mount.

Thorough cleaning is easy with the hinged cleanout gate in the bottom of the hopper, eliminating spoiled grain or rusting that can occur when grain is left sitting. The hopper includes rubber edging around the top to minimize the chance of spillage.
  Specifications

Model 810H 810E 1010H 1010E
Tube width 8" 8" 10" 10"
Tube length 9' 9' 9' 9'
Drive type Hydraulic Electric motor Hydraulic Electric motor
Hydraulic requirements 12 gpm, 1200 - 1400 psi - 12 gpm, 1200 - 1400 psi -
Motor requirements - 3 to 5 hp, 1725 rpm - 3 to 5 hp, 1725 rpm
Auger tubing 16 gauge 16 gauge 16 gauge 16 gauge
Flighting 12 gauge 12 gauge 12 gauge 12 gauge


Model A
Up		 A
Down		 B
Up		 B
Down		 C
Up		 C
Down		 D
Up		 D
Down		 E
Hydraulic 44" 38" 65" 64" 149" 151" 15.5" 13.25" 12.5"
Electric motor 42" 35.5" 52" 52" 149" 151" 15.5" 13.25" 12.5"



Specifications
Model
Unloading Auger
Category Name
Agriculture
Year
2017
Sale Type
New
Manufacturer
Farm King
