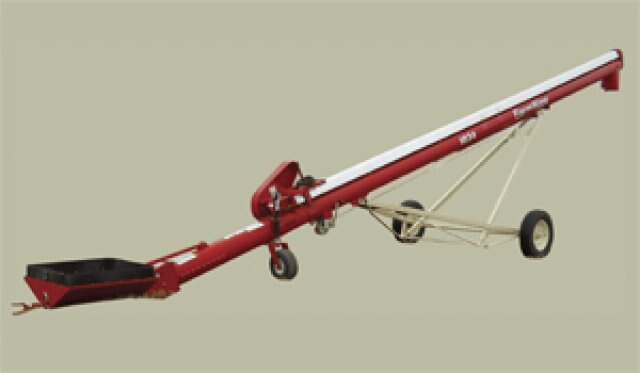

Farm king Conventional Auger Hopper

  • Farm king Conventional Auger Hopper
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
The new Conventional Auger Hopper is designed to add versatility and convenience to your Farm King auger by giving you a powered intake hopper. The hopper can be installed on any Feterl Original 8" or 10"conventional auger as well as our 10" Morden-built Farm King augers and is powered by the rotation of the existing auger core - no new drive mechanisms are needed.

With your auger’s total reach now extended to approximately 108", this hopper allows you to cleanly collect the discharge of gravity wagons, grain carts, hopper bottom bins, grain trucks, highway grain trailers and more with no spillage, and no need to wrestle with removable hoppers.
  Features
A supplied hand-crank caster-jack allows you to lift the intake hopper with ease, and maneuver the auger intake into position with minimal effort. The jack raises out of the way for transport.

The hopper has a transport stabilizing bar and hitch; both are removable. This allows you to quickly prep your auger for transport without the need to remove the hopper itself. With the bar and hitch removed for operation, the hopper becomes self-leveling. A rubber skirt helps reduce grain spillage.

A continuous velocity joint connects the hopper’s flighting to the main auger’s flighting, allowing the hopper to be powered with no new power source or hydraulic systems. The CV joint has added flighting to increase capacity and aid in grain cleanout, available on the 10" model.
  Specifications

Model 8" Conventional Auger Hopper 10" Conventional Auger Hopper
Hopper dimensions 32" x 36" 32" x 36"
Height, to top of steel 10" 10"
Height, to top of rubber 14" 14"
Caster jack lift capacity 2000 lb 2000 lb
Reach, approx.1 108" 108"
Capacity 2 2800 bu/hr 3800 bu/hr
Weight 200 lb 200 lb



Specifications
Model
Conventional Auger Hopper
Category Name
Agriculture
Year
2017
Sale Type
New
Manufacturer
Farm King
