ID # 13642052

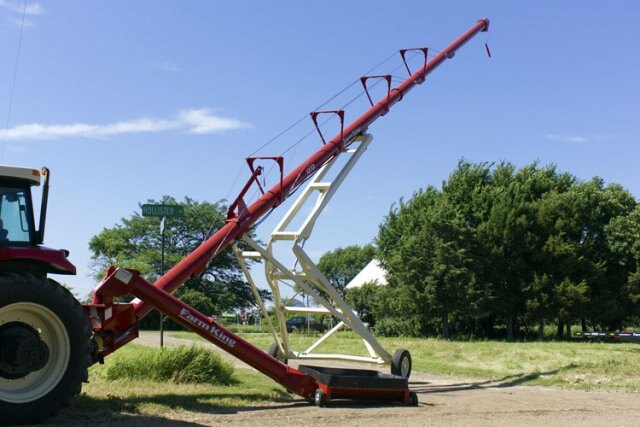

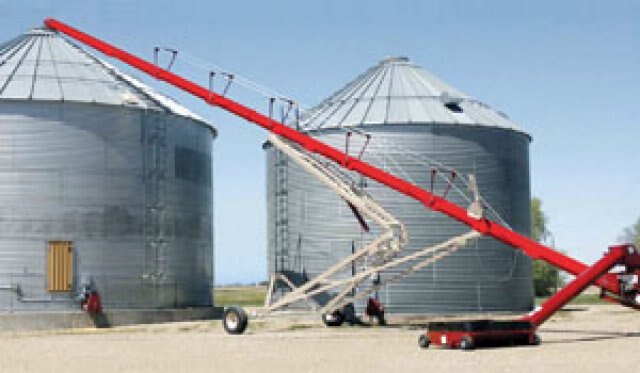

Farm king Backsaver Auger - 10 / 12 - Feterl Original

  • Farm king Backsaver Auger 10 / 12 Feterl Original
  • Farm king Backsaver Auger 10 / 12 Feterl Original
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
Feterl Original - Proudly built in Salem, SD

Farm King Backsaver Augers are practical, economical and dependable. Auger lengths ranging from 62 to 92 feet. The intake hopper invites large quantities of grain to be quickly moved up the auger and into the bin. All models are constructed using durable 1/4" flighting.
  Features
  • Made from 12 gauge tube
  • Flight rolled from 1/4" material
  • Internal drive with externally mounted gear boxes
  • Horsepower requirements: 1 hp per ft.
  • Hopper can be operated & transported on right or left side of auger
  • Shipped complete with mechanically driven internal drive hopper with pneumatic tires
  • Rubber flexible extension for hopper
  • Worm winch lift
  • Double flighted in the hopper and drive section
  • Standard relief door on discharge spout
  • Axle extensions
  • 540 rpm 35 series CV PTO with extended life bearings on 62' and 72' lengths
  • 540 rpm 55 series CV PTO with extended life bearings on 82' and 92' lengths
  • Hopper 10-3/4" clearance, 60" x 48" opening
  • Hopper mounted hydraulic drive for better traction and lateral movement of hopper (option)
  • Hydraulic cylinder to lift hopper into transport position (option)
  Specifications

Model 1062 1072 1082
Size 10" x 62' 10" x 72' 10 x 82'
Tubing 12 gauge 12 gauge 12 gauge
Flighting material thickness 1/4" 1/4" 1/4"
Flighting shaft 12 gauge, 2-3/8" dia. 12 gauge, 2-3/8" dia. 12 gauge, 2-3/8" dia.
Undercarriage tubing 2" x 4" x 11 ga. 2" x 4" x 11 ga. 2" x 4" x 3/16"
Lift arms, upper and lower 2" x 3" x 11 ga. 2" x 3" x 11 ga. 2" x 4" x 11 ga.
Bridging cable 3/8" 3/8" 3/8"
Wheels and hubs 15" w/6 bolt hubs 15" w/6 bolt hubs 15" w/6 bolt hubs
Swing auger drive Internal drive w/externally mounted gear boxes for both
Hopper dimensions 32" x 60" 32" x 60" 32" x 60"
Tractor requirements
- minimum PTO hp
(with 540 RPM PTO)
- approx. hydraulic requirements for lift
48 hp
1500 PSI
54 hp
1500 PSI
62 hp
1500 PSI
Wheel track 108" 114" 135"
Height, discharge (max) 43' 6" 48' 58'
Height, transport 12' 6" 13' 6" 15' 6"


Model 1262 1272 1282 1292
Size 12" x 62' 12" x 72' 12" x 82' 12" x 92'
Tubing 12 gauge 12 gauge 12 gauge 12 gauge
Flighting material thickness 1/4" 1/4" 1/4" 1/4"
Flighting shaft 11 gauge, 2-7/8" dia. 11 gauge, 2-7/8" dia. 11 gauge, 2-7/8" dia. 11 gauge, 2-7/8" dia.
Undercarriage tubing 2" x 4" x 3/16" 2" x 4" x 3/16" 2" x 4" x 1/4" 2" x 4" x 1/4"
Lift arms, upper and lower 4" x 6" x 3/16" 4" x 6" x 3/16" 4" x 6" x 3/16" 4" x 6" x 3/16"
Bridging cable 3/8" 3/8" 3/8" 3/8"
Wheels and hubs 15" w/6 bolt hubs 15" w/6 bolt hubs 15" w/6 bolt hubs 15" w/6 bolt hubs
Swing auger drive Internal drive w/externally mounted gear boxes for both
Hopper dimensions 48" x 60" 48" x 60" 48" x 60" 48" x 60"
Tractor requirements
- minimum PTO hp
(with 540 RPM PTO)
- approx. hydraulic requirements for lift
62 hp
1500 PSI
72 hp
1500 PSI
82 hp
1500 PSI
92 hp
Wheel track 108" 125.5" 133.5" 133.5"
Height, discharge (max) 43' 6" 52' 56' 6" 62'
Height, transport 12' 6" 11' 6" 12' 13' 6"







Specifications
Model
Backsaver Auger - 10 / 12 - Feterl Original
Category Name
Agriculture
Year
2017
Sale Type
New
Manufacturer
Farm King
Documents
