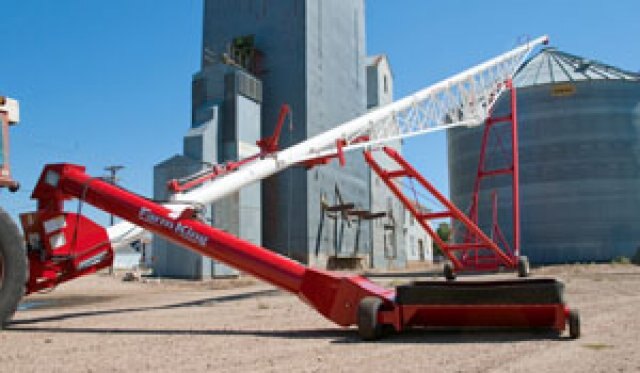

Farm king Backsaver Auger - 12 / 14 - Feterl Original

  • Farm king Backsaver Auger 12 / 14 Feterl Original
  • Farm king Backsaver Auger 12 / 14 Feterl Original
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
Feterl Original - Proudly built in Salem, SD

Farm King is proud to introduce the new series of swing away augers to the established backsaver family. The 12" and 14" tube sizes provide larger operations with a quality product with long term dependability. Minimum horsepower required to operate the augers under premium conditions is 112 hp to 122 hp for 12" models and 126 hp to 153 hp for 14" models.
  Features
All models are constructed using ¼ inch flighting surrounded by a 12 gauge tube. Versatility is further enhanced with the right or left mounted swing away hopper. Standard equipment includes hydraulic hopper mover and a ground hugging 10 ¾ inch low profile hopper with an inviting 60 x 40 inch hopper opening.
Hopper 12 14 Feat 1
10-3/4" low profile hopper with 60" x 48" hopper opening. Hopper can be operated and transported on right or left side of auger.
External Gearbox 12 14 Feat 2
The 12 and 14 models come standard with internal drive with externally mounted gearboxes. Horsepower requirements of 112 to 122 hp on 12 models and 126 to 153 hp on 14 models.
Undercarriage 12 14 Feat 3
The commercial-grade undercarriage is among the heaviest in the industry. The bridging provides superior support in all unloading conditions, regardless of the type of crop.
PTO 12 14 Feat 4
Model 12 comes standard with 540 RPM 55 series CV PTO with extended life bearings while model 14 has a 1000 RPM 55 series CV PTO with extended life bearings.
  12" Models
  • Made from 12 gauge tube
  • Flighting rolled from 1/4" material
  • Internal drive with externally mounted gearboxes
  • Horsepower requirements of 112 to 122 hp
  • Hopper can be operated and transported on right or left side of auger
  • Shipped complete with mechanically driven internal drive low profile hopper with pneumatic tires
  • Rubber flexible extension for hopper
  • Double flighted (in high wear areas) in the hopper and drive section
  • Winch lift
  • Standard relief door on discharge spout
  • Axle extensions (standard)
  • 540 RPM 55 series CV PTO with extended life bearings
  • Low Profile hopper 10 3/4" clearance, 60" x 48" opening
  • Hopper mounted hydraulic drive kit for better traction and
    lateral movement of hopper (optional)
  • Hydraulic cylinder to lift hopper into transport position (optional)
  14" Models
  • Made from 12 gauge tube
  • Flighting rolled from 1/4" material
  • Internal drive with externally mounted gearboxes
  • Horsepower requirements of 126 to 153 hp
  • Hopper can be operated and transported on right or left side of auger
  • Shipped complete with mechanically driven internal drive low profile hopper with pneumatic tires
  • Hopper mounted hydraulic drive kit for better traction and
    lateral movement of hoper (standard)
  • Double flighted (in high wear areas) in the hopper and drive section
  • Hydraulic cylinder to lift hopper into transport position (standard)
  • Rubber flexible extension for hopper
  • Winch lift
  • Standard relief door on discharge spout
  • Axle extensions (standard)
  • 1000 RPM 55 series CV PTO with extended life bearings
  • Low profile hopper 10 3/4" clearance, 60" x 48" opening
  Specifications

Model 12112 12122 14122
Size 12" x 112' 12" x 122' 14" x 122'
Tubing 12 gauge 12 gauge 12 gauge
Flighting material thickness 1/4" 1/4" 1/4"
Wheels and hubs 15" w/8 bolt hubs 15" w/8 bolt hubs 15" w/8 bolt hubs
Swing auger drive Internal drive w/externally mounted gear boxes for both
Hopper dimensions 60" x 48" 60" x 48" 60" x 48"
Tractor requirements
- minimum PTO hp
(with 540 RPM PTO)
- approx. hydraulic requirements for lift
110 hp

1500 PSI
120 hp

1500 PSI
153 hp

1500 PSI
Weight - 9,500 lb 10,000 lb



Specifications
Model
Backsaver Auger - 12 / 14 - Feterl Original
Category Name
Agriculture
Year
2017
Sale Type
New
Manufacturer
Farm King
Documents
