Farm King

ID # 13641431

Farm King Box Scraper

Call for Price
Overview

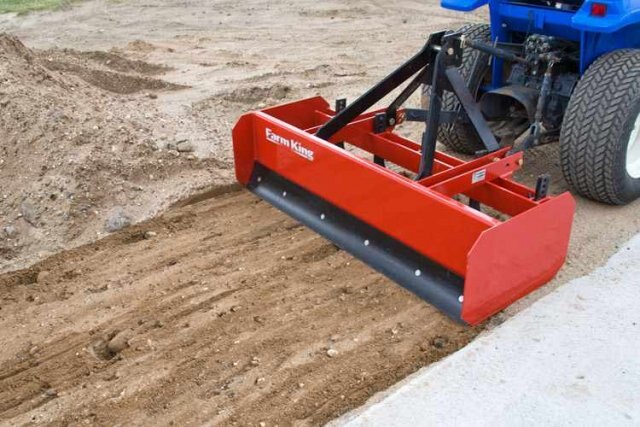

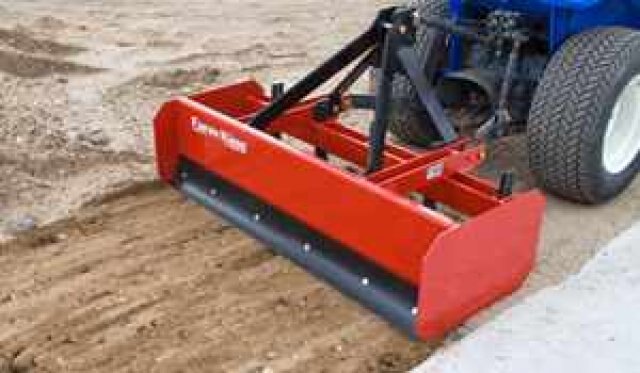

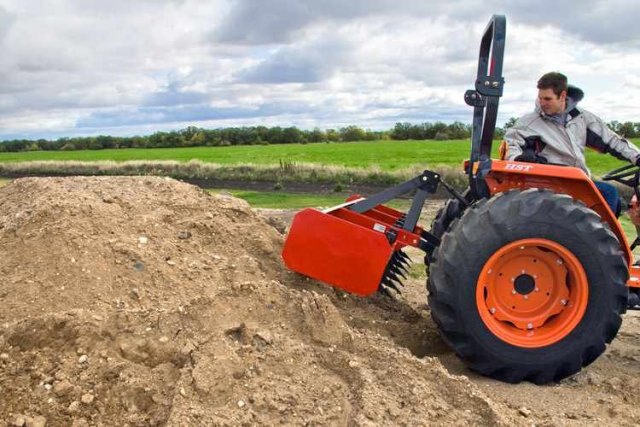

Landscaping is made easy when your equipped with a Farm King box scraper. The compact heavy-duty design allows the entire scraper to rip up even the most irregular terrain. The double-sided scraping blades are reversible to extend the life- in turn - eliminating the added cost of replacement blades. A unique Farm King design allows earth to be pushed and dragged depending on the movement of the tractor.
  Features
Quarter inch side steel plating is used to reinforce each and every Farm King box scraper. The steel plates in conjunction with the backing plate and 3-pt hitch setup provide the scraper with unprecedented strength and durability.

Scarifiers are evenly spaced one foot apart and can be adjusted to three different depths. The 12-inch spacing between scarifiers allows the operator to adjust the scarifier to one of the three desired depths. Sarifiers can be reversed to engage the operator in using the scraper in one of the multiple ways. By reversing the shanks, the surface can be leveled for precise depth control without digging deep into the terrain.

Each Farm King box scraper comes quick hitch adaptable for easy installation. Three solid steel hitch pins allow the operator to back up to the scraper, adjust the 3-pt hitch, place the pins and away they go.
Specifications
              Model
48
60
72
84
Width
48"
60"
72"
84"
Capacity (approximate)
6 cu. ft.
8 cu. ft.
10 cu. ft.
12 cu. ft.
Blades
1/2" x 6" replaceable
Reversible cutting edges
2
2
2
2
Replaceable shanks
3
4
5
6
3-point hitch
Cat. 1
Cat. 1
Cat. 1
Cat. 1
Tractor engine requirements
20 - 40 hp
20 - 45 hp
25 - 55 hp
30 - 65 hp
Weight
400 lb
422 lb
480 lb
526 lb
Specifications
Model
Box Scraper
Category Name
Tractor Attachments
Year
1999
Sale Type
New
Manufacturer
Farm King
