Farm king Rotary Sweep

  • Farm king Rotary Sweep
  • Farm king Rotary Sweep
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

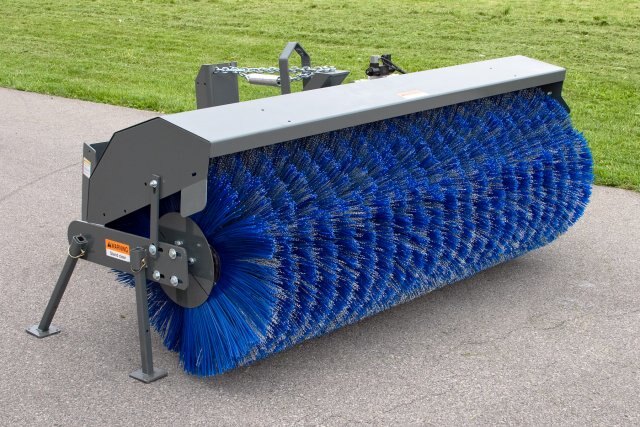

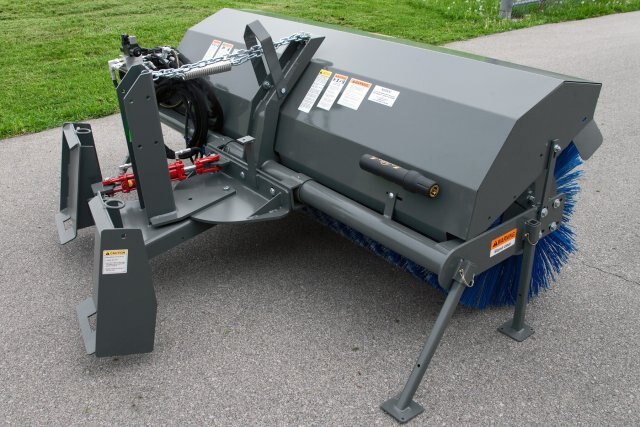

Easily adapt the Allied rotary sweep to either a 3-pt mounted hitch or skid steer configuration. The rotary sweep is available in widths of 5, 6 and 7 feet. Each sweep is constructed using poly or a combination of poly and wire bristles. The poly only bristles are used on softer surfaces such as airport runways. The poly and wire combination bristles help prolong the average life of the sweep and is used on surfaces such as driveways, roadways and parking lots.

A manual or hydraulic broom adjustment allows the sweep to be rotated up to 30 degrees either left or right. The Allied rotary sweep comes standard with height adjustment chains to ensure an even amount of pressure is being applied to the ground at all times. Standard equipment also includes four parking stands.
Rs Main
   Features
  • Top quality rotary brooms for use by contractors, municipalities, institutions and farmers
  • Remove dirt, sand, gravel and trash from construction entrances, parking lots, bridges, driveways and sidewalks
  • Remove thatch and prepare turf for the growing season
  • Clean snow or leaves from streets, driveways and building entrances
  • Excellent for general clean up before sealing or repairing pavement

3-pt Models

  • PTO driven 3-pt. tractor mount in 5-ft., 6-ft., & 7-ft. widths with 32” diameter brushes
  • Double gearbox drive for smooth power transmission and easy reversal of brush rotation
  • Broom angles 30° right or left
  • Parking stands standard.

Skid Steer Models

  • Hydraulically driven skid steer models in 5-ft., 6-ft., & 7-ft. widths with 32” diameter brushes.
  • Variable flow control valve for optimum broom speed
  • Step-through mount design for easy in/out of skid steer cab
  • Broom angles 30° right or left
Rs Main 02
   Specifications:

3-pt Mount

Model 6032P 6032W 7232P 7232W 8432P 8432W
Overall width 69" 69" 81" 81" 93" 93"
Brush diameter 32" 32" 32" 32" 32" 32"
Sweeping width 60" 60" 72" 72" 84" 84"
Width at 30° angle 53" 53" 64" 64" 76" 76"
Mounting system Cat. I Cat. I Cat. I Cat. I Cat. I Cat. I
Brush material Poly Poly / Wire Poly Poly / Wire Poly Poly / Wire
PTO RPM range 540 540 540 540 540 540
Sprinkler system Optional Optional Optional Optional Optional Optional
Dirt deflector Optional Optional Optional Optional Optional Optional
Weight 640 lb 640 lb 740 lb 840 lb 740 lb 840 lb

Skid Steer Models

Model 6032PS 6032WS 7232PS 7232WS 8432PS 8432WS
Overall width 69" 69" 81" 81" 93" 93"
Brush diameter 32" 32" 32" 32" 32" 32"
Sweeping width 60" 60" 72" 72" 84" 84"
Width at 30° angle 53" 53" 64" 64" 76" 76"
Mounting system Skid steer Skid steer Skid steer Skid steer Skid steer Skid steer
Brush material Poly Poly / Wire Poly Poly / Wire Poly Poly / Wire
Hydraulic motor rating 16 GPM 16 GPM 16 GPM 16 GPM 16 GPM 16 GPM
Sprinkler system Optional Optional Optional Optional Optional Optional
Dirt deflector Optional Optional Optional Optional Optional Optional
Weight 640 lb 640 lb 740 lb 740 lb 840 lb 840 lb



Specifications
Model
Rotary Sweep
Category Name
Tractor Attachments
Year
1999
Sale Type
New
Manufacturer
Farm King
