Farm King

ID # 13641426

Farm King Rotary Cutter

Call for Price
Overview
Farm King Rotary Cutters are made to clear those rough areas where stones, tree stumps and debris are hidden by weeds.
  Features
Tough jobs need a tough cutter
These rotary cutters, available in two series, easily clear heavy weeds and thick rough and require minimal maintenance. Series I, with a 3-point hitch, is available in 48" or 60" widths. Series II is available in 60", 72" and 84" and is equipped with either a trailing style or 3-point hitch. The 3-point hitch on both series is Quick Hitch compatible so it is easy to attach and unhook. 3-point hitch models include a single solid rubber or laminated trailing wheel, while rotary cutters with a trailing hitch have two wheels, either air-filled or made of solid rubber.

Heavy metal for heavy jobs
Farm King Rotary Cutters are built tough and made to last. The blades are heat-treated to enhance rigidity and the heavy-duty gearbox is designed to be rugged and durable. The access panel on the deck makes it easy to inspect or replace the blades. An optional chain kit minimizes the possibility of flying debris.

The stump-jumper is a 24" plate mounted to the blades below the gearbox. Standard on Series II Rotary Cutters, the stump-jumper allows the blade assembly to move up and down to minimize stress on the deck and gearbox. The power take-off (PTO) shaft on the Series II 60" Rotary Cutter includes a shear pin to protect the gearbox in the event of an unforeseen obstacle. The 72" and 84" rotary cutters are equipped with a slip clutch to prevent gearbox damage.

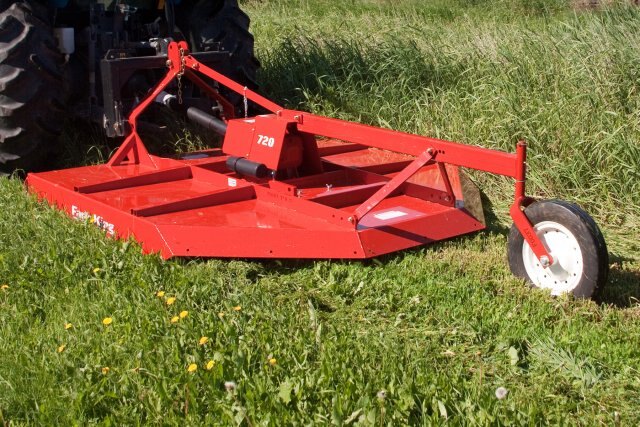

The 720 with the trailing style hitch includes a two-piece PTO shaft for a tighter turning radius. An 8" cylinder and hoses are optional for all trailing models.
Specifications
Series
I

II

Model
410 LS
510 LS
510
620
720
Cutting width
48"
60"
60"
72"
84"
Cutting height
Min: 3"
Min: 3"
Min: 4"
Min: 4"
Min: 4"
Blade tip speed
13,098 ft/min
13,098 ft/min
12,721 ft/min
14,758 ft/min
14,283 ft/min
Spring steel blades
1/2" x 3" heat treated
1/2" x 3" heat treated
1/2" x 3" heat treated
1/2" x 3" heat treated
1/2" x 3" heat treated
Deck material
11 gauge
11 gauge
10 gauge
10 gauge
10 gauge
Gearbox
Closed (540 RPM)
Closed (540 RPM)
Closed (540 RPM)
Closed (540 RPM)
Closed (540 RPM)
Gearbox rating
30 hp
40 hp
40 hp
60 hp
65 hp
Tractor engine requirements
20 - 45 hp
25 - 55 hp
25 - 65 hp
35 - 65 hp
45 - 75 hp
PTO shaft
Shear pin
Shear pin
Shear pin
Slip clutch
Slip clutch
3-point hitch
Cat. I standard
Cat. I standard
Cat. I standard
Cat. II standard
Cat. II standard
Tire - 3-point
15" laminated
15" laminated
16" solid rubber
16" solid rubber
20" solid rubber
Tire / wheels - trailing
n/a
n/a
Solid rubber or 15" rim
Solid rubber or 15" rim
15" rim
Stump-jumper
n/a
n/a
Standard: 24" diameter
Standard: 24" diameter
Standard: 24" diameter
Parking jack
n/a
n/a
Optional
Optional
Optional
Chain kit
Optional
Optional
Optional
Optional
Optional
Weight - 3-point
450 lb
520 lb
601 lb
777 lb
989 lb
Weight - trailing
n/a
n/a
686 lb
856 lb
1080 lb
Specifications
Model
Rotary Cutter
Category Name
Tractor Attachments
Year
1999
Sale Type
New
Manufacturer
Farm King
