Farm King

ID # 13641385

Farm King Allied by Farm King 750

Call for Price
Overview

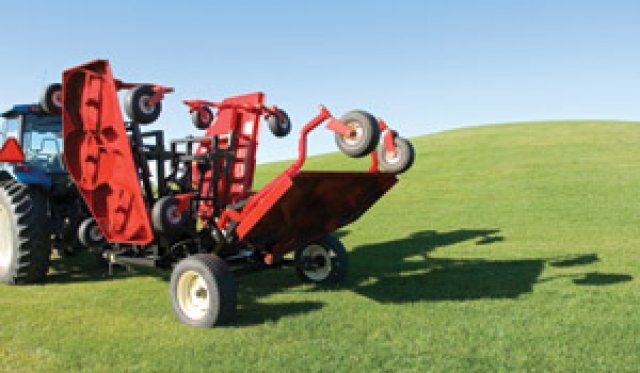

Farm King has been making finishing mowers for more than 15 years. Three of these finishing mowers together create one magnificent volume grass trimmer: the Triplex Finishing Mower.


Nine blades generate a powerful vacuum for a crisp, clean cut. Each deck floats independently over rolling terrain for a uniform, manicured trim. There is a 1-5/8" blade overlap on the 450, while all the other models have a 2-5/8" blade overlap. This overlap helps to prevent stripping, especially when turning. The standard front UHMW roller prevents scalping on uneven turf. A 5-position hitch adjusts to most tractors allowing the mower to remain level, achieving an even cutting height.

Tfm Main
  Features
Transporting with ease
Whether moving from the third fairway to the tenth, or from one side of the city to the other, the Triplex Finishing Mower is designed to be transported with ease. A cast clevis hitch is standard and a 2-5/16" ball hitch is optional for road transport. The 5-position hitch adjustment makes it easy to move, regardless of the hitch height of the tow vehicle. The decks are lifted into position by hydraulic cylinders and are automatically locked in place for transport. Upon arrival at the destination, the decks are unlocked right from the tractor seat using a cable, or can be released using the optional hydraulic system. Either way, it makes moving to a new location easy.

Wheels and hubs
The model 750 has four wheels on each of the three decks. Models 650 and 550 have four wheels on the wing decks and two on the center deck. The 450 has three wheels on the wing decks and two on the center deck. Each wheel yoke assembly includes a cutting height adjustment on the 1-1/4" wheel yoke shaft. Tapered roller bearings in the wheel hubs ensure long-term reliability without needing frequent lubrication.

More value
• One of the highest measured tip speeds in the industry creates powerful suction for a clean cut
• Slide adjustment on the gearbox for easy belt tensioning
• Blade overlap of 1-5/8" to 2-5/8" minimizes stripping
• Standard pneumatic tires with puncture proof sealant
• Hard surface cutting edges are standard on all models
Specifications
Model
750
Category Name
Agriculture
Year
1999
Sale Type
New
Manufacturer
Farm King
Weight
4633 lb
Front Roller
4'' x 7'' UHMW Poly
Mower Drive System
2 belt B groove
Cutting Height
1-½'' to 4-½''
Blade Tip Speed
18,552 ft/min
Blades Per Deck / Overlap
3 blades / 2-5/8''
Deck Tires
12 (15 '' x 6'' x 6'')
Deck Width / Thickness
7' / 7 Ga.
Deck Overlap
8''
Cutting Width
236'' (19.9')
Transportation Width Bottom / Top
79'' / 102''
Transportation Height / Length
121-½'' / 16' 9''
