ID # 20061128

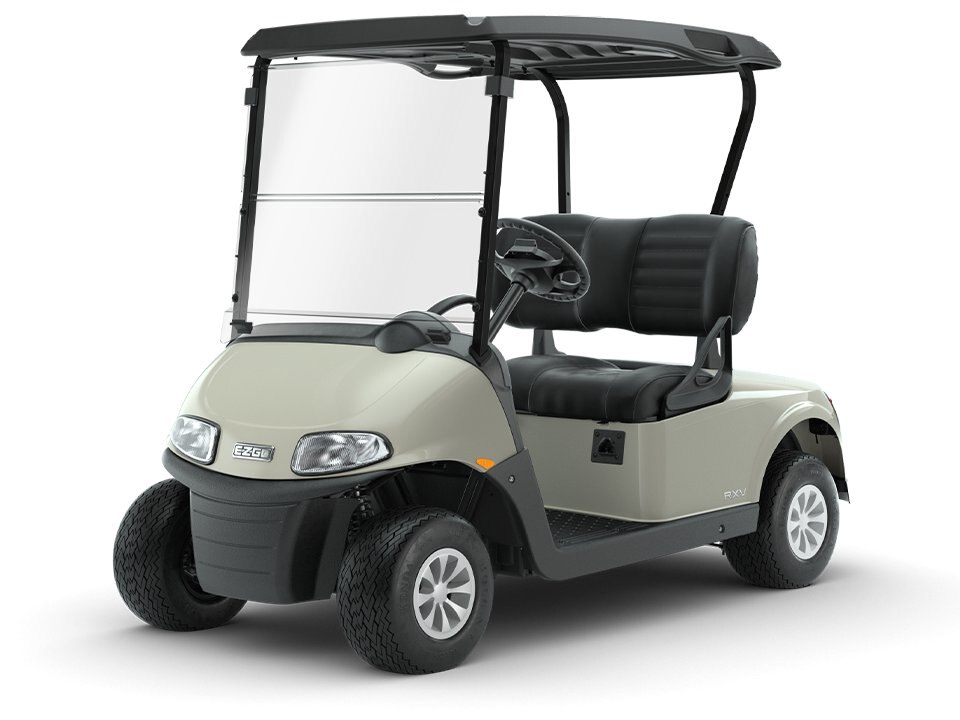

Ezgo FREEDOM RXV 48V Ivory

  • Ezgo FREEDOM RXV 48V Ivory
  • Ezgo FREEDOM RXV 48V Ivory
  • Ezgo FREEDOM RXV 48V Ivory
  • Ezgo FREEDOM RXV 48V Ivory
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
The E‑Z‑GO Freedom RXV personal golf cart is designed to help you live larger. With a wide range of upgraded features, such as the two or four passenger options, improved independent front suspension, a spacious dashboard, and an automatic parking brake on electric-powered vehicles. Further your adventure with our 2.2 single or 4.2 twin maintenance-free ELiTE lithium battery packs to improve range, add storage space, and further customize your vehicle based on your needs. Where will the Freedom RXV take you next?
Specifications
Model
FREEDOM
Category Name
Golf Carts
Year
2022
Sale Type
New
Manufacturer
Ezgo
Color
Ivory
FRAME
Welded Steel with Powder-Coat Protection
TIRES
18 x 8.50-8 (4-ply rated)
STEERING
Double-Ended Rack and Pinion
TRANSAXLE
Limited Slip Differential
DRIVETRAIN
Motor Shaft Direct Drive
DRY WEIGHT
565 lb (256.3 kg)
MOTOR TYPE
48-Volt AC
SUSPENSION
Front: Independent A-Arm Coil-Over Shock, Rear: Mono-Leaf Spring With Hydraulic Shocks
WHEEL BASE
65.7 in (167 cm)
CURB WEIGHT
905 lb (410.5 kg)
POWER SOURCE
48-Volt AC
BODY & FINISH
Injection Molded TPO
OVERALL WIDTH
47.0 in (119 cm)
PARKING BRAKE
Automatic Electro-Magnetic
SERVICE BRAKE
Induction Motor
GEAR SELECTION
Forward-Neutral-Reverse Integrated
OVERALL LENGTH
94.5 in (240 cm)
TURNING RADIUS
12.85 ft (3.92m)
BATTERY CHARGER
Lead Acid Charger: SC-48 (3.0 M) DC Cord
HORSEPOWER (KW)
4.4 hp (3.3 kW) Continuous
REAR AXLE RATIO
16.99:1
REAR WHEEL TRACK
39 in (99 cm)
SEATING CAPACITY
2 or 4 Passenger
SPEED CONTROLLER
17.5-19.5 mph (28-31 kph)
ELECTRICAL SYSTEM
48-Volt
FRONT WHEEL TRACK
35.5 in (90 cm)
KEY OR PEDAL START
Pedal
BATTERIES (QTY/TYPE)
Four, 12 Volt Deep Cycle
SPEED (LEVEL GROUND)
19 mph ± 0.5 mph (31 kph ± 0.8 kph)
AVAILABLE BODY COLORS
Forest Green, Almond, Black, Bright White, Flame Red, Inferno Red, Ivory, Metallic Charcoal, Ocean Gray, Platinum, Patriot Blue, Slate
AVAILABLE SEAT COLORS
Stone Beige, Black
VEHICLE LOAD CAPACITY
500-800 lb (227-360 kg)
OUTSIDE CLEARANCE CIRCLE
19.2 ft (5.8 m)
OVERALL HEIGHT (W/ ROOF)
70.0 in (178 cm)
DASH/ IP STORAGE CAPACITY
1123 in²
OVERALL HEIGHT (W/O ROOF)
47.5 in (121 cm)
AVAILABLE PREMIUM SEAT COLORS
Mushroom, Gray, Black (custom colors also available)
REAR CARGO RACK LOAD CAPACITY
100 lb (45.6 kg)
GROUND CLEARANCE @ DIFFERENTIAL
4.0 in (10 cm)
powertrains

48V AC

GAME-CHANGING PERFORMANCE

Only E‑Z‑GO golf carts are equipped with a revolutionary combination of AC power and IntelliBrake™ technology, delivering a patented automatically applied braking system and raising the bar on superior performance and energy efficiency. By using an innovative AC motor and IntelliBrake System, these golf carts are more efficient, easier to use and provide better value than other vehicles.

GET MORE WITH E‑Z‑GO AC TECHNOLOGY

  • Increased energy efficiency
  • Longer run time between charges
  • Boosted hill climbing power
  • Patented Intellibrake System provides automatically applied parking brake and full-time regenerative braking to use less energy
vehicle highlights

NEW MODERN DASH

Premium dashboard design with ample storage.

Ezgo FREEDOM RXV 48V Ivory

OPTIONAL INSIDER BAG (ELITE MODEL)

Provides convenient, industry-leading underseat golf cart storage.

Ezgo FREEDOM RXV 48V Ivory

LED HEADLIGHTS AND TAILLIGHTS

The Freedom RXV now comes standard with LED headlights and taillights.

Ezgo FREEDOM RXV 48V Ivory

NEW REAR-FACING SEAT

Transform your Freedom RVX into a 4 seater golf cart to bring more friends along for the ride.

Ezgo FREEDOM RXV 48V Ivory
