Overview

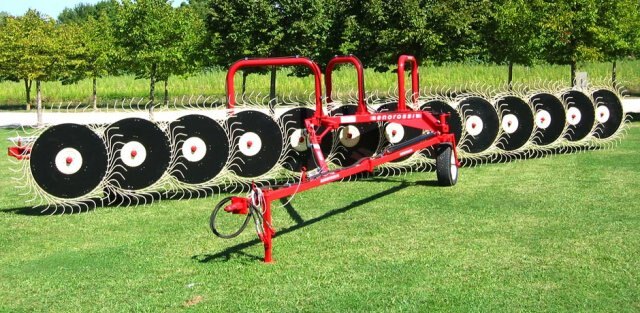

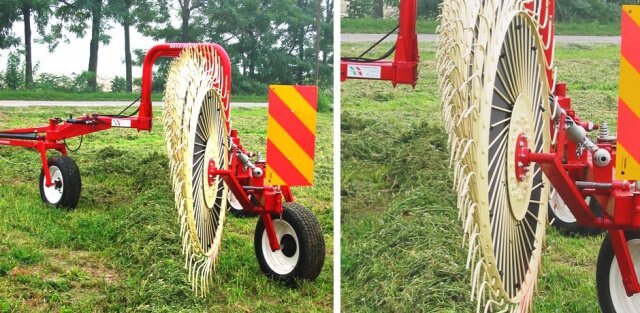

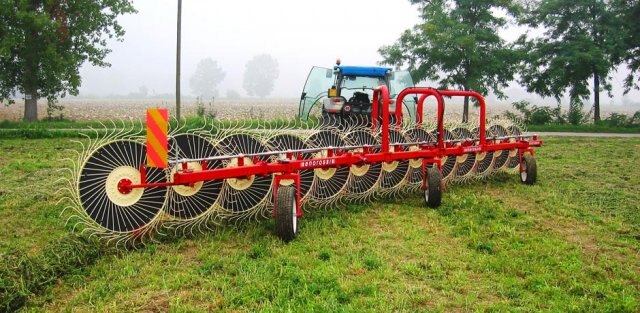

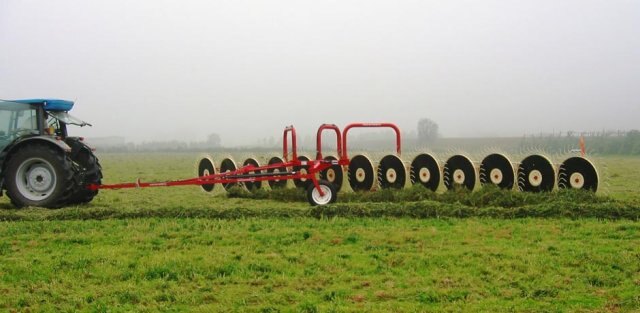

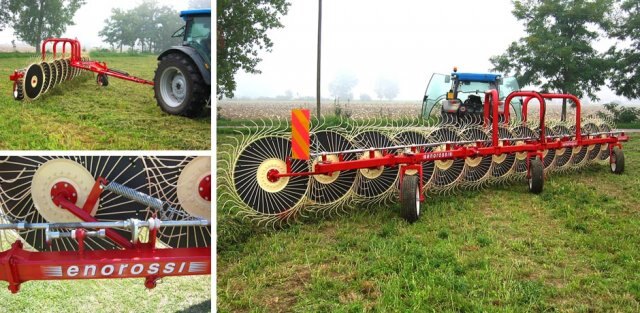

RT7 - RT9 – RT13 pull type Hay Rakes

Just 2 movements are necessary to cover nearly 50 ft. of working width.
IDEAL FOR : working on all types of ground.

KEY FEATURES : The RT 13 pull type rake has been realized with a robust and articulated structure to guarantee the most highest performance even on uneven grounds.

DESCRIPTION : Enorossi pull type rakes (RT7-RT9) are equipped with three wheels (or four for the RT 13) to ensure greater stability during raking and transport. They are used for raking hay and all types of forage. All forage is gathered in a soft windrow without destroying the leaves, maintaining a high nutritive value. They are extremely suitable for gathering on small allotments with uneven windrows. Tooth Ø 6,9.

The RT 13 pull type rake has been realized with a robust and articulated structure to guarantee the most highest performance even on uneven grounds. Working width can be adjusted with a selector. The RT 13 pull type rake is equipped with four wheels to ensure major stability during raking and transport.

*hydraulic kit for rear steering Mod. RT7/9 upon request.

MODELS : RT 7, RT9, RT 13.
 TECHNICAL SPECIFICATIONS
  • Frames made of FE 510 steel.
  • Raking wheels made of C85 heat tempered steel to ensure stability and durability over time.
  • Raking wheels Ø 140 cm. with central flange Ø 3,5 mm., n° 40 teeth made of C85 steel, Ø 6,9 mm.
  • Tires 205.70/15.
  • Raking wheels hubs made of spheroidal cast iron with grease zerk.
  • V-Rake wheel arms with buttonhole to ease ground adaptation.
  • Double action hydraulic lift system.
  • Windrow width adjustment with a selector in the tools holder.
  • Ball valve kit to operate just one side.
  • Hydraulic central kicker wheel with N° 1 raking wheel, Ø 140 cm.



Specifications
Model
RT 9
Category Name
Agriculture
Year
2015
Sale Type
New
Manufacturer
Enorossi
Teeth
6,9 mm.
Transport Width
250 cm. 8.2 ft.
Weight
735 Kg. 1623 Lbs.
Working Width
560 cm. 18 ft.
N° Wheels
3
Transport Lenght
950 cm. 31 ft.
