Overview

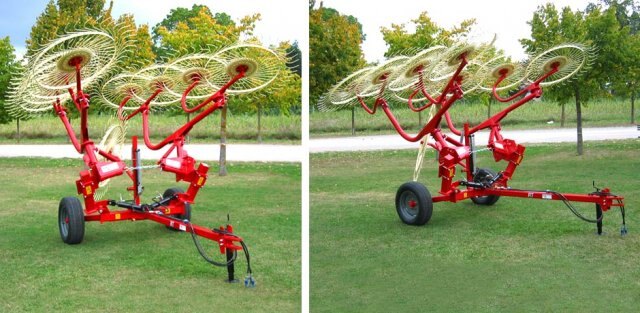

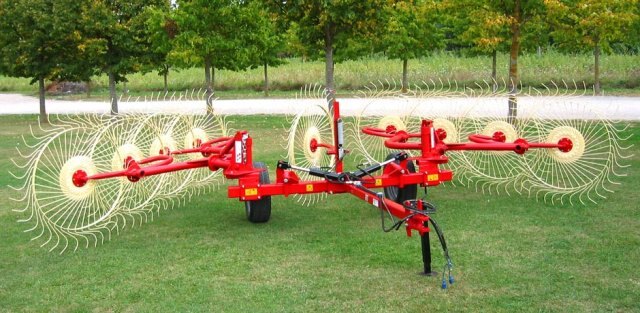

CADDY Pull Type "V" Rake

The economical choice for V rakes. A wide 6’ stance on the 15” transport tires keeps the rake stable in hilly terrain.

IDEAL FOR : Any type of land, even the hilly ones.

KEY FEATURES : A newly designed transport caddy gives a high ground clearance of over 20”, which keeps the transport bar away from cut hay when raking under heavy conditions.

DESCRIPTION : Enoagricola Rossi offers the top of the line in affordable 8, 10 and 12 wheel V-rake carts.
The Caddy V-rake’s simple design keeps moving parts down to a minimum, eliminating excessive wear points. Maximum flexibility during the haymaking process. Double action hydraulic lift system allows for maximum control on any terrain. Heavy 7 mm tines keep tine breakage to a minimum. Adjustable raking angles allows the ability to regulate windrow width for a variety of baler openings.
The 10 Wheel V-rake is designed with a front mounting finger wheel to allow it to quickly swivel out of the way when only an 8 wheel is needed.

*Road homologation available upon request.

MODELS : RC 8, RC 10, RC 12 Model.
 TECHNICAL SPECIFICATIONS
  • Frames made of FE 510 steel.
  • Raking wheels made of C85 heat tempered steel to ensure stability and durability over time.
  • Raking wheels Ø 140 cm. with central flange Ø 3,5 mm., n° 40 teeth made of C85 steel, Ø 6,9 mm.
  • Tires 205.70/15.
  • Raking wheels hubs made of spheroidal cast iron with grease zerk.
  • V-Rake wheel arms with buttonhole to ease ground adaptation.
  • Double action hydraulic lift system.
  • Windrow width adjustment with a selector in the tools holder.
  • Ball valve kit to operate just one side.
  • Hydraulic central kicker wheel with N° 1 raking wheel, Ø 140 cm.



Specifications
Model
RC 10
Category Name
Agriculture
Year
2015
Sale Type
New
Manufacturer
Enorossi
Transport Width
250 cm. 8.2 ft.
Weight
660 Kg. 1470 Lbs.
Wheels
10
Working Width
640 cm. 21 ft.
N° Wheels
2
Power Required
30 HP
