ID # 13340193

Enorossi RC 8

  • Enorossi RC 8
  • Enorossi RC 8
  • Enorossi RC 8
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

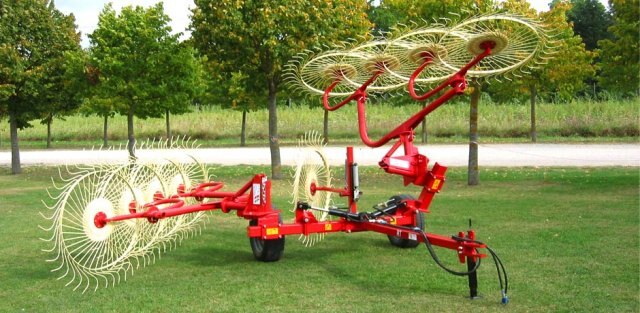

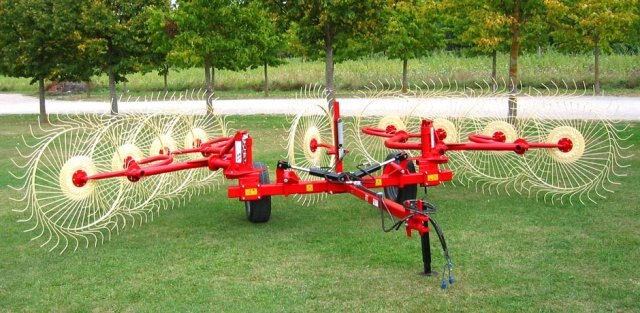

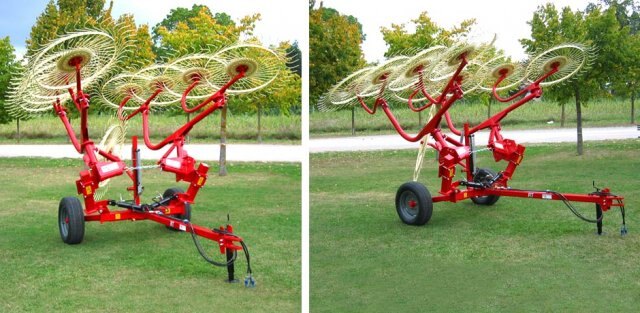

CADDY Pull Type "V" Rake

The economical choice for V rakes. A wide 6’ stance on the 15” transport tires keeps the rake stable in hilly terrain.

IDEAL FOR : Any type of land, even the hilly ones.

KEY FEATURES : A newly designed transport caddy gives a high ground clearance of over 20”, which keeps the transport bar away from cut hay when raking under heavy conditions.

DESCRIPTION : Enoagricola Rossi offers the top of the line in affordable 8, 10 and 12 wheel V-rake carts.
The Caddy V-rake’s simple design keeps moving parts down to a minimum, eliminating excessive wear points. Maximum flexibility during the haymaking process. Double action hydraulic lift system allows for maximum control on any terrain. Heavy 7 mm tines keep tine breakage to a minimum. Adjustable raking angles allows the ability to regulate windrow width for a variety of baler openings.
The 10 Wheel V-rake is designed with a front mounting finger wheel to allow it to quickly swivel out of the way when only an 8 wheel is needed.

*Road homologation available upon request.

MODELS : RC 8, RC 10, RC 12 Model.
 TECHNICAL SPECIFICATIONS
  • Frames made of FE 510 steel.
  • Raking wheels made of C85 heat tempered steel to ensure stability and durability over time.
  • Raking wheels Ø 140 cm. with central flange Ø 3,5 mm., n° 40 teeth made of C85 steel, Ø 6,9 mm.
  • Tires 205.70/15.
  • Raking wheels hubs made of spheroidal cast iron with grease zerk.
  • V-Rake wheel arms with buttonhole to ease ground adaptation.
  • Double action hydraulic lift system.
  • Windrow width adjustment with a selector in the tools holder.
  • Ball valve kit to operate just one side.
  • Hydraulic central kicker wheel with N° 1 raking wheel, Ø 140 cm.



Specifications
Model
RC 8
Category Name
Agriculture
Year
2015
Sale Type
New
Manufacturer
Enorossi
Transport Width
250 cm. 8.2 ft.
Weight
600 Kg. 1323 Lbs.
Wheels
8
Working Width
540 cm. 17.8 ft.
N° Wheels
2
Power Required
30 HP
