ID # 13339219

Enorossi ERS – 20 SN

  • Enorossi ERS – 20 SN
  • Enorossi ERS – 20 SN
  • Enorossi ERS – 20 SN
  • Enorossi ERS – 20 SN

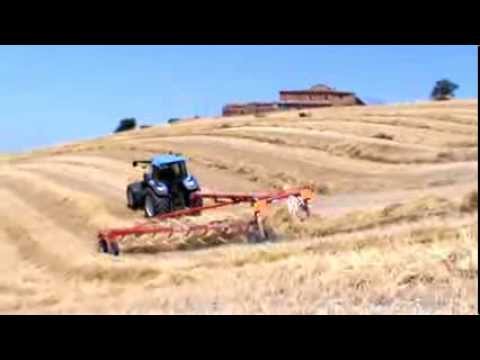

  • Video Button Hqdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

EASY RAKE SUPERSTAR Pull Type "V" Rake

Big productivity begins here. Our ERS 20 model reaches 38 ft. of working width.
The autosteer system enables the machine to work with ease in small plots and the shock absorbers ensure shock-free operations on uneven terrain.
IDEAL FOR : working on all types of terrain.

KEY FEATURES : In the 18 and 20-wheel versions the side frames hinge to allow the V-rake to float and adapt to the terrain.

DESCRIPTION : The Easy Rake Superstar is the largest model of our V-Rake Pull-Type line. Designed to meet the needs of today’s hay producers, these high-capacity V-rakes are available in 16, 18 and 20 wheel configurations, with the 20 wheels having a working width of up to 12 meters (38”). The articulated frame and the independent raking wheels allow the rake to adapt to the most varied working conditions.
Large 60” wheels with 7.5 mm tines are standard on 16, 18 & 20 wheel units. The heavier tines are rigid enough to allow the units to work well in corn stalks and alfalfa. Easy and innovative folding system allows the operator to work with one side only.
The windrow width is changed by a simple bushing system allowing for quick in-field adjustments.
Walking tandem, and big rake wheels diameter cm. 150 and tines diameter 7.5 mm. standard on all models. Individual floating rake wheels provide consistent ground pressure as they follow the terrain for clean, positive raking while reducing tine wear and protecting crop stubble. The automatic hooking system allows making all operations without leaving the tractor seat.
All forage is gathered in a soft windrow without destroying the leaves maintaining a high nutritive value.

An innovative and ergonomic solution: Enoagricola Rossi was the first company to develop, build, and apply the auto-steering system to finger wheel rakes.
The auto-steering system is a closed hydraulic system made up of hydraulic hoses and two cylinders, one situated on the two-point hitch of the rake and the other on the rear crossbar. This technical innovation enables the V-rake to steer itself independently, following the path of the tractor, and thus do right-angle turns and maneuver easily in very tight spaces. This system will hydraulically pivot the rear wheels during turns to allow the operator to turn sharply in fields. Optional hydraulically controlled center double kicker wheel assembly and wind guards are also available. The system can be applied to both the Easy Rake and the Easy Rake Superstar V-rakes. International patent pending.
MODELS : Easy Rake Superstar and Easy Rake Superstar Autosteer.
 TECHNICAL SPECIFICATIONS
  • Hydraulic opening and closing device.
  • Windrow width adjustment with bushings (from 90 cm to 150 cm).
  • Frames made of FE 510 steel.
  • Side frames assembled on pivoting points, for optimal ground adaptation.
  • Lateral frame sections 150 mm x 100 mm, 4 mm thickness.
  • Double frame pull bar.
  • Tie rods to increase traction resistance.
  • Raking wheels made of C85 heat tempered steel to ensure stability and durability over time.
  • Raking wheels Ø 150 cm, with central flange Ø 3,5 mm, n° 40 teeth Ø 7,5 mm.
  • Tires tubeless 205.70/15.
  • Raking wheels hubs made of spheroidal cast iron with grease zerk.
  • Rake wheel arms with spring and chain to adjust the ground pressure.
  • Hydraulic device for lifting and lowering the raking wheels.
  • Hydraulic opening and closing device with block valve to adjust the working width.
  • Hydraulic kicker wheel with N° 2 raking wheels, Ø 90 cm.
  • Flex frames on 18-20 models allow greater flexibility over all types of terrain.
  • Swath adjustment by a system using bushings.
  • Walking tandem standard on all easy rake superstar models.



Specifications
Model
ERS – 20 SN
Category Name
Agriculture
Year
2015
Sale Type
New
Manufacturer
Enorossi
Transport Width
280 cm. 9.2 ft.
Weight
2749 Kg. 6068 Lbs.
Working Width
1150 cm. 38 ft.
N° Wheels
12
Transport Lenght
1210 cm. 40 ft.
