ID # 13339132

Enorossi RTY 12+3

  • Enorossi RTY 12+3
  • Enorossi RTY 12+3
  • Enorossi RTY 12+3
  • Enorossi RTY 12+3
  • Video Button Maxresdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

Y Rake 17 All Blacks

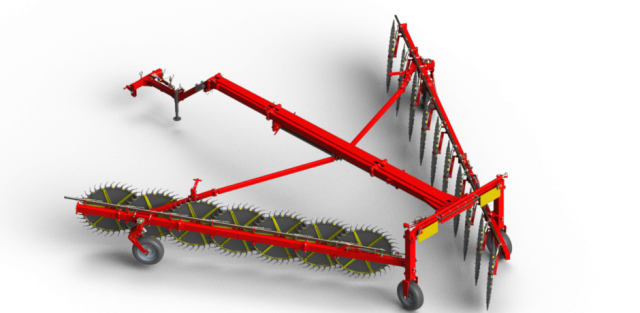

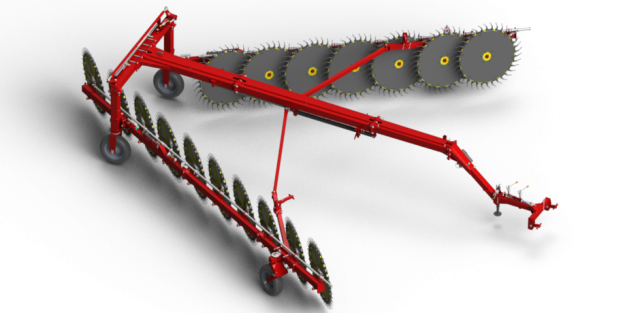

The most advanced hay rake available in the market. Y Rake: the best way to rake.
IDEAL FOR : working on all types of terrain.

KEY FEATURES : Many innovations to your service: auto steering system, universal rake wheels, automatic lock, suspensions. International patent pending.

DESCRIPTION : The Y Rake 17 All Blacks is designed to meet the needs of today’s hay producers. The Y configuration offers a clean and gentle raking over the whole working width. The autosteer system allows the machines to work with ease even in small plots.

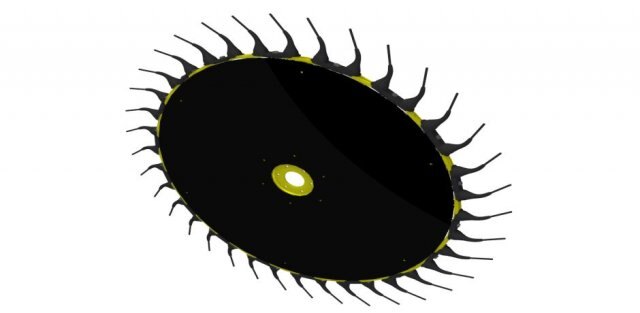

This innovative machine features a special design using universal rake wheels (right or left) with rubber tines. This new system is designed to optimize the raking capacity on heavy forage conditions. Universal wheels Ø 150 cm., 2 suspension wheels. New articulated frame allows the rake to adapt to the most varied working conditions. All forage is gathered in only one soft windrow. The special design does not require the use of the optional central kicker wheel.
The Y rake can be equipped with standard raking wheels Ø 150 cm., tooth 7,5 cm. upon request.

Enoagricola Rossi was the first company to develop, build, and apply the auto-steering system to finger wheel rakes. The auto-steering system is a closed hydraulic system made up of hydraulic hoses and two cylinders, one situated on the two-point hitch of the rake and the other on the rear crossbar. This technical innovation enables the machine to steer itself independently, following the path of the tractor, and thus do right-angle turns and maneuver easily in very tight spaces.

MODELS : Y Rake auto steer available in 12+3 and 14+3 models.
 TECHNICAL SPECIFICATIONS
  • Lateral frame sections 150 mm x 100 mm, 4 mm thickness.
  • Frames made of FE 510 steel.
  • Universal wheels with rubber tines Ø 150 cm.
  • 2 suspension wheels.
  • Universal rake wheels with plastic protective disc.
  • Hydraulic opening and closing device.
  • Automatic lock.
  • Tires tubeless 205.70/15.
  • Hydraulic device for lifting and lowering the raking wheels.



Specifications
Model
RTY 12+3
Category Name
Agriculture
Year
2015
Sale Type
New
Manufacturer
Enorossi
Transport Width
280 cm.
Weight
2400 Kg.
Working Width
800 cm.
N° Wheels
4
Transport Lenght
280 cm.
