ID # 31276233

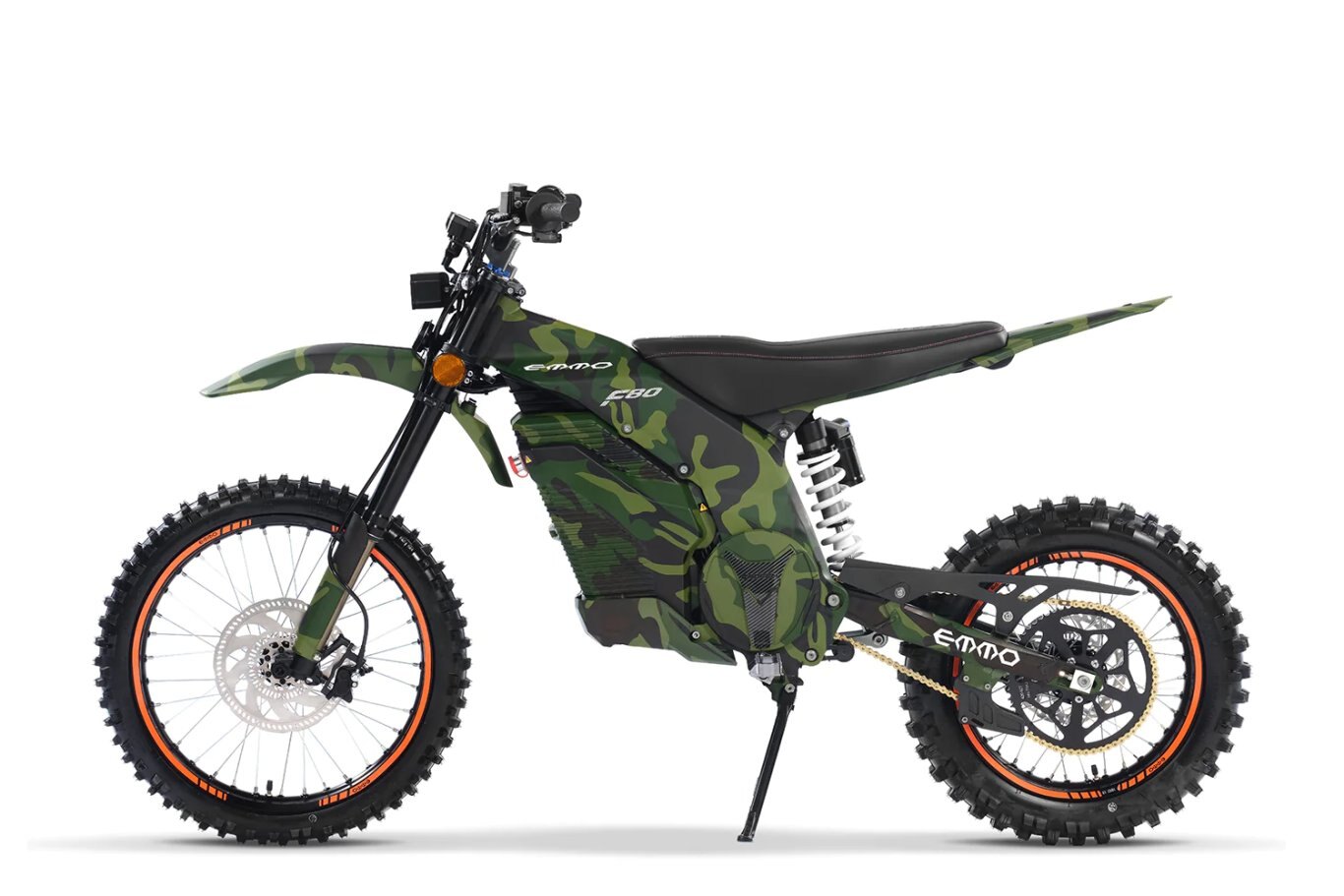

Emmo CAOFEN F80 OR-30 CAMO

  • Emmo CAOFEN F80 OR 30 CAMO
  • Emmo CAOFEN F80 OR 30 CAMO
  • Emmo CAOFEN F80 OR 30 CAMO
  • Emmo CAOFEN F80 OR 30 CAMO
  • Emmo CAOFEN F80 OR 30 CAMO
  • Emmo CAOFEN F80 OR 30 CAMO
  • Emmo CAOFEN F80 OR 30 CAMO
  • Emmo CAOFEN F80 OR 30 CAMO
  • Emmo CAOFEN F80 OR 30 CAMO
  • Emmo CAOFEN F80 OR 30 CAMO
  • Emmo CAOFEN F80 OR 30 CAMO
  • Emmo CAOFEN F80 OR 30 CAMO
  • Emmo CAOFEN F80 OR 30 CAMO
  • Video Button Maxresdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

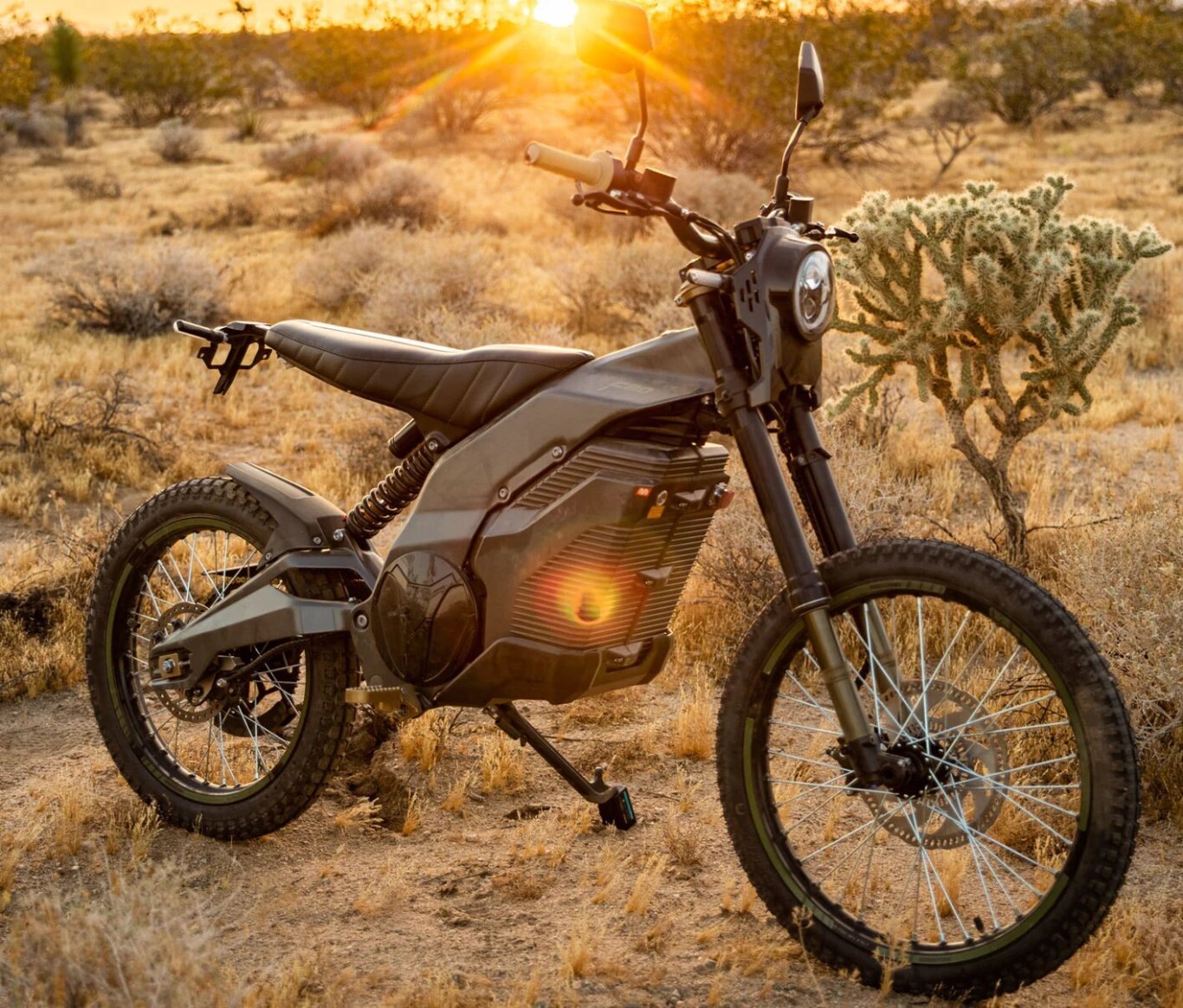

ELECTRIC DIRT BIKE

Redefine your ride with the magnificence of electric dirt bikes – quiet, powerful, and minimal maintenance compared to their gas counterparts.

Catering to diverse riders, from heavy off-road enthusiasts to light wild explorers, the CAOFEN F80 series includes three versions: ENDURO (OR-30), TRAIL (DS-30), and CROSS COUNTRY (DS-48). All boast a 8kw motor with 310Nm torque, and speed up to 85km/h. The Unibody aluminum-magnesium alloy frame ensures lightness, strength, and agility, while the front inverted off-road suspension with 200mm travel ensures exceptional adaptability for jumps and varied terrains
Specifications
Model
CAOFEN F80 OR-30
Category Name
E-Bikes
Year
2024
Sale Type
New
Manufacturer
Emmo
Color
CAMO
Frame
High Strength Unibody Aluminum Alloy Frame
Type*
Heavy Off-Road
Weight
78KG
Fenders
High Mount Front & Rear Mudguard
Ignition
Remote Ignition
Swingarm
Aluminum Alloy Welded Intersect Swingarm
Headlight
LED Headlight
Rear Tire
Nylon 90/100-16 Knobby Tire
Top Speed
85KM/H
Front Tire
Nylon 70/100-19 Knobby Tire
Motor Type
Permanent Magnet Synchronous Air-Cooled Motor
Rear Brake
Hydraulic Disc Brake
Rear Wheel
16" wire-spoked rim
Wheel Base
130 cm / 51"
Per Charge
Up to 150 km
Alloy Frame
Unibody
Front Brake
Hydraulic Disc Brake
Front Wheel
19" wire-spoked rim
Max Range**
80 km (30km/h)
Motor Power
8KW
Peak Torque
310 Nm
Seat Height
84cm / 33"
Riding Modes
3 Speed w/ Boost
Charging Time
2-3 hours
Load Capacity
100KG
Climbing Angle
40 Degrees
Instant Torque
310N.M
Instrumentation
LCD Digital Speedometer
Lithium Battery
72V
Turning Signals
Front Turning Signals ONLY
Front Suspension
HKW 38mm Inverted Telescopic Fork: Adjustable preload and rebound, 200mm travel
Ground Clearance
26.5 cm / 10 2/5"
Vehicle Dimension
195×78.5×107 cm / 77"x31"x42"
Off-Road Suspension
200 mm Travel
Rear Shock Absorber
Off-Road Intersect monoshock, adjustable for pre-load and rebound with external reservoir, 65mm travel.
Rated Power / Peak Power
4kW / 8kW
features

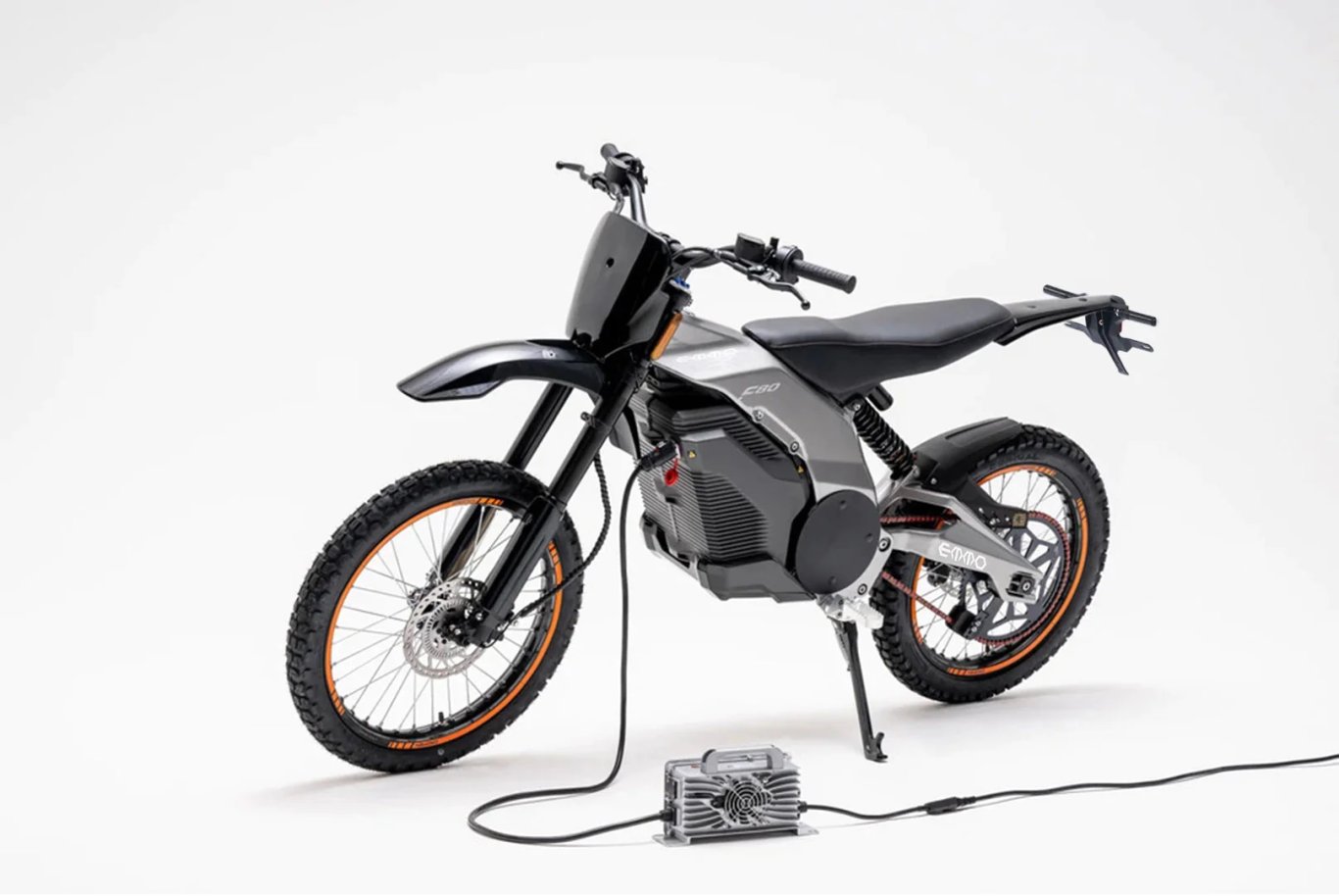

UL CERTIFIED FAST CHARGER

Emmo CAOFEN F80 OR 30 CAMO

Elevate your ride with our lightning-fast, reliable charging system, capable of fully recharging your bike in as little as 2 hours, ensuring a day of endless fun. Our UL-certified 10A charging system, complete with a patented heat management system, provides both peace of mind and efficient performance as you power up your bike.

2 Hours recharging time

10A charging output

Emmo CAOFEN F80 OR 30 CAMO

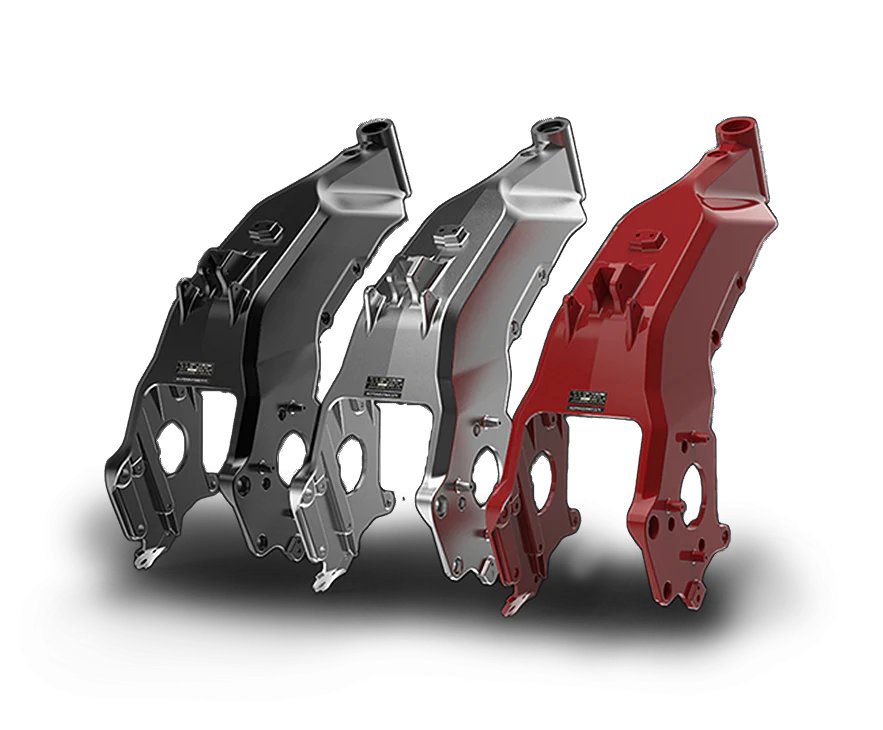

Aluminum Unibody Frame

Discover the F80's Aluminum Unibody Frame, a high-strength chassis with 30% increased strength thanks to its zero-welding construction, providing exceptional off-road capabilities. With a lightweight design that boosts overall performance and ensures agility, paired with balanced weight distribution for stability on diverse terrains, this unibody frame elevates your riding experience.

Emmo CAOFEN F80 OR 30 CAMO

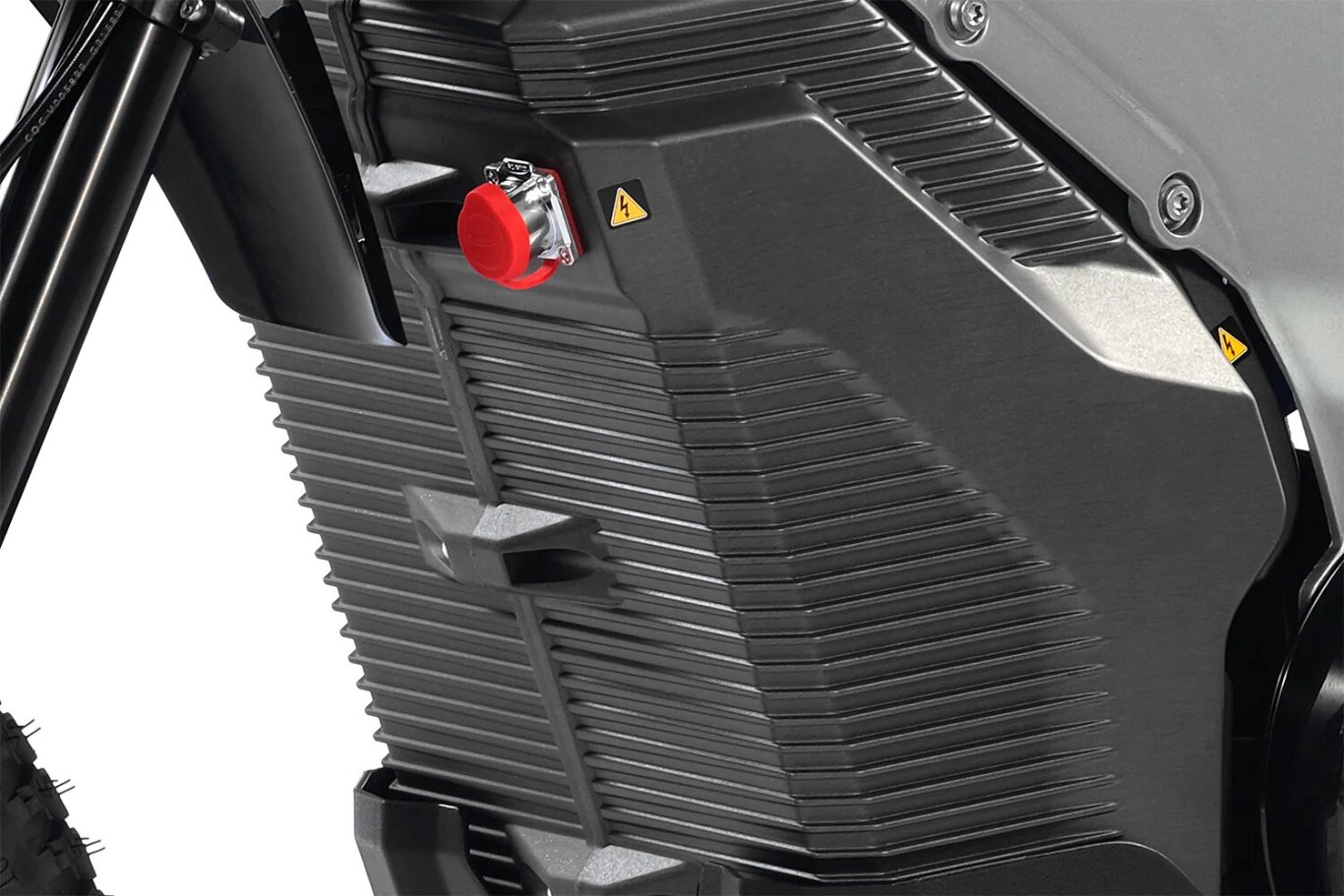

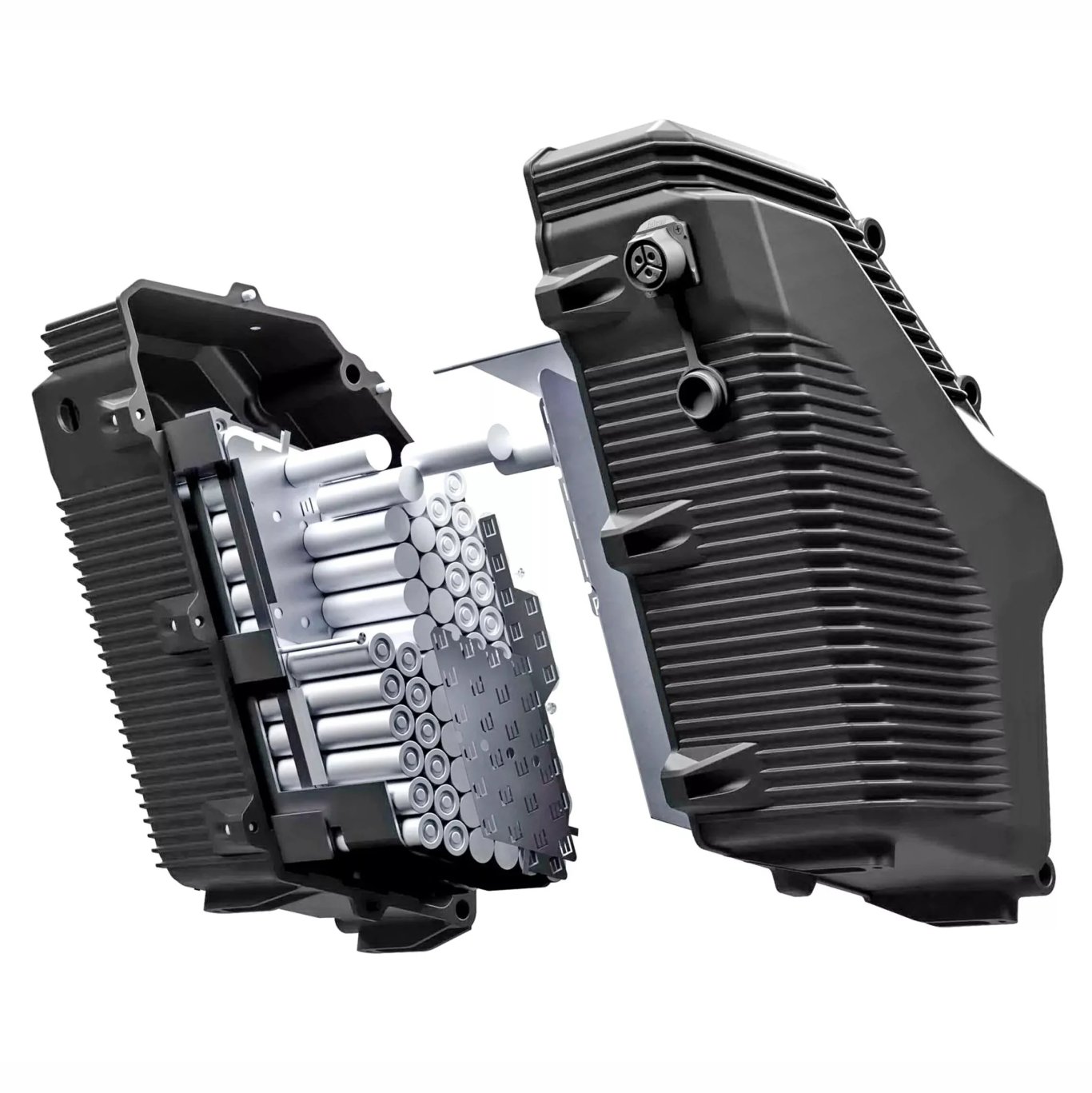

Advanced Battery Temperature Control

The advanced immersive cooling system ensures superior thermal balance, reducing temperature rise by 50% during use. Riding it in the snow? No problem! The battery temperature control system allows for use in extreme cold conditions as low as -40 degrees. With patented technology enhancing battery life and performance, it guarantees worry-free enjoyment for the long journey ahead.

up to150km travel range

50% Longer Battery Life

Emmo CAOFEN F80 OR 30 CAMOBattery Temperature Control

Long-lasting and rapid-charge with efficient cooling; environmentally friendly performance even at -40 degrees.

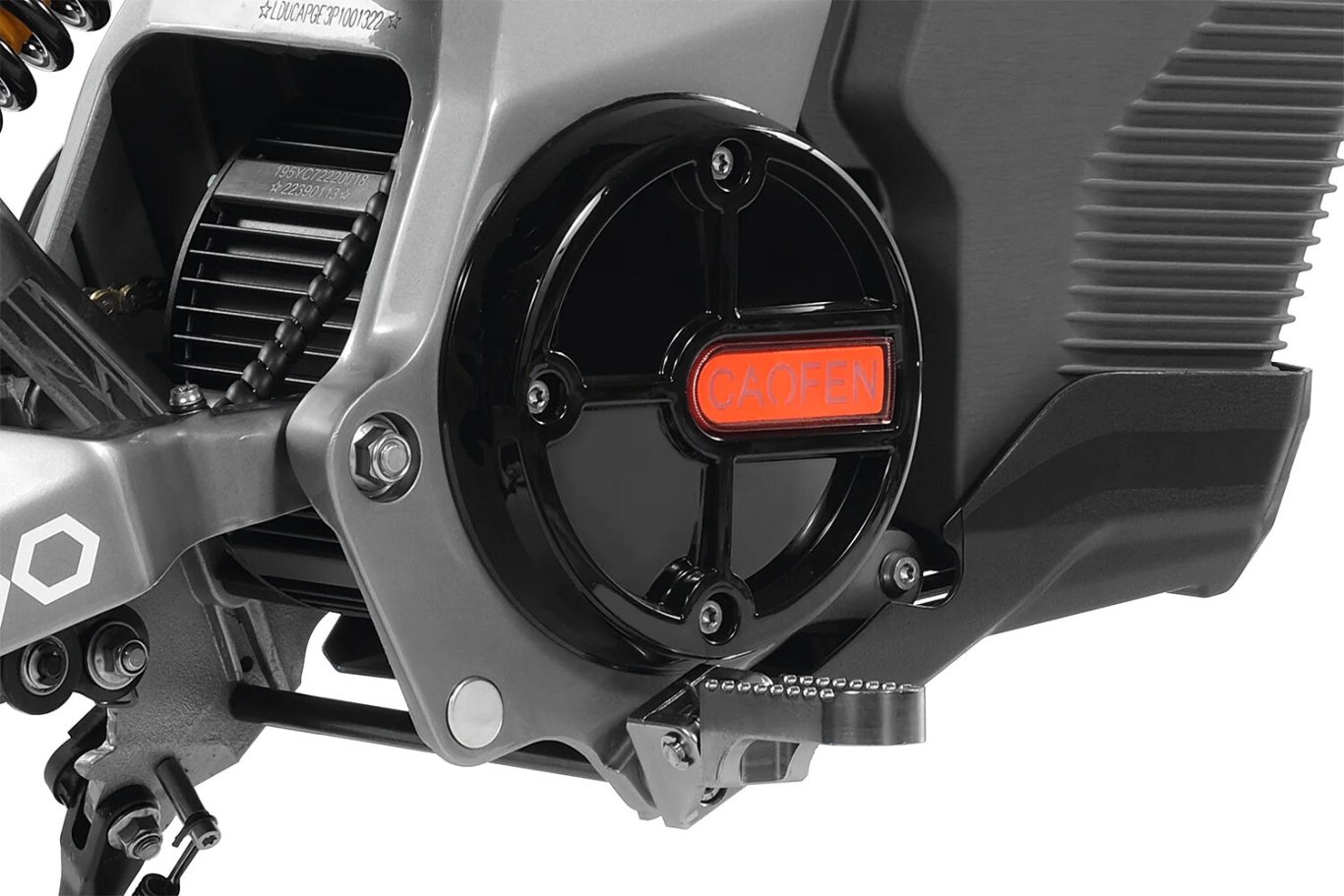

Emmo CAOFEN F80 OR 30 CAMO8KW Motor with Intelligent Control

Safety-infused design managing speed while ensuring optimal efficiency; crafted for a smooth & comfortable ride.

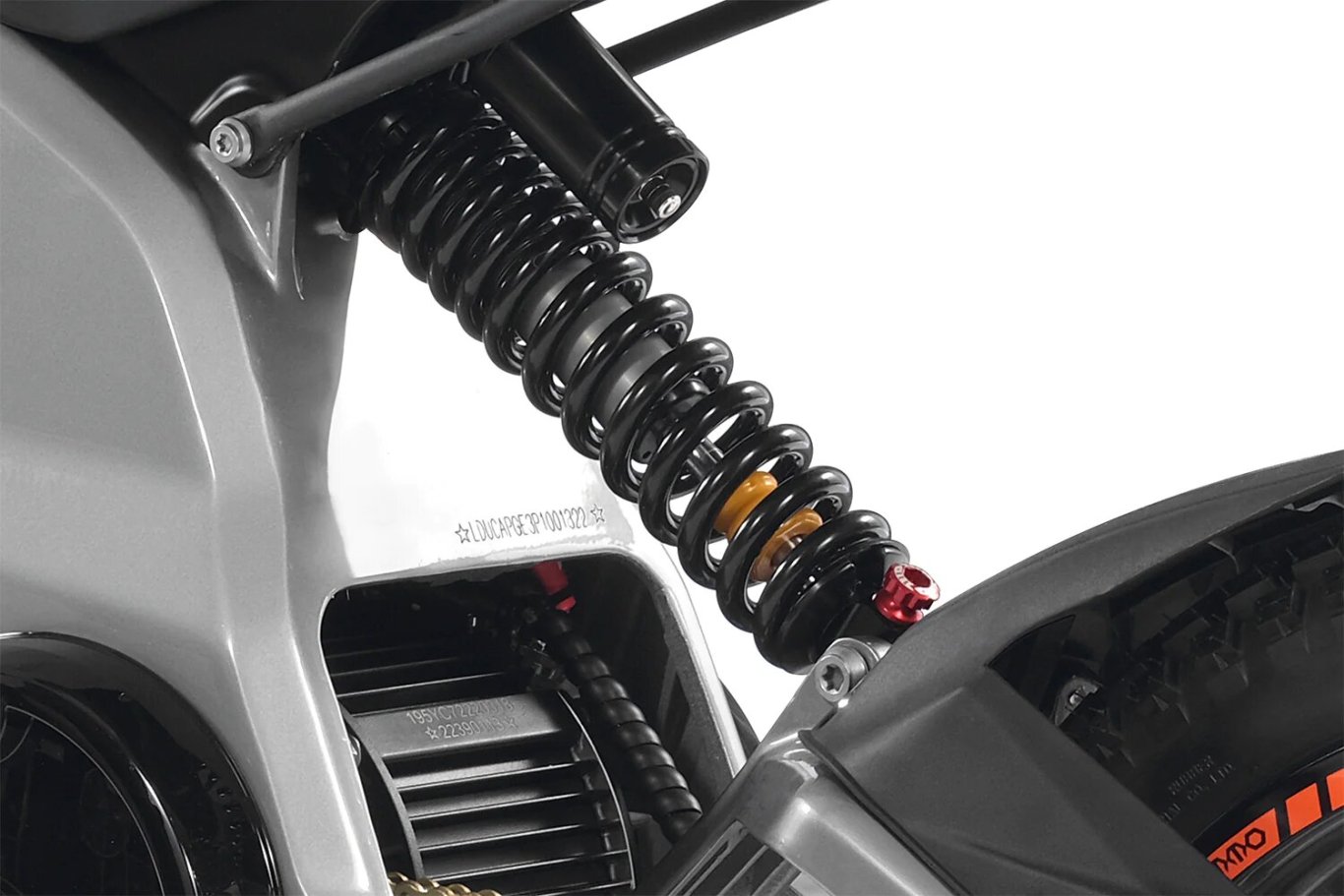

Emmo CAOFEN F80 OR 30 CAMOAdvanced Rear Suspension

Responsive, durable, and ensures a smooth ride.

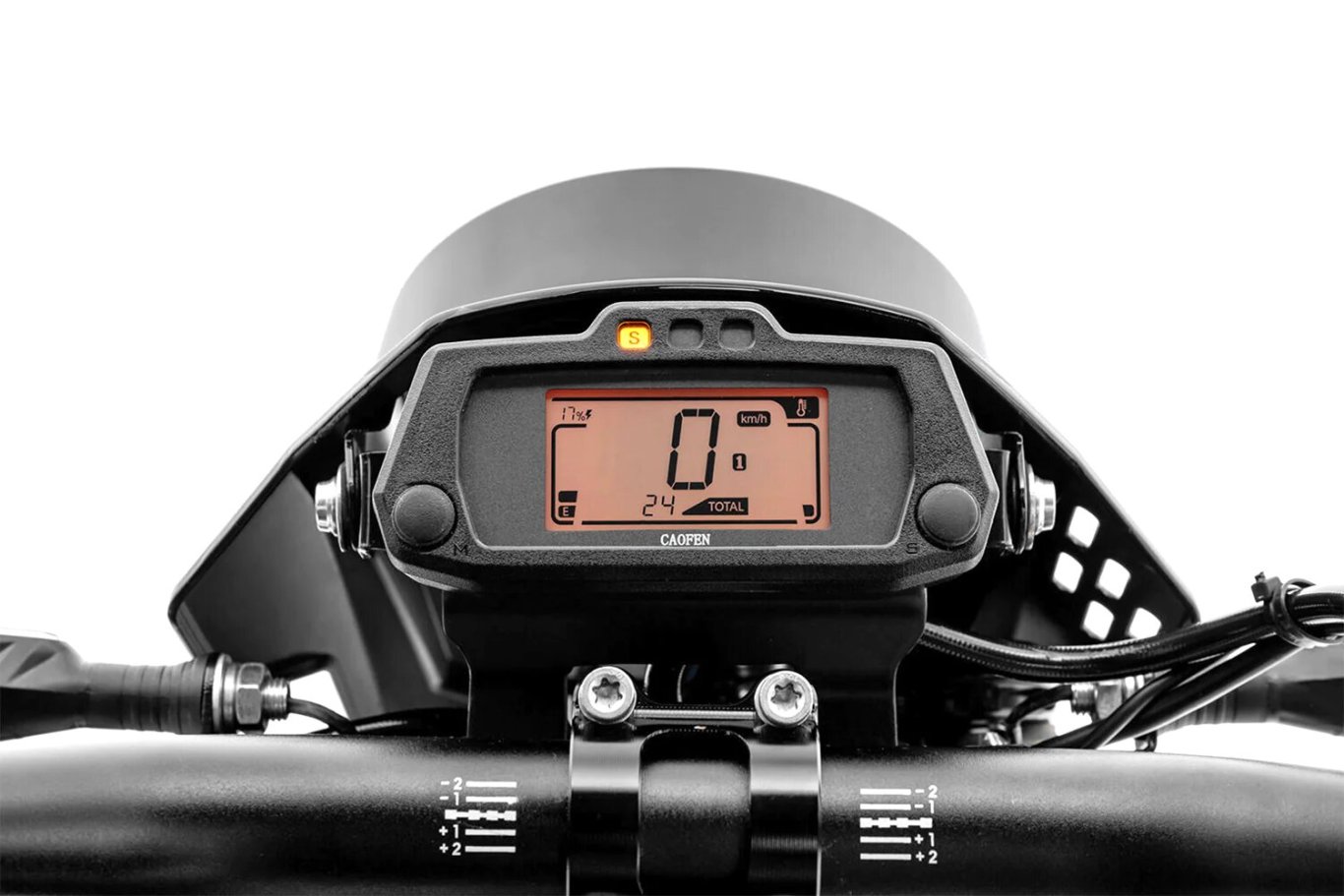

Emmo CAOFEN F80 OR 30 CAMOLED Digital Speedometer

Clear, intuitive, and offers vital ride metrics at a glance.

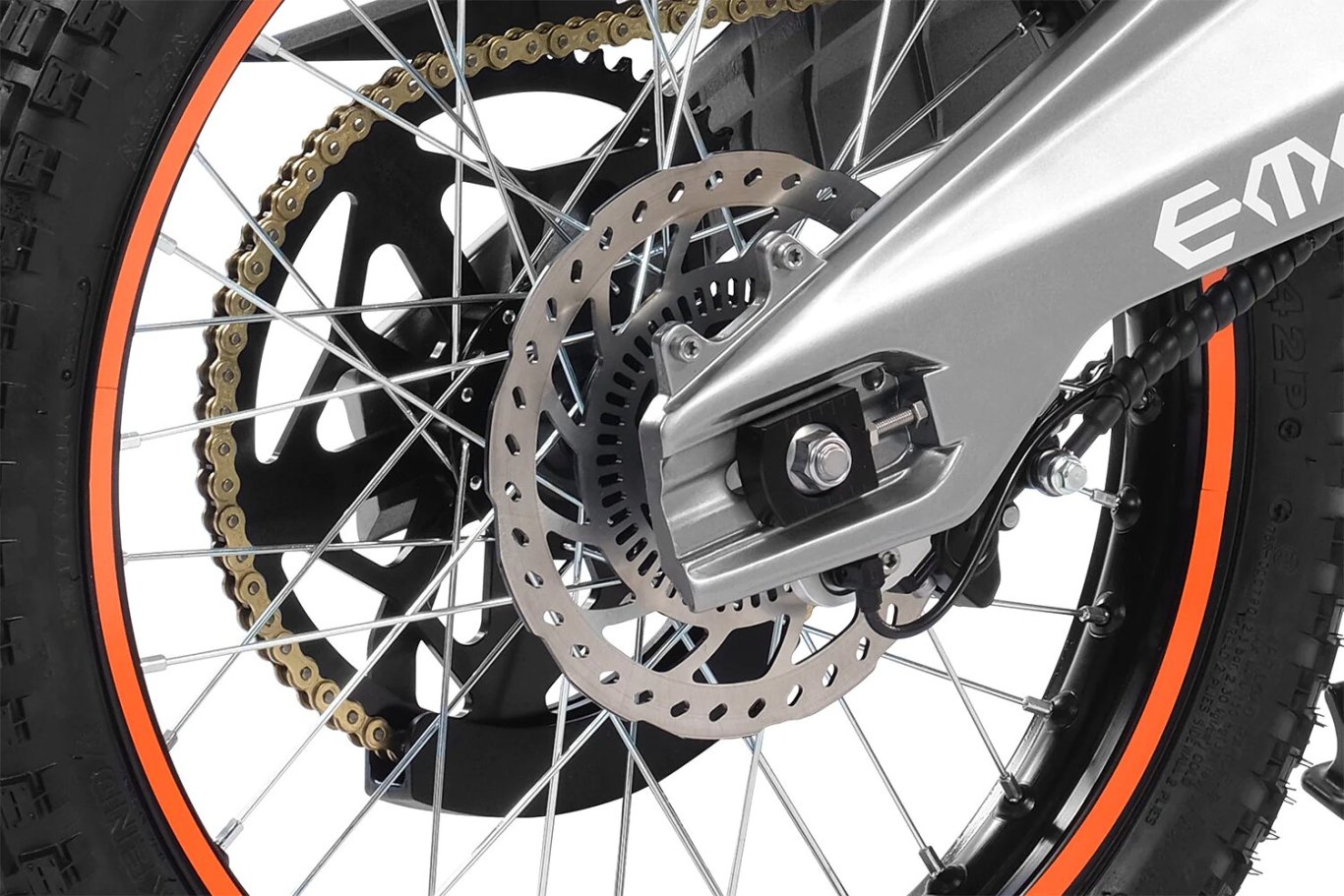

Emmo CAOFEN F80 OR 30 CAMOHydraulic Disc Brake

Powerful, responsive, and ensures top-tier stopping performance.

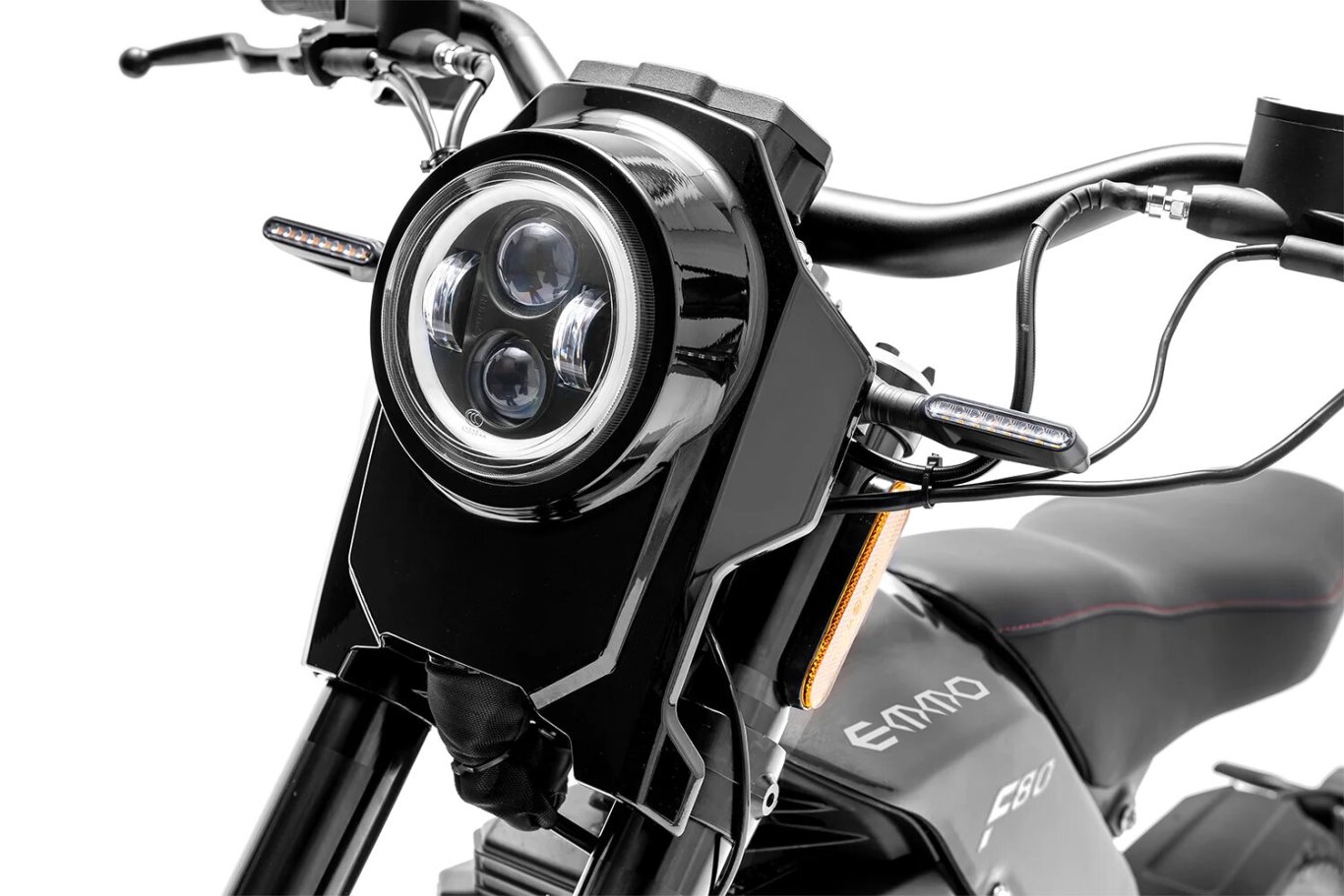

Emmo CAOFEN F80 OR 30 CAMOIconic LED Headlight

Bright, focused illumination ensuring safety and lasting performance.

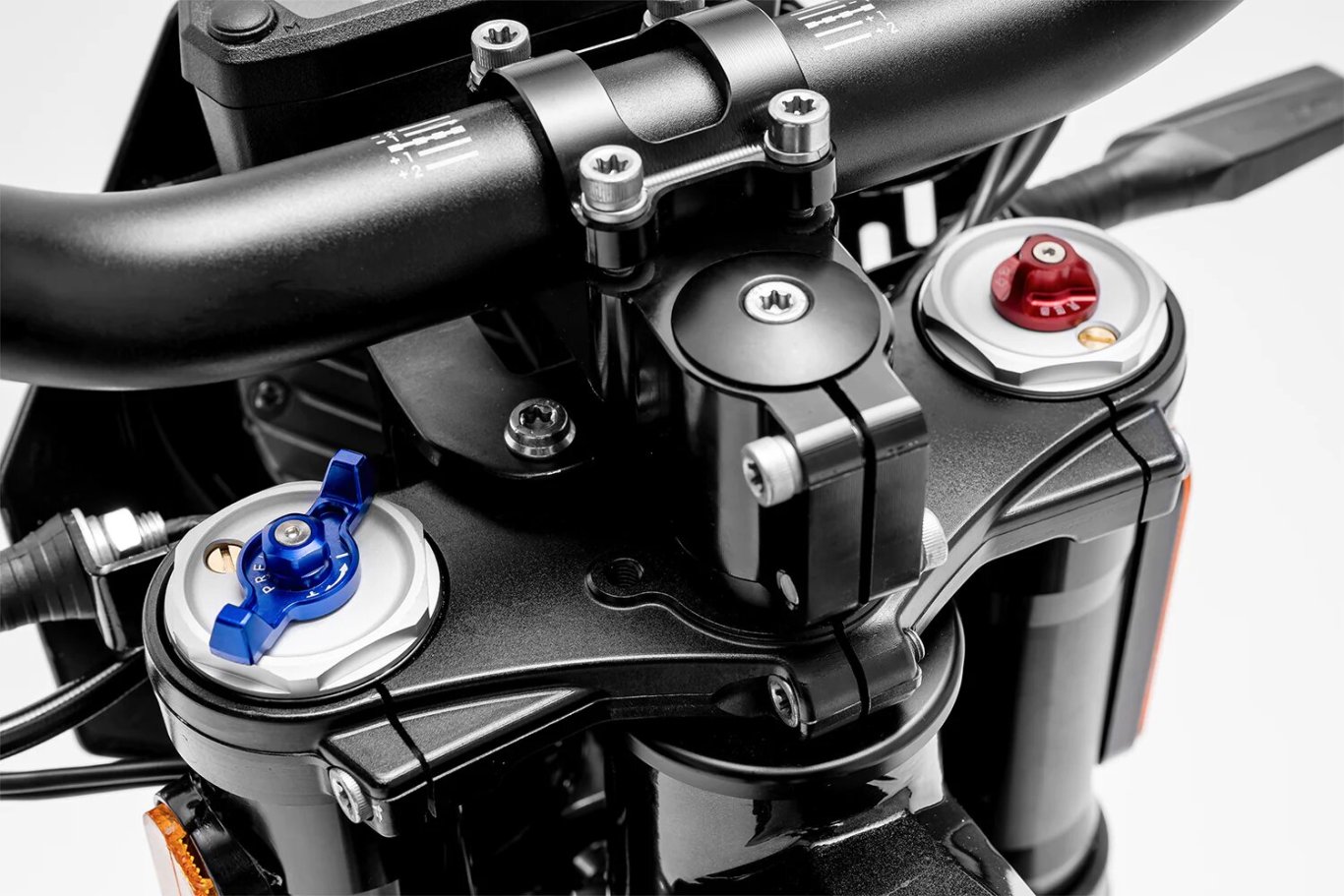

Emmo CAOFEN F80 OR 30 CAMOAdjustable Suspension

Flexible, adaptive, and designed for personalized ride comfort.

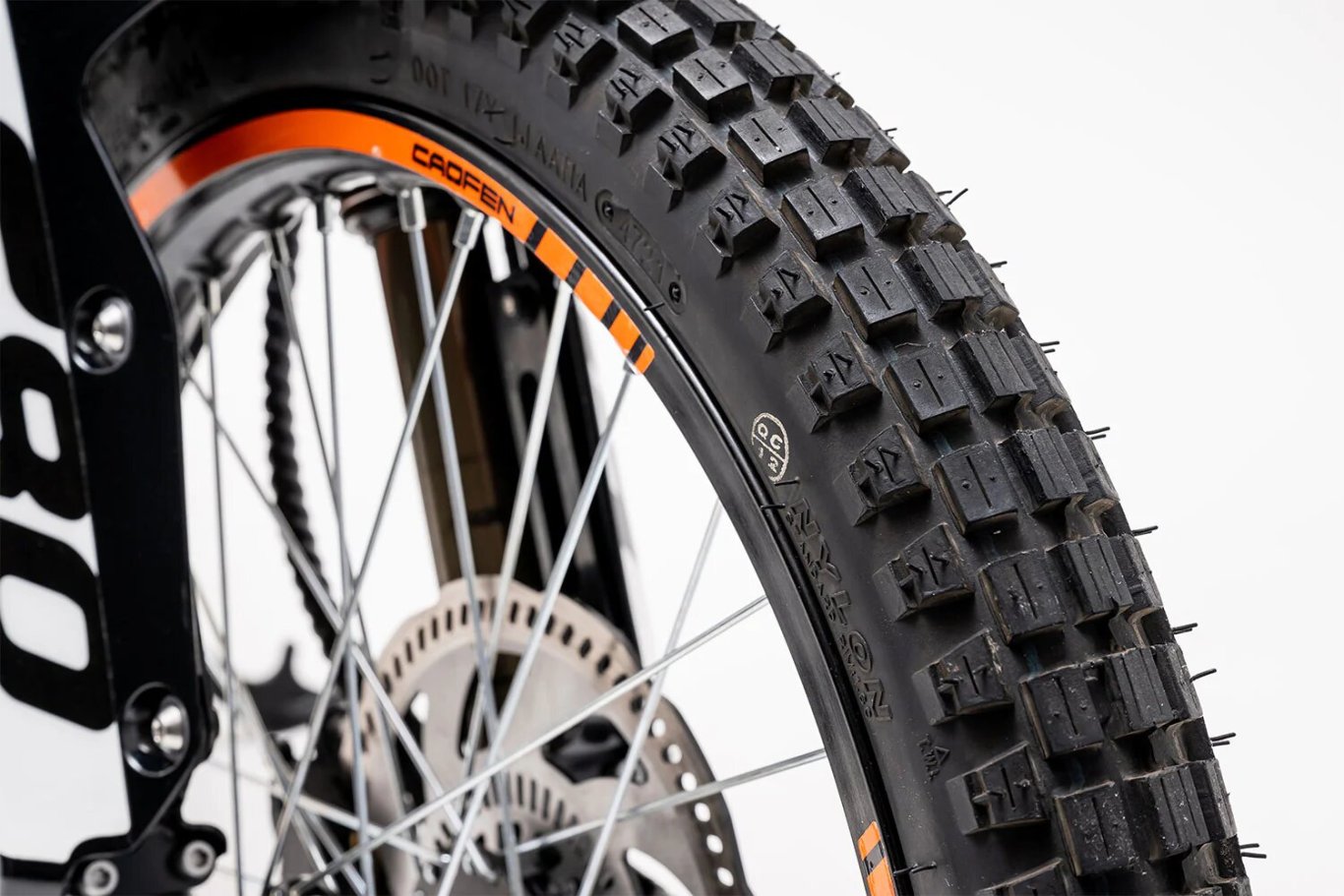

Emmo CAOFEN F80 OR 30 CAMODurable Tires

Rugged, grippy, and built for challenging terrains.

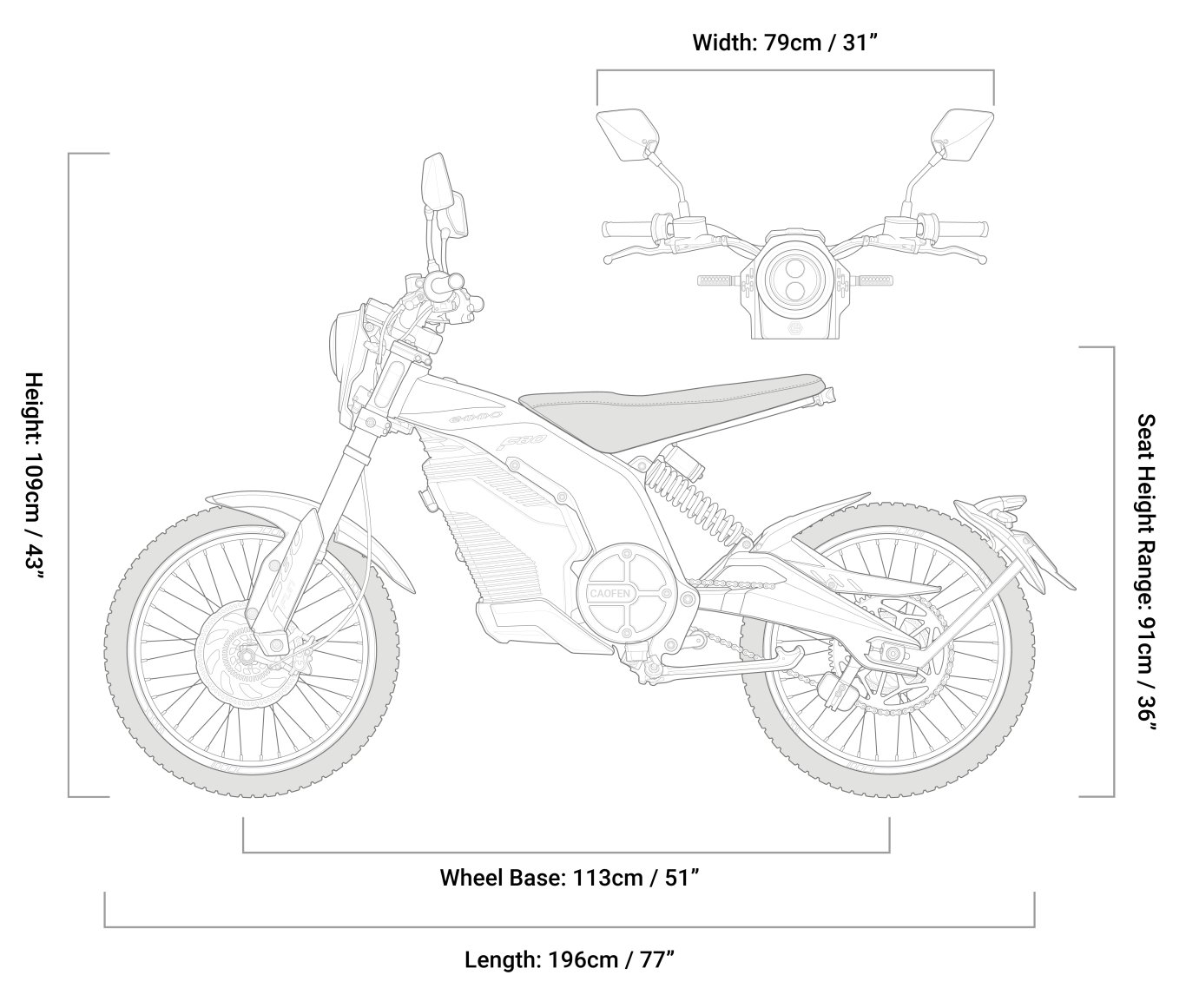

geometry



Emmo CAOFEN F80 OR 30 CAMO
literature
Name Link
User's Manual Download
Maintenance's Manual Download
