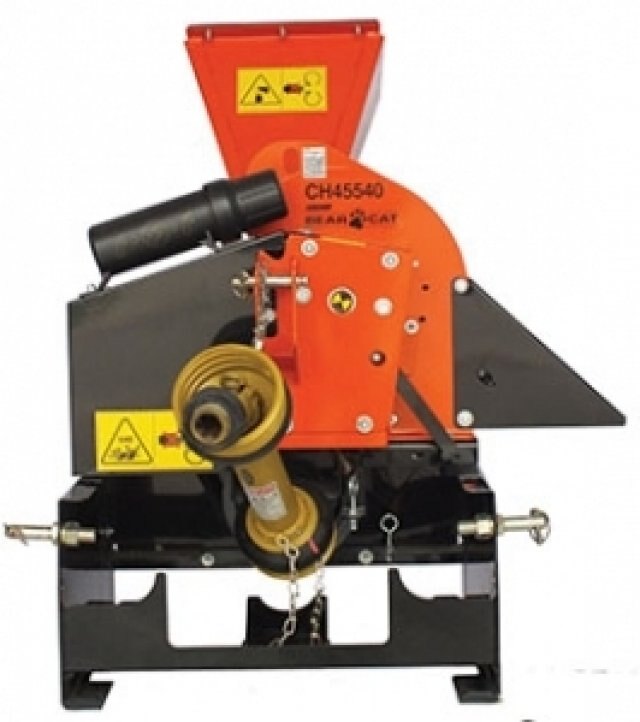

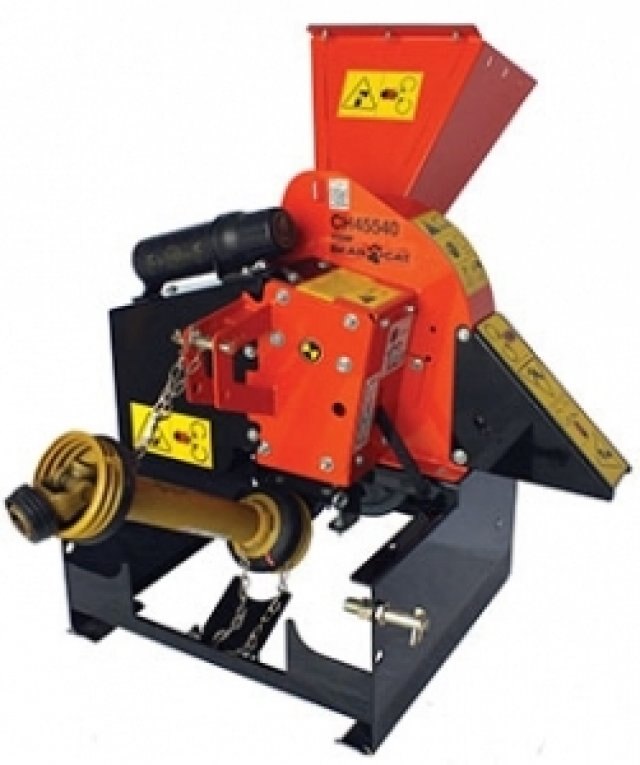

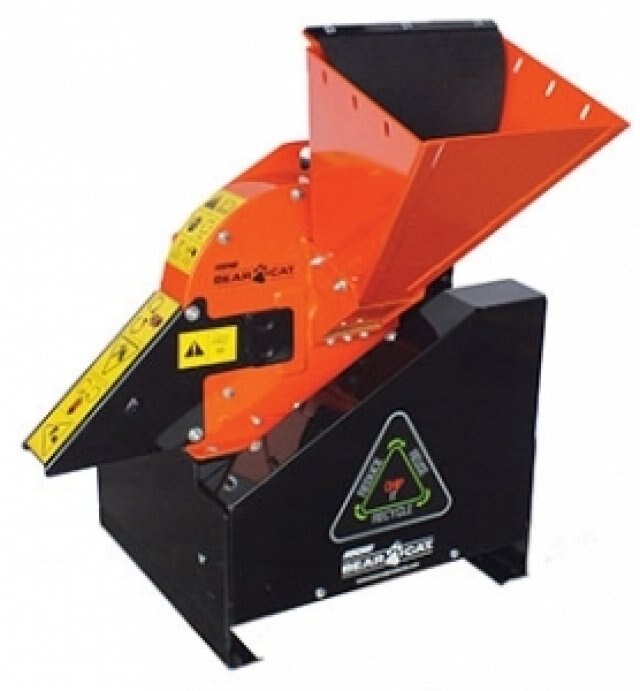

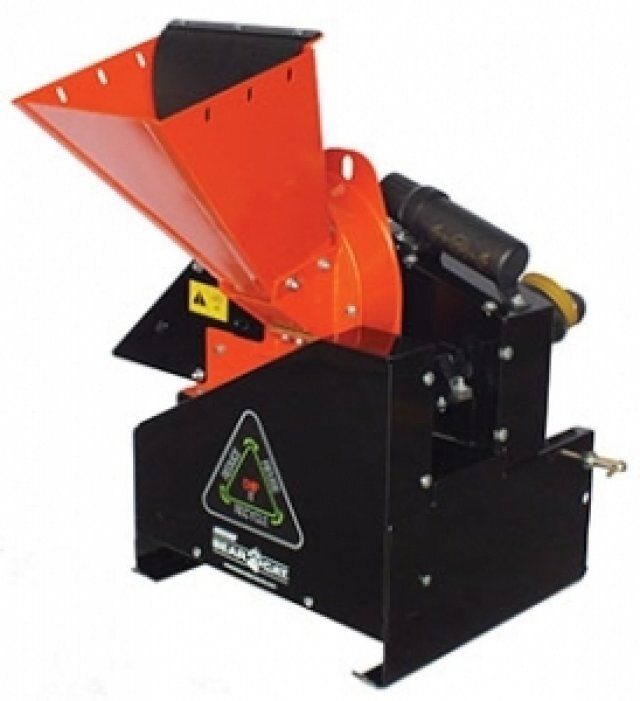

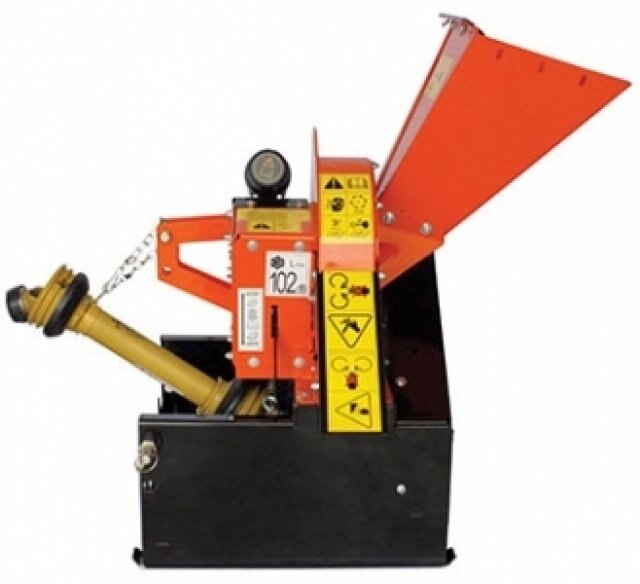

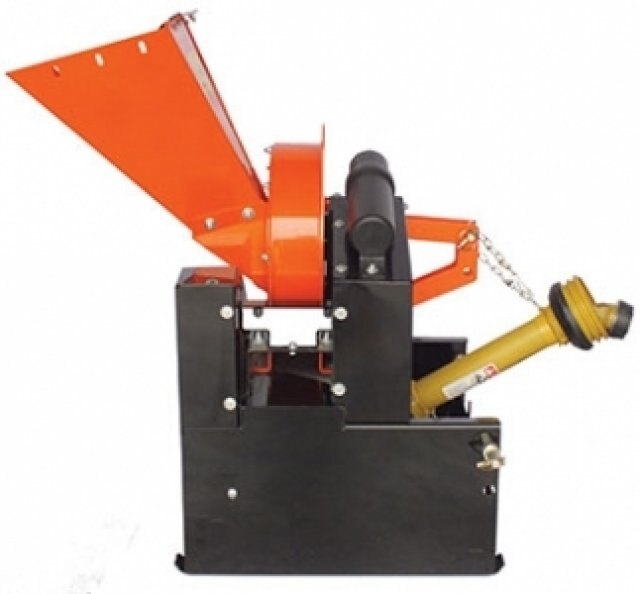

Echo CH45540 4.5 Inch PTO Chipper

Videos
Call for Price
Overview

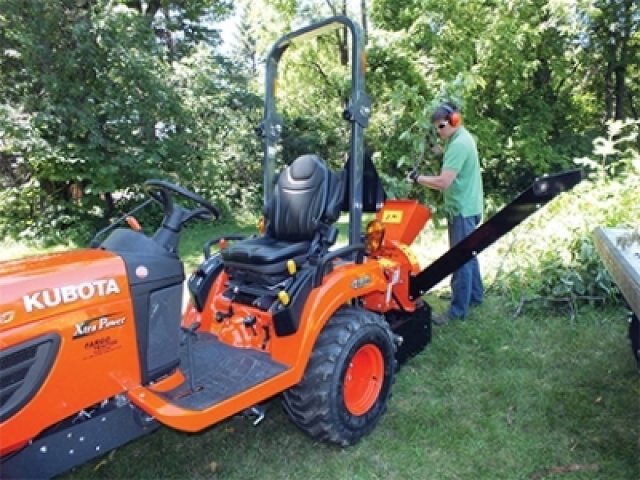

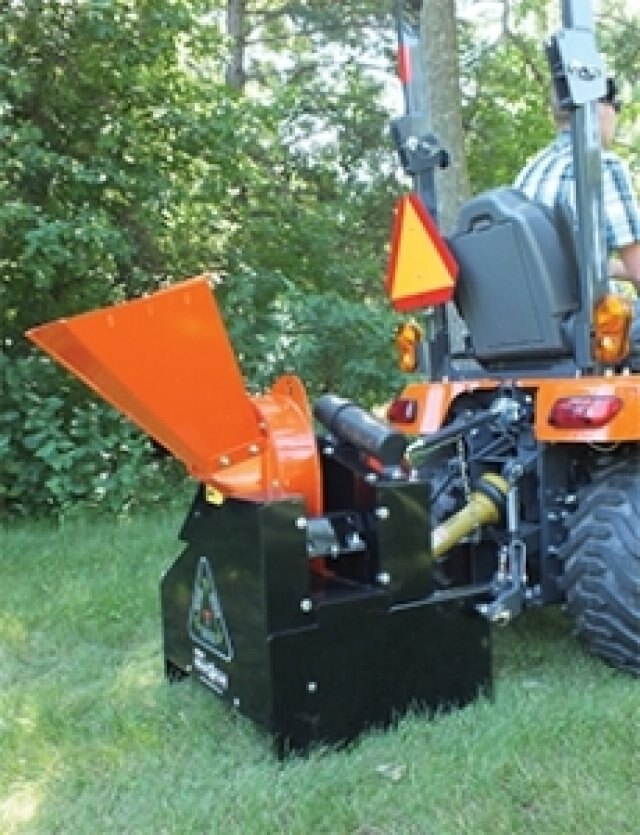

 The ECHO Bear Cat CH45540 is the perfect match for your compact tractor. It's built with heavy-duty, 7-gauge steel. The 14 x 1 inch thick, 49 pound dynamically-balanced rotor utilizes two reversible heat-treated chipper blades and is driven by a double-banded belt for maximum power transfer. The cantilever mounted rotor design helps reduce wrapping while chipping wet, stringy wood types.

Also available is an optinoal 4.5 x 4.5 inch truckloading discharge chute with deflector cap. This optional chute directs the chips and raises the discharge of chips into the trailer or back of a pickup.

*NOTE - For Use On Tractors with PTO Horsepower Ratings From 15 hp to 28 hp
Specifications
Model
CH45540 4.5 Inch PTO Chipper
Category Name
Lawn / Garden
Year
2015
Sale Type
New
Manufacturer
Echo
Weight (lbs)
361
Chipper Disc
Cantilever 14x1/49 lbs., rotates at 2,000 rpm
Chipper Blades
2 reversible heat treated steel chipper blades with 4 sided adjustable anvil
Feed System
Gravity/Self Feed
Hopper
13 x 14.5
Drive Belt
Double Banded
Rotor Weight (lbs)
49
PTO HP Required
15-28 HP
