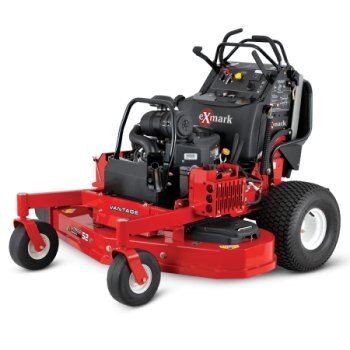

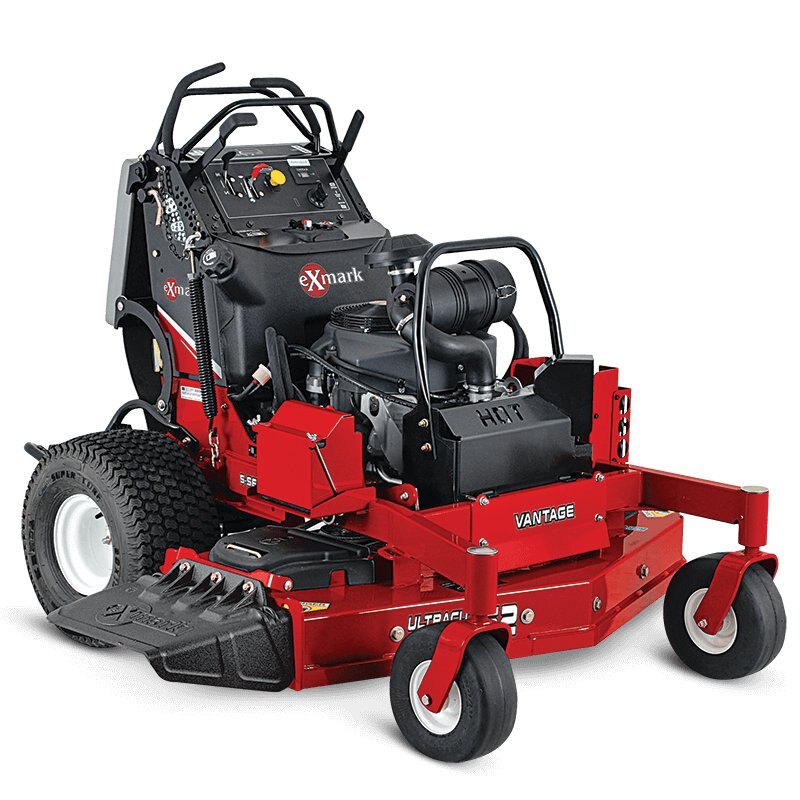

Exmark Vantage S-Series

  • Exmark Vantage S Series
  • Exmark Vantage S Series
  • Exmark Vantage S Series
  • Exmark Vantage S Series
  • Video Button Maxresdefault
  • Video Button Maxresdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
For professionals who want stand-on maneuverability and traction. And Exmark quality.
Not surprisingly, the difference between our stand-on mowers and the competition’s starts with the operator platform. Vantage S-Series mowers feature a large, rubber padded platform with weight-compensating suspension that allows the operator to easily and comfortably shift his weight on hills for maximum control and maneuverability. Our patented thigh pads also comfortably conform to the operator’s legs without interfering when the platform is folded up for storage, trailering or converting the Vantage to a walk-behind. Available deck widths: 36, 52 and 60 inches.
Features
89Patented Mechanical Control System
With its solid rods, there are no cables to stretch, and no annoying loss of ground speed.
88Now with Propane
The Vantage S-Series is now available with propane technology and a 52” UltraCut Series 4 full-floating deck.
89Adjustable Front Reference Bar
Ergonomically designed steering system includes an adjustable front reference bar that can control the top end speed of the machine.
84Zero-Maintenance Spindles
Made from rugged, cast aluminum with sealed bearings, our spindles are designed to withstand the effects of moisture and impacts, with no annual greasing required.
89Operator Platform
A rubber platform with self-compensating suspension provides a comfortable ride for any size rider. Patented, integrated thigh pads also pivot away, allowing easy access for maintenance. Folds up for reduced trailering space.
89Hydro-Drive
Smoother operation and consistent control is made possible with our new 12 cc pump and 230 cc wheel motor.
  VTS541CKA36300 VTS691CKA48400 VTS691CKA52400
Steering Control Twin levers with no-tools adjustable front reference bar to modify forward ground speed. Twin levers with no-tools adjustable front reference bar to modify forward ground speed. Twin levers with no-tools adjustable front reference bar to modify forward ground speed.
Casters .38" thick double-yoke, smooth tread caster wheel assembly with pre-installed bearing cups. .38" thick double-yoke, smooth tread caster wheel assembly with pre-installed bearing cups. .38" thick double-yoke, smooth tread caster wheel assembly with pre-installed bearing cups.
Drive Tires 18 x 8.5-8 Kenda Tires 20 x 10.50-8 Kenda Tires 20 x 10.50-8 Kenda Tires
Parking Brake Lever-actuated bar brake. Lever-actuated bar brake. Lever-actuated bar brake.
Electrical 12-volt battery with 15-amp alternator. 12-volt battery with 15-amp alternator. 12-volt battery with 15-amp alternator.
Engine Model FS541V FX691V FX691V
Engine Brand Kawasaki® Kawasaki® Kawasaki®
Engine Speed 3,600 rpm 3,600 rpm 3,600 rpm
Speed Infinitely variable speed selection 0–8.0 mph (12.9 kmph) forward, 0–4.0 mph (6.4 kmph) reverse Infinitely variable speed selection 0–8.0 mph (12.9 kmph) forward, 0–4.0 mph (6.4 kmph) reverse Infinitely variable speed selection 0–8.0 mph (12.9 kmph) forward, 0–4.0 mph (6.4 kmph) reverse
Fuel Capacity 8-gallon (30.3-L), single fuel tank with single fill location. 8-gallon (30.3-L), single fuel tank with single fill location. 8-gallon (30.3-L), single fuel tank with single fill location.
Deck Style Floating Deck Floating Deck Floating Deck
  VTS730AKC52400 VTS740EKC60400 VTS740PKC52400
Steering Control Hydro drive with Enhanced Control System (ECS), forward/reverse, left/right or zero-turn. Twin levers with no-tools adjustable front reference bar to modify forward ground speed. Twin levers with no-tools adjustable front reference bar to modify forward ground speed.
Casters .38" thick double-yoke, smooth tread caster wheel assembly with pre-installed bearing cups. .38" thick double-yoke, smooth tread caster wheel assembly with pre-installed bearing cups. .38" thick double-yoke, smooth tread caster wheel assembly with pre-installed bearing cups.
Drive Tires 20 x 10.50-8 Kenda Tires 20 x 10.50-8 Kenda Tires 21 x 10.50-8 Kenda Tires
Parking Brake Lever-actuated bar brake. Lever-actuated bar brake. Lever-actuated bar brake.
Electrical 12-volt battery with 20-amp alternator. 12-volt battery with 20-amp alternator. 12-volt battery with 20-amp alternator.
Engine Model ECV730 ECV740 PCV740
Engine Brand Kohler® Kohler® Kohler®
Engine Speed 3,600 rpm 3,600 rpm 3,600 rpm
Speed Infinitely variable speed selection 0–8.0 mph (12.9 kmph) forward, 0–4.0 mph (6.4 kmph) reverse Infinitely variable speed selection 0–8.0 mph (12.9 kmph) forward, 0–4.0 mph (6.4 kmph) reverse Infinitely variable speed selection 0–8.0 mph (12.9 kmph) forward, 0–4.0 mph (6.4 kmph) reverse
Fuel Capacity 8-gallon (30.3-L), single fuel tank with single fill location. 8-gallon (30.3-L), single fuel tank with single fill location. 33.5-lb propane tank
Deck Style Floating Deck Floating Deck Floating Deck
  VTS740PKC60400
Steering Control Twin levers with no-tools adjustable front reference bar to modify forward ground speed.
Casters .38" thick double-yoke, smooth tread caster wheel assembly with pre-installed bearing cups.
Drive Tires 20 x 10.50-8 Kenda Tires
Parking Brake Lever-actuated bar brake.
Electrical 12-volt battery with 20-amp alternator.
Engine Model PCV740
Engine Brand Kohler®
Engine Speed 3,600 rpm
Speed Infinitely variable speed selection 0–8.0 mph (12.9 kmph) forward, 0–4.0 mph (6.4 kmph) reverse
Fuel Capacity 33.5-lb propane tank
Deck Style Floating Deck




Specifications
Model
Exmark Vantage S-Series
Category Name
Lawn / Garden
Year
2018
Sale Type
New
Manufacturer
Exmark
