Exmark Radius X-Series

  • Exmark Radius X Series
  • Exmark Radius X Series
  • Exmark Radius X Series
  • Exmark Radius X Series
  • Exmark Radius X Series
  • Video Button Maxresdefault
  • Video Button Maxresdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

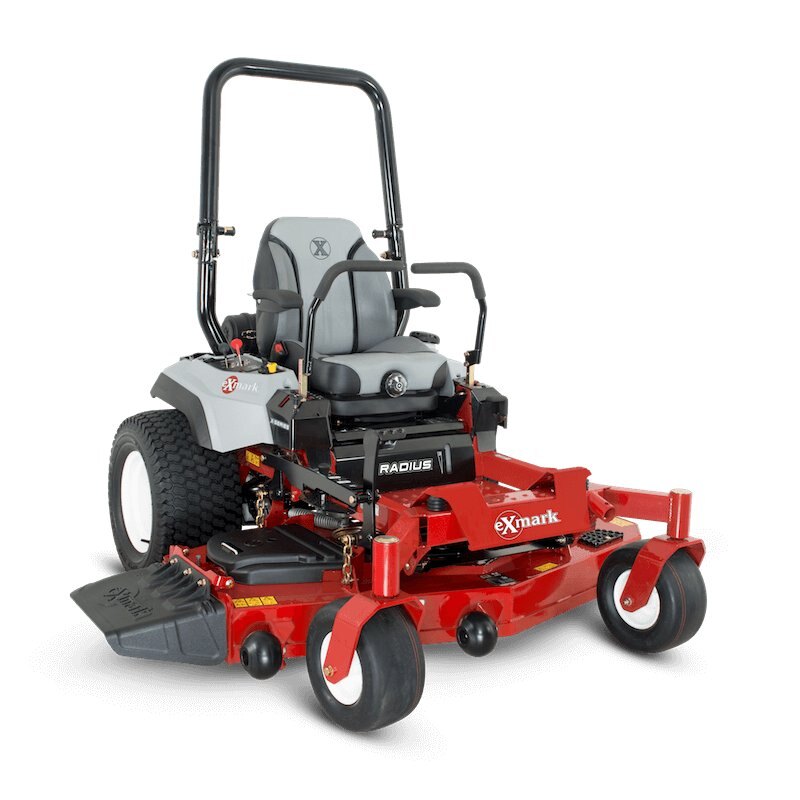

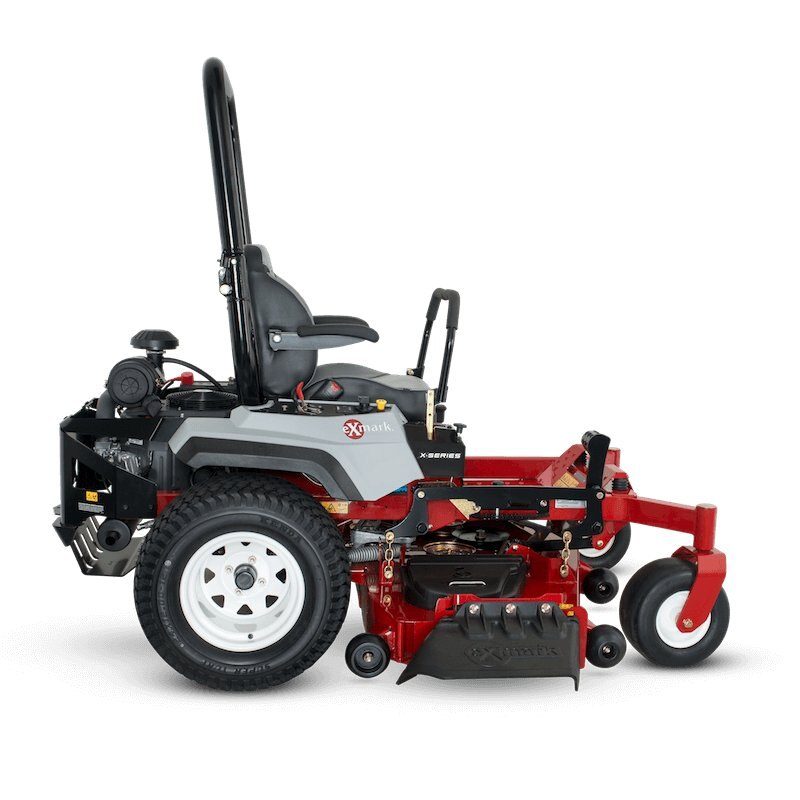

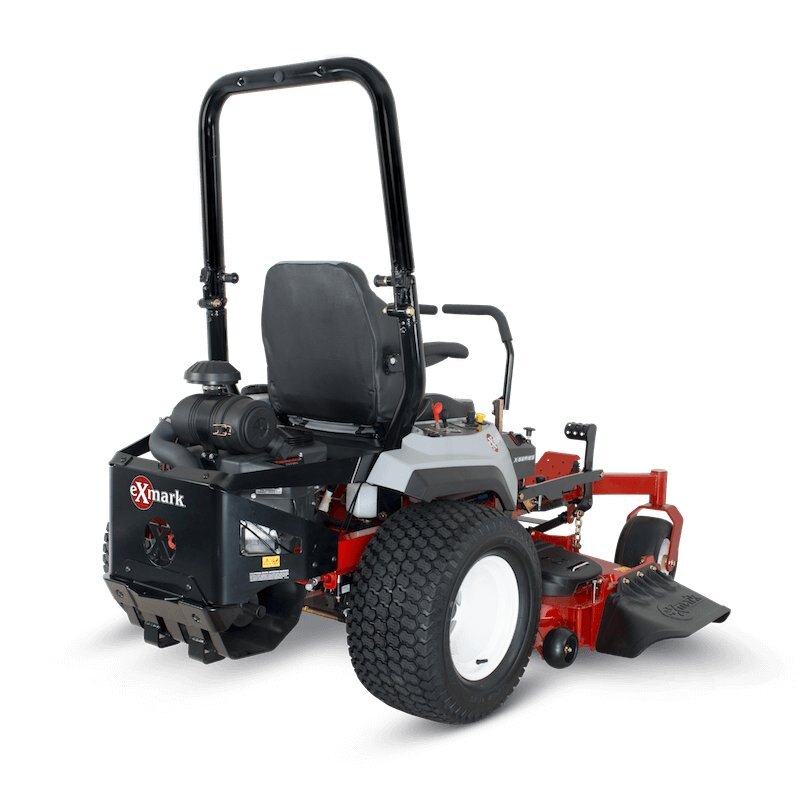

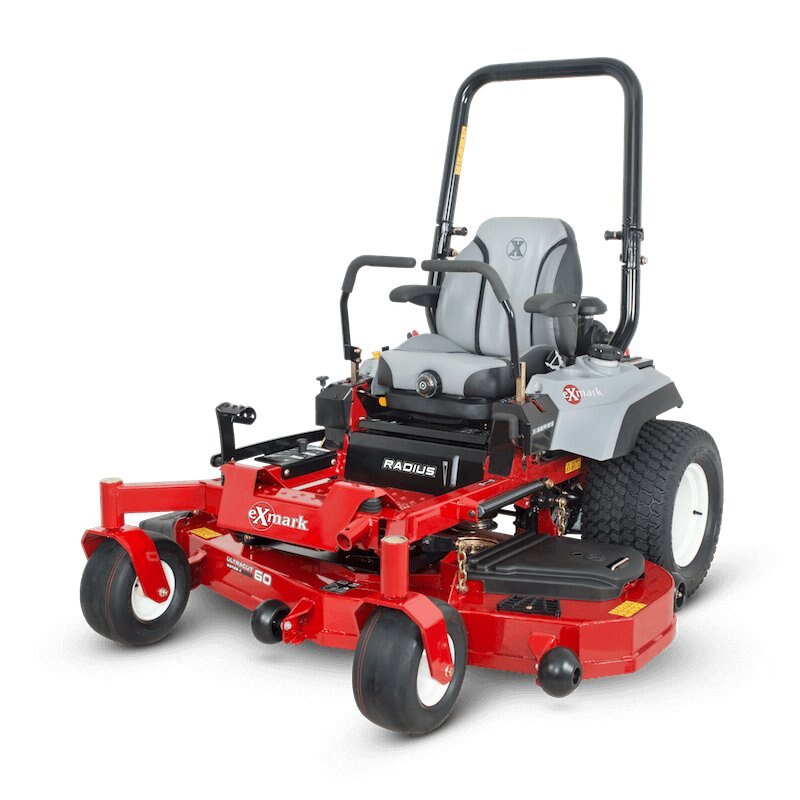

 Check out the Exmark Radius X-Series, the latest in commercial zero turns.
Exmark Radius X-Series delivers the cut quality and durability professionals demand with a host of new features and innovations. Powered by Kawasaki FX engines, with Hydro-Gear integrated transmissions and up to 10 mph fwd. ground speed, Radius X-Series improves productivity, but a full-suspension operator seat with operator preference dial and elastometric vibration control (EVC) means maximum comfort. Cutting deck widths available: 48, 52 and 60 inches.
Features
115Fuel Gauge Window
Easy-to-use, accurate sight window-type fuel gauge is standard on all Radius models.
115Heavy Duty Unibody Frame
Fully-welded using 2-inch by 3-inch frame tubes, the Radius frame design places major components including the engine, hydro drive and fuel tank lower, with better mass centralization. This gives the Radius increased hillside traction and stability, with heightened maneuverability.
115Quick Adjustable Rollover Protection System (ROPS)
Uses an easy-to-fold up-and-down design built from round tubes and provides flexibility for placement of accessories.
115Height of Cut Made Easy
The patented height of cut system is a user friendly tool developed for operators to quickly and accurately select the height of cut.
116Comfort Stepped Up
X-Series machines step up to Exmark’s full-suspension seating system, with three inches of adjustable vertical suspension combined with patented EVC stretch fabric to provide maximum operator isolation from bumps and vibration.
116Service Made Easy
A tools-free removable foot rest eases access to the top-side of the cutting deck, and tool-less removable belt shields provide easier access to belts and spindles. A welded jack receiver on the Radius frame allows for easier service to the bottom-side of the deck when combined with the optional jack.
115UltraCut Deck Technology
Exmark’s exclusive UltraCut decks are featured on Radius models in a choice of 48- to 60-inch cut widths. Every UltraCut cutting deck features Exmark’s exclusive maintenance-free, sealed-bearing spindle assemblies for increased durability and reduced downtime, combined with zero maintenance.
  RAX651GKA484A3 RAX691GKA524A3 RAX730GKA604A3
Steering Control Hydraulically dampened twin levers adjustable both fore and aft. Also has 2-position height adjustment. Hydraulically dampened twin levers adjustable both fore and aft. Also has 2-position height adjustment. Hydraulically dampened twin levers adjustable both fore and aft. Also has 2-position height adjustment.
Casters .375" thick caster yoke arms .375" thick caster yoke arms .375" thick caster yoke arms
Drive Tires 24 x 9.5-12 K500 24 x 9.5-12 K500 24 x 10.5-12 K500
Parking Brake Lever-actuated pawl brake. Lever-actuated pawl brake. Lever-actuated pawl brake.
Electrical 12-volt battery with 15-amp alternator. 12-volt battery with 15-amp alternator. 12-volt battery with 15-amp alternator.
Engine Model FX651V FX691V FX730V
Engine Brand Kawasaki® Kawasaki® Kawasaki®
Engine Speed 3,700 rpm 3,700 rpm 3,700 rpm
Speed Infinitely variable speed selection from 0–10.0 mph (16.1 kmph) forward, 0–6.0 mph (9.7kmph) reverse. Infinitely variable speed selection from 0–10.0 mph (16.1 kmph) forward, 0–6.0 mph (9.7kmph) reverse. Infinitely variable speed selection from 0–10.0 mph (16.1 kmph) forward, 0–6.0 mph (9.7kmph) reverse.
Fuel Capacity 7-gallon (26.5-L) single fuel tank with single fill location. 7-gallon (26.5-L) single fuel tank with single fill location. 7-gallon (26.5-L) single fuel tank with single fill location.
Deck Style Floating Deck Floating Deck Floating Deck




Specifications
Model
Exmark Radius X-Series
Category Name
Lawn / Garden
Year
2018
Sale Type
New
Manufacturer
Exmark
