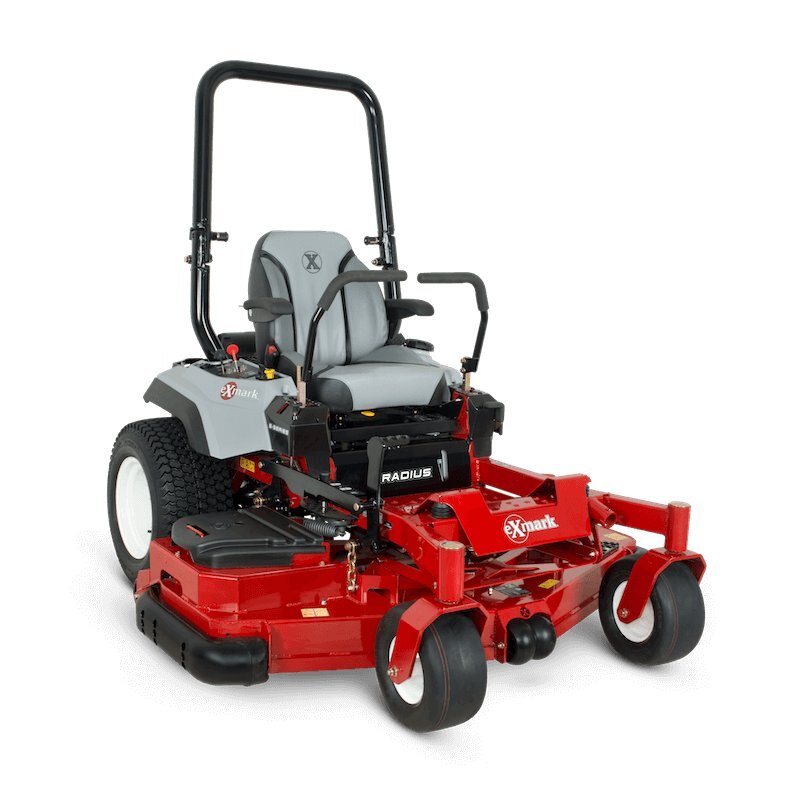

Exmark Radius S-Series Rear Discharge

  • Exmark Radius S Series Rear Discharge
  • Video Button Maxresdefault
  • Video Button Maxresdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
 Exmark Radius S-Series delivers the cut quality and durability professionals demand at an unbeatable value.
The Radius rear discharge mower comes with a Series 4 UltraCut rear discharge deck. A 60” cut-width means you can cut more, quickly, while keeping clippings under control. Powered by Kohler ZT engines, with Hydro-Gear integrated transmissions and up to 9 mph fwd. ground speed. Radius S-Series improves productivity, but a operator seat with adjustable isolation technology and elastometric vibration control (EVC) means maximum comfort. (Photo is of 2017 model year. The 2018 Radius S-Series Rear Discharge mower is also equipped with suspension platform.)
Features
115Fuel Gauge Window
Easy-to-use, accurate sight window-type fuel gauge is standard on all Radius models.
115Heavy Duty Unibody Frame
Fully-welded using 2-inch by 3-inch frame tubes, the Radius frame design places major components including the engine, hydro drive and fuel tank lower, with better mass centralization. This gives the Radius increased hillside traction and stability, with heightened maneuverability.
115Quick Adjustable Rollover Protection System (ROPS)
Uses an easy-to-fold up-and-down design built from round tubes and provides flexibility for placement of accessories.
115Height of Cut Made Easy
The patented height of cut system is a user friendly tool developed for operators to quickly and accurately select the height of cut.
115Adjustable Isolation Technology
Designed to offer increased operator isolation from vibration and bumps, Exmark’s exclusive adjustable seat isolation technology uses rubber isolation bumpers to suspend the operator seat above the chassis.
115Seat Flip-Up
Provides increased service access to fuel system and engine compartment or help keep the seating surface cool and dirt free when not in use.
116Radius Rear Discharge Deck
vailable in 60-inch cutting width, the rear-discharge deck offers increased clipping discharge control, reduced noise, and the ability to trim on both sides of the cutting deck—all while keeping the operator clean.
  RAS708GEM60RC3
Steering Control Hydraulically dampened twin levers adjustable both fore and aft. Also has 2-position height adjustment.
Casters .375" thick caster yoke arms
Drive Tires 23 x 10.5-12 K500
Parking Brake Lever-actuated pawl brake.
Electrical 12-volt battery with 15-amp alternator.
Engine Model 708
Engine Brand Exmark
Engine Speed 3,600 rpm
Speed Infinitely variable speed selection from 0–9.0 mph (14.5 kmph) forward, 0–5.0 mph (8.0 kmph) reverse.
Fuel Capacity 7-gallon (26.5-L) single fuel tank with single fill location.
Deck Style Floating Deck




Specifications
Model
Exmark Radius S-Series Rear Discharge
Category Name
Lawn / Garden
Year
2018
Sale Type
New
Manufacturer
Exmark
