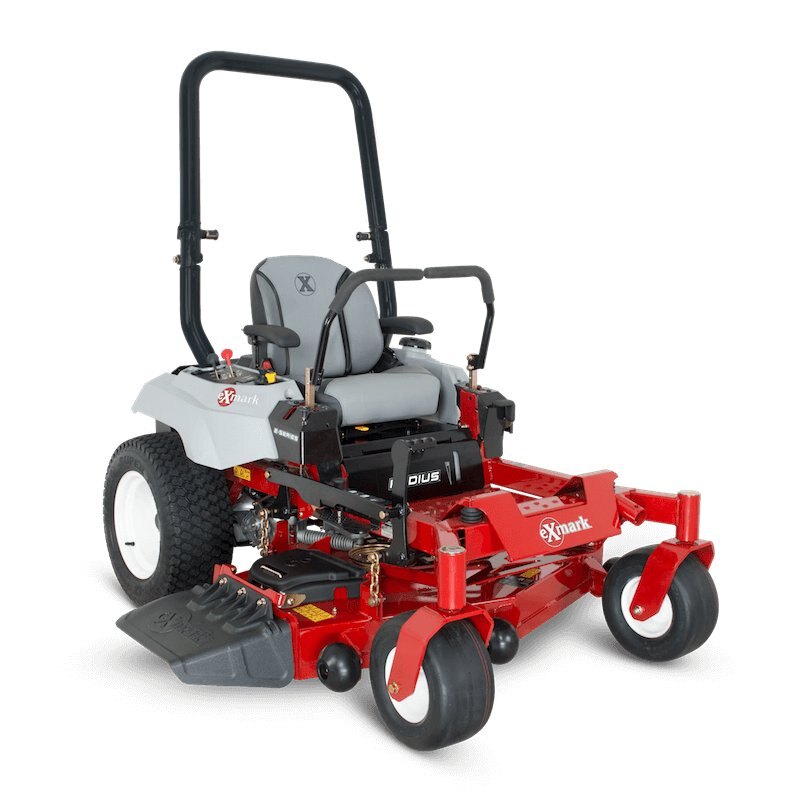

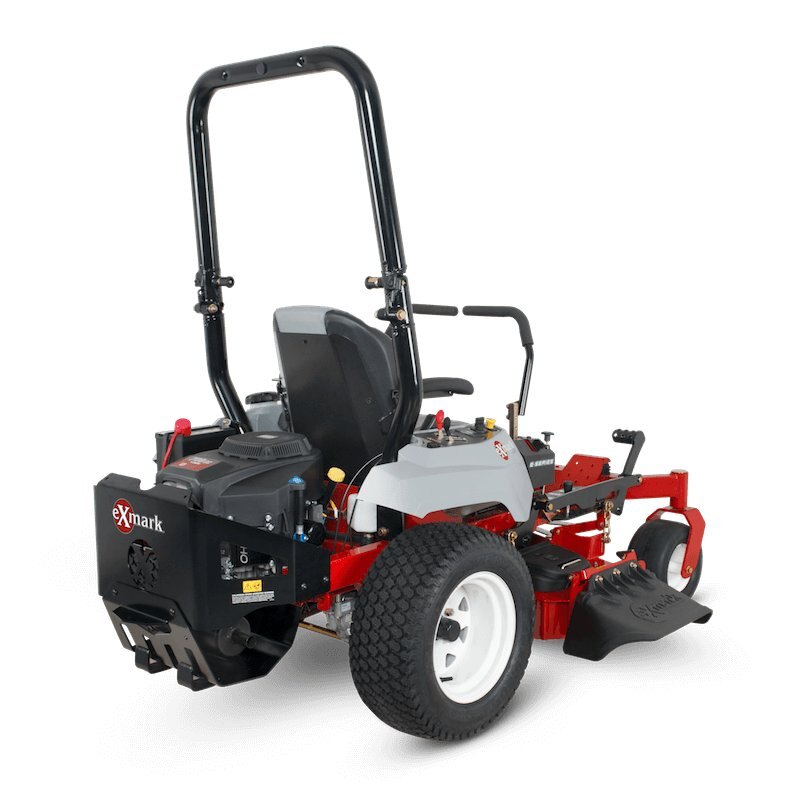

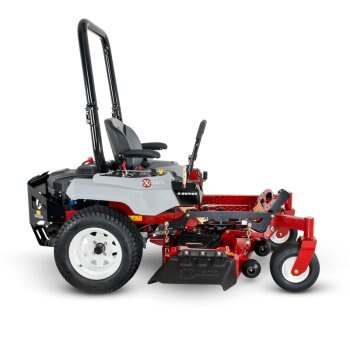

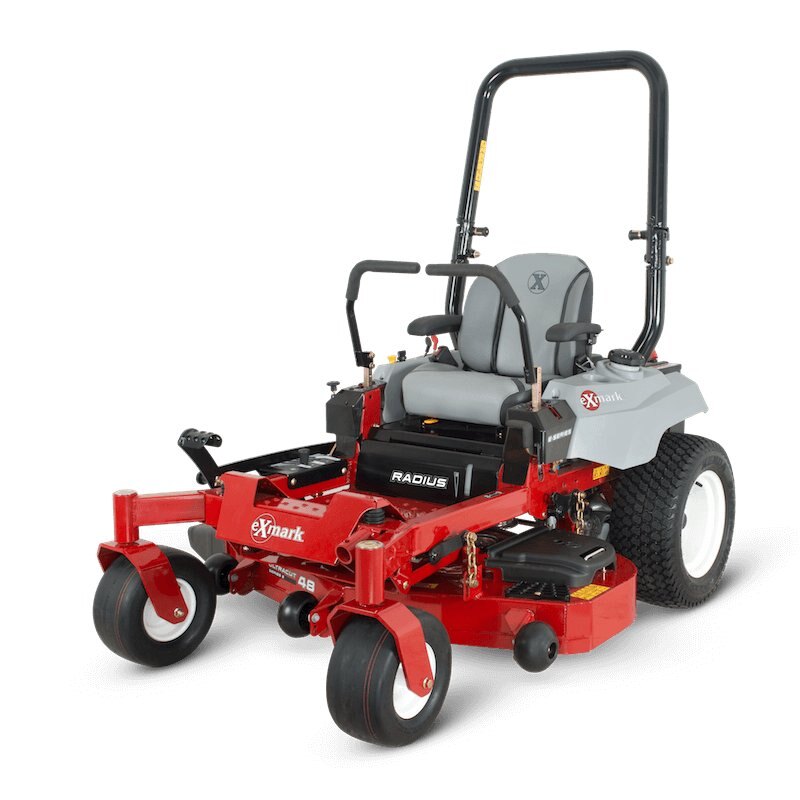

Exmark Radius E-Series

  • Exmark Radius E Series
  • Exmark Radius E Series
  • Exmark Radius E Series
  • Exmark Radius E Series
  • Video Button Maxresdefault
  • Video Button Maxresdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
The next generation of zero-turn mowers from Exmark.
The Exmark Radius E-Series provides the best of both worlds: The commercial grade features lawn professionals need, like 3-Series (5” deep) UltraCut decks, maintenance-free spindle assemblies and a powerful Exmark 24.5 HP, 708cc V-twin engine, while delivering value that makes this zero turn mower attractive to anyone with a lot of grass to mow. Cutting deck widths available: 48-, 52- and 60 inches.
Features
115UltraCut Deck Technology
Exmark’s exclusive UltraCut decks are featured on Radius models in a choice of 48- to 60-inch cut widths. Every UltraCut cutting deck features Exmark’s exclusive maintenance-free, sealed-bearing spindle assemblies for increased durability and reduced downtime, combined with zero maintenance.
115Heavy Duty Unibody Frame
Fully-welded using 2-inch by 3-inch frame tubes, the Radius frame design places major components including the engine, hydro drive and fuel tank lower, with better mass centralization. This gives the Radius increased hillside traction and stability, with heightened maneuverability.
115Quick Adjustable Rollover Protection System (ROPS)
Uses an easy-to-fold up-and-down design built from round tubes and provides flexibility for placement of accessories.
115Fuel Gauge Window
Easy-to-use, accurate sight window-type fuel gauge is standard on all Radius models.
115Height of Cut Made Easy
The patented height of cut system is a user friendly tool developed for operators to quickly and accurately select the height of cut.
115Large Caster Tires
Every Radius model is equipped with large front caster tires. 13” x 6.5” pneumatic tires come standard on all Radius models.
115Powered by Exmark Engine
Equipped with Exmark’s commercial-grade 24.5-horsepower 708cc V-Twin engine that features a dual barrel carburetor, cast iron cylinder liners and a quick oil drain hose raises the bar for productivity, durability and value.
  RAE708GEM48300 RAE708GEM52300 RAE708GEM60300
Steering Control Hydraulically dampened twin levers adjustable both fore and aft. Also has 2-position height adjustment. Hydraulically dampened twin levers adjustable both fore and aft. Also has 2-position height adjustment. Hydraulically dampened twin levers adjustable both fore and aft. Also has 2-position height adjustment.
Casters .375" thick caster yoke arms .375" thick caster yoke arms .375" thick caster yoke arms
Drive Tires 22 x 9.5-12 K500 22 x 9.5-12 K500 22 x 10.5-12 K500
Parking Brake Lever-actuated pawl brake. Lever-actuated pawl brake. Lever-actuated pawl brake.
Electrical 12-volt battery with 15-amp alternator. 12-volt battery with 15-amp alternator. 12-volt battery with 15-amp alternator.
Engine Model 708 708 708
Engine Brand Exmark Exmark Exmark
Engine Speed 3,600 rpm 3,600 rpm 3,600 rpm
Speed Infinitely variable speed selection from 0–8.0 mph (12.9 kmph) forward, 0–5.0 mph (8.0 kmph) reverse. Infinitely variable speed selection from 0–8.0 mph (12.9 kmph) forward, 0–5.0 mph (8.0 kmph) reverse. Infinitely variable speed selection from 0–8.0 mph (12.9 kmph) forward, 0–5.0 mph (8.0 kmph) reverse.
Fuel Capacity 7-gallon (26.5-L) single fuel tank with single fill location. 7-gallon (26.5-L) single fuel tank with single fill location. 7-gallon (26.5-L) single fuel tank with single fill location.
Deck Style Floating Deck Floating Deck Floating Deck
  RAE720CKC48300
Steering Control Hydraulically dampened twin levers adjustable both fore and aft. Also has 2-position height adjustment.
Casters .375" thick caster yoke arms
Drive Tires 22 x 9.5-12 K500
Parking Brake Lever-actuated pawl brake.
Electrical 12-volt battery with 15-amp alternator.
Engine Model ZT720
Engine Brand Kohler
Engine Speed 3,700 rpm
Speed Infinitely variable speed selection from 0–8.0 mph (12.9 kmph) forward, 0–5.0 mph (8.0 kmph) reverse.
Fuel Capacity 7-gallon (26.5-L) single fuel tank with single fill location.
Deck Style Floating Deck




Specifications
Model
Exmark Radius E-Series
Category Name
Lawn / Garden
Year
2018
Sale Type
New
Manufacturer
Exmark
