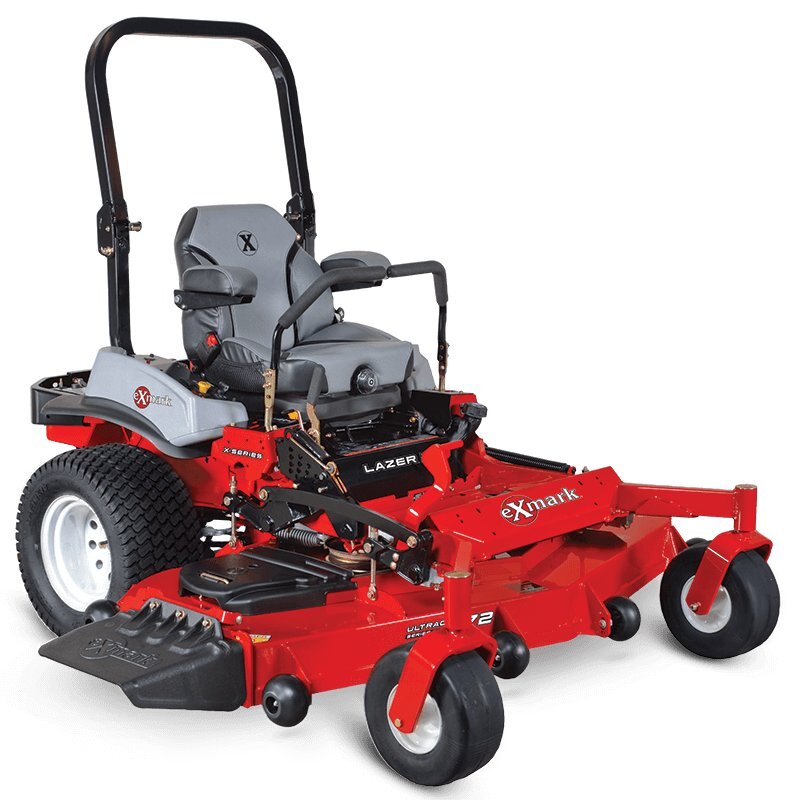

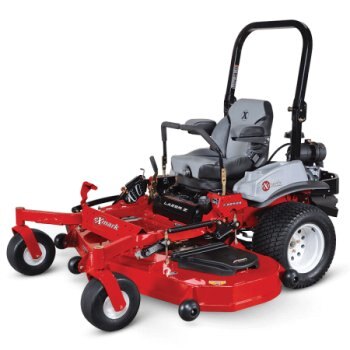

Exmark Lazer Z X-Series

  • Exmark Lazer Z X Series
  • Exmark Lazer Z X Series
  • Exmark Lazer Z X Series
  • Video Button Maxresdefault
  • Video Button Maxresdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
 What you get when you check all the boxes.
And with our top-of-the-line Lazer Z X-Series, there are plenty of boxes to check. For starters, you can choose from five rugged, commercial-grade engines, including high efficiency Electronic Fuel Injection (EFI) options. Which also features our exclusive EGov and RED technology which can boosts fuel efficiency up to 41%. The X-Series also features our UltraCut™ Series 6 deck in 52-, 60- and 72-inch cutting widths. Whatever combination you choose, operators will ride in unrivaled comfort thanks to our unique seating system. There’s even a standard 12-volt adapter to keep devices charged. So, if you’re looking for our top-of-the-line mower, the Lazer Z X-Series should be at the top of your list.
Features
81Patented RED Technology
Enabling communication and response between key systems on your mower with defined operation modes, system monitoring and clutch saver features.
81UltraCut Series 6 Deck
This full-floating deck uses double-row bearings with a splined blade driver to stop bolt tightening on impacts. And, our patented bearing design on idler arm pivots only needs annual service.
79A New Level of Comfort
Comfort increases productivity. That’s why we designed a new, ergonomically advanced seat system featuring our exclusive Iso-Mount Seat Isolation System.
81Productivity
Higher ground speeds with 16cc drive system and more power with larger engine displacements for improved productivity.
84Rear Discharge Deck
Available in 60 and 72 inch cutting widths, the rear discharge deck offers increased clipping discharge control, reduced noise, and the ability to trim on both sides of the cutting deck while keeping the operator clean.
80Tool-less Belt Removal
Deck and hydro belt can be installed without using any tools.
  LZX740EKC526W0 LZX801CKA60600 LZX801CKA606C1
Steering Control Hydraulically dampened twin levers, adjust fore and aft. Adjustable dampeners (3 positions) to customize drive responsiveness. Also adjustable to 2 height positions. Hydraulically dampened twin levers, adjust fore and aft. Adjustable dampeners (3 positions) to customize drive responsiveness. Also adjustable to 2 height positions. Hydraulically dampened twin levers, adjust fore and aft. Adjustable dampeners (3 positions) to customize drive responsiveness. Also adjustable to 2 height positions.
Casters .50" thick caster yoke arms. .50" thick caster yoke arms. .50" thick caster yoke arms.
Drive Tires 23 x 9.5-12, 4 ply Turf Master® 24 x 12.0-12, 4-ply Turf Master® 24 x 12.0-12, 4-ply Turf Master®
Parking Brake Lever-actuated disc brake. Lever-actuated disc brake. Lever-actuated disc brake.
Electrical 12-volt battery with 20-amp alternator. 12-volt battery with 15-amp alternator. 12-volt battery with 15-amp alternator.
Engine Model ECV740 FX801V FX801V
Engine Brand Kohler® Kawasaki® Kawasaki®
Engine Speed 3,650 RPM 3,750 RPM 3,750 RPM
Speed Infinitely variable speed selection from 0–10.0 mph (16 kmph) forward, 0–6.0 mph (9.7 kmph) reverse. Infinitely variable speed selection from 0–11.5 mph (18.5 kmph) forward, 0–6.0 mph (11.3 kmph) reverse Infinitely variable speed selection from 0–11.5 mph (18.5 kmph) forward, 0–6.0 mph (11.3 kmph) reverse
Fuel Capacity 12-gallon (45.4-L), single fuel tank with single fill location. 12-gallon (45.4-L), single fuel tank with single fill location. 12-gallon (45.4-L), single fuel tank with single fill location.
Deck Style Floating Deck Floating Deck Floating Deck
  LZX801GKA60600 LZX801GKA606NP LZX921GKA60600
Steering Control Hydraulically dampened twin levers, adjust fore and aft. Adjustable dampeners (3 positions) to customize drive responsiveness. Also adjustable to 2 height positions. Hydraulically dampened twin levers, adjust fore and aft. Adjustable dampeners (3 positions) to customize drive responsiveness. Also adjustable to 2 height positions. Hydraulically dampened twin levers, adjust fore and aft. Adjustable dampeners (3 positions) to customize drive responsiveness. Also adjustable to 2 height positions.
Casters .50" thick caster yoke arms. .50" thick caster yoke arms. .50" thick caster yoke arms.
Drive Tires 24 x 12.0-12, 4-ply Turf Master® 24” Exmark TRACTUS® Airless Tire 24 x 12.0-12, 4-ply Turf Master®
Parking Brake Lever-actuated disc brake. Lever-actuated disc brake. Lever-actuated disc brake.
Electrical 12-volt battery with 15-amp alternator. 12-volt battery with 15-amp alternator. 12-volt battery with 15-amp alternator.
Engine Model FX801V ECV749 FX921V
Engine Brand Kawasaki® Kawasaki® Kawasaki®
Engine Speed 3,750 RPM 3,750 RPM 3,750 RPM
Speed Infinitely variable speed selection from 0–11.5 mph (18.5 kmph) forward, 0–6.0 mph (11.3 kmph) reverse Infinitely variable speed selection from 0–11.5 mph (18.5 kmph) forward, 0–6.0 mph (11.3 kmph) reverse Infinitely variable speed selection from 0–11.5 mph (18.5 kmph) forward, 0–6.0 mph (11.3 kmph) reverse
Fuel Capacity 12-gallon (45.4-L), single fuel tank with single fill location. 12-gallon (45.4-L), single fuel tank with single fill location. 12-gallon (45.4-L), single fuel tank with single fill location.
Deck Style Floating Deck Floating Deck Floating Deck
  LZX921GKA72600 LZX921GKA726C1 LZX940EKC606W0
Steering Control Hydraulically dampened twin levers, adjust fore and aft. Adjustable dampeners (3 positions) to customize drive responsiveness. Also adjustable to 2 height positions. Hydraulically dampened twin levers, adjust fore and aft. Adjustable dampeners (3 positions) to customize drive responsiveness. Also adjustable to 2 height positions. Hydraulically dampened twin levers, adjust fore and aft. Adjustable dampeners (3 positions) to customize drive responsiveness. Also adjustable to 2 height positions.
Casters .50" thick caster yoke arms. .50" thick caster yoke arms. .50" thick caster yoke arms.
Drive Tires 24 x 12.0-12, 4-ply Turf Master® 24 x 12.0-12, 4-ply Turf Master® 24 x 12.0-12, 4-ply Turf Master®
Parking Brake Lever-actuated disc brake. Lever-actuated disc brake. Lever-actuated disc brake.
Electrical 12-volt battery with 15-amp alternator. 12-volt battery with 15-amp alternator. 12-volt battery with 25-amp alternator.
Engine Model FX921V FX921V ECV940
Engine Brand Kawasaki® Kawasaki® Kohler®
Engine Speed 3,750 RPM 3,750 RPM 3,650 RPM
Speed Infinitely variable speed selection from 0–11.5 mph (18.5 kmph) forward, 0–6.0 mph (11.3 kmph) reverse Infinitely variable speed selection from 0–11.5 mph (18.5 kmph) forward, 0–6.0 mph (11.3 kmph) reverse Infinitely variable speed selection from 0–11.5 mph (18.5 kmph) forward, 0–6.0 mph (11.3 kmph) reverse
Fuel Capacity 12-gallon (45.4-L), single fuel tank with single fill location. 12-gallon (45.4-L), single fuel tank with single fill location. 12-gallon (45.4-L), single fuel tank with single fill location.
Deck Style Floating Deck Floating Deck Floating Deck
  LZX940EKC60RW0 LZX940EKC72RW0 LZX980EKC726W0
Steering Control Hydraulically dampened twin levers, adjust fore and aft. Adjustable dampeners (3 positions) to customize drive responsiveness. Also adjustable to 2 height positions. Hydraulically dampened twin levers, adjust fore and aft. Adjustable dampeners (3 positions) to customize drive responsiveness. Also adjustable to 2 height positions. Hydraulically dampened twin levers, adjust fore and aft. Adjustable dampeners (3 positions) to customize drive responsiveness. Also adjustable to 2 height positions.
Casters .50" thick caster yoke arms. .50" thick caster yoke arms. .50" thick caster yoke arms.
Drive Tires 24 x 12.0-12, 4-ply Turf Master® 24 x 12.0-12, 4-ply Turf Master® 24 x 12.0-12, 4-ply Turf Master®
Parking Brake Lever-actuated disc brake. Lever-actuated disc brake. Lever-actuated disc brake.
Electrical 12-volt battery with 25-amp alternator. 12-volt battery with 25-amp alternator. 12-volt battery with 25-amp alternator.
Engine Model ECV940 ECV940 ECV980
Engine Brand Kohler® Kohler® Kohler®
Engine Speed 3,650 RPM 3,750 RPM 3,650 RPM
Speed Infinitely variable speed selection from 0–11.5 mph (18.5 kmph) forward, 0–6.0 mph (11.3 kmph) reverse Infinitely variable speed selection from 0–11.5 mph (18.5 kmph) forward, 0–6.0 mph (11.3 kmph) reverse Infinitely variable speed selection from 0–11.5 mph (18.5 kmph) forward, 0–6.0 mph (11.3 kmph) reverse
Fuel Capacity 12-gallon (45.4-L), single fuel tank with single fill location. 12-gallon (45.4-L), single fuel tank with single fill location. 12-gallon (45.4-L), single fuel tank with single fill location.
Deck Style Floating Deck Floating Deck Floating Deck



Specifications
Model
Exmark Lazer Z X-Series
Category Name
Lawn / Garden
Year
2018
Sale Type
New
Manufacturer
Exmark
