More power. More features. More productivity.

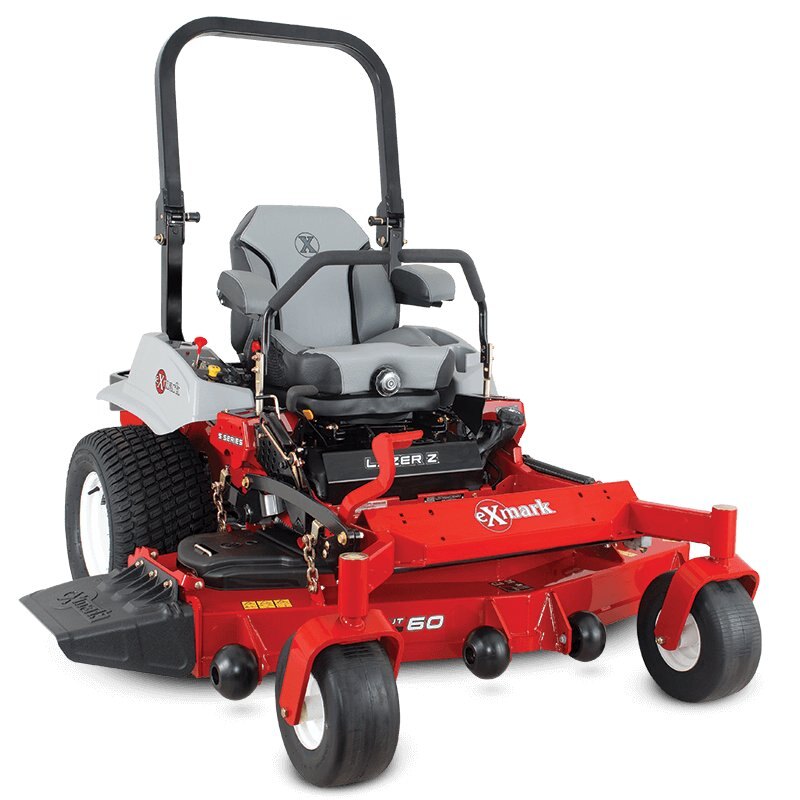

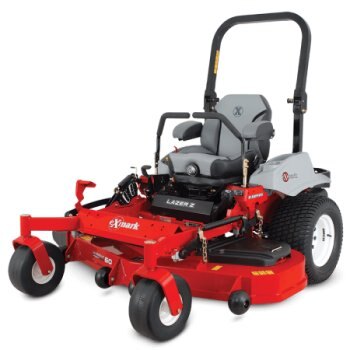

With the S-Series of zero turn riders, you can choose from eight different engines, including an eco-friendly, Electronic Fuel Injection (EFI), propane option. Four UltraCut™ Series 4 cutting deck sizes are available in 52, 60 or 72 inches. Want tough? Try a 10-gauge, formed and continuously seam-welded top and a 7-gauge side skits. All with welded spindle mounting sites and full-floating 4-point suspension with four adjustable anti-scalp rollers. |
| Features |
 Doing More With Propane
Our EFI system optimizes fuel delivery in real-time, which improves efficiency and performance. This, in combination with lower propane cost reduces operating expenses versus typical gas-powered mowers. |
 Built to Last
Want tough? Try a 10-gauge, formed and continuously seam-welded top, and a 7-gauge side skirt. All with welded spindle mounting sites. And, full-floating, 4-point suspension with four adjustable anti-scalp rollers. |
 Less Time At The Pump
Gas-powered S-Series models have a single 12-gallon tank with one fill location. |
 On-Board Diagnostics
Check vital functions at a glance on the digital screen. An electronic fuel gauge with low fuel warning on all Lazer Z units, battery voltage warning, hour meter and OPC safety switch monitoring make troubleshooting easy. |
 Fewer Grease Points
With just four grease points that only need annual greasing, the Lazer Z delivers maximum performance with minimum maintenance. Greaseless spindles and only four grease points on the entire machine. |
 Ultracut Series 4 Deck
This full-floating deck uses maintenance free spindle with a splined blade driver to stop bolt tightening on impacts. And, our patented bearing design on idler arm pivots only needs annual service. |
 Tool-less Belt Removal
Deck and hydro belt can be installed without using any tools. |
| |
LZS651CKA484A2 |
LZS740AKC524A2 |
LZS740PKC60400 |
|
Steering Control |
Hydraulically dampened twin levers, adjust fore and aft. Adjustable dampeners (3 positions) to customize drive responsiveness. Also adjustable to 2 height positions. |
Hydraulically dampened twin levers, adjust fore and aft. Adjustable dampeners (3 positions) to customize drive responsiveness. Also adjustable to 2 height positions. |
Hydraulically dampened twin levers, adjust fore and aft. Adjustable dampeners (3 positions) to customize drive responsiveness. Also adjustable to 2 height positions. |
|
Casters |
.50" thick caster yoke arms. |
.50" thick caster yoke arms. |
.50" thick caster yoke arms. |
|
Drive Tires |
23 x 9.5-12, 4 ply Turf Master® |
23 x 9.5-12, 4 ply Turf Master® |
24 x 12-12, 4 ply Turf Master® |
|
Parking Brake |
Lever-actuated disc brake. |
Lever-actuated disc brake. |
Lever-actuated disc brake. |
|
Electrical |
12-volt battery with 15-amp alternator. |
12-volt battery with 20-amp alternator. |
12-volt battery with 20-amp alternator. |
|
Engine Model |
FX651V |
ECV740 |
PCV740 |
|
Engine Brand |
Kawasaki® |
Kohler® |
Kohler® |
|
Engine Speed |
3,750 RPM |
3,750 RPM |
3,750 RPM |
|
Speed |
Infinitely variable speed selection from 0–10.0 mph (16 kmph) forward, 0–6.0 mph (9.7 kmph) reverse. |
Infinitely variable speed selection from 0–10.0 mph (16 kmph) forward, 0–6.0 mph (9.7 kmph) reverse. |
Infinitely variable speed selection from 0–10.0 mph (16 kmph) forward, 0–6.0 mph (9.7 kmph) reverse. |
|
Fuel Capacity |
12-gallon (45.4-L), single fuel tank with single fill location. |
12-gallon (45.4-L), single fuel tank with single fill location. |
43.5-lb propane tank |
|
Deck Style |
Floating Deck |
Floating Deck |
Floating Deck | |
| |
LZS740PKC72400 |
LZS749AKC604A1 |
LZS749AKC72400 |
|
Steering Control |
Hydraulically dampened twin levers, adjust fore and aft. Adjustable dampeners (3 positions) to customize drive responsiveness. Also adjustable to 2 height positions. |
Hydraulically dampened twin levers, adjust fore and aft. Adjustable dampeners (3 positions) to customize drive responsiveness. Also adjustable to 2 height positions. |
Hydraulically dampened twin levers, adjust fore and aft. Adjustable dampeners (3 positions) to customize drive responsiveness. Also adjustable to 2 height positions. |
|
Casters |
.50" thick caster yoke arms. |
.50" thick caster yoke arms. |
.50" thick caster yoke arms. |
|
Drive Tires |
24 x 12-12, 4 ply Turf Master® |
24 x 12-12, 4 ply Turf Master® |
24 x 12-12, 4 ply Turf Master® |
|
Parking Brake |
Lever-actuated disc brake. |
Lever-actuated disc brake. |
Lever-actuated disc brake. |
|
Electrical |
12-volt battery with 20-amp alternator. |
12-volt battery with 20-amp alternator. |
12-volt battery with 20-amp alternator. |
|
Engine Model |
PCV740 |
ECV749 |
ECV749 |
|
Engine Brand |
Kohler® |
Kohler® |
Kohler® |
|
Engine Speed |
3,750 RPM |
3,750 RPM |
3,750 RPM |
|
Speed |
Infinitely variable speed selection from 0–10.0 mph (16 kmph) forward, 0–6.0 mph (9.7 kmph) reverse. |
Infinitely variable speed selection from 0–10.0 mph (16 kmph) forward, 0–6.0 mph (9.7 kmph) reverse. |
Infinitely variable speed selection from 0–10.0 mph (16 kmph) forward, 0–6.0 mph (9.7 kmph) reverse. |
|
Fuel Capacity |
43.5-lb propane tank |
12-gallon (45.4-L), single fuel tank with single fill location. |
12-gallon (45.4-L), single fuel tank with single fill location. |
|
Deck Style |
Floating Deck |
Floating Deck |
Floating Deck | |
| |
LZS749AKC724A1 |
LZS801GKA524A2 |
LZS801GKA604A1 |
|
Steering Control |
Hydraulically dampened twin levers, adjust fore and aft. Adjustable dampeners (3 positions) to customize drive responsiveness. Also adjustable to 2 height positions. |
Hydraulically dampened twin levers, adjust fore and aft. Adjustable dampeners (3 positions) to customize drive responsiveness. Also adjustable to 2 height positions. |
Hydraulically dampened twin levers, adjust fore and aft. Adjustable dampeners (3 positions) to customize drive responsiveness. Also adjustable to 2 height positions. |
|
Casters |
.50" thick caster yoke arms. |
.50" thick caster yoke arms. |
.50" thick caster yoke arms. |
|
Drive Tires |
24 x 12-12, 4 ply Turf Master® |
23 x 9.5-12, 4 ply Turf Master® |
24 x 12-12, 4 ply Turf Master® |
|
Parking Brake |
Lever-actuated disc brake. |
Lever-actuated disc brake. |
Lever-actuated disc brake. |
|
Electrical |
12-volt battery with 20-amp alternator. |
12-volt battery with 15-amp alternator. |
12-volt battery with 15-amp alternator. |
|
Engine Model |
ECV749 |
FX801V |
FX801V |
|
Engine Brand |
Kohler® |
Kawasaki® |
Kawasaki® |
|
Engine Speed |
3,750 RPM |
3,750 RPM |
3,750 RPM |
|
Speed |
Infinitely variable speed selection from 0–10.0 mph (16 kmph) forward, 0–6.0 mph (9.7 kmph) reverse. |
Infinitely variable speed selection from 0–10.0 mph (16 kmph) forward, 0–6.0 mph (9.7 kmph) reverse. |
Infinitely variable speed selection from 0–10.0 mph (16 kmph) forward, 0–6.0 mph (9.7 kmph) reverse. |
|
Fuel Capacity |
12-gallon (45.4-L), single fuel tank with single fill location. |
12-gallon (45.4-L), single fuel tank with single fill location. |
12-gallon (45.4-L), single fuel tank with single fill location. |
|
Deck Style |
Floating Deck |
Floating Deck |
Floating Deck | |
| |
LZS850EKA604W0 |
LZS850EKA724W0 |
|
Steering Control |
Hydraulically dampened twin levers, adjust fore and aft. Adjustable dampeners (3 positions) to customize drive responsiveness. Also adjustable to 2 height positions. |
Hydraulically dampened twin levers, adjust fore and aft. Adjustable dampeners (3 positions) to customize drive responsiveness. Also adjustable to 2 height positions. |
|
Casters |
.50" thick caster yoke arms. |
.50" thick caster yoke arms. |
|
Drive Tires |
24 x 12-12, 4 ply Turf Master® |
24 x 12-12, 4 ply Turf Master® |
|
Parking Brake |
Lever-actuated disc brake. |
Lever-actuated disc brake. |
|
Electrical |
12-volt battery with 30-amp alternator. |
12-volt battery with 30-amp alternator. |
|
Engine Model |
FX850V |
FX850V |
|
Engine Brand |
Kawasaki® |
Kawasaki® |
|
Engine Speed |
3,750 RPM |
3,750 RPM |
|
Speed |
Infinitely variable speed selection from 0–10.0 mph (16 kmph) forward, 0–6.0 mph (9.7 kmph) reverse. |
Infinitely variable speed selection from 0–10.0 mph (16 kmph) forward, 0–6.0 mph (9.7 kmph) reverse. |
|
Fuel Capacity |
12-gallon (45.4-L), single fuel tank with single fill location. |
12-gallon (45.4-L), single fuel tank with single fill location. |
|
Deck Style |
Floating Deck |
Floating Deck | |
