ID # 40351773

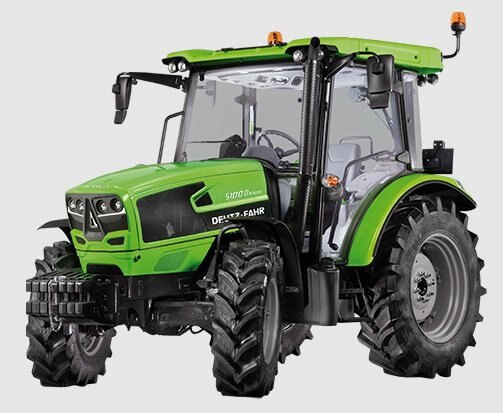

Deutz-Fahr 5080D

  • Deutz Fahr 5080D
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

Series 5D Keyline

Multi-role utility tractor in an economical package.

The 5D Series tractors are designed as a multi-role utility tractor that are versatile, reliable, and economical. Perfect for livestock operations, haying and property maintenance

FARMotion 2.9 liter, 3-cylinder diesel engine from Deutz-Fahr – 80 gross horsepower

Tier 4 emissions compliant engine with “No Maintenance” emissions system: No SCR, No DPF

Mechanical synchro shuttle with large 12″ diameter dry disc clutch

4wd front axle with integrated front axle brakes

540 RPM rear PTO with dry clutch, manual hand-lever engagement (LD, MD, HD)

Up to 13.2 gpm hydraulic flow; 2 rear remote valves standard

Rear 3-point hitch with up to 5,500 lb lift capacity; mechanical control

Large, flat-platform cab; steel hood and fenders; rubber floor mat; training seat

Entry from both sides, suspended seat

82.6 inch wheelbase, 6,800 lb base weight, up to 10,500 lb max. permissible weight
Specifications
Model
5080D
Category Name
Tractors
Year
2026
Sale Type
New
Manufacturer
Deutz-Fahr
Engine
FARMotion
Max. Torque
252 lb-ft @ 1600 RPM
Bore X Stroke
2.9 liter, 3 cylinder
Fuel Capacity
19.8 gallons
Cylinder Displacement
2.9 liter, 3 cylinder
Rated / Gross Horsepower
75 / 80
RPM At Rated / Gross Power
2200 / 2000
cab/operations

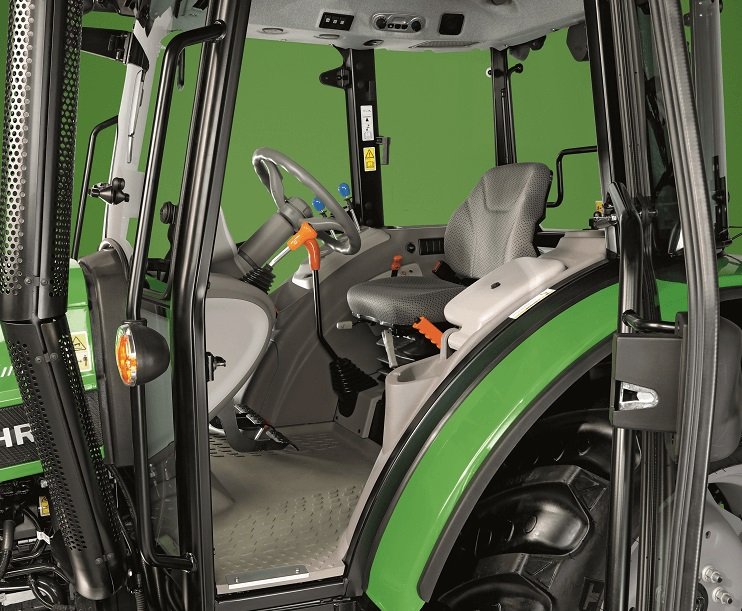

The spacious cabin features a large flat rubber floor. A responsive and effective HVAC system keeps the operator comfortable in all conditions.

A suspended seat and adjustable steering column makes driving more comfortable. A second trainers seat has plenty of space in the cab.

The digital and analog front dash keeps the operator informed. Transmission levers and push button controls are positioned around the tractor for easy reach and operation.

Forward work lights in the front hood, and a rear work light at the back of the tractor allow for working at night. 7-pin trailer socket and rear view mirrors are standard equipment.

Deutz Fahr 5080DCab layout designed for work and comfort

The spacious cabin features a large flat rubber floor. A responsive and effective HVAC system keeps the operator comfortable in all conditions.

A suspended seat and adjustable steering column makes driving more comfortable. A second trainers seat has plenty of space in the cab.

The digital and analog front dash keeps the operator informed. Transmission levers and push button controls are positioned around the tractor for easy reach and operation.

Forward work lights in the front hood, and a rear work light at the back of the tractor allow for working at night. 7-pin trailer socket and rear view mirrors are standard equipment.

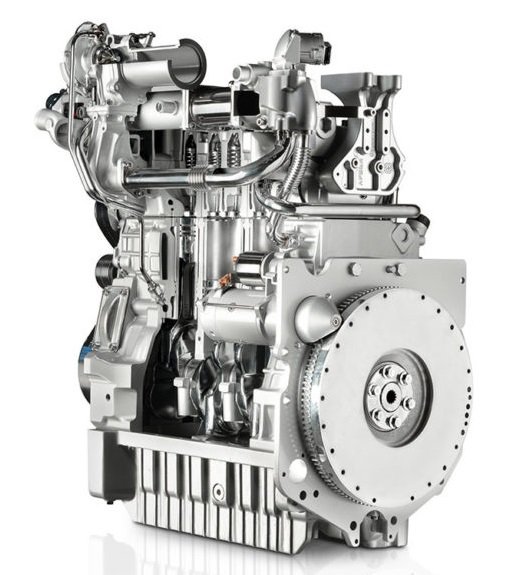

engine

Deutz Fahr 5080DLegendary performance.

Power and performance with lower fuel consumption – something that Deutz Fahr engines are known for…
State-of-the-art design and manufacturing techniques promotes industry-leading reliability



driveline

Compact format meets great precision.

The right transmission for any operating profile and the right speed for any work – you can meet any challenge with the new 5D Series.

Deutz Fahr 5080DTransmission

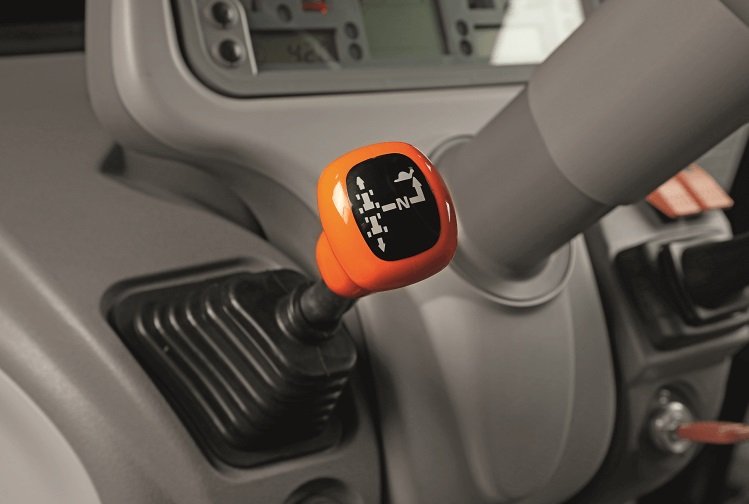

Mechanical Synchronized Shuttle transmission provides convenient on-the-roll shifting from forward to reverse and back again without grinding gears.

Inline Shuttle Lever on the right side allows for simple, smooth shifting.

Large Dry Disc Clutch with a diameter of 12 inches means greater surface area and a long service life.  The single disc dry clutch operates with a single stage foot pedal.

5080D with 15×15 Speeds include a 5-speed synchronized main gear box and 3 ranges with creeper gear set.  25 mph capable.

Deutz Fahr 5080DRear Axle

Heavy Duty  Construction

  • Solid cast steel design with flange
  • Hydraulic wet disc service brakes
  • Planetary final drives
  • Sight glass fluid check

Differential Lock

  • Electro-hydraulic push button

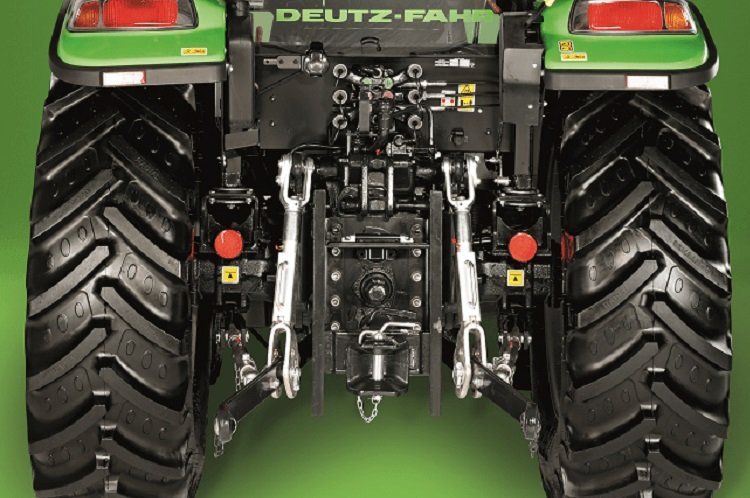

Deutz Fahr 5080DPTO

540 RPM Rear PTO Speed

  • Independent PTO
  • 6-spline shaft, 1 3/8-inch diameter

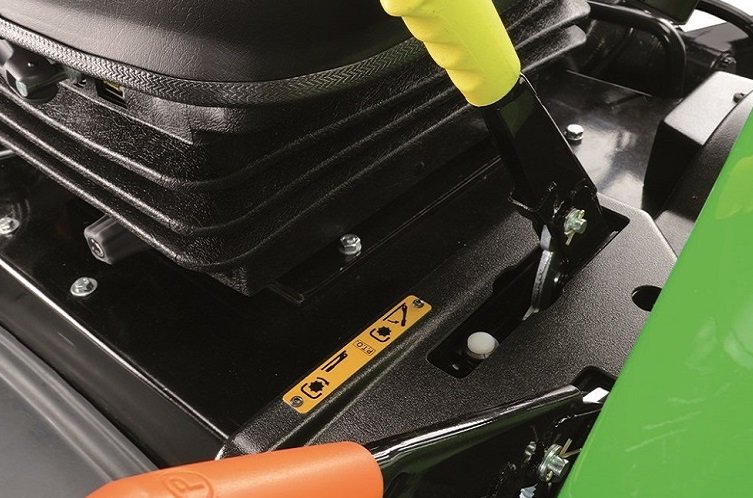

Hand Lever Engagement

  • Dry single disc PTO clutch
  • Able to manually modulate PTO engagement

Deutz Fahr 5080DFront Axle

Heavy Duty Axle Design

  • Manufactured in-house by Deutz-Fahr
  • Solid steel casting with center differential
  • Outboard planetary final drives

4 Wheel Drive

  • Electro-hydraulic push button 4wd
  • Locking front differential

Integrated Front Axle Brakes

  • Internal wet disc brakes at the axle ends
  • True 4-wheel braking increase operator comfort and safety
