ID # 40351723

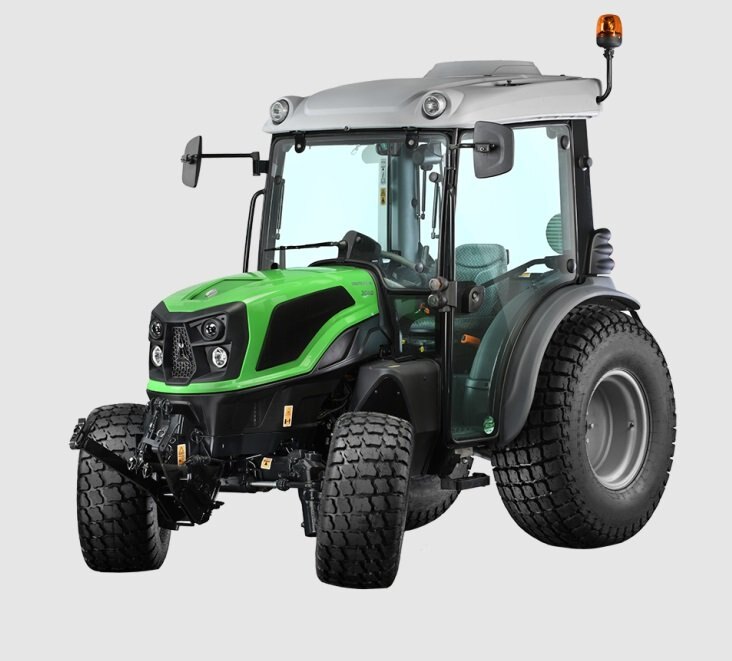

Deutz-Fahr 3060

  • Deutz Fahr 3060
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

3 Series

Small Size, Big Performance

The Deutz-Fahr 3060 may be small, but that doesn’t mean you should underestimate it. With its high performance, low emissions, and new technological features, this tractor is the ideal workhorse for greenhouses, orchards, vineyards, and other specialty operations.
  • FARMotion 2.2L, 4-cylinder turbocharged engine with water-cooling
  • Fully mechanical shuttle transmission for low power losses and high fuel efficiency
  • Transmission fitted with 4 speeds and 3 ranges (12 forward + 12 reverse)
  • Mechanically-engaged rear 540 PTO
Specifications
Model
3060
Category Name
Tractors
Year
2026
Sale Type
New
Manufacturer
Deutz-Fahr
Engine
FARMotion
Max. Torque
125.4 ft. lbs
Fuel Capacity
10.6 gal
Max. Horsepower
59
Cylinder Displacement
4 cylinder, 2.2L
Engine Speed At Max. Power
2600 rpm
Engine Speed At Maximum Torque
1600 rpm
cabin

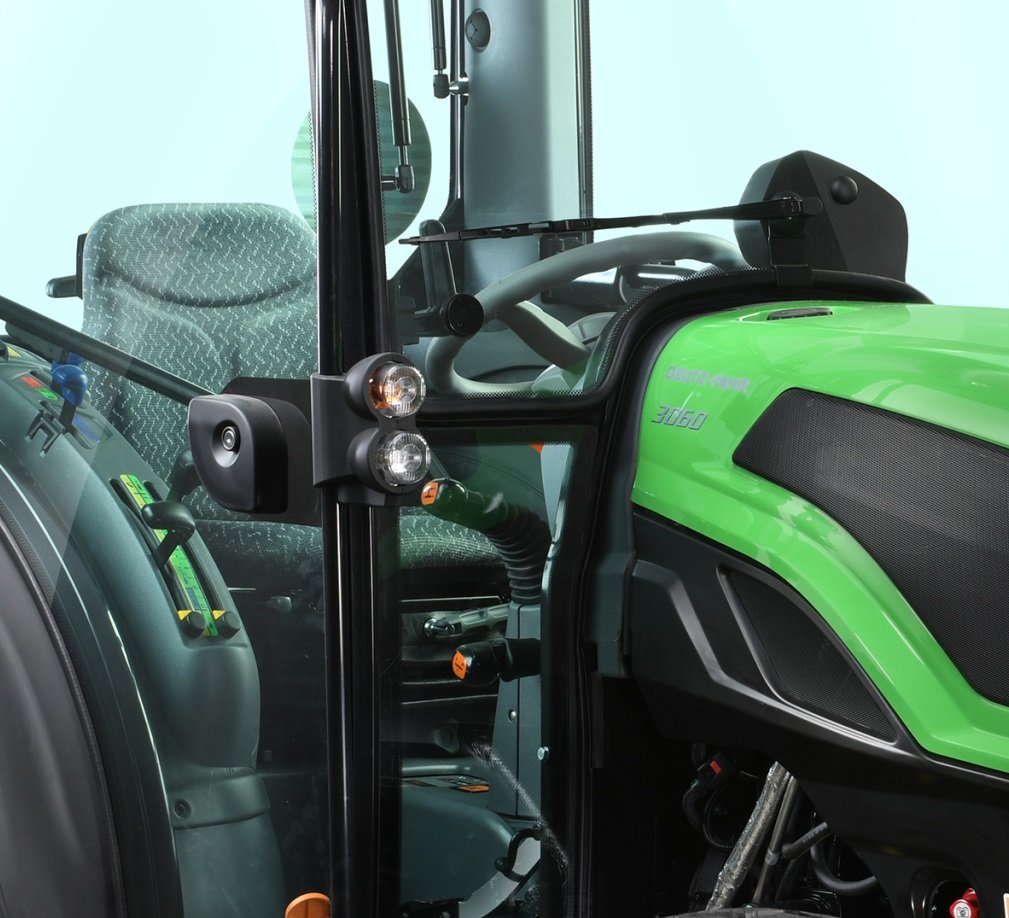

Deutz Fahr 3060Comfort and Convenience in a Compact Design

  • All controls are color-coordinated and easy to identify to make operation simple and comfortable
  • Large glass doors for easy entry and excellent visibility
  • New steering wheel for improved ergonomics



engine

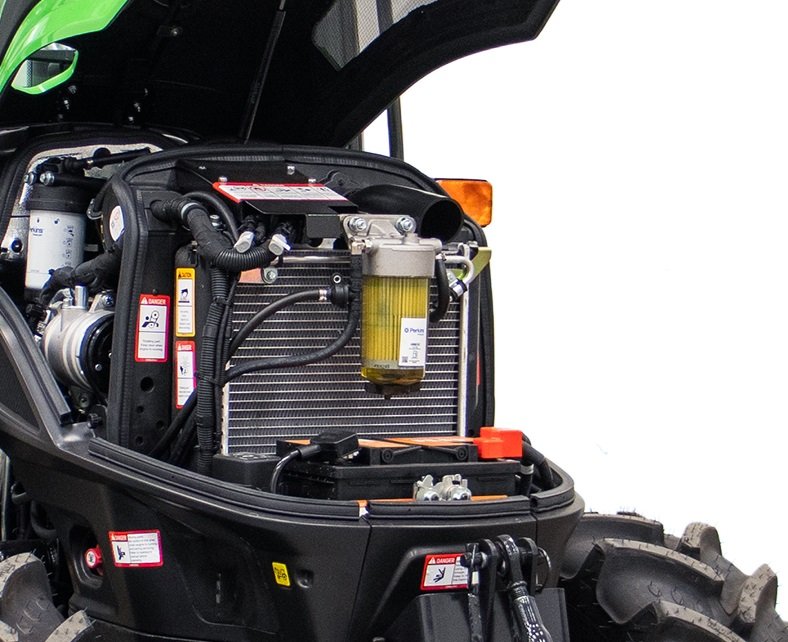

Deutz Fahr 3060FARMotion Engines

  • FARMotion 4-cylinder, 2.2L engine with a maximum of 59 horsepower
  • New powerful Stage V engine
  • Fuel-efficient turbocharged engine with water cooling



driveline

However you change gears, achieving the right speed is always possible.

The transmission systems of the new DEUTZ-FAHR specialty tractors have also been specifically developed to meet the high demands of modern agricultural businesses.

Deutz Fahr 3060Transmission

The fully mechanical transmission ensures low power losses through driveline. That means high fuel efficiency and high pulling capability in any condition

  • 4-speed and 3-range transmission (12 forward + 12 reverse)
  • Creeper can be added as optional
  • Gears conveniently located under the steering wheel

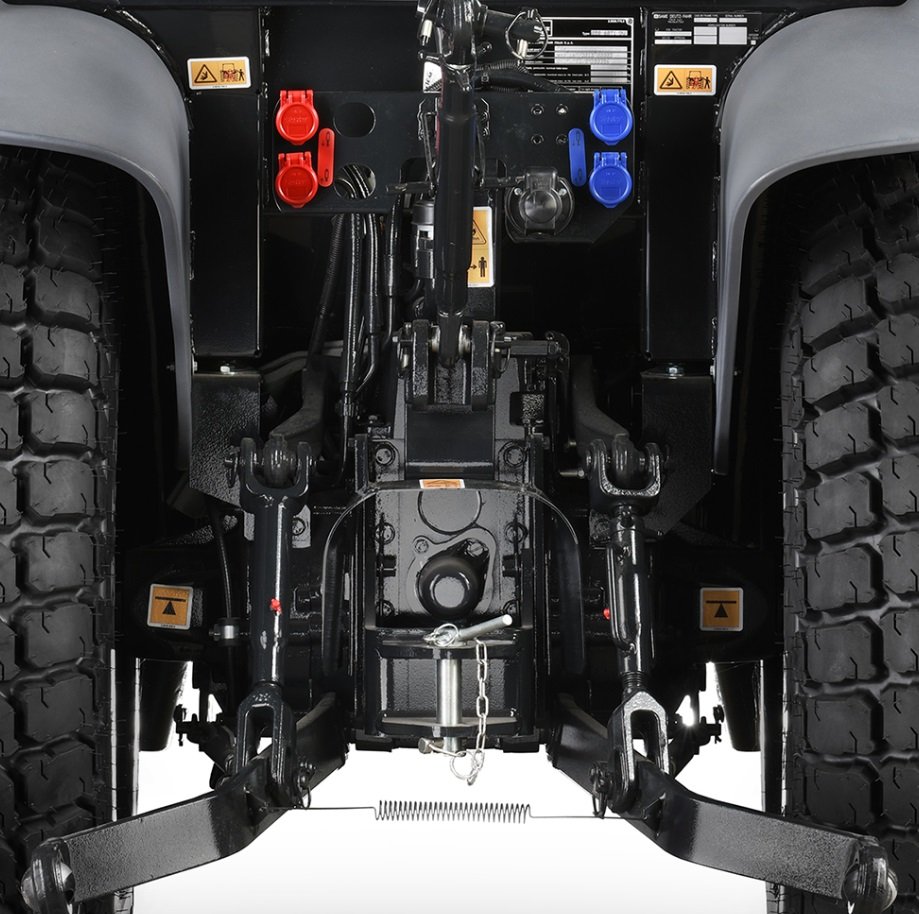

Deutz Fahr 3060Rear Axle

The rear axle of the Deutz-Fahr 3060 is a heavy-duty unit that's built to handle the demands of agricultural work. With a rear lift capacity of up to 2,645 lbs, it has the reliability and durability for practically any job.

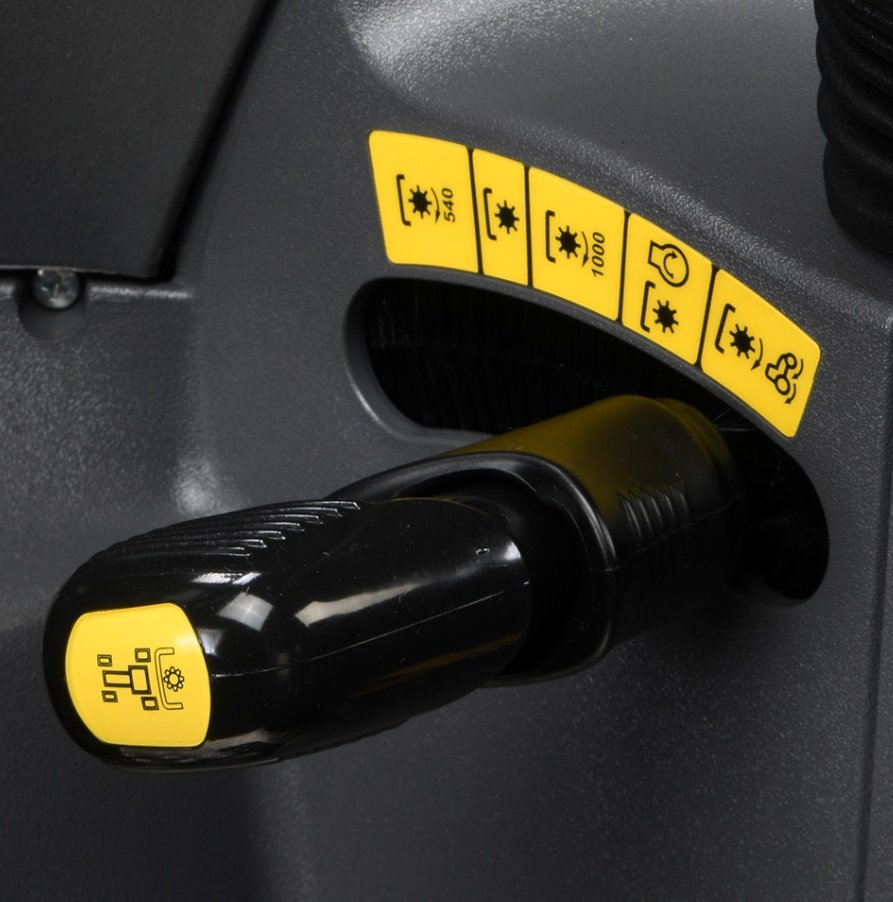

Deutz Fahr 3060PTO

Mechanically-engaged rear 540 PTO, with an optional electrohydraulic-engaged front 1000 PTO

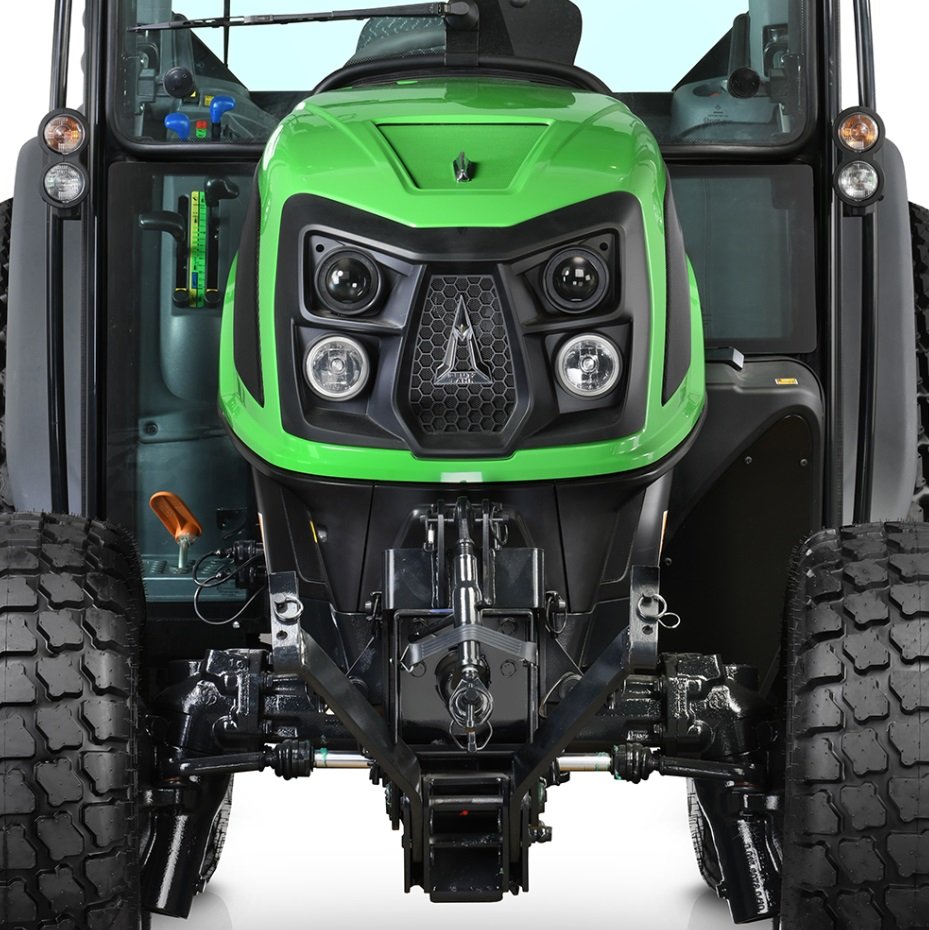

  • Deutz Fahr 3060Front lift capacity of up to 1,300 lbs
  • 3-point hitch with automatic and lower links
  • Front axle with 100% differential lock
