ID # 40351707

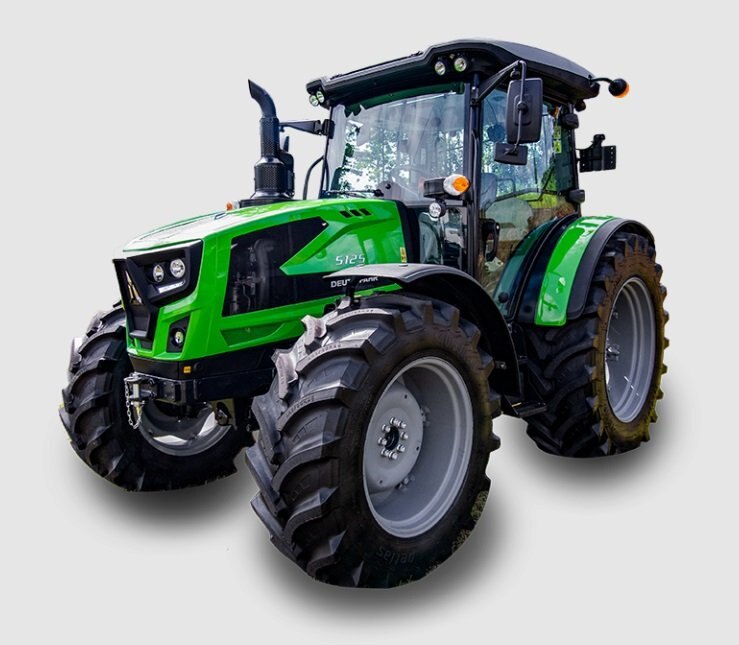

Deutz-Fahr 5125

  • Deutz Fahr 5125
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

All-New 5 Series

Working comfort and proven reliability.

Farmers have to work hard all throughout the year. That's why having a utility tractor that is comfortable, reliable, and powerful makes all the difference.

FARMotion 3.8 liter, 4-cylinder diesel engine – 106 to 126 horsepower

Power Shuttle with Stop & Go

Built-in standard 4-wheel braking

Electro-hydraulic engagement for 4wd and differential lock

4-speed rear PTO and electro-hydraulic engagement

14.5 gpm hydraulic flow; 3 rear spool valves

Rear 3-point hitch with up to 11,900 lb lift capacity on the 5125
Specifications
Model
5125
Category Name
Tractors
Year
2026
Sale Type
New
Manufacturer
Deutz-Fahr
Engine
FARMotion
Max. Torque
374 lb-ft @ 1400 RPM
Fuel Capacity
38.3 gallons
Cylinder Displacement
3.8 liter, 4 cylinder
DEF (AdBlue) Capacity
2.6 gallons
Rated / Max. Horsepower
120 / 126
RPM At Rated / Gross Power
2200 / 2000
cab/operations

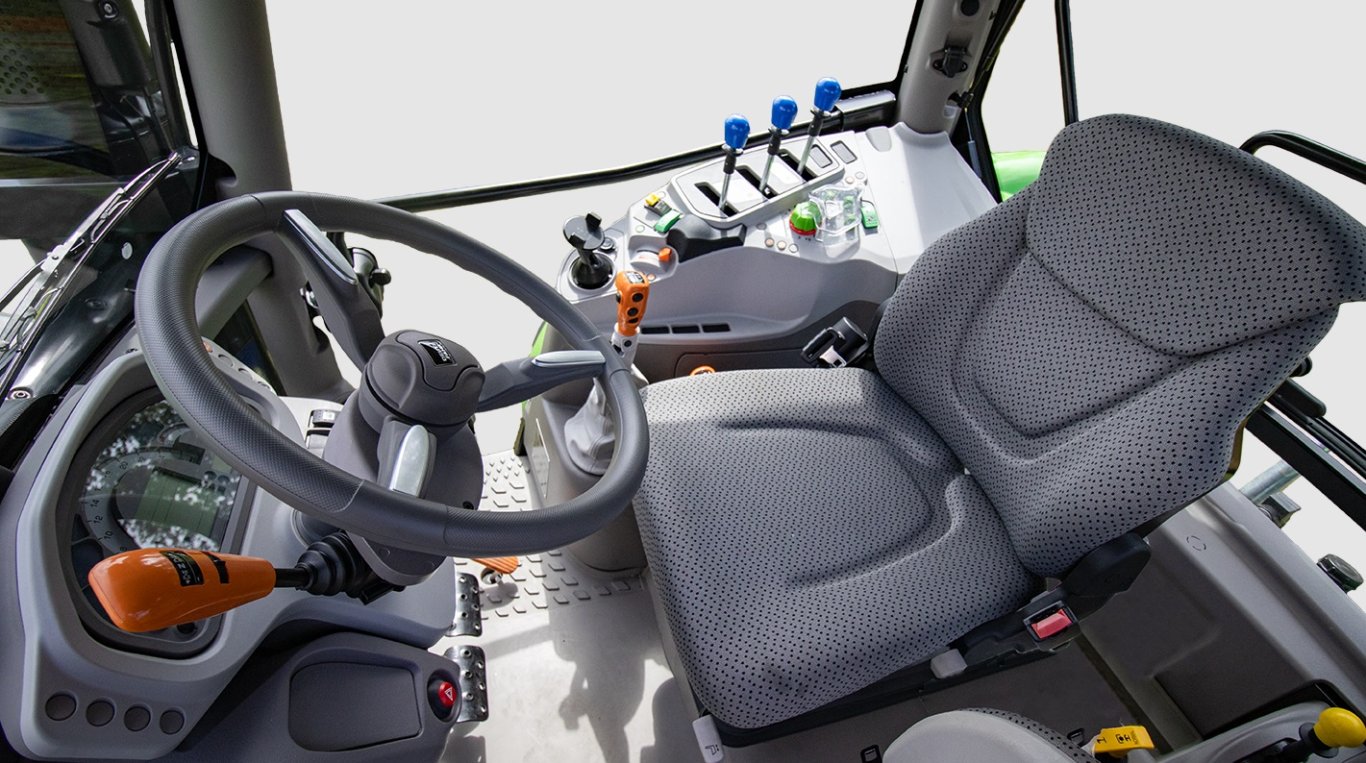

Deutz Fahr 5125Quiet, Comfortable, Well Laid Out, and Highly Functional

These are things that operators are saying about the 5 Series cabin. From the premium components to the comfortable design layout, these cabins are industry-leading.

The cab is a spacious and comfortable work environment for operators, with excellent visibility and easy-to-reach controls. It is also equipped with a variety of features to keep operators comfortable and productive, including a responsive HVAC system, adjustable steering column, and suspended seat.

Deutz Fahr 5125

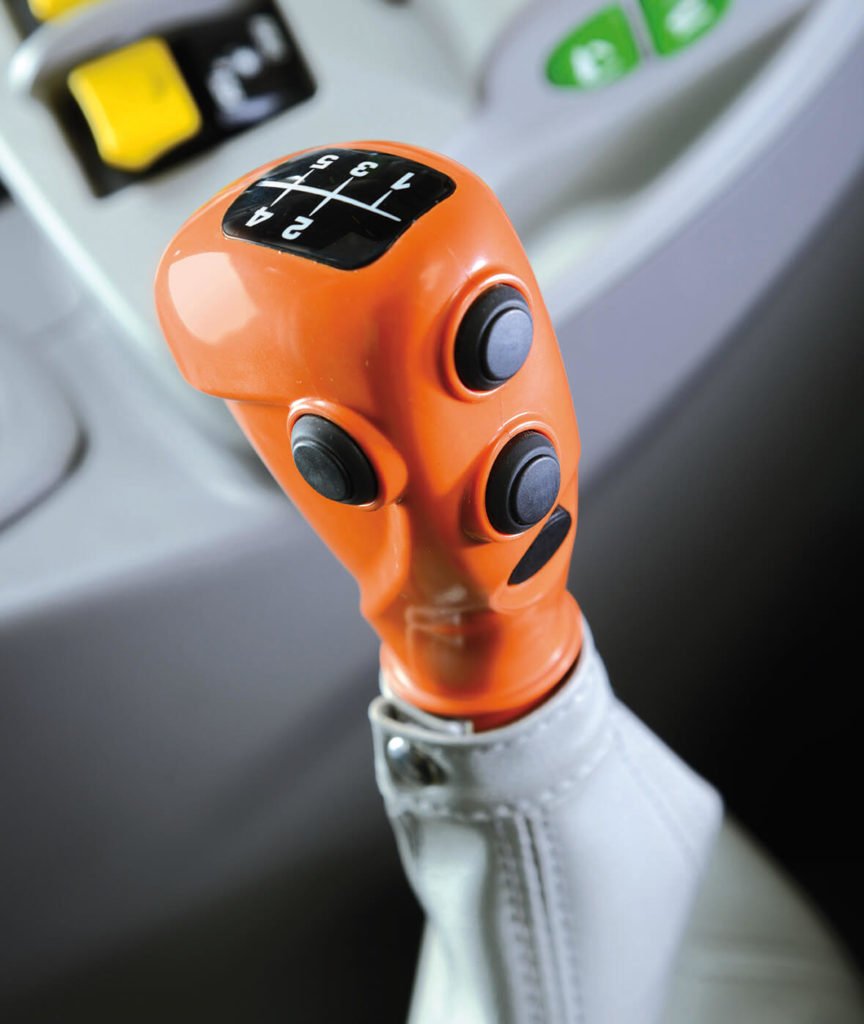

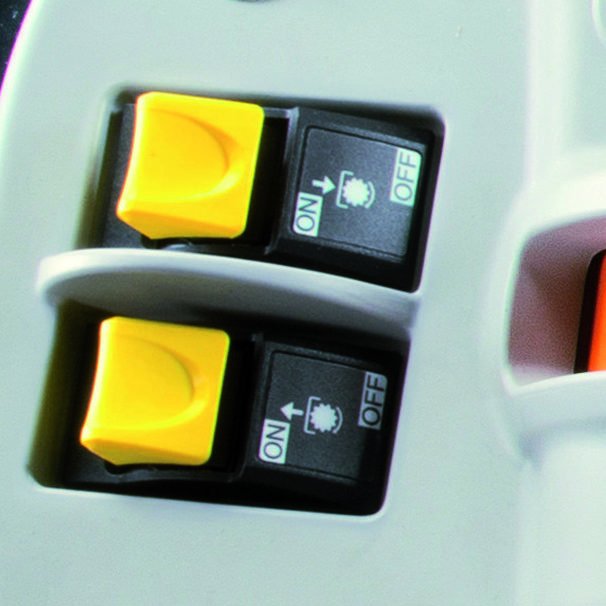

  • Precisely and conveniently color-coded for all operating functions

Deutz Fahr 5125

  • The InfoCentre. Every operating status constantly in view. Analogue and digital.



engine

Deutz Fahr 5125Comfortable performance.

A proven engine with a long history of reliability - this is at the heart of the new 5 Series.

These tractors are designed with a 3.8L, 4-cylinder FARMotion engine that delivers high torque and excellent fuel economy.



driveline

Deutz Fahr 5125Transmission

For all variants, maximum efficiency and reliability is guaranteed as our transmissions are proven reliable with nearly 20 years of service history.

Standard for the 5 Series is the electro-hydraulic power shuttle with a sense clutch to provide easily selectable shuttle sensitivity settings. This allows you to move from a soft setting for smooth shuttling to a higher setting for heavier, more aggressive jobs.

Deutz Fahr 5125Rear Axle

Heavy Duty  Construction

  • Solid cast steel
  • Power-assist hydraulic wet brakes
  • Planetary final drives isolated in heavy gear oil
  • Push button diff. lock

Separate Fluid Reservoirs

  • Hydraulic oil is separate from transmission oil
  • No cross-contamination
  • Low hydraulic oil does not affect transmission lubrication
  • Sight glass check of transmission fluid

Dual Wheel Capable

  • Bolt-on bar axle adapters

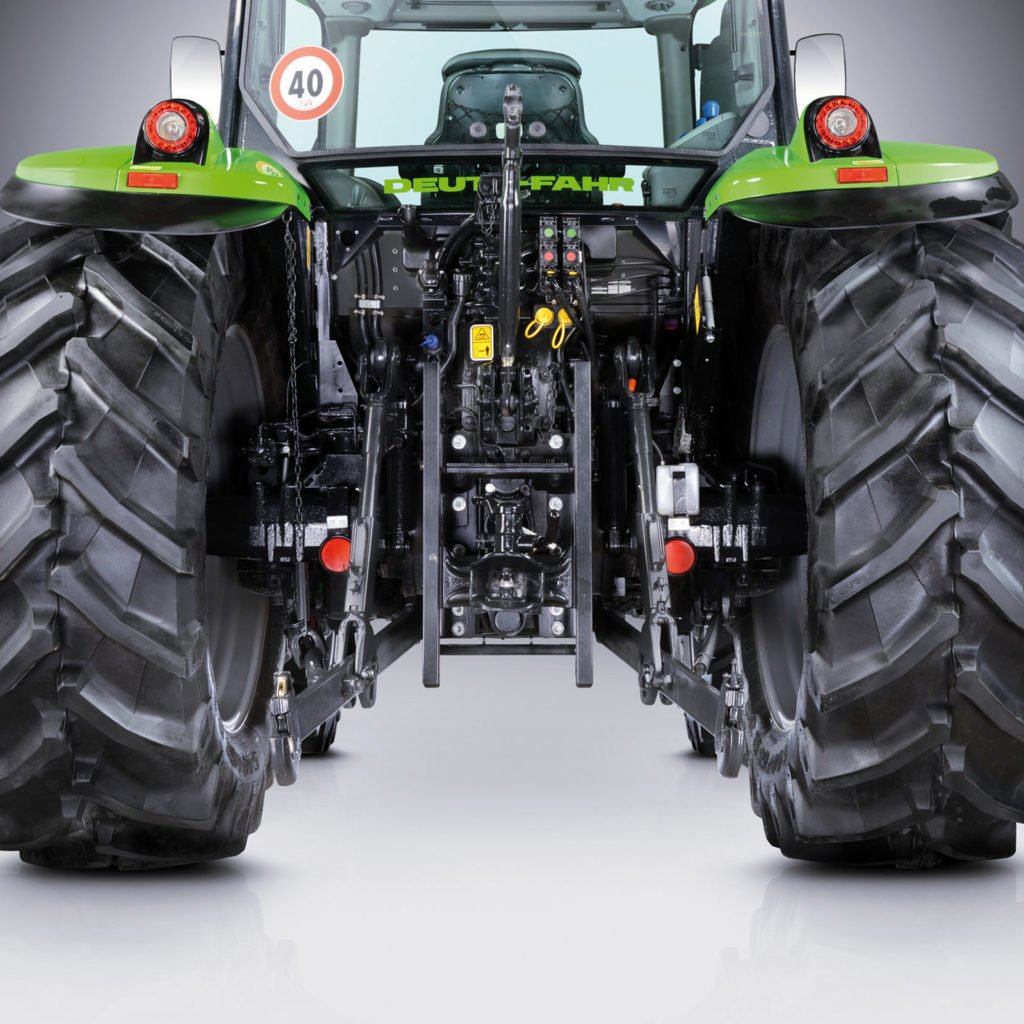

Deutz Fahr 5125PTO

4 Rear PTO Speeds

  • 540, 540E, 1000 and 1000E RPM speeds on the 5125
  • Both models offer standard and economy PTO
  • Electrohydraulic engagement

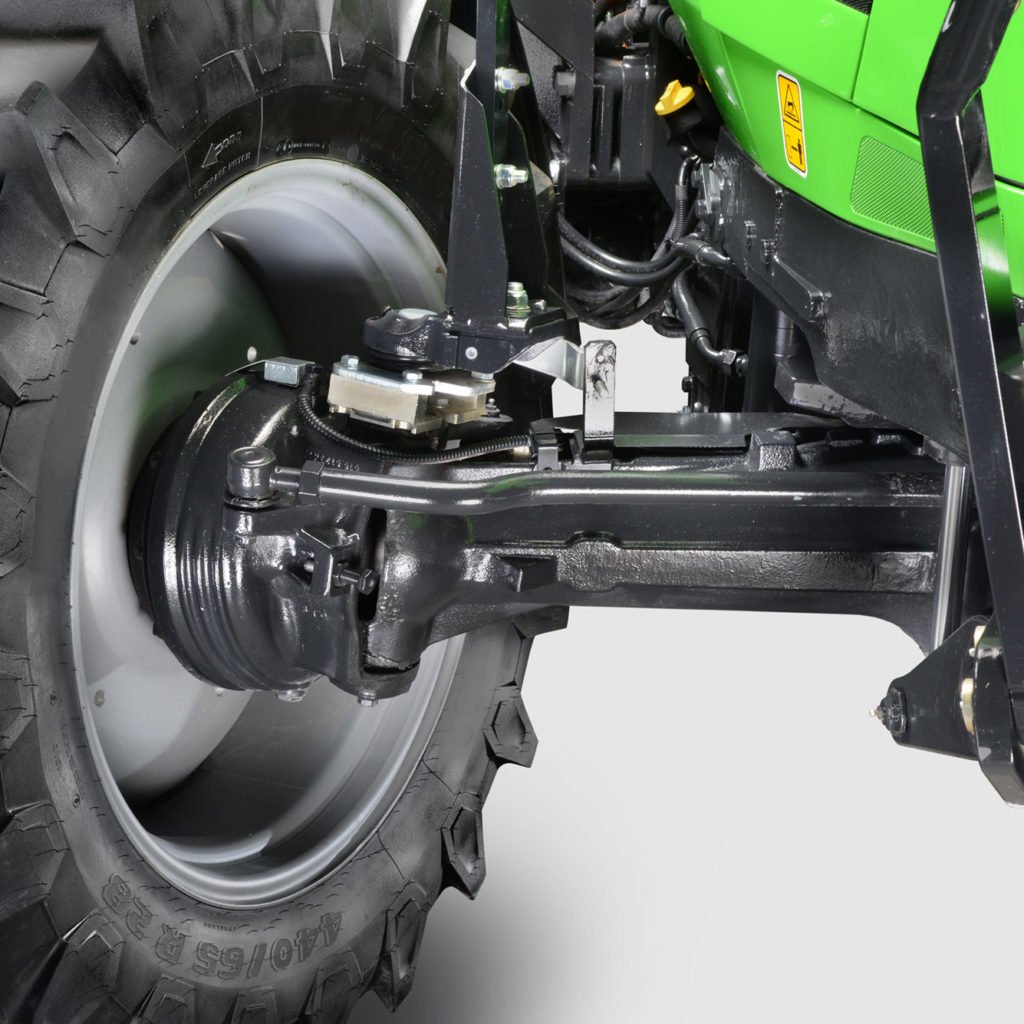

Deutz Fahr 5125Front Axle

Mechanical Front Wheel Drive Axle

  • Electrohydraulic engagement for 4wd and diff. lock
  • Built-in 4-wheel braking
  • 55° steering angle
  • Independent steering pump
